Introduction
This manual provides essential information for the installation, operation, and maintenance of your Okin Refined-R Model: JLDQ.12.157.333L Recliner Motor. This is an original Okin JLDQ motor designed for power recliner, electric sofa, and lift chair applications. It is compatible with various JLDQ.12.157.333 series models, including JLDQ.12.157.333D/E/F/G/H/I/J/K/O/P/Q, with minor differences that do not affect functionality.
Safety Information
- Always disconnect power before performing any installation, maintenance, or troubleshooting.
- Ensure all connections are secure and correctly wired to prevent electrical hazards.
- Do not operate the motor if any part is damaged or if it makes unusual noises.
- Keep hands and loose clothing clear of moving parts during operation.
- This motor is designed for indoor use only.
- If you are unsure about any step, consult a qualified technician.
Product Overview
The Okin JLDQ.12.157.333L actuator motor set consists of one motor and one connector. The connector features a 2-pin plug with a clip, designed for connection to the master motor or power supply.
Figure 1: Complete Okin JLDQ.12.157.333L motor assembly, showing the linear actuator and motor housing.
Figure 2: Detailed view of the motor label, indicating model JLDQ.12.157.333L, serial number Q21118492 00007, and electrical specifications (29V, 48W).

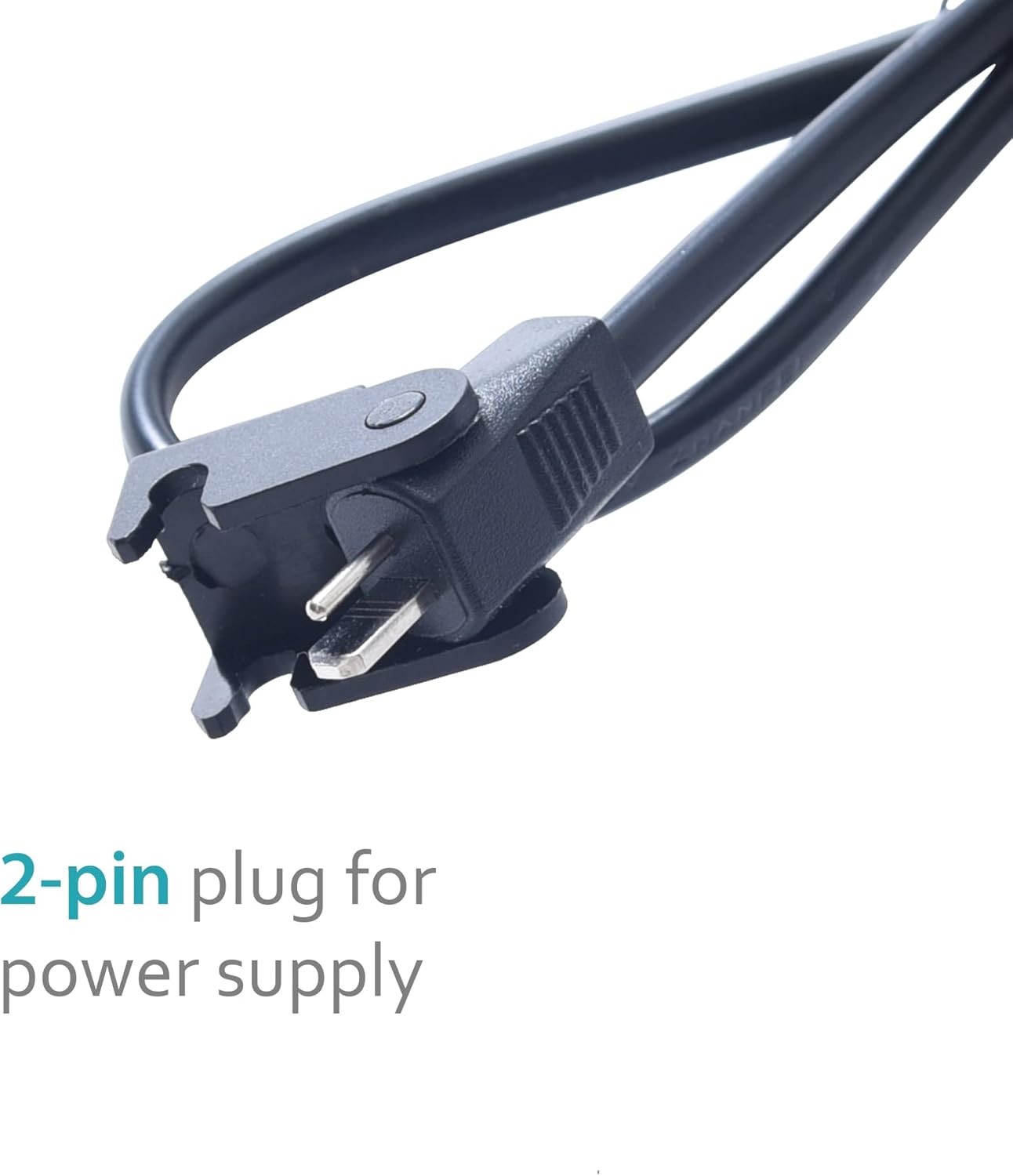

Figure 3: The 2-pin plug and clip connector for the power supply, essential for motor operation.
Setup and Installation
This Okin refined motor is designed for easy installation. Before proceeding, ensure the new motor matches your existing recliner motor's brand, model, minimum install dimension, stroke, and plugs. This motor is a direct replacement for OKIN motor model JLDQ.12.157.333L and compatible with JLDQ.12.157.333D/E/F/G/H/I/J/K/O/P/Q.
- Disconnect Power: Unplug the recliner or lift chair from the main power outlet.
- Access Motor: Carefully turn the furniture over or access the motor compartment.
- Remove Old Motor: Disconnect the existing motor's power plug and any other connectors. Unscrew the mounting bolts (typically 6 screws of the same size) that secure the motor to the frame. Gently remove the old motor.
- Install New Motor: Position the new Okin JLDQ.12.157.333L motor in the same location as the old one. Align the mounting holes and secure the motor with the screws removed earlier. Ensure it is firmly attached.
- Connect Wiring: Connect the 2-pin plug of the new motor to the corresponding power supply connector. Ensure the clip is securely fastened. Connect any other necessary wires (e.g., hand control).
- Test Functionality: Once installed, carefully return the furniture to its upright position. Reconnect the power. Test the recliner's functions (e.g., recline, lift) to ensure the motor operates smoothly and quietly.
Figure 4: Example of the motor assembly within a recliner mechanism, illustrating its compact design.
Operating Instructions
The Okin JLDQ.12.157.333L motor operates in conjunction with your recliner's existing control system (e.g., hand remote, buttons). Once installed and connected, the motor will respond to commands from the control unit to extend or retract the linear actuator, facilitating the reclining or lifting motion of your furniture.
- Ensure the recliner is connected to a stable power source.
- Use the hand control or integrated buttons to initiate movement.
- The motor has an operation frequency of "On 1 min/Off 8 min" to prevent overheating. Avoid continuous operation for extended periods.
- Do not force the recliner's movement manually if the motor is engaged.
Maintenance
The Okin JLDQ.12.157.333L motor is designed for durability and requires minimal maintenance. Regular checks can help ensure its longevity.
- Cleaning: Keep the motor and surrounding area free from dust and debris. Use a dry, soft cloth for cleaning. Do not use liquid cleaners directly on the motor.
- Connections: Periodically check all electrical connections to ensure they are secure and free from corrosion.
- Moving Parts: Inspect the linear actuator rod for any obstructions or damage. Ensure smooth movement. No lubrication is typically required for this sealed unit.
- Cable Management: Ensure power cables are not pinched or tangled, which could lead to damage.
Troubleshooting
If your recliner motor is not functioning correctly, follow these troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not operate. | No power, faulty switch/remote, loose connection, motor overload. |
|
| Motor operates but recliner does not move. | Actuator rod disconnected, mechanical obstruction. |
|
| Unusual noises from motor. | Internal damage, foreign object. |
|
Note: Always troubleshoot the switch and power supply first, then check the motor and plug to ensure it matches your recliner motor.
Specifications
| Feature | Detail |
|---|---|
| Model | JLDQ.12.157.333L |
| Appearance | Black (PA), Silver White (Aluminum) |
| Stroke | 333 mm |
| Minimum Dimensions (Shrink) | 157 mm |
| Maximum Dimensions (Extend) | 490 mm |
| Load (Push Force) | 750 N |
| Load (Pull Force) | 750 N |
| Operation Frequency | On 1 min / Off 8 min |
| Input Voltage | 29V DC |
| Power Consumption | 48W |
| Item Weight | 4.19 pounds |
| Product Dimensions | 17.7 x 4 x 3 inches |
| Country of Origin | China |
Figure 5: Visual summary of key product features and dimensions.
Warranty and Support
For warranty information or technical support, please refer to the official Okin website or contact your point of purchase. Ensure you have your model number (JLDQ.12.157.333L) and serial number (if available on your specific unit, e.g., Q21118492 00007) ready when contacting support.
For more information about Okin and their commitment to quality, you can visit the Okin Store on Amazon.
