1. Introduction
Thank you for choosing the KXD 702 49cc Dirt Bike. This manual provides essential information for the safe operation, maintenance, and care of your dirt bike. Please read this manual thoroughly before assembly or operation to ensure proper use and to prevent injury or damage.
The KXD 702 is designed for off-road recreational use and is not street legal. It features a 49cc single-cylinder, two-stroke, air-cooled engine, disc brakes, and a pull starter. This model is suitable for junior riders under adult supervision.

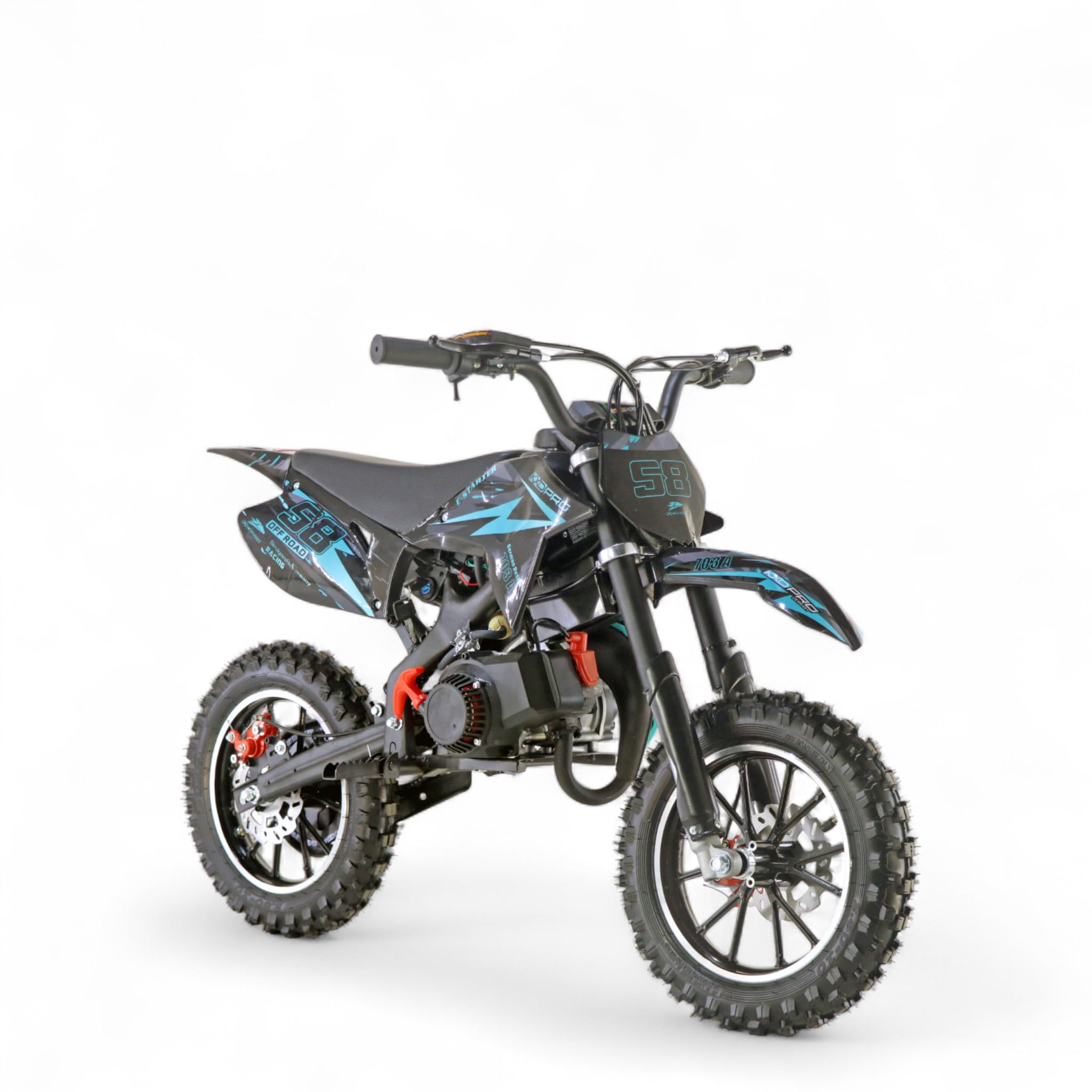

Figure 1.1: Front view of the KXD 702 49cc Dirt Bike. This image shows the overall design and appearance of the dirt bike.
2. Safety Information
Your safety and the safety of others are paramount. Always follow these safety guidelines:
- Off-Road Use Only: This dirt bike is not approved for public roads or highways. Use only on private property with permission.
- Protective Gear: Always wear a helmet, eye protection, gloves, long sleeves, long pants, and sturdy boots.
- Adult Supervision: Riders must be supervised by a responsible adult at all times.
- Rider Weight Limit: Do not exceed the maximum load capacity of 60 kg (132 lbs).
- Pre-Ride Inspection: Before each ride, check brakes, tires, chain, and all fasteners.
- Fuel Handling: Handle fuel in a well-ventilated area, away from open flames or sparks. Turn off the engine before refueling.
- Engine Heat: The engine and exhaust system become very hot during operation. Avoid contact to prevent burns.
- Throttle Control: The bike features a 3-level adjustable throttle. Ensure it is set appropriately for the rider's skill level.
3. Product Features
The KXD 702 49cc Dirt Bike is equipped with the following key features:
- Engine: 49cc single-cylinder, two-stroke, air-cooled engine.
- Fuel System: 1.9-liter fuel tank capacity, requires 1:25 oil/petrol mix.
- Start System: Easy-to-use pull starter.
- Brakes: Reliable disc brake system for effective stopping power.
- Suspension: Aluminium mono damper for improved ride comfort and handling.
- Tires: Durable 2.5-10 tires with large studs for optimal grip on various terrains.
- Throttle: 3-level adjustable throttle for speed control.
- Ergonomic Design: Ergonomically shaped seat for rider comfort.
Figure 3.1: View of the 49cc engine and footpeg. This image highlights the engine assembly and the rider's footrest.
4. Setup and Assembly
The KXD 702 Dirt Bike may require some assembly upon arrival. Follow these general steps:
- Unpacking: Carefully remove all components from the packaging. Retain packaging for future transport or storage.
- Handlebar Installation: Attach the handlebars to the steering column. Ensure they are centered and securely tightened.
- Wheel Installation (if separate): If wheels are not pre-installed, attach them according to the specific instructions provided with your bike. Ensure all axle nuts are tightened to the manufacturer's specifications.
- Fluid Checks:
- Fuel: Fill the tank with the correct 1:25 oil/petrol mixture.
- Brake Fluid: Check brake fluid levels and ensure no air is in the lines.
- Pre-Ride Inspection: Before the first ride, perform a thorough inspection as outlined in the Safety Information section. Check all bolts and fasteners for tightness.
Figure 4.1: Close-up of the handlebars and throttle assembly. This image shows the controls for acceleration and braking.
5. Operating Instructions
5.1 Starting the Engine
- Fuel Valve: Ensure the fuel valve is in the "ON" position.
- Choke: If the engine is cold, set the choke lever to the "ON" or "START" position.
- Pull Starter: Grip the pull starter handle firmly and pull it smoothly and quickly until the engine starts. Do not pull the cord to its full extension or let it snap back.
- Warm-up: Once the engine starts, allow it to warm up for a minute or two. Gradually move the choke lever to the "OFF" position as the engine warms.
Figure 5.1: Close-up of the pull starter mechanism. This is used to manually start the engine.
5.2 Riding
- Throttle Control: Gently twist the throttle grip to accelerate. The 3-level throttle limiter can be adjusted to control maximum speed.
- Braking: Apply both front and rear disc brakes smoothly and evenly to slow down or stop. Avoid sudden, hard braking, especially on loose surfaces.
- Steering: Lean into turns and use the handlebars for direction control.
- Stopping the Engine: To stop the engine, locate the kill switch (usually on the handlebars) and press it.
6. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your KXD 702 Dirt Bike.
- Fuel Mixture: Always use a 1:25 ratio of two-stroke oil to petrol. Using incorrect fuel can damage the engine.
- Chain Maintenance: Regularly inspect the drive chain for proper tension and lubrication. Clean and lubricate the chain with suitable chain lubricant after every few rides or when dirty.
- Brake Inspection: Check brake pads for wear and brake levers for proper function. Ensure brake cables are free from kinks and properly adjusted.
- Tire Pressure: Maintain correct tire pressure (2.5-10 tires). Refer to the tire sidewall for recommended pressure or consult a professional.
- Fastener Check: Periodically check all nuts, bolts, and fasteners for tightness. Vibrations during operation can cause them to loosen.
- Air Filter: Clean or replace the air filter regularly, especially when riding in dusty conditions.
- Spark Plug: Inspect and clean the spark plug periodically. Replace if worn or fouled.
Figure 6.1: Close-up of the front wheel and disc brake assembly. Regular inspection of these components is vital for safety.
7. Troubleshooting
This section addresses common issues you might encounter with your KXD 702 Dirt Bike.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start | No fuel, incorrect fuel mix, choke not set, fouled spark plug, fuel valve off. | Check fuel level and mix. Ensure choke is on for cold starts. Clean/replace spark plug. Turn fuel valve on. |
| Loss of power | Incorrect fuel mix, clogged air filter, worn spark plug. | Verify fuel mix. Clean/replace air filter. Inspect/replace spark plug. |
| Brakes feel spongy or ineffective | Air in brake lines, worn brake pads, improper adjustment. | Bleed brake lines. Inspect and replace worn brake pads. Adjust brake cables/levers. |
| Excessive smoke from exhaust | Too much oil in fuel mix. | Ensure correct 1:25 oil/petrol ratio. |
8. Specifications
Key technical specifications for the KXD 702 49cc Dirt Bike (Model KXD 703A 2T):
- Model Number: KXD 703A 2T
- Engine: 49cc single-cylinder, two-stroke, air-cooled
- Fuel Tank Capacity: 1.9 liters
- Fuel Type: 1:25 (oil/petrol mixture)
- Start System: Pull starter
- Brake System: Disc brake (front and rear)
- Tires (Front/Rear): 2.5-10
- Maximum Speed: Approximately 45 km/h (28 mph)
- Empty Weight: 22 kg (48.5 lbs)
- Maximum Load: 60 kg (132 lbs)
- Seat Height (from floor): 60 cm (23.6 inches)
- Vehicle Dimensions (LxWxH): 128 x 56 x 85 cm (50.4 x 22 x 33.5 inches)
- Package Dimensions (LxWxH): 107 x 30 x 53.5 cm (42.1 x 11.8 x 21.1 inches)
Figure 8.1: KXD 702 Dirt Bike with key dimensions indicated. This provides a visual reference for the bike's size.
9. Warranty and Support
For specific warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you require technical assistance or have questions regarding parts and service, please contact the seller or authorized service center.
This product is intended as a fun sports item and does not come with road legal certification.
