1. Product Overview
The K&F CONCEPT X PRO Square Filter Holder System Kit is designed for photographers seeking enhanced control over light and reflections. This system includes a filter holder, a 95mm Circular Polarizer (CPL) filter, Square ND1000, ND8, and ND64 filters, along with four adapter rings to accommodate various lens thread sizes. It features a robust design to prevent vignetting and light leakage, ensuring optimal image quality.
Image 1.1: Overview of the K&F CONCEPT X PRO Square Filter Holder System Kit, showing the filter holder, CPL filter, square ND filters, and adapter rings.
2. Kit Components
The K&F CONCEPT X PRO Square Filter Holder System Kit includes the following items:
- 1 x X PRO Square Filter Holder
- 1 x 95mm Circular Polarizer (CPL) Filter
- 1 x Square ND1000 Filter
- 1 x Square ND64 Filter
- 1 x Square ND8 Filter
- 4 x Adapter Rings (67mm, 72mm, 77mm, 82mm)
- 1 x Leather Filter Bag
Image 2.1: The complete packing list, including the filter holder, various filters, adapter rings, and the storage bag.
3. Setup Instructions
Follow these steps to properly set up your K&F CONCEPT X PRO Square Filter Holder System:
- Find the Correct Adapter Ring: Identify the filter thread size of your camera lens. This is usually printed on the front of the lens barrel, often preceded by a "∅" symbol. Select the corresponding adapter ring (67mm, 72mm, 77mm, or 82mm) from the kit.
- Install the Adapter Ring: Screw the selected adapter ring onto the front thread of your camera lens until it is securely fastened.
- Install the Square Holder: Align the square filter holder with the installed adapter ring. Gently push the holder onto the ring.
- Tighten the Locking Knob: Once the holder is seated, rotate the orange locking knob on the side of the filter holder clockwise to secure it firmly to the adapter ring. Ensure it is tight enough to prevent rotation but do not overtighten.
- Install the CPL Filter: The CPL filter is designed for quick installation. Pull out the push rod located on the filter holder, insert the CPL filter into its designated slot, and then release the push rod to lock it in place.
Image 3.1: Visual guide for installing the adapter ring, filter holder, and CPL filter onto a camera lens.
Image 3.2: Demonstrates the quick-release mechanism for installing the CPL filter into the holder.
4. Operating Instructions
Understand how to effectively use the various filters included in your kit:
4.1 Using ND Filters (ND1000, ND64, ND8)
Neutral Density (ND) filters reduce the amount of light entering your camera lens without affecting color. This allows for longer exposure times, which is ideal for:
- Creating motion blur in moving subjects like waterfalls or clouds.
- Achieving a shallower depth of field in bright conditions.
- The ND1000 filter provides a 10-stop reduction, the ND64 provides a 6-stop reduction, and the ND8 provides a 3-stop reduction.
Image 4.1: An ND filter, used to reduce light and enable longer exposures.
4.2 Using the CPL Filter
The Circular Polarizer (CPL) filter is used to manage reflections and enhance color saturation:
- Remove Reflections: Rotate the outer ring of the CPL filter to reduce reflections from non-metallic surfaces such as water, glass, and foliage.
- Enhance Color and Contrast: It can deepen the blue of the sky and make clouds more prominent, as well as increase the saturation of colors in landscapes.
Image 4.2: A CPL filter, used to remove glare and enhance color contrast in images.
4.3 Stacking Square Filters
The filter holder allows for stacking multiple square filters simultaneously, enabling more complex photographic effects. Carefully slide the square filters into the available slots on the holder. The design ensures easy alignment and minimizes fingerprints on the filter surface.

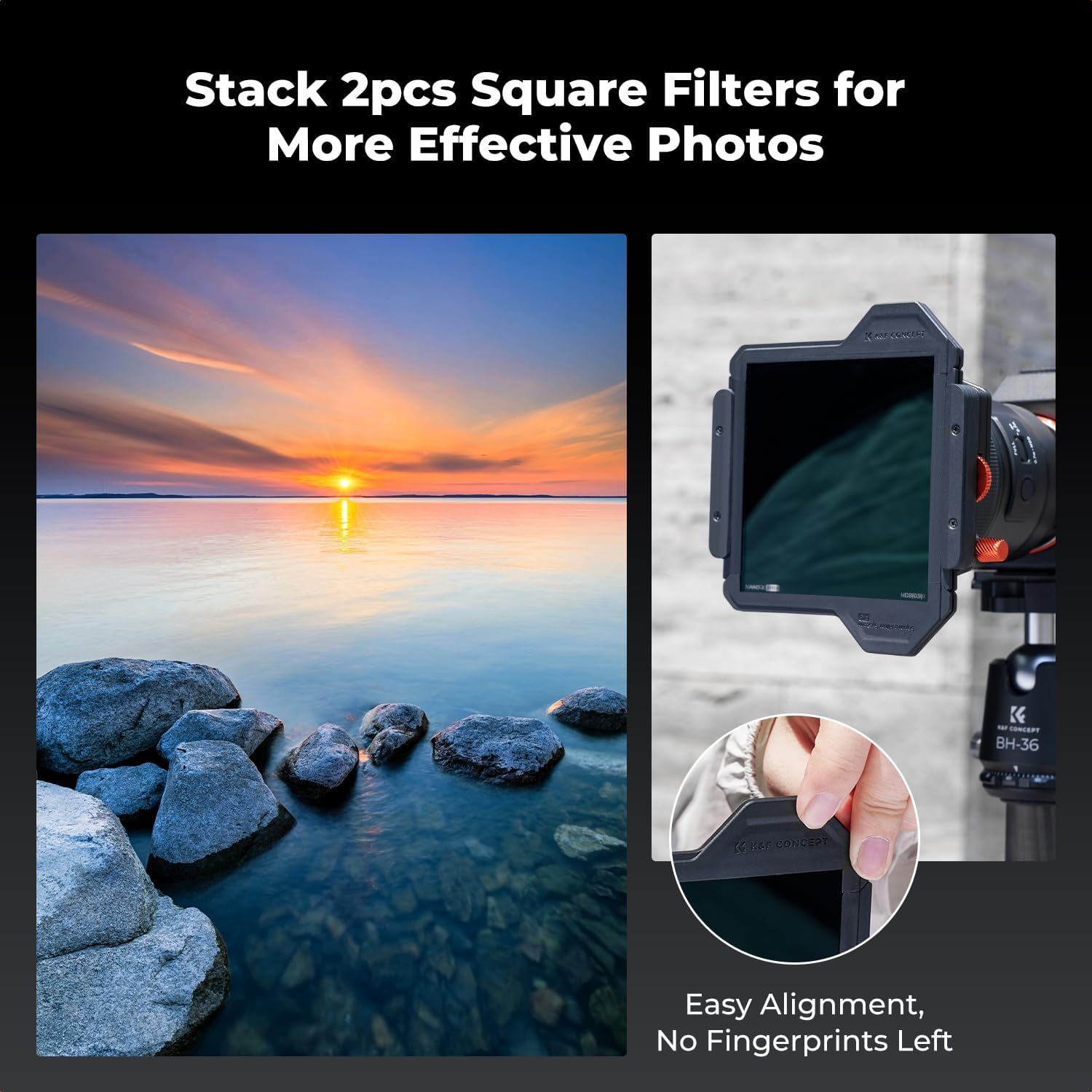

Image 4.3: Illustration of stacking two square filters within the holder for combined effects.
4.4 Preventing Vignetting and Light Leakage
The K&F CONCEPT X PRO system is designed to minimize common issues:
- No Vignetting: The 91mm large diameter of the filter holder and ultra-slim frame design helps prevent vignetting, especially when using wide-angle lenses (e.g., 14mm focal length).
- No Light Leakage: The filter holder incorporates a thick velvet strip to seal against the filter, effectively preventing unwanted light leakage that can degrade image quality during long exposures.
Image 4.4: Demonstrates the absence of vignetting when using the K&F CONCEPT Square Filter System compared to other systems.
Image 4.5: Close-up of the velvet strip design within the filter holder, engineered to prevent light leakage.
5. Maintenance
Proper care and maintenance will extend the lifespan and performance of your filter system:
- Cleaning Filters: Use a soft, lint-free microfiber cloth specifically designed for optical surfaces. For stubborn smudges, use a small amount of lens cleaning solution applied to the cloth, not directly to the filter. Gently wipe in a circular motion from the center outwards.
- Cleaning Holder and Rings: Wipe the filter holder and adapter rings with a clean, dry cloth. Avoid using harsh chemicals or abrasive materials.
- Storage: Always store filters in the provided leather filter bag or individual protective cases when not in use. Keep the entire kit in a dry, dust-free environment away from extreme temperatures.
- Handling: Avoid touching the optical surfaces of the filters with your fingers. Use the edges or the filter frame for handling.
6. Troubleshooting
If you encounter issues with your filter system, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vignetting (dark corners in images) | Using a very wide-angle lens; improper filter stacking. | Ensure the filter holder is correctly seated. Minimize stacking filters if using extremely wide-angle lenses. The K&F CONCEPT X PRO system is designed to reduce vignetting, but extreme focal lengths may still show some. |
| Light Leakage (unwanted light streaks/haze) | Filter not fully seated; holder not securely attached; worn velvet strip. | Ensure all filters are fully inserted into the holder. Verify the holder's locking knob is tightened. Inspect the velvet strip for damage; contact support if damaged. |
| Difficulty installing/removing filters | Misalignment; debris in slots; CPL push rod not fully engaged/disengaged. | Ensure filters are aligned correctly with the slots. Check for any debris and clean if necessary. For CPL, ensure the push rod is fully pulled out or released. Do not force filters. |
| Unsatisfactory CPL effect | Incorrect rotation; angle to subject. | Rotate the CPL filter slowly while looking through the viewfinder or at the LCD screen to find the desired effect. The polarizing effect is strongest at a 90-degree angle to the sun. |
7. Specifications
- Product Dimensions: 3.94 x 3.94 x 0.01 inches (Filter Holder)
- Item Weight: 2.03 pounds (Total Kit)
- Material: Optical Glass (Filters), Metal (Holder)
- Photo Filter Thread Size Compatibility: 67mm, 72mm, 77mm, 82mm (via adapter rings)
- CPL Filter Diameter: 95 Millimeters
- Coating Description: Nano Coating (36 layers)
- Water Resistance Level: Waterproof
- Photo Filter Effect Type: Polarizer, Neutral Density
- ND Filter Factors: ND1000 (10-stop), ND64 (6-stop), ND8 (3-stop)
- Manufacturer: Shenzhen Zhuoer Photograph
- ASIN: B09MQ39SQ7
8. Warranty and Support
For warranty information, technical support, or any inquiries regarding your K&F CONCEPT X PRO Square Filter Holder System Kit, please refer to the official K&F CONCEPT website or contact their customer service directly. You can also visit the K&F Concept Store on Amazon for additional resources.
