artika Swirl Ribbon LED Pendant Light Fixture Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your artika Swirl Ribbon 30W LED Pendant Light Fixture. Please read this manual thoroughly before beginning installation and retain it for future reference. This fixture features a chrome finish, 2200 lumens brightness, and 3000 Kelvin color temperature, designed for indoor use in dining rooms and kitchens.

Image: The Artika Swirl Ribbon LED Pendant Light illuminating a dining area, showcasing its design and light output.

Safety Information

WARNING: RISK OF ELECTRIC SHOCK. Turn off power at the circuit breaker or fuse box before installation or servicing.

• Read all instructions carefully before installation.
• Consult a qualified electrician if you are unsure about the installation process.
• Ensure all electrical connections are made in accordance with local codes and ordinances.
• Do not install this fixture in wet locations unless specifically rated for such use. This product is rated for Indoor/Outdoor Usage, but always verify local codes.
• Handle the fixture with care to avoid damage.
• Do not attempt to modify the fixture or its components.
• This fixture contains integrated LED components; no bulb replacement is required.

Package Contents

Verify that all components are present before beginning installation. If any parts are missing or damaged, contact artika customer service.

• LED Pendant Light Fixture (1)
• Mounting Bracket (1)
• Hardware Kit (screws, wire nuts, anchors) (1)
• Instruction Manual (1)

Image: The Artika Swirl Ribbon LED Pendant Light packaging, indicating the product name and key features.

Installation Instructions

Tools Required: Screwdriver, wire strippers, electrical tape, safety glasses, ladder.

1. Turn Off Power: Locate the circuit breaker controlling the light fixture's power supply and turn it OFF. Ensure power is completely disconnected before proceeding.
2. Prepare Mounting Surface: Remove any existing light fixture. Ensure the junction box is securely mounted to the ceiling structure.
3. Install Mounting Bracket: Attach the provided mounting bracket to the junction box using the screws from the hardware kit. Ensure it is firm and stable.

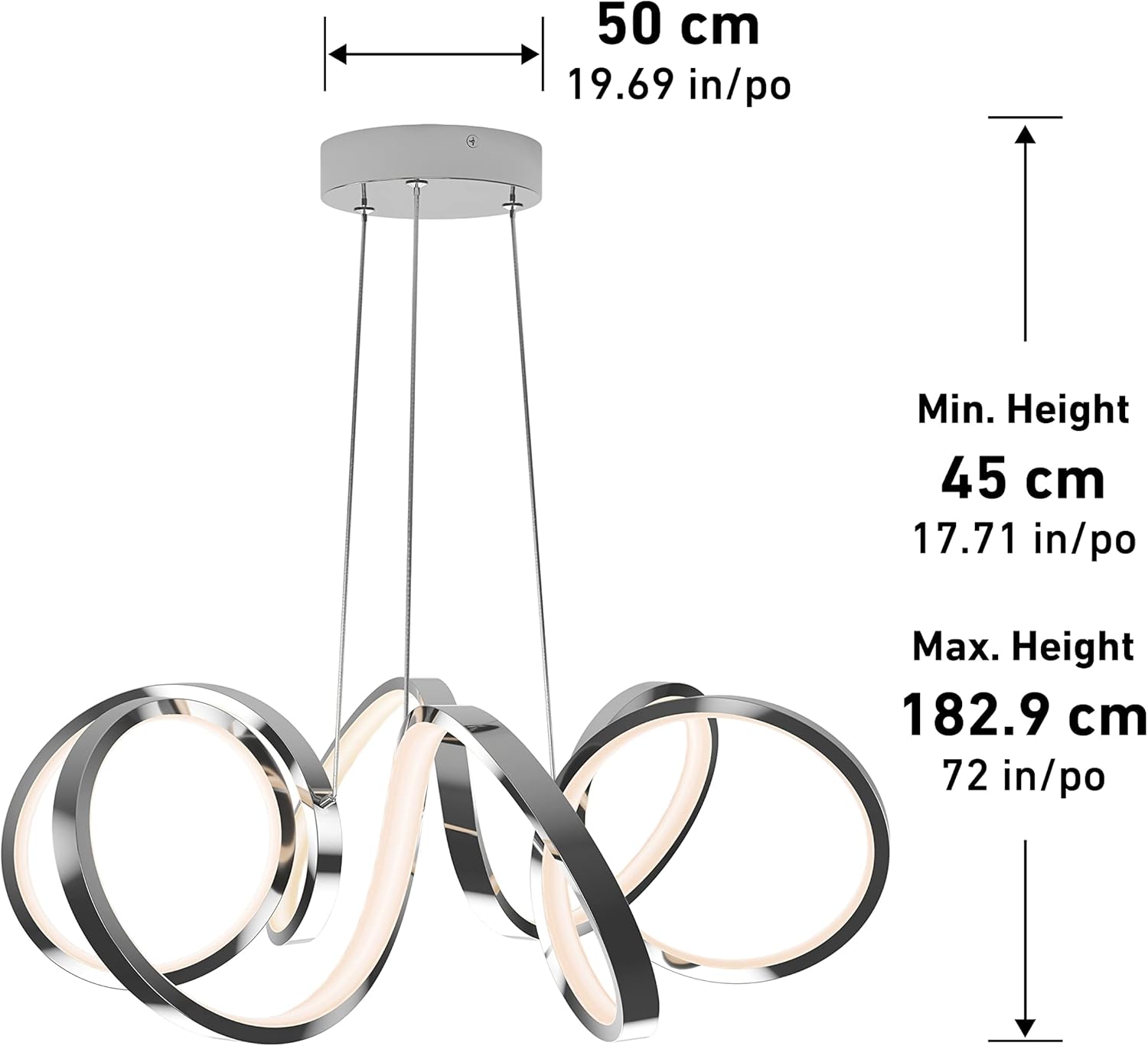

4. Adjust Fixture Height: The pendant light's height is adjustable. Carefully adjust the suspension cables to achieve the desired hanging length. The minimum height is 45 cm (17.71 in) and the maximum height is 182.9 cm (72 in).


Image: A visual representation of the pendant light's adjustable height feature, detailing the range from 45 cm to 182.9 cm.

5. Wire Connections:
   • Connect the black wire from the fixture to the black (Live) wire from the junction box using a wire nut.
   • Connect the white wire from the fixture to the white (Neutral) wire from the junction box using a wire nut.
   • Connect the green or bare copper ground wire from the fixture to the green or bare copper ground wire from the junction box using a wire nut.
   • Ensure all connections are secure and insulated with electrical tape if necessary.
6. Mount Fixture: Carefully tuck all wires into the junction box. Align the fixture canopy with the mounting bracket and secure it with the provided screws.
7. Restore Power: Once the fixture is securely installed, turn the power back ON at the circuit breaker.

Operating Instructions

The artika Swirl Ribbon LED Pendant Light Fixture is designed for simple operation.

• Standard Operation: Use your wall switch to turn the light fixture ON or OFF.
• Dimming Functionality: This fixture is dimmable. To utilize the dimming feature, ensure you have a compatible LED dimmer switch installed (sold separately). Follow the dimmer switch manufacturer's instructions for proper operation.
• Control Method: The product specifications mention "App" and "Push Button" control methods. If your specific model includes these features, refer to the separate instructions provided with the app or push-button controller for detailed usage.

Maintenance

To ensure the longevity and appearance of your artika Swirl Ribbon LED Pendant Light Fixture, follow these maintenance guidelines:

• Cleaning: Disconnect power before cleaning. Use a soft, dry, or slightly damp cloth to wipe the fixture. Avoid abrasive cleaners, solvents, or polishes as they may damage the finish.
• LED Lifespan: The integrated LED components are designed for long-term use (50,000 hours). No bulb replacement is necessary.
• Inspection: Periodically check all connections and mounting hardware for tightness.

Troubleshooting

If you experience issues with your light fixture, consult the following table before contacting customer service:

Specifications

Product Overview Video

Watch this video for an overview of Artika's product development and design philosophy. While not a direct installation guide, it provides insight into the brand's commitment to quality and design.

Warranty and Support

For warranty information, technical support, or to report missing/damaged parts, please contact artika customer service. Refer to the product packaging or the official artika website for contact details and the most up-to-date warranty policy.

Manufacturer: Artika

UPC: 846979035519
