GTKZW Induction Cooktop 30 Inch User Manual

Model: Electric Cooktop 4 Burners

1. Product Overview

The GTKZW 30 Inch Induction Cooktop is a high-power electric cooktop designed for modern kitchens. Featuring four burners with a total output of 6400W, it offers efficient and precise cooking. The sleek black ceramic glass surface is equipped with an LED touch screen for intuitive control and includes multiple safety features for peace of mind.

GTKZW 30 Inch Induction Cooktop with two pots, one with ramen and one with stir-fry

Figure 1: GTKZW 30 Inch Induction Cooktop in use, showing two active cooking zones.

2. Important Safety Instructions

Please read all instructions carefully before using the appliance to ensure safe operation and prevent injury or damage.

Electrical Safety: This appliance requires a 220V hardwired connection. Ensure installation is performed by a qualified electrician in accordance with local electrical codes. Do not use if the power cord is damaged.
Child Safety Lock: The cooktop is equipped with a child safety lock function to prevent accidental operation. Activate this feature when not in use, especially in households with children.
Automatic Shut-down Protection: The cooktop features an automatic shut-down mechanism for enhanced safety.
Overheat Protection: An overheat protection system is integrated to prevent damage from excessive temperatures. If the cooktop overheats, it will automatically shut down.
Cookware Compatibility: Only use induction-compatible cookware. Incompatible cookware may result in error codes or inefficient heating.
Hot Surface Warning: The ceramic glass surface will be hot after use. Avoid touching the surface until it has cooled down.

Child Safety Lock icon on cooktop control panel

Overheat Protection icon on cooktop control panel

Auto Shutdown Protection icon on cooktop control panel

Figure 2: Visual indicators for safety features including Child Lock, Overheat Protection, and Auto Shutdown.

3. Setup and Installation

The GTKZW Induction Cooktop can be installed as a built-in unit or used as a freestanding appliance. Professional installation is recommended due to the hardwired 220V electrical requirement.

3.1 Dimensions and Electrical Connection

Refer to the diagram below for precise dimensions and electrical wiring instructions. Ensure adequate ventilation space around the unit.

Diagram showing dimensions of the GTKZW 30 Inch Induction Cooktop and electrical wiring for 220-240V hardwired connection

Figure 3: Product dimensions and electrical wiring diagram for installation.

Product Dimensions: 30.31"D x 20.47"W x 3.46"H
Electrical Requirement: 220-240V, 6400W. Hardwired connection (no plug).
Ventilation: Ensure proper airflow around the bottom radiator for efficient heat dissipation.

4. Operating Instructions

The cooktop features an intuitive LED touch screen control panel for easy operation.

4.1 Control Panel Overview

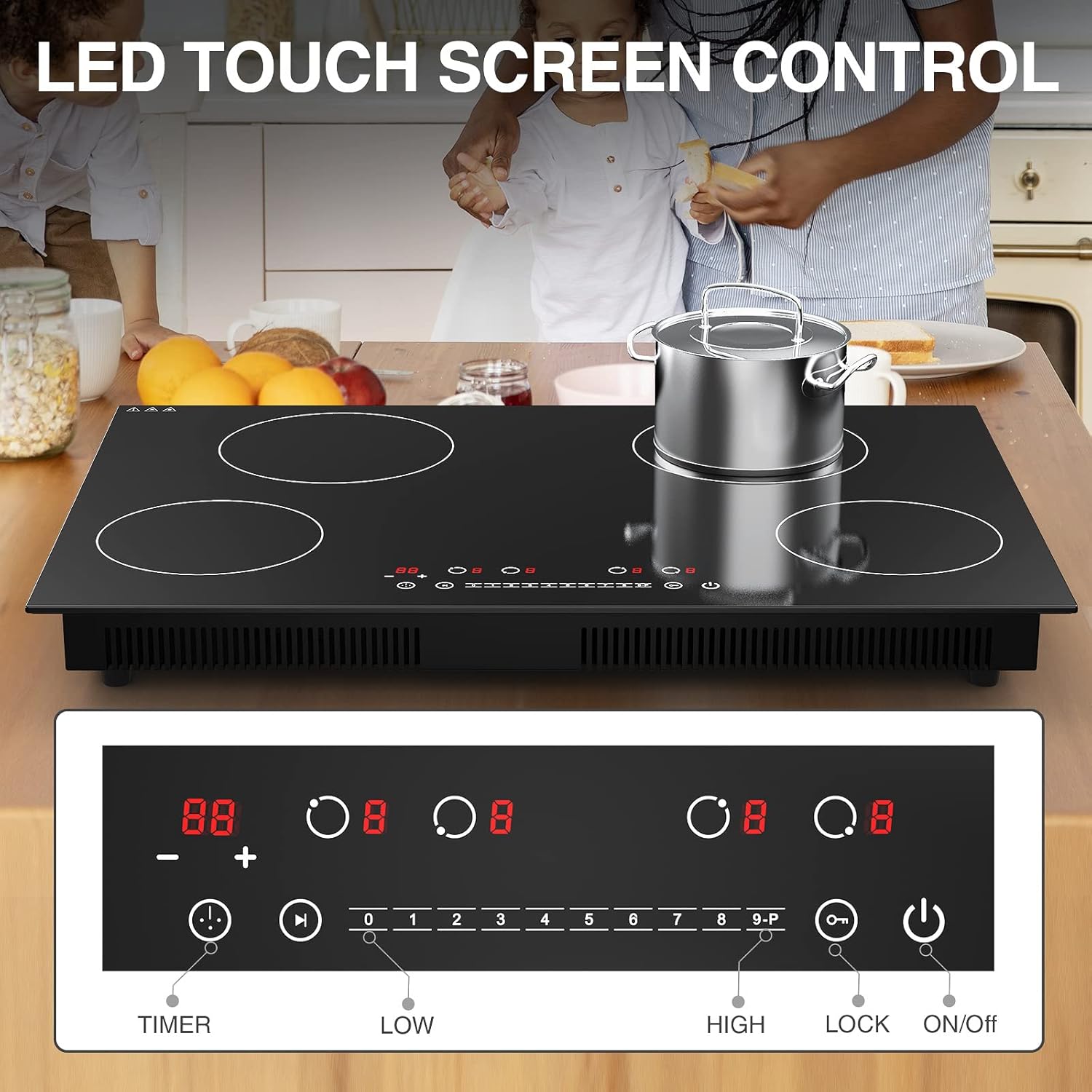

Close-up of the LED touch screen control panel on the GTKZW Induction Cooktop

Figure 4: Detailed view of the LED touch screen control panel.

Power On/Off: Touch the power icon to turn the cooktop on or off.
Heating Levels: Select from 9 adjustable heating levels (0-9) to suit various cooking needs, from simmering to boiling. There is also a "P" (Power Boost) function for maximum heat.
Timer Function: Set a cooking timer from 1 to 99 minutes. The cooktop will automatically shut down once the timer expires.
Child Lock: Activate the child lock to disable the control panel and prevent accidental changes to settings.

4.2 Compatible Cookware

For optimal performance, use induction-ready cookware. Compatible materials include:

Steel
Cast Iron
Enameled Iron
Stainless Steel (with magnetic bottom)
Flat-bottom pans/pots

Incompatible cookware includes copper, ceramic, and glass cookware.

Diagram showing compatible cookware types for induction cooktop including magnetic-bottom stainless steel, enameled steel, and cast iron, and incompatible types like copper, ceramic, and glass.

Image showing various compatible cookware types like cast iron, enameled cast iron, and stainless steel cookware, with incompatible types like copper, ceramic, aluminum, and glass cookware marked with an X.

Figure 5: Guide to compatible and incompatible cookware materials.

4.3 Multifunctional Cooking

The cooktop's four burners and adjustable power levels allow for a variety of cooking methods, including frying, deep frying, stir-frying, roasting, and boiling.

Multifunctional induction cooker showing different dishes being prepared: fry, fried, steak, bake, soup

Figure 6: Examples of diverse cooking applications with the GTKZW Induction Cooktop.

4.4 Operational Demonstration Video

Watch this video for a visual guide on operating the GTKZW Induction Cooktop, including touch controls, power adjustment, and error handling.

Video 1: GTKZW Electric Cooktop 30 Inch operational features demonstration. This video illustrates the high power coil, touch controls, tempered glass durability, ease of cleaning, bottom radiator, multi-gear adjustment, lock function, and troubleshooting for the "E0" error code.

5. Maintenance and Cleaning

The black ceramic glass surface is designed for easy cleaning. Regular maintenance will ensure the longevity and optimal performance of your cooktop.

Daily Cleaning: Wipe the surface with a soft cloth and mild detergent after each use, once the cooktop has cooled down.
Stubborn Stains: For tougher stains, use a ceramic cooktop cleaner and a non-abrasive pad.
Avoid Abrasives: Do not use abrasive cleaners, scouring pads, or sharp objects that could scratch the glass surface.
Cooling Fan: Ensure the bottom radiator and cooling fan area remain free of dust and debris for efficient heat dissipation.

Hand wiping down the GTKZW Induction Cooktop surface with a cloth, demonstrating ease of cleaning

Figure 7: Cleaning the cooktop surface.

6. Troubleshooting

This section provides solutions to common issues you might encounter.

Problem	Possible Cause	Solution
"E0" Error Code Appears	1. No cookware on the cooking zone. 2. Incompatible cookware being used. 3. Cookware not centered on the alignment guide.	1. Place a suitable pot or pan on the cooking zone. 2. Replace with induction-compatible cookware (e.g., steel, cast iron, enameled iron, stainless steel). 3. Re-center the cookware on the cooking zone.
Cooktop not turning on	No power supply or improper wiring.	Check the circuit breaker and ensure the cooktop is properly hardwired. Consult a qualified electrician if necessary.
Cooktop shuts off unexpectedly	Overheat protection activated or timer expired.	Allow the cooktop to cool down. Check if the timer was set. Ensure proper ventilation.

7. Specifications

Feature	Detail
Brand	GTKZW
Model	Electric Cooktop 4 Burners
Color	BLACK
Material	Ceramic Glass
Heating Elements	4 (1200W, 2000W, 1200W, 2000W)
Total Wattage	6400 watts
Voltage	220 Volts
Product Dimensions (D x W x H)	30.31" x 20.47" x 3.46"
Installation Type	Drop-In and Countertop
Special Features	9 Heating Levels, Kid Safety Lock, Keep Warm Function, LED Touch Screen, Hardwired
Item Weight	29.5 Pounds

8. Warranty and Support

The GTKZW Induction Cooktop comes with a one-year warranty from the date of purchase. If you encounter any problems or have questions regarding your appliance, please contact GTKZW customer support for assistance.
