WAMPAT Modern TV Stand (Model W01S3100Q) Instruction Manual

Important Safety Information

Please read and understand all instructions before assembly and use. Keep this manual for future reference.

• Always assemble furniture according to the provided instructions.
• Secure heavy items like TVs to the wall or the furniture to prevent tip-overs.
• Keep small parts and tools away from children during assembly.
• Ensure all connections are tight before use.
• Do not overload the TV stand beyond its stated weight capacity.

Product Overview

The WAMPAT Modern TV Stand (Model W01S3100Q) is designed to accommodate most flat-screen TVs up to 55 inches. It features an industrial-inspired design with a walnut wood grain finish and practical storage solutions, including cabinets and open shelving. The unit is constructed from engineered wood and metal, providing a sturdy and functional media console for your living space.

Image 1: The WAMPAT Modern TV Stand in a contemporary living room, showcasing its design and functionality with a television and decorative items.

Image 2: A detailed view of the TV stand's surface, highlighting the natural walnut wood grain finish and texture.

Dimensions and Weight Capacity

This TV stand is designed to support various entertainment equipment. Please refer to the dimensions and weight capacity below to ensure compatibility with your television and other devices.

• Overall Dimensions: 20.1" H x 70.9" L x 16.3" W (510mm H x 1800mm L x 415mm W)
• Cabinet Dimensions: 13" H x 15.7" D x 17.6" L (331mm H x 399mm D x 447mm L)
• Top Board Weight Capacity: Up to 200 lbs (90.7 kg)
• Shelf Weight Capacity: Up to 176 lbs (80 kg)

Image 3: A technical diagram illustrating the precise measurements of the TV stand, including height, length, width, and internal compartment dimensions.

Assembly Instructions

Assembly of the WAMPAT Modern TV Stand is designed to be straightforward. All necessary accessories and a clear graphical installation manual are included in the packaging. Please follow these steps carefully.

Before You Begin

1. Unpack all components and verify against the parts list in the included manual.
2. Ensure you have the required tools (typically a screwdriver, not always included).
3. Clear a spacious area for assembly to prevent damage to the product or your floor.

Step-by-Step Assembly

1. Assemble the Base: Attach the metal legs to the main body of the TV stand using the provided hardware. Ensure they are securely fastened.
2. Install Non-Slip Mats: Apply the non-slip mats to the bottom of the metal legs to protect your floors and ensure stability.
3. Construct the Main Frame: Follow the graphical manual to connect the various engineered wood panels that form the stand's structure.
4. Install Cabinet Doors: Attach the cabinet doors. The design features a hidden handle for a sleek look.
5. Insert Shelves: Place the adjustable shelves into the open compartments as desired.
6. Final Checks: Verify that all screws and fasteners are tight and the stand is stable before placing any items on it.

Image 4: A close-up view of the TV stand's metal base and the protective non-slip mat, which prevents scratches and ensures stability.

Image 5: A detailed image showcasing the integrated handle design on the cabinet door, emphasizing its aesthetic and functional aspects.

Operating Instructions

The WAMPAT Modern TV Stand offers versatile storage and display options for your media devices and decorative items.

Storage Usage

• Utilize the enclosed cabinets for discreet storage of items you wish to keep out of sight.
• The open shelves are ideal for media players, gaming consoles, soundbars, or decorative accents.
• Adjust the shelves to accommodate items of varying heights.

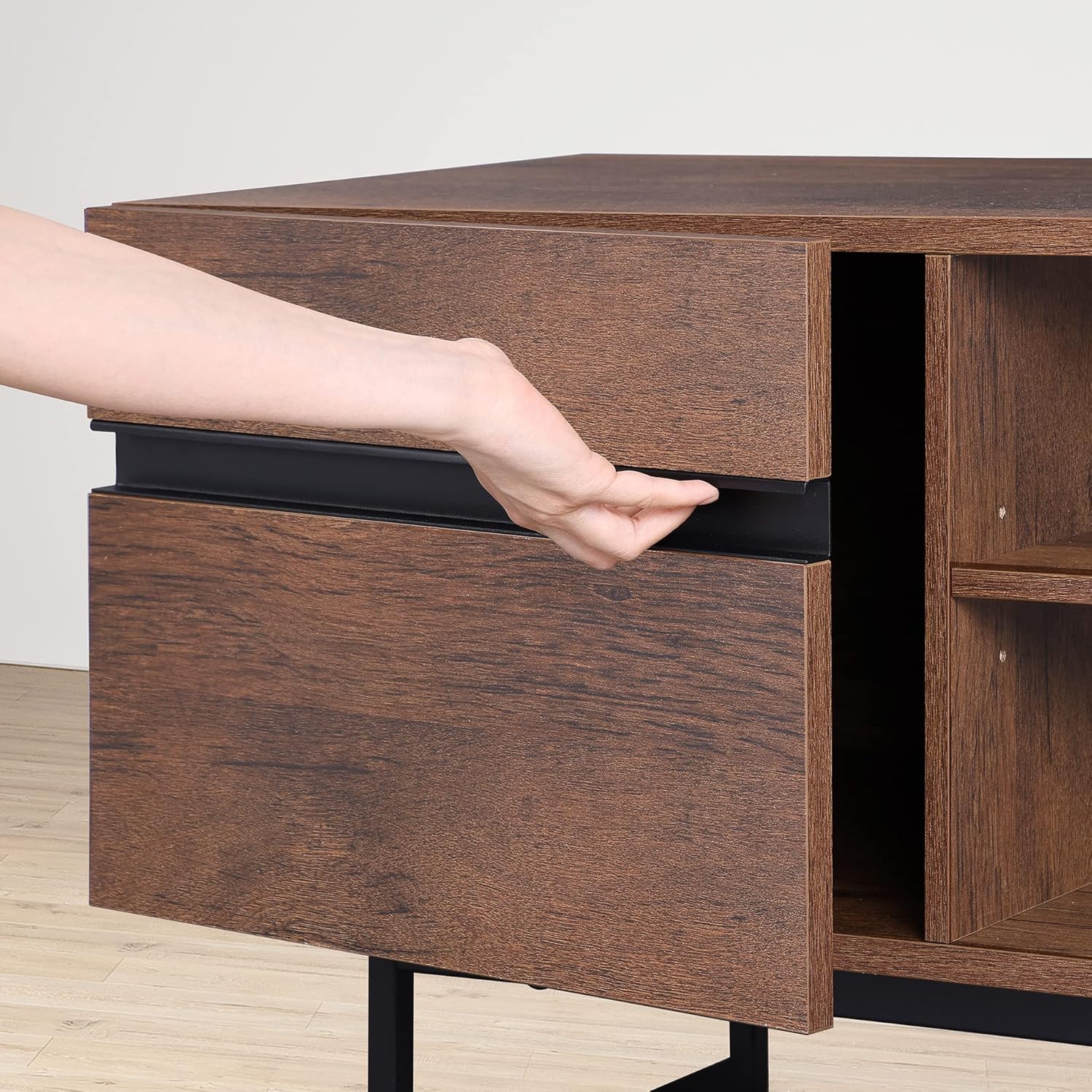

Image 6: A hand demonstrating the opening of one of the TV stand's cabinet doors, highlighting the ease of access to the enclosed storage.

Cable Management

The TV stand includes a built-in cable management system to help keep your entertainment area tidy and organized.

• Route power cords and signal cables through the designated openings at the back of the unit.
• This helps to conceal unsightly wires, contributing to a cleaner aesthetic and preventing tangles.

Image 7: A close-up image illustrating the cable management holes located on the back panel of the TV stand, designed for organizing wires.

Care and Maintenance

Proper care will ensure the longevity and appearance of your WAMPAT Modern TV Stand.

• Cleaning: Wipe the surface with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, as they may damage the finish.
• Spills: Immediately wipe up any spills to prevent staining or water damage.
• Protection: Use coasters or protective pads under hot or wet items to prevent marks.
• Stability: Periodically check all fasteners and tighten if necessary to maintain structural integrity.

Troubleshooting

If you encounter any issues with your TV stand, please refer to the following common solutions:

• Instability: Ensure all screws and bolts are fully tightened. Check that the stand is on a level surface. Adjust the non-slip feet if necessary.
• Missing Parts: If any parts are missing upon unboxing, please contact customer support with your purchase details.
• Damage During Assembly: If a component is damaged during assembly, stop and contact customer support for assistance.

Product Specifications

Warranty and Customer Support

WAMPAT stands behind the quality of its products. For specific warranty details, please refer to the documentation included with your purchase or visit the official WAMPAT website.

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact WAMPAT customer support. Have your model number (W01S3100Q) and purchase information ready for faster service.

Contact Information: Please refer to your purchase receipt or the WAMPAT official website for the most current customer support contact details.
