Introduction
The Conserv 24in Retro Bottom Mount Refrigerator (Model RF 132) combines classic retro aesthetics with modern functionality. This 11 cubic foot appliance is designed to add both style and convenience to any compact space, offering efficient cooling and ample storage for your food and beverages.
Image: The Conserv 24in Retro Bottom Mount Refrigerator in a vibrant red finish, showcasing its sleek design and two-door configuration.
Video: An official product video from Conserv, titled "Conserv 24in RETRO BOTTOM MOUNT Refrigerator Fast Freeze." This video highlights the key features and benefits of the refrigerator, including its design, storage options, cooling capabilities, and safety features.
Setup and Installation
This refrigerator is designed for freestanding use and requires no complex installation. Simply place it in your desired location and plug it into a standard 110V outlet. Ensure adequate clearance around the unit for proper ventilation.
Image: A visual representation of the refrigerator's dimensions: 77 inches in height, 24 inches in width, and 28 inches in depth.
Image: This image illustrates that the refrigerator is delivered curbside and does not require professional installation, emphasizing its freestanding nature.
Operating Instructions
Internal Organization
The refrigerator features a well-organized interior for easy access and storage. The fridge section includes three glass shelves, while the freezer section has three bins. Door racks provide additional convenience for smaller items. A separate, removable wine rack is included for cooling bottled beverages.
Image: The interior of the refrigerator, showing various food items organized on glass shelves and in door bins, highlighting its spacious design.

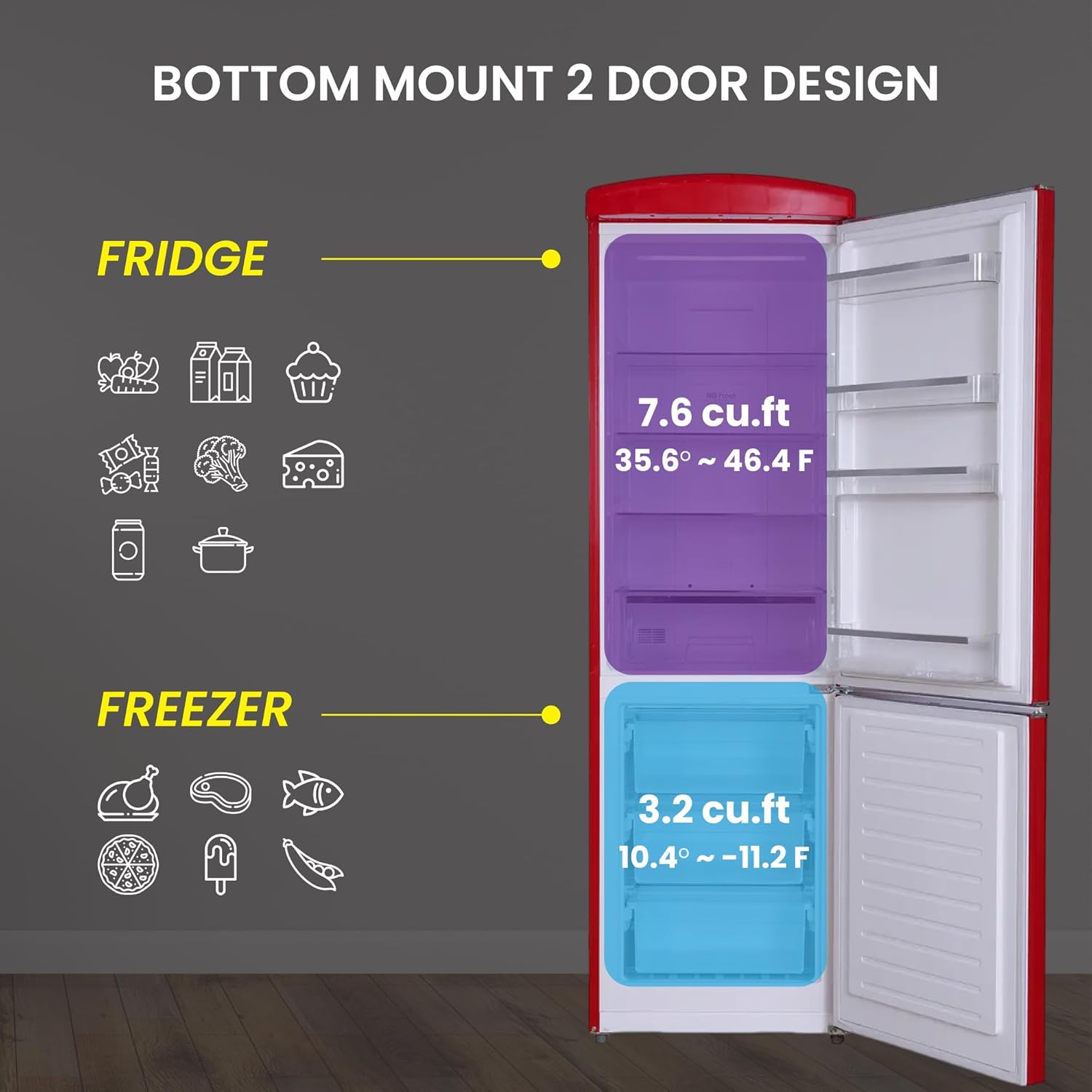

Image: A diagram illustrating the 7.6 cu. ft. capacity of the fridge section (35.6°F ~ 46.4°F) and the 3.2 cu. ft. capacity of the freezer section (10.4°F ~ -11.2°F).
Image: A hand demonstrating the ease of access to the crisper drawers, designed for optimal storage of fruits and vegetables.
LED Interior Lighting
A long-lasting LED light illuminates the refrigeration section, turning on automatically when the door is opened. This ensures clear visibility of contents, making it easy to find what you need.
Image: This image highlights key interior features such as the LED light, retro handles, compressor cooling, and electronic temperature control.
Fast Cool and Flash Freeze Modes
For rapid cooling, utilize the Fast Cool and Flash Freeze modes. These modes are accessible via the electronic control panel located inside the refrigerator. The Fast Cool option quickly lowers the fridge temperature to 35.6°F, while the Flash Freeze option drops the freezer temperature to -25.6°F for efficient freezing.
Image: A close-up view of the electronic temperature control panel, showing the buttons for activating Fast Cool and Flash Freeze modes.
Maintenance
Frost-Free Technology
The refrigerator is equipped with a frost-free system, eliminating the need for manual defrosting. This feature ensures consistent cooling performance and reduces maintenance effort.
Overload Protection
For your safety, the Conserv Retro Refrigerator is ETL certified and includes overload protection. This system automatically turns off the unit if it detects overheating, preventing potential damage and ensuring safe operation.
Specifications
| Feature | Specification |
|---|---|
| Brand | Conserv |
| Model Number | RF 132 |
| Item Weight | 159 Pounds |
| Product Dimensions | 24 x 23.4 x 77 inches |
| Capacity | 10.7 Cubic Feet |
| Installation Type | Freestanding |
| Form Factor | Compact, Freezer Bottom |
| Special Features | Compact |
| Color | Red |
| Voltage | 110 Volts |
| Defrost System | Frost Free |
| Door Hinges | Right |
| Door Material Type | Glass |
| Shelf Type | Glass |
| Number of Shelves | 6 |
| Certification | ETL |
| Material Type | Plastic |
| Number Of Doors | 2 |
| First Available | November 23, 2021 |
Warranty and Support
The Conserv 24in Retro Bottom Mount Refrigerator is backed by a 1-Year parts and labor warranty. For detailed warranty information, troubleshooting, or to contact customer support, please refer to the official user manual available as a PDF document or visit the Conserv website.
You can access the official user manual here.
