Product Overview
This manual provides essential information for the safe and efficient operation of your Sharp 2.25 HP Cool and Heat Inverter Air Conditioner, Model AY-XP18YHER. Please read it thoroughly before using the appliance and keep it for future reference.
The Sharp AY-XP18YHER air conditioner features advanced Inverter technology for energy efficiency, Plasmacluster Ion technology for air purification, and a range of functions designed for optimal comfort and convenience. It offers a cooling capacity of 17400 BTU/hr and a heating capacity of 19800 BTU/hr, making it suitable for various climate control needs.
Important Safety Information
WARNING: To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions, including the following:
- Read all instructions before using the appliance.
- This appliance must be properly installed and grounded by a qualified technician.
- Do not operate the air conditioner with wet hands.
- Do not insert fingers or objects into the air inlet/outlet.
- Ensure the power supply matches the rating label on the unit.
- Turn off the power supply before cleaning or performing maintenance.
- Keep children away from the unit.
- Do not attempt to repair or modify the unit yourself. Contact qualified service personnel.
Product Components
Your Sharp AY-XP18YHER air conditioner package includes the following main components:
- Indoor Unit
- Outdoor Unit
- Outdoor Unit Bracket
- Connection Pipes
- Remote Control
Setup and Installation
Installation of this air conditioner requires specialized knowledge and tools. It is strongly recommended that installation be performed by a qualified and certified technician to ensure proper function, safety, and warranty validity.
Key Installation Considerations:
- Location: Choose a location for both indoor and outdoor units that allows for optimal airflow, minimal obstruction, and easy access for maintenance.
- Power Supply: Ensure the electrical circuit meets the unit's power requirements (220-240 Volts, 50 Hz) and is properly grounded.
- Refrigerant Piping: The standard connection pipe length is 5 meters, with a maximum allowable length of 15 meters. Correct pipe sizing and vacuuming are crucial.
- Drainage: Proper drainage for condensate water from the indoor unit must be established to prevent leaks.
- Outdoor Unit: The outdoor unit should be installed on a stable surface, away from direct sunlight or excessive heat sources, and with sufficient clearance for air circulation. The outdoor unit is designed with anti-corrosion properties.
Refer to the detailed installation guide provided with the physical product for specific instructions and diagrams.
Operating Instructions
Your Sharp AY-XP18YHER air conditioner offers various modes and features for personalized comfort. Use the remote control to access and adjust settings.
Basic Operation:
- Power On/Off: Press the ON/OFF button on the remote control to start or stop the unit.
- Mode Selection: Press the MODE button to cycle through available modes: Cool, Heat, Dry, Fan, Auto.
- Temperature Adjustment: Use the TEMP UP/DOWN buttons to set your desired temperature.
- Fan Speed: Press the FAN button to adjust the fan speed (Auto, Low, Medium, High).
Advanced Features:
- Inverter Technology: This advanced technology optimizes compressor speed to maintain a stable temperature, reducing energy consumption and operating costs.
- Plasmacluster Ion Technology: Activates positive and negative ions to purify the air, reducing airborne bacteria, viruses, and allergens.
- Super Jet Function: Provides maximum power for rapid cooling or heating of the room. Ideal for quickly reaching desired temperatures.
- Gentle Cool Air: In cooling mode, directs cool air towards the ceiling to prevent direct cold drafts and ensure comfortable cooling. In heating mode, warm air is directed downwards to flow across the floor.
- 4-Way Airflow: Automatically moves the air vents up, down, left, and right to ensure even distribution of air throughout the room.
- My Area Function: Allows the unit to focus airflow towards the remote control's location, providing personalized comfort.
- Motion Sensor: Detects human presence and adjusts operation to optimize energy use and comfort.
- Self-Clean Function: Helps to keep the indoor unit clean and prevent mold growth by drying the internal components after operation.
- Auto Sleep Function: Automatically adjusts temperature settings during sleep for enhanced comfort and energy saving.
- 12-Hour On/Off Timer: Set the unit to turn on or off automatically within a 12-hour period.
- 1-Hour On/Off Timer: A shorter timer option for quick scheduling.
- Nature Wing: Mimics natural airflow patterns for a more comfortable breeze.
- Auto Restart: In case of a power outage, the unit will automatically restart with the previous settings once power is restored.
Maintenance
Regular maintenance ensures optimal performance and longevity of your air conditioner. Always turn off the power supply before performing any maintenance.
Filter Cleaning:
- The air filter should be cleaned every two weeks or more frequently depending on usage and air quality.
- Open the front panel of the indoor unit and carefully remove the air filters.
- Wash the filters with lukewarm water and a mild detergent. Rinse thoroughly and allow them to dry completely in a shaded area before re-installing.
- Do not expose filters to direct sunlight or heat for drying.
Outdoor Unit Maintenance:
- Periodically check the outdoor unit for any obstructions (leaves, debris) and clear them.
- Ensure the area around the outdoor unit is clear to allow for proper airflow.
- For thorough cleaning of the outdoor unit coils, it is recommended to contact a professional service technician.
General Cleaning:
- Wipe the indoor unit's exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
Troubleshooting
Before contacting service, check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start | No power, circuit breaker tripped, remote control batteries low. | Check power supply, reset circuit breaker, replace remote control batteries. |
| Insufficient cooling/heating | Dirty air filter, blocked outdoor unit, wrong mode selected, room too large. | Clean air filter, clear obstructions from outdoor unit, select correct mode, ensure unit size matches room. |
| Unusual noise | Loose parts, foreign objects, normal operating sounds (e.g., refrigerant flow). | Check for loose parts, remove foreign objects. If noise persists or is abnormal, contact service. |
| Water leakage from indoor unit | Clogged drain pipe, improper installation. | Check and clear drain pipe. If issue persists, contact a qualified technician. |
If the problem persists after attempting these solutions, please contact customer support.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Sharp |
| Model Number | AY-XP18YHER(NEW) |
| Cooling Capacity | 17400 BTU/hr |
| Heating Capacity | 19800 BTU/hr |
| Horsepower | 2.25 HP |
| Color | Red |
| Inverter Type | Yes (Inverter) |
| Filter Type | Plasmacluster |
| Refrigerant | R-410A |
| Energy Efficiency Ratio (EER) | 19 BTU/hr |
| Energy Efficiency Grade | A+++++ |
| Rated Voltage | 220-240 Volts |
| Frequency | 50 Hz |
| Noise Level | 44 dB |
| Indoor Unit Dimensions (W x H x D) | 105.2 x 31.6 x 24.9 cm |
| Outdoor Unit Dimensions (W x H x D) | 89 x 64.5 x 32.3 cm |
| Indoor Unit Net Weight | 12 kg |
| Outdoor Unit Net Weight | 47 kg |
| Max. Connection Pipe Length | 15 meters |
| Control Method | Remote Control |
| Compressor Type | Hermetic Rotary |
Warranty and Support
This product comes with a manufacturer's warranty. For specific warranty details and duration, please refer to the warranty card included with your product or contact the manufacturer's authorized service center.
- Warranty Period: 5 years full free warranty (as per product description).
- Manufacturer Support: For service and support, you can contact the manufacturer's agent.
For any inquiries or technical assistance, please contact Sharp customer service or your local authorized dealer.
Product Media
Product Images

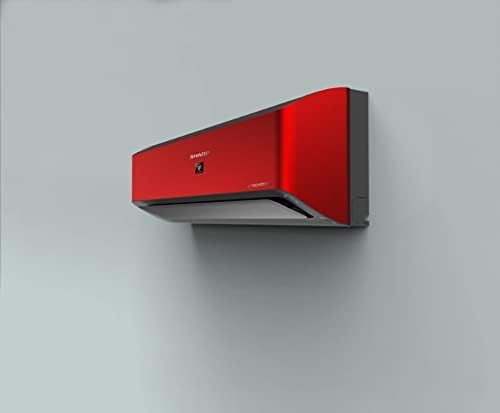

Side view of the red Sharp AY-XP18YHER air conditioner indoor unit mounted on a wall.
Front view of the red Sharp AY-XP18YHER air conditioner with its flap open, revealing internal components.

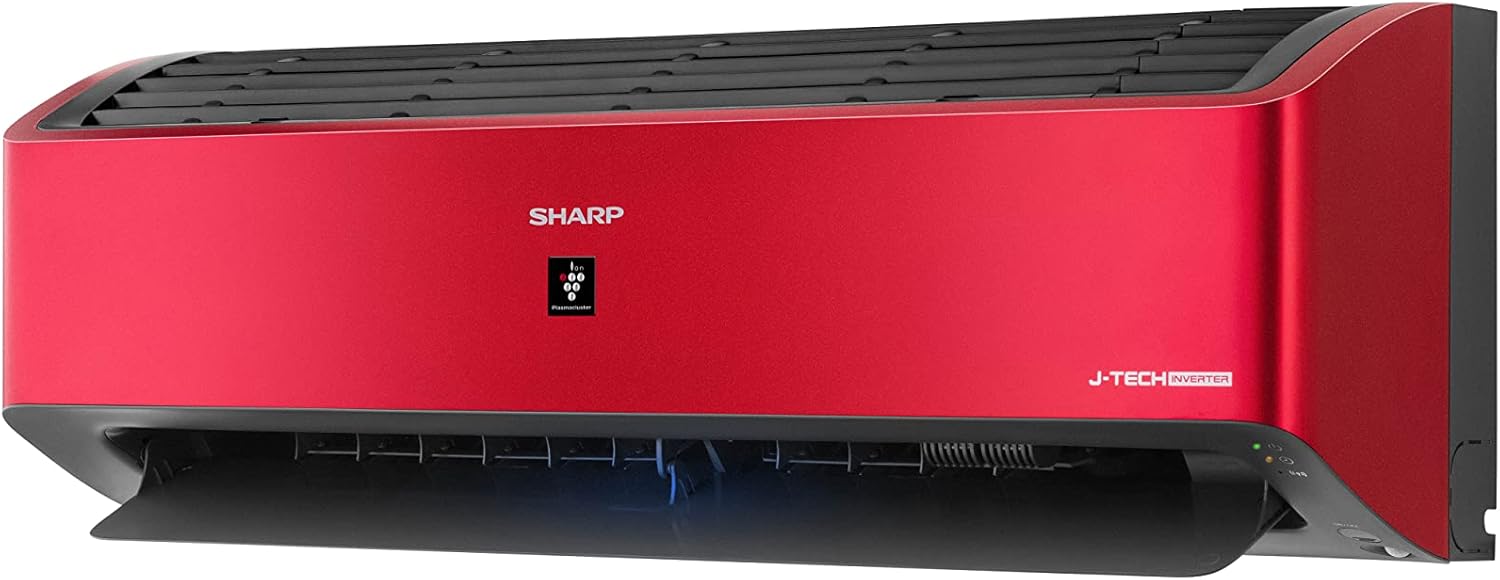

Angled front view of the red Sharp AY-XP18YHER air conditioner indoor unit.
Front view of the red Sharp AY-XP18YHER air conditioner indoor unit with the air outlet flap closed.

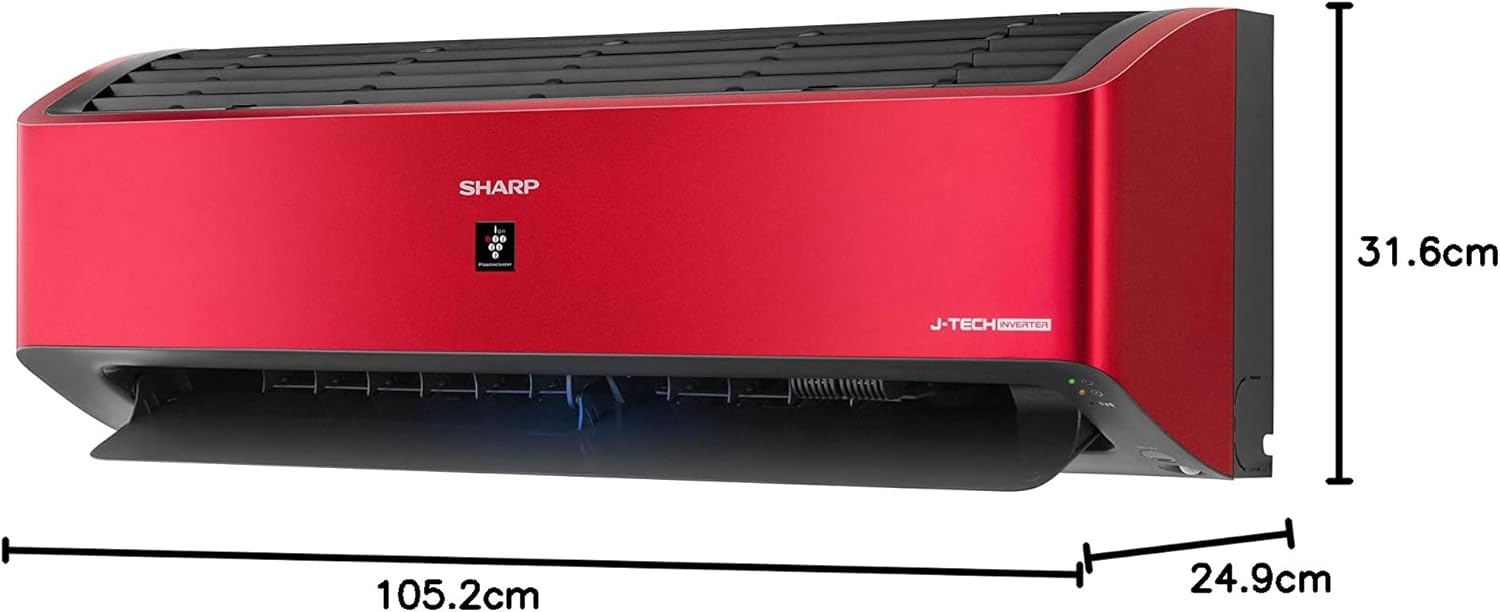

The red Sharp AY-XP18YHER air conditioner indoor unit with its dimensions (width, height, depth) clearly marked.
