Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Xiaomi Robot Vacuum 2C. Please read this manual thoroughly before using the product and retain it for future reference.
Image: Top view of the Xiaomi Robot Vacuum 2C. This image displays the clean, minimalist design of the robot vacuum, highlighting its main power and home buttons on the top surface.
Product Components
Familiarize yourself with the main components of your robot vacuum:
- Main Unit: The robot vacuum itself, housing the motor, dustbin, and water tank.
- Charging Dock: Used for recharging the robot's battery.
- Side Brushes: Three-pronged brushes designed to sweep debris into the main brush path.
- Main Brush: Located underneath the robot, responsible for agitating and lifting dirt.
- Dustbin: Collects vacuumed debris.
- Water Tank & Mop Pad: For wet mopping functionality.
- Power Adapter: Connects the charging dock to a power outlet.
Setup Guide
- Unboxing and Placement:
Carefully remove all components from the packaging. Choose a suitable location for the charging dock. Ensure there is at least 0.5 meters of clear space on both sides and 1.5 meters in front of the dock for optimal navigation.
Image: The robot vacuum docked for charging. This illustrates the recommended setup for the charging station, showing the robot connected and ready for use.
- Initial Charging:
Connect the power adapter to the charging dock and plug it into a wall outlet. Place the robot vacuum onto the charging dock. The indicator light will show charging status. Fully charge the robot before its first use, which may take several hours.
- App Installation and Connection:
Download the Xiaomi Home app from your device's app store. Open the app, create an account (if you don't have one), and follow the on-screen instructions to add your Xiaomi Robot Vacuum 2C. Ensure your Wi-Fi network is 2.4GHz for successful connection.
- Water Tank and Mop Pad Installation (for mopping function):
Fill the water tank with clean water. Attach the mop pad securely to the water tank module. Slide the assembled water tank module into the designated slot at the rear of the robot until it clicks into place.
Image: Side view of the robot vacuum, illustrating the location for water tank insertion. This angle helps users identify where to attach the mopping module.
Operating Instructions
Your Xiaomi Robot Vacuum 2C offers various cleaning modes and smart features for efficient home cleaning.
- Starting a Clean:
Press the power button on the robot or use the Xiaomi Home app to start a cleaning cycle. The robot will automatically map your home and plan an efficient cleaning path.

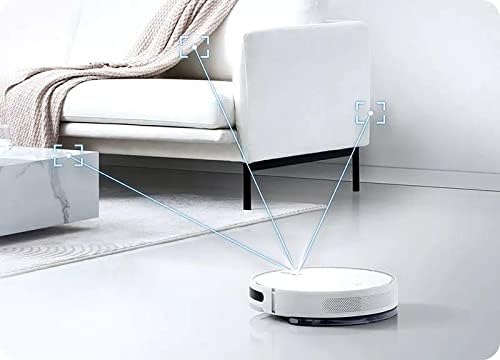

Image: The robot vacuum actively mapping its environment. This visual demonstrates the robot's intelligent navigation and mapping capabilities during a cleaning cycle.
- Cleaning Modes:
Select different cleaning modes via the app, such as Vacuum Only, Mop Only, or Vacuum & Mop. You can also adjust suction power and water flow levels.
- Scheduled Cleaning:
Set up daily or weekly cleaning schedules through the app to automate your cleaning routine.
- Zone Cleaning & Virtual Walls:
Use the app to define specific areas for cleaning or to set up virtual walls/no-go zones to restrict the robot from certain areas.
- Returning to Charging Dock:
The robot will automatically return to its charging dock when cleaning is complete or when its battery is low. You can also manually send it back via the app or by pressing the home button on the robot.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your robot vacuum.
- Emptying the Dustbin:
Open the top cover of the robot and remove the dustbin. Open the dustbin lid and empty its contents into a trash bin. It is recommended to empty the dustbin after each cleaning cycle.
- Cleaning the Filter:
Remove the filter from the dustbin. Tap the filter gently to remove dust. For thorough cleaning, rinse the filter under running water. Ensure the filter is completely dry before reinserting it into the dustbin and back into the robot.
- Cleaning the Main Brush:
Flip the robot over. Remove the main brush cover and then the main brush. Use the cleaning tool (if provided) to remove hair and debris tangled around the brush. Reinstall the brush and cover securely.
Image: Front view of the robot vacuum, highlighting the main brush and side brushes. This view is useful for understanding how to access and clean the brushes.
- Cleaning Side Brushes:
Regularly check the side brushes for tangled hair or debris. Gently pull them off to clean and reattach them firmly.
- Cleaning the Water Tank and Mop Pad:
After mopping, remove the water tank and empty any remaining water. Rinse the tank thoroughly. Detach the mop pad and wash it by hand or machine. Allow both to air dry completely before reassembly.
- Cleaning Sensors:
Wipe the cliff sensors (located on the bottom of the robot) and wall sensors (on the side) with a soft, dry cloth to ensure proper navigation.
Troubleshooting
If you encounter issues with your robot vacuum, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Robot does not turn on or charge. | Low battery; charging dock not connected; poor contact with charging pins. | Ensure the robot is properly seated on the charging dock. Check power connection to the dock. Clean charging pins on both robot and dock. |
| Robot gets stuck frequently. | Obstacles (cables, rugs, small objects); dirty sensors. | Clear the cleaning area of obstacles. Clean all sensors with a dry cloth. |
| Poor suction performance. | Full dustbin; clogged filter; tangled main brush. | Empty the dustbin. Clean or replace the filter. Clean the main brush and side brushes. |
| No water dispensing during mopping. | Empty water tank; clogged water outlet; improperly installed water tank. | Fill the water tank. Check for blockages in the water outlet. Reinstall the water tank correctly. |
| App connection issues. | Incorrect Wi-Fi password; 5GHz Wi-Fi network; robot too far from router. | Ensure correct Wi-Fi password. Connect to a 2.4GHz Wi-Fi network. Move robot closer to the router or use a Wi-Fi extender. Reset Wi-Fi on the robot if necessary. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 2C |
| Brand | XIAOMI |
| Color | White |
| Form Factor | Robotic |
| Power (Watts) | 40 watts |
| Voltage | 14.4 Volts |
| Water Tank Capacity | 250ml (derived from product title) |
| Suction Power | 2700Pa (derived from product title) |
| Special Features | Pressurized and Antibacterial Mop |
| Recommended Surface | Tile, Wood |
| Included Components | 3-pronged side brushes |
| Package Dimensions | 11.93 x 4.4 x 4.4 cm; 1.6 kilograms |
Warranty and Support
Your Xiaomi Robot Vacuum 2C comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included in your product packaging or visit the official Xiaomi support website.
For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact Xiaomi customer service or visit their official support channels.
