1. Introduction
Thank you for choosing the Vente-unique SIDOA Corner Shower Enclosure. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new shower enclosure. Please read all instructions carefully before beginning installation or use. Retain this manual for future reference.
Image 1.1: The Vente-unique SIDOA 90x90x192cm Corner Shower Enclosure, featuring black profiles and clear tempered glass panels, with a white ABS shower tray.
2. Safety Information
Always prioritize safety during installation and use. Failure to follow these instructions may result in injury or damage to the product.
- Professional Installation Recommended: Due to the weight and nature of glass components, professional installation is highly recommended.
- Handle Glass with Care: Tempered glass, while strong, can shatter if struck at the edges or corners. Always wear appropriate safety gloves and eye protection.
- Secure Mounting: Ensure the shower enclosure is securely mounted to a structurally sound wall. Use appropriate fasteners for your wall type.
- Water Sealing: Proper sealing is crucial to prevent water leaks. Use high-quality silicone sealant as instructed.
- Children and Pets: Keep children and pets away from the installation area.
- Electrical Safety: If working near electrical outlets or wiring, ensure power is turned off at the main breaker.
3. Package Contents
Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact Vente-unique customer support.
- Corner Shower Enclosure (90x90x192 cm)
- ABS Shower Tray (90x90x12 cm)
- 2 Sliding Doors
- 2 Fixed Glass Panels
- Black Aluminum Profiles and Arcs
- Door Handles/Knobs
- Drain Valve and Waste Trap
- Installation Hardware (screws, wall plugs, seals, rollers, etc.)
Image 3.1: A close-up view of the white ABS shower tray, showing the integrated drain and anti-slip texture.
4. Setup and Installation
This section provides a general overview of the installation process. Detailed step-by-step instructions with diagrams are typically included in the product's specific assembly guide. Always refer to that guide for precise measurements and procedures.
- Prepare the Area: Ensure the installation area is clean, level, and waterproof. The floor and walls must be structurally sound.
- Install the Shower Tray: Position the ABS shower tray in the desired corner. Ensure it is perfectly level and properly connected to the waste drainage system. Apply sealant around the base as required.
- Mount Wall Profiles: Attach the vertical aluminum wall profiles to the walls, ensuring they are plumb and at the correct distance. Mark and drill holes, then secure with appropriate fasteners.
- Install Fixed Glass Panels: Carefully insert the fixed glass panels into the wall profiles and secure them according to the assembly guide.
- Assemble Sliding Doors: Attach the rollers and guides to the sliding doors. Install the door handles.
- Mount Sliding Doors: Carefully hang the sliding doors onto the top and bottom tracks. Adjust the rollers to ensure smooth operation and proper alignment.
- Apply Sealant: Apply a waterproof silicone sealant to all external joints between the profiles, glass, and shower tray to prevent leaks. Allow adequate drying time before use.
- Final Inspection: Check all connections, ensure doors slide smoothly, and verify there are no leaks.
Image 4.1: A front view of the SIDOA shower enclosure, highlighting the two sliding doors and the two fixed glass panels, all framed by black aluminum profiles.

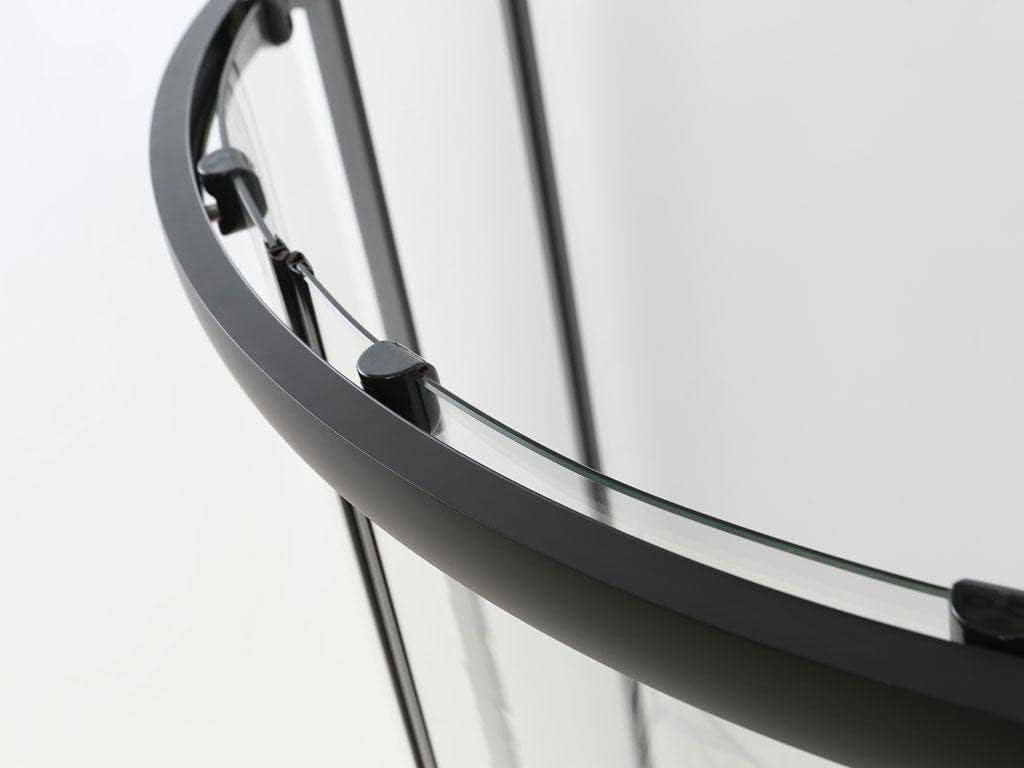

Image 4.2: Detail of the upper section of the shower enclosure, showing the curved black aluminum profile and the rollers that guide the sliding door.
Image 4.3: Detail of the lower section of the shower enclosure, illustrating the bottom track and guide mechanism for the sliding doors, designed to ensure smooth movement and water retention.
5. Operating Instructions
The Vente-unique SIDOA shower enclosure features smooth-gliding sliding doors for convenient access.
- Opening and Closing: Gently push or pull the door handles to slide the doors open or closed. Avoid forcing the doors.
- Water Retention: Ensure the doors are fully closed before starting the shower to prevent water from escaping the enclosure.
- Ventilation: After showering, leave the doors slightly ajar for a period to allow for ventilation and reduce condensation, which helps prevent mold and mildew buildup.
6. Maintenance
Regular cleaning and maintenance will prolong the life and appearance of your shower enclosure.
- Daily Cleaning: After each use, rinse the glass panels and profiles with clean water to remove soap residue and hard water spots. Use a squeegee on the glass for best results.
- Weekly Cleaning: Clean the glass and profiles with a soft cloth and a mild, non-abrasive cleaner specifically designed for shower enclosures. Avoid harsh chemicals, abrasive pads, or scouring powders, as these can damage the glass or finishes.
- Track Cleaning: Periodically clean the door tracks to remove any accumulated dirt, soap scum, or hair, which can impede door movement.
- Sealant Inspection: Regularly inspect the silicone sealant for any signs of wear, cracking, or mold. Reapply sealant if necessary to maintain a watertight seal.
- Roller and Guide Check: Check the door rollers and guides periodically for smooth operation. Clean and lubricate if needed (use silicone-based lubricant, not oil-based).
7. Troubleshooting
Refer to this section for solutions to common issues.
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors do not slide smoothly | Dirt or debris in tracks; worn rollers; misaligned doors | Clean tracks thoroughly. Inspect rollers for damage and replace if necessary. Adjust door alignment as per assembly guide. |
| Water leaks from enclosure | Damaged or insufficient sealant; gaps in profiles; doors not closing properly | Inspect all sealed joints and reapply silicone sealant where needed. Ensure doors close completely. Check for proper installation of seals. |
| Glass appears cloudy or stained | Hard water spots; soap scum buildup | Clean with a specialized glass cleaner for shower enclosures. Use a squeegee after each use to prevent buildup. |
8. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions (L x W x H) | 90 x 90 x 192 cm |
| Product Weight | 45.2 kg |
| Door Style | Sliding Doors |
| Material | 4mm Tempered Glass, ABS Shower Tray, Aluminum Profiles |
| Brand | Vente-unique |
| Shape | Rectangular (Corner) |
| Color | Transparent (Glass), Black (Profiles), White (Tray) |
| Number of Units | 1.0 unit |
9. Warranty and Support
Vente-unique products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Vente-unique website. For technical assistance, missing parts, or any other inquiries, please contact Vente-unique customer support.
You can find more information and contact details on the Vente-unique Brand Store.
