User Manual for Keyluv Modern Upholstered Bed Frame

1. Introduction

Thank you for choosing the Keyluv Modern Upholstered Bed Frame. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure you get the most out of your new bed frame. Please read this manual thoroughly before beginning assembly and keep it for future reference.

1.1 Safety Information

• Always follow the assembly instructions carefully to prevent instability or collapse.
• Do not exceed the maximum weight capacity of 850 pounds.
• Be cautious of sharp edges during assembly and use.
• Ensure all bolts and screws are tightened securely before use and periodically check for looseness.
• Keep small parts away from children during assembly.

2. Package Contents

Your Keyluv bed frame comes in one package and includes all necessary components and tools for assembly. Please verify that all parts listed below are present before starting assembly.

Figure 2.1: Exploded view of bed frame components.

3. Assembly Instructions

Assembly is designed to be straightforward and can typically be completed within an hour with the provided tools. It is recommended to assemble the bed frame with two people.

3.1 Preparation

• Clear an open space for assembly.
• Unpack all components and lay them out on a soft, clean surface to prevent scratches.
• Identify all parts using the component list in Section 2.

3.2 Step-by-Step Assembly

Step 1: Attach Side Rails to Headboard and Footboard

Connect the side rails (C) to the headboard (A) and footboard (B) using the provided bolts and the Allen wrench. Ensure the upholstered sides face outwards.

Figure 3.1: Assembled bed frame overview.

Step 2: Install Center Support Beam and Legs

Attach the center support beam (F) to the headboard and footboard connectors. Then, screw in the support legs (G) along the center beam and side rails for added stability. Ensure all legs are firmly in place and level.

Figure 3.2: Detail of the center support and slat system.

Step 3: Place Wooden Slats

Evenly space and place the wooden slats (E) across the bed frame. Secure them using the pre-drilled holes and screws if applicable. The slats provide robust support for your mattress without the need for a box spring.

Figure 3.3: Slats and frame structure.

Step 4: Assemble and Insert Storage Drawers

Assemble the four storage drawers (D) by attaching the wheels and any necessary support bars. Once assembled, slide the drawers underneath the bed frame. The drawers are designed to roll smoothly on your floor and feature fixtures to prevent excessive sliding.

Figure 3.4: Bed frame with storage drawers.

Figure 3.5: Detail of drawer rollers and anti-sliding fixtures.

Step 5: Adjust Headboard Height

The button-tufted headboard can be adjusted to two different heights, from 44.5 to 50 inches, to accommodate mattresses between 8-12 inches thick. Adjust the headboard to your desired height by loosening and re-tightening the bolts on the headboard supports.

Figure 3.6: Adjustable headboard.

4. Operating Instructions

4.1 Using the Storage Drawers

The four storage drawers are designed for easy access and organization. Simply pull the drawers out from underneath the bed frame using the integrated handles. The wheels allow for smooth movement on various floor surfaces. When closing, ensure the anti-sliding fixtures engage to keep the drawers securely in place.

4.2 Adjusting the Headboard

To adjust the headboard height, locate the adjustment bolts on the back of the headboard supports. Loosen these bolts, slide the headboard to your preferred height (between 44.5 and 50 inches), and then securely tighten the bolts. This allows for optimal comfort with different mattress thicknesses.

5. Maintenance

To ensure the longevity and appearance of your Keyluv bed frame, follow these simple maintenance guidelines:

• Cleaning: For the upholstered fabric, clean with a dry cloth. For spills, gently blot with a clean, damp cloth and mild soap, then air dry. Avoid harsh chemicals.
• Structural Check: Periodically check all bolts and screws to ensure they remain tight. Re-tighten if any looseness is detected to maintain stability and safety.
• Drawer Care: Keep the drawer wheels free of debris to ensure smooth operation.
• Weight Limit: Do not exceed the maximum weight capacity of 850 pounds to prevent damage to the frame.

6. Troubleshooting

If you encounter any issues with your bed frame, please refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Keyluv customer support.

7. Specifications

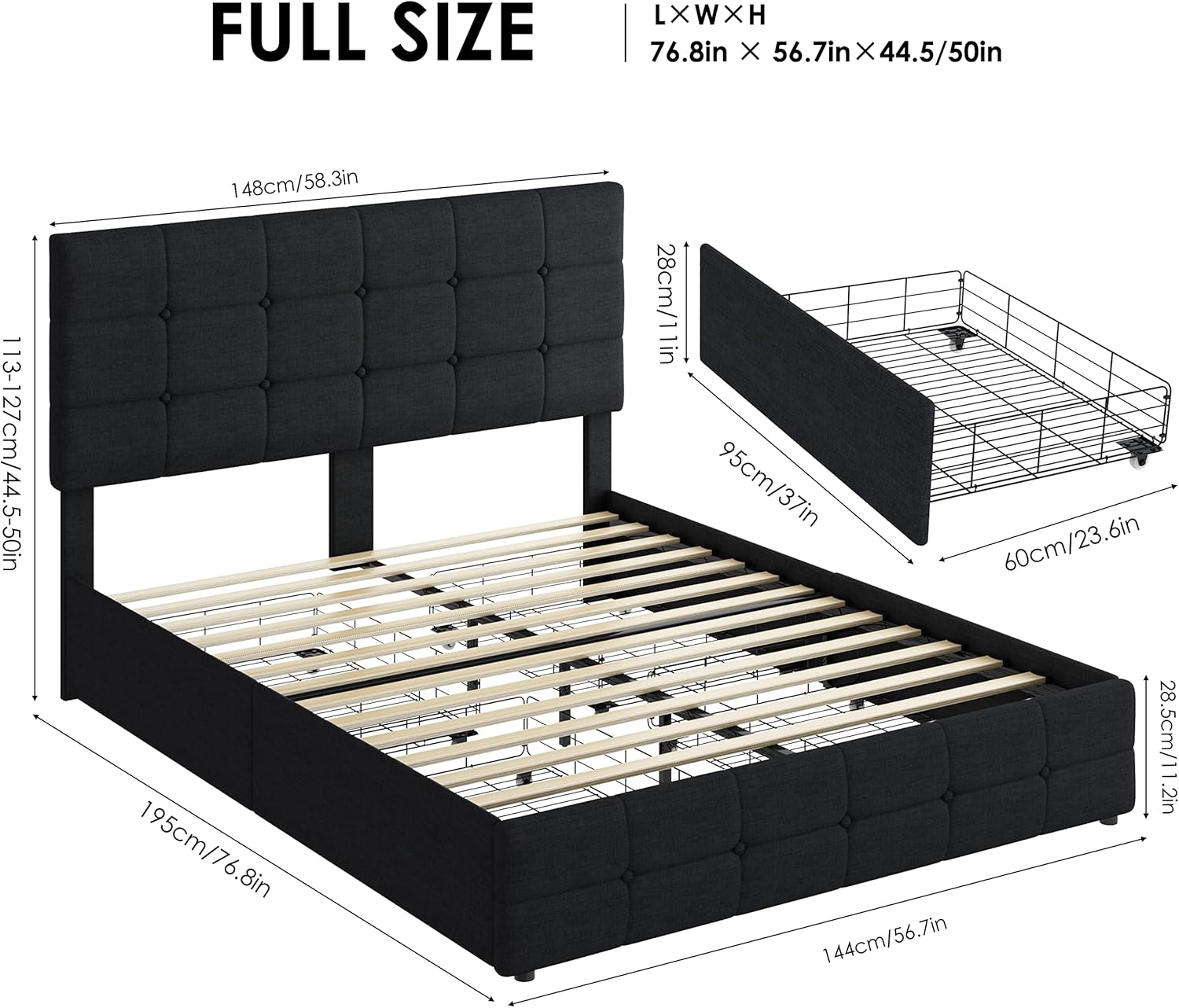

Figure 7.1: Product dimensions.

8. Warranty & Support

8.1 Return Policy

This product is eligible for a 30-day easy return policy. Please refer to your purchase platform for specific details regarding returns and refunds.

8.2 Customer Support

For any questions, concerns, or assistance with your Keyluv bed frame, please contact Keyluv customer support. You can typically find contact information on the retailer's website or within your order details. Please have your model number (094) and purchase date ready when contacting support.

Visit the Keyluv Store for more products and information.
