Introduction
This manual provides essential information for the safe and effective use of your HMS H6996 Magnetic Elliptical Orbitrek. Please read this manual thoroughly before assembly, operation, or maintenance. Keep this manual for future reference.
Figure 1: The HMS H6996 Magnetic Elliptical Orbitrek, showcasing its sleek design and robust frame.
Important Safety Instructions
- Consult a physician before starting any exercise program.
- Ensure all parts are securely fastened before each use.
- Keep children and pets away from the equipment during operation.
- Place the elliptical on a flat, stable surface.
- Wear appropriate exercise attire and footwear.
- Do not exceed the maximum user weight (refer to specifications).
- Stop exercising immediately if you feel faint, dizzy, or experience pain.
Setup and Assembly
The HMS H6996 elliptical requires some assembly. Follow the steps below carefully. It is recommended to have two people for assembly.
1. Unpacking
- Carefully remove all components from the packaging.
- Verify all parts are present against the included parts list (not provided in this manual, refer to packaging).
- Place all parts on a clear, flat surface.
2. Base Assembly
- Attach the front and rear stabilizer bars to the main frame using the provided bolts and washers. Ensure they are securely tightened.
3. Pedal and Arm Assembly
- Connect the pedal arms to the main crank mechanism. Pay attention to left and right markings.
- Attach the foot pedals to the pedal arms.
- Install the moving handlebars to the upper frame, ensuring proper alignment with the pedal arms.
4. Console and Sensor Connection
- Mount the console mast to the main frame.
- Attach the console to the console mast.
- Connect all sensor wires (e.g., pulse, speed) from the main frame to the console.
5. Final Checks
- Review all connections and ensure all bolts are tightened.
- Test the elliptical for smooth operation before first use.

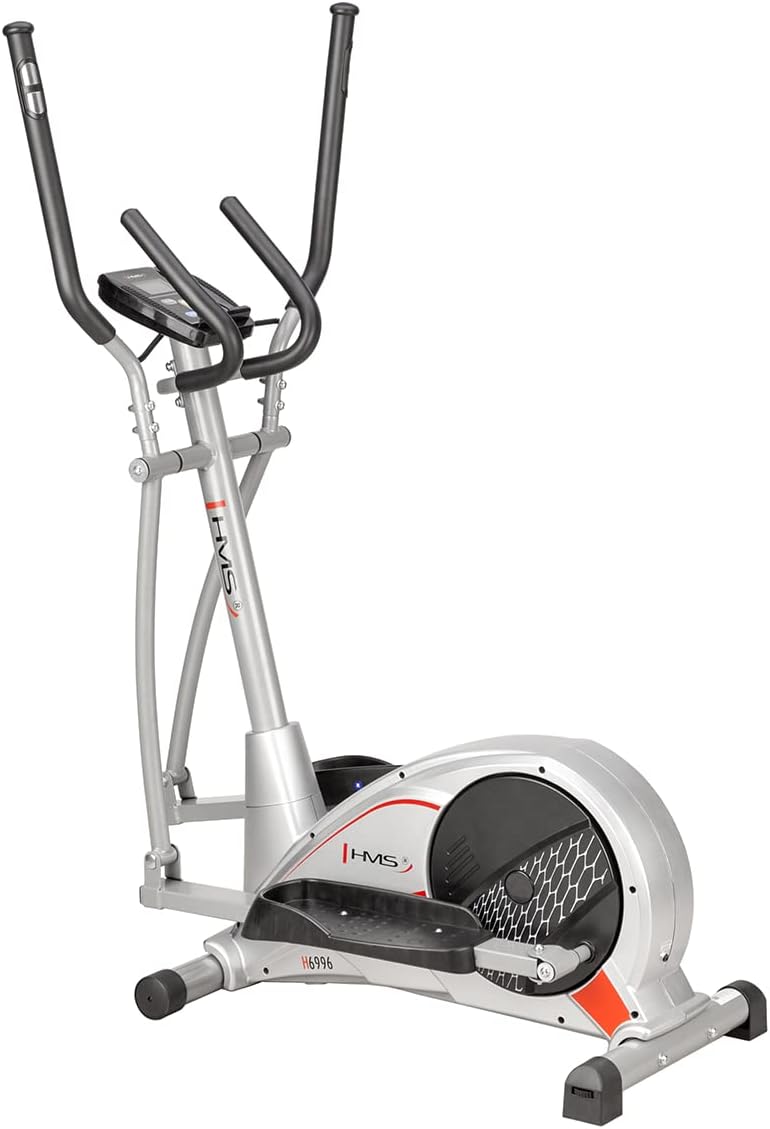

Figure 2: The HMS H6996 elliptical fully assembled, ready for use. Note the stable base and integrated handlebars.
Operating Instructions
1. Getting Started
- Step onto the pedals one foot at a time, holding onto the stationary or moving handlebars for balance.
- Begin pedaling in a smooth, elliptical motion.
Figure 3: A user demonstrating proper form while operating the HMS H6996 elliptical, engaging both arm and leg movements.
2. Console Functions
The console displays various workout metrics. Power on the console by pressing any button or by starting to pedal.
Figure 4: Close-up view of the HMS H6996 elliptical's digital console, showing the display screen and control buttons.
- TIME: Displays the duration of your workout.
- SPEED: Shows your current speed.
- DISTANCE: Tracks the total distance covered during your session.
- CALORIES: Estimates the calories burned.
- PULSE: Displays your heart rate when holding the pulse sensors.
- SCAN: Cycles through all metrics automatically.
- MODE/RESET: Press to select display mode or hold to reset values.
3. Resistance Adjustment
The HMS H6996 features a magnetic resistance system. Adjust the resistance level using the tension knob located on the main frame. Turn clockwise to increase resistance and counter-clockwise to decrease it.
4. Heart Rate Monitoring
To measure your heart rate, firmly grasp the pulse sensors on the stationary handlebars. Your heart rate will be displayed on the console after a few seconds.
Figure 5: Close-up of the integrated pulse sensors on the handlebars, designed for accurate heart rate monitoring during exercise.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your elliptical.
1. Cleaning
- Wipe down the elliptical with a damp cloth after each use to remove sweat and dust.
- Do not use abrasive cleaners or solvents.
2. Lubrication
- Check moving parts (e.g., joints, pivot points) periodically for smooth operation.
- Apply a silicone-based lubricant to any squeaking or stiff joints as needed.
3. Bolt and Nut Checks
- Periodically inspect all bolts, nuts, and screws to ensure they are tight. Tighten any loose fasteners to prevent instability and noise.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Console display is blank. | Batteries are dead or incorrectly installed. Loose connection. | Replace batteries (if applicable). Check all console cable connections. |
| Squeaking noise during operation. | Loose bolts or joints. Lack of lubrication. | Tighten all assembly bolts. Apply silicone lubricant to moving joints. |
| Resistance not changing. | Resistance cable disconnected or damaged. | Inspect the resistance cable connection to the tension knob and flywheel. |
| Inaccurate heart rate reading. | Hands not firmly on sensors. Dry hands. | Ensure firm contact with both sensors. Slightly moisten hands if too dry. |
Specifications
| Feature | Detail |
|---|---|
| Model | HMS H6996 |
| Type | Magnetic Elliptical Orbitrek |
| Resistance System | Magnetic |
| Console Display | Time, Speed, Distance, Calories, Pulse, Scan |
| Heart Rate Monitoring | Integrated Pulse Sensors |
| Batteries Included | No |
| ASIN | B09M729L4N |
| Date First Available | 16 September 2023 |
| Product Dimensions (Note: Dimensions provided in source data appear to be for a different product and are not representative of a full elliptical machine.) | 2.79 x 24.64 x 16.51 cm; 3.78 kg |
Warranty and Support
For detailed warranty information, please refer to the documentation included with your purchase or visit the official HMS website. For technical support or spare parts, contact HMS customer service through their official channels.
Note: Specific warranty terms and contact details are not provided in this manual.
