Prolux CTX Water Filtration Canister Vacuum Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and care of your Prolux CTX Water Filtration Canister Vacuum. Please read all instructions carefully before using the appliance.

Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.

• Do not leave the vacuum cleaner unattended when plugged in.
• Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not use without water basin and filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.

Package Contents

Verify that all components are present in the package:

• Prolux CTX Canister Unit
• Electric Hose and Wand
• Power Nozzle (Wessel Werk EBK360)
• Tool Hose
• 2x Extension Wands
• Accessory Kit (various cleaning tools)

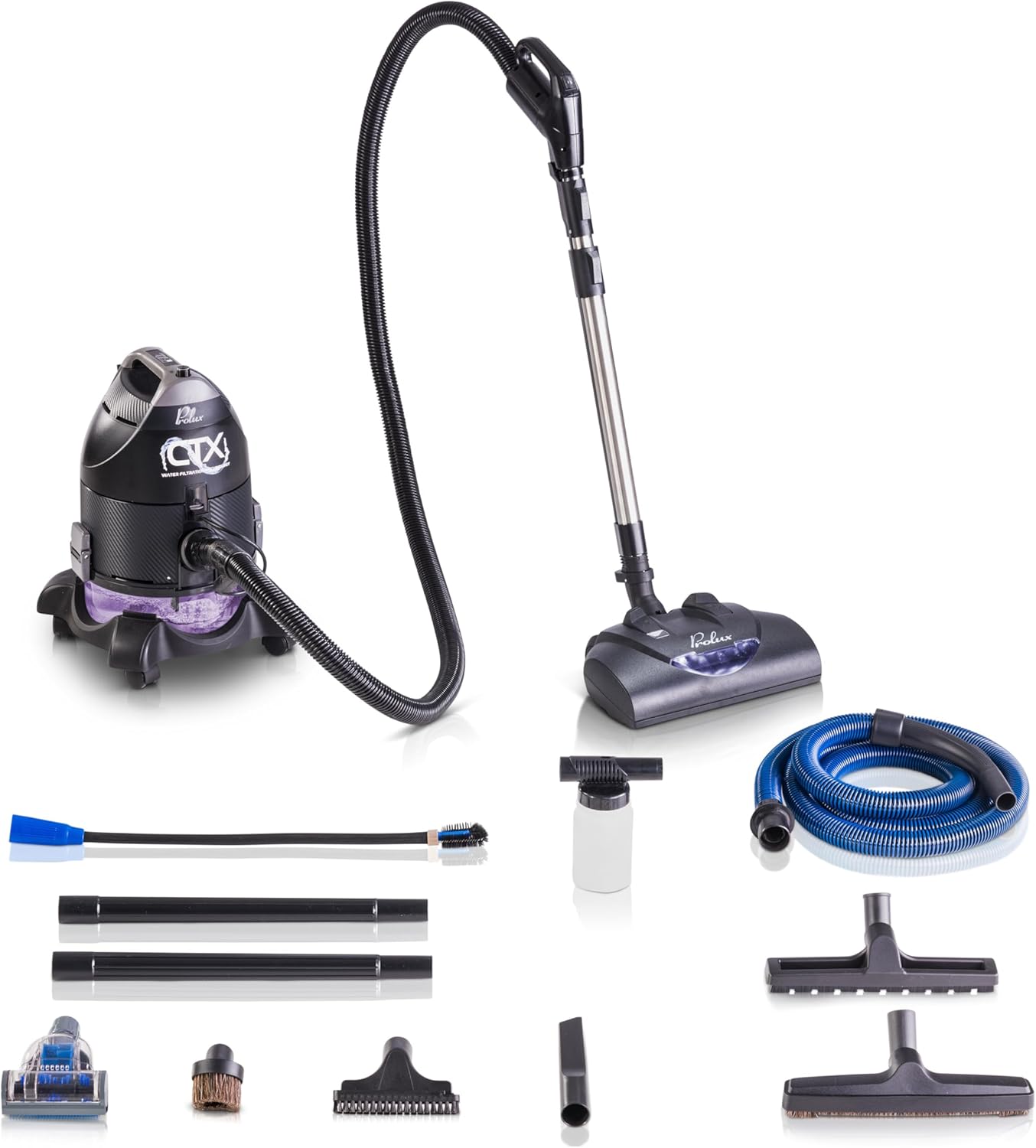

Image: All components of the Prolux CTX Water Filtration Canister Vacuum, including the main unit, power nozzle, hoses, extension wands, and various cleaning attachments.

Component Identification

Image: Exploded view diagram of the Prolux CTX canister unit, highlighting key components such as wheels, hose inlets, motor, water filtration basin, tool storage, inflation port, cord hook, and carrying handle.

1. Durable Easy Glide Wheels
2. Suction Side Hose Inlet
3. 130 CFM 2 Speed Italian Motor
4. Bagless Water Filtration Basin
5. Tool Storage Caddy
6. Inflation Outlet Port
7. Cord Storage Hook
8. Carrying Handle

Setup Instructions

1. Assemble the Canister Unit: Ensure the water filtration basin (D) is securely attached to the main motor unit.
2. Fill the Water Basin: Open the water basin and fill it with clean water up to the indicated fill line. This is crucial for the water filtration system to function correctly.
3. Connect the Electric Hose: Insert the electric hose into the suction side hose inlet (B) on the canister unit. Ensure it clicks securely into place.
4. Attach Extension Wands and Power Nozzle: Connect the extension wands to the electric hose handle. Then, attach the Wessel Werk EBK360 power nozzle to the end of the extension wands. Ensure all connections are firm.
5. Connect Tool Hose (Optional): For using smaller attachments, connect the tool hose to the appropriate port.
6. Power Connection: Unwind the power cord from the cord storage hook (G) and plug the vacuum into a suitable electrical outlet.

Image: The Prolux CTX canister vacuum fully assembled with the electric hose and power nozzle attached, ready for operation.

Operating Instructions

General Operation

1. Power On/Off: Locate the power switch on the canister unit or the handle of the electric hose. Press to turn the vacuum on or off.
2. Speed Control: The vacuum features a 2-speed Italian motor. Adjust the suction power as needed for different cleaning tasks. Higher speed for deep cleaning, lower speed for delicate surfaces.
3. Using the Power Nozzle: The Wessel Werk EBK360 power nozzle is designed for deep cleaning carpets and rugs. It features LED headlights for improved visibility and quiet rubber wheels.
4. Using Attachments: Select the appropriate accessory from the kit for specific tasks (e.g., crevice tool for tight spaces, dusting brush for delicate surfaces). Attach it to the end of the wand or tool hose.

Wet Pickup (Spills)

The Prolux CTX is capable of wet pickup. Ensure the water basin is properly filled before attempting to pick up liquids.

• Do not pick up flammable or combustible liquids.
• Use the appropriate attachment for wet pickup, typically a squeegee tool.
• After wet pickup, immediately empty and clean the water basin thoroughly.

Image: A hand using a vacuum attachment to clean a liquid spill on a hard floor, demonstrating the wet pickup capability of the Prolux CTX.

Maintenance

Emptying and Cleaning the Water Basin

The Prolux CTX utilizes water filtration, eliminating the need for bags or traditional filters. Regular cleaning of the water basin is essential for optimal performance and hygiene.

1. Unplug the Vacuum: Always ensure the vacuum is unplugged from the power outlet before performing any maintenance.
2. Remove Water Basin: Detach the water filtration basin from the main canister unit.
3. Dispose of Dirty Water: Carefully empty the dirty water into a toilet or outdoor drain. Observe the collected debris to gauge cleaning effectiveness.
4. Rinse Basin: Rinse the water basin thoroughly with clean water to remove any remaining dirt or residue.
5. Clean Components: Periodically clean any internal components of the water filtration system as per manufacturer recommendations to prevent buildup.
6. Dry and Reassemble: Allow all parts to air dry completely before reassembling the water basin to the canister unit.

Power Nozzle Maintenance

• Regularly check the brush roll for tangled hair or debris. Turn off and unplug the vacuum before cleaning the brush roll.
• Inspect the LED headlights for proper function.

Troubleshooting

This section addresses common issues you might encounter with your Prolux CTX vacuum. For more complex problems, please contact customer support.

Specifications

• Brand: Prolux
• Model Name: CTX
• Model Number: CTX1
• Special Feature: Bagless, High Power, Water Filtration, Wet-Dry Vacuum
• Filter Type: HEPA Filter (Note: Primary filtration is water, HEPA is secondary)
• Capacity: 3 Quarts (Water Basin)
• Wattage: 1440 watts
• Maximum Suction: 130 CFM (Cubic Feet per Minute)
• Hose Length: 6 Feet
• Product Dimensions: 16"L x 16"W x 23"H
• Noise Level: 130 dB
• Amperage: 12 Amps
• Motor Horsepower: 1.93 Watts
• Number of Speeds: 2
• Cleaning Path Width: 14 Inches
• Item Weight: 17 pounds
• Indoor/Outdoor Usage: Indoor

Warranty Information

Prolux offers comprehensive warranty coverage for the CTX Water Filtration Canister Vacuum:

• Motor Warranty: Lifetime warranty on the motor.
• Body Warranty: 3-year warranty on the vacuum body.
• Return Policy: 61-day return policy with paid return shipping for a full refund.

To qualify for the lifetime motor and 3-year body warranty, it is recommended to register your product online. For warranty claims, please contact Prolux customer support.

Customer Support

For product assistance, troubleshooting, or warranty inquiries, please contact Prolux customer support. Our vacuum experts are available to help you with setup and operation.

Refer to the official Prolux website for the most current contact information and support resources.
