1. Introduction
Thank you for choosing the tepro Chicago Table Gas Grill. This compact and portable gas grill is designed for convenient outdoor cooking, perfect for your garden, balcony, terrace, or camping trips. Featuring two powerful stainless steel burners and precise temperature control, it ensures an excellent grilling experience.
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new grill. Please read it thoroughly before assembly and use, and keep it for future reference.
2. Safety Information
Always follow these safety guidelines to prevent injury or damage to property.
- Outdoor Use Only: This grill is designed for outdoor use only. Do not operate indoors or in enclosed spaces.
- Ventilation: Ensure adequate ventilation during operation.
- Clearance: Maintain a safe distance from combustible materials (e.g., walls, fences, trees).
- Stable Surface: Always place the grill on a stable, level, non-combustible surface.
- Gas Leaks: Before each use, check for gas leaks using a soapy water solution. Never use an open flame to check for leaks.
- Gas Cylinder: Use only approved gas cylinders and ensure they are securely connected. Disconnect the gas supply when not in use.
- Children and Pets: Keep children and pets away from the hot grill.
- Hot Surfaces: Grill surfaces become extremely hot during use. Use heat-resistant gloves and tools.
- Grease Fires: In case of a grease fire, turn off the gas supply immediately and close the lid. Do not use water to extinguish a grease fire.
- Maintenance: Regularly clean the grill, especially the grease drip tray, to prevent flare-ups.
3. Product Components
Your tepro Chicago Table Gas Grill comes with the following main components:
- Grill unit with 2 stainless steel burners
- Lid with integrated thermometer
- Lid handle
- Grease drip tray
- Gas hose and pressure reducer for standard gas cylinders (5/11 kg)
- Stainless steel grilling grate
- Foldable stainless steel legs
Figure 3.1: Front view of the tepro Chicago Table Gas Grill. This image displays the compact design of the grill, featuring two prominent control knobs on the front panel and a temperature gauge integrated into the lid. The stainless steel finish is visible, along with the sturdy handle on the lid.
Figure 3.2: Side view highlighting the foldable stainless steel legs of the grill. This feature enhances the grill's portability and makes it easy to store when not in use.
4. Setup and Assembly
The tepro Chicago grill is delivered as a kit and requires assembly. Follow the instructions carefully.
- Unpacking: Carefully unpack all components and check against the parts list to ensure nothing is missing or damaged.
- Leg Assembly: Attach the foldable stainless steel legs to the main grill body using the provided screws. Ensure they are securely fastened and can fold/unfold smoothly.
- Grease Drip Tray: Slide the grease drip tray into its designated slot at the bottom of the grill. Ensure it is properly seated for easy removal and cleaning.
- Grilling Grate: Place the stainless steel grilling grate onto the supports inside the grill chamber.
- Lid and Handle: Attach the lid handle to the lid if it's not pre-assembled. Ensure the lid opens and closes smoothly and the thermometer is securely in place.
- Gas Connection:
- Connect the provided gas hose to the grill's gas inlet.
- Attach the pressure reducer to the other end of the gas hose.
- Connect the pressure reducer to a standard 5 kg or 11 kg gas cylinder. Ensure all connections are tight.
- Perform a leak test: Apply a soapy water solution to all gas connections. If bubbles appear, there is a leak. Tighten connections or replace faulty parts. Do not use the grill if a leak is detected.

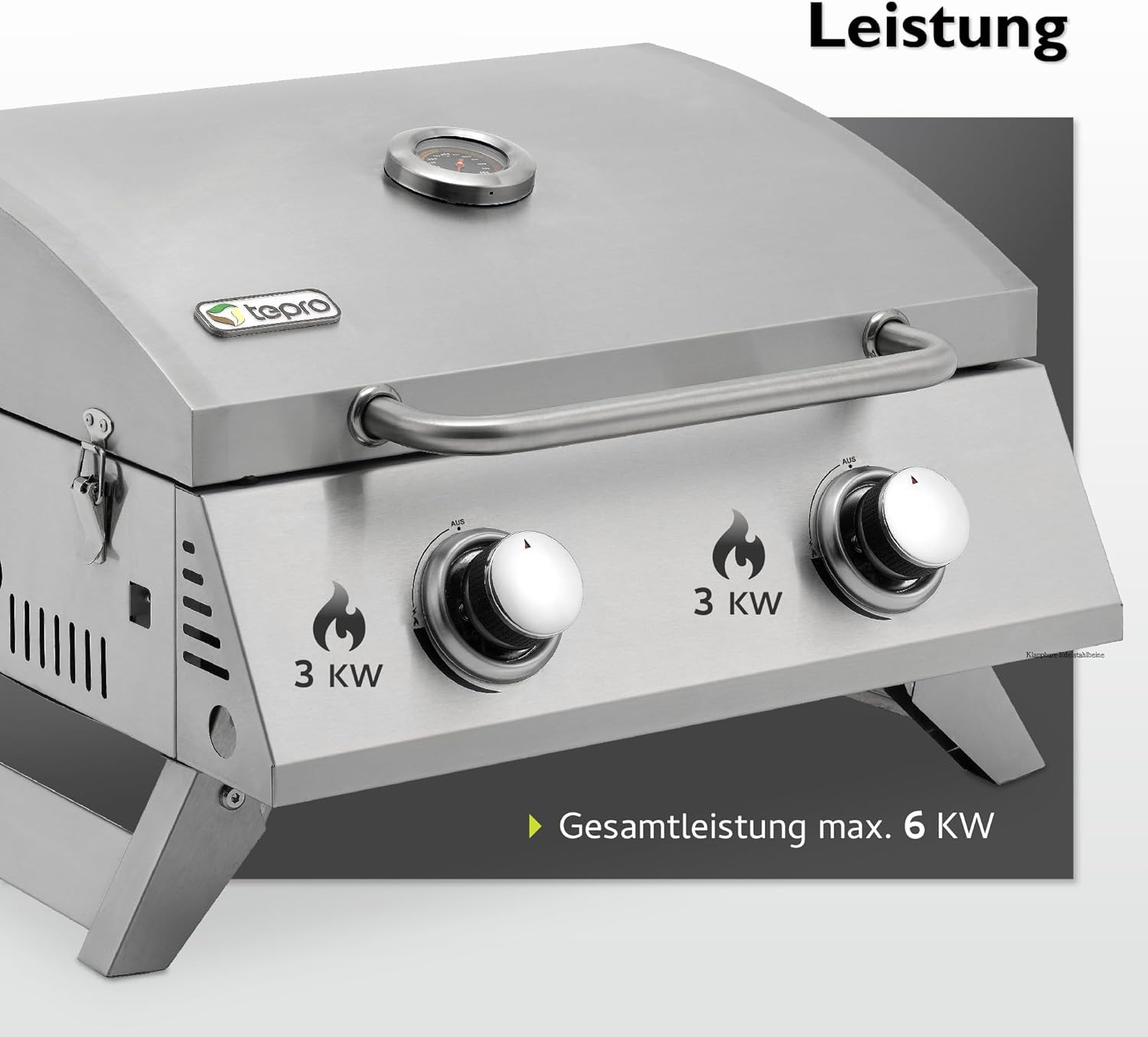

Figure 4.1: Detail of the control knobs and burner power. Each burner provides approximately 3 kW of power, totaling 6 kW for efficient grilling.
5. Operating Instructions
5.1. Before First Use
Before cooking for the first time, operate the grill on high heat for about 15 minutes to burn off any manufacturing residues. Ensure good ventilation during this process.
5.2. Ignition
- Ensure the gas cylinder valve is open.
- Push in and turn one of the control knobs to the HIGH position (or ignition symbol).
- The integrated piezo ignition will spark, igniting the burner. If it doesn't ignite within 5 seconds, turn the knob off, wait 5 minutes, and try again.
- Once ignited, you can adjust the flame intensity by turning the control knob between HIGH and LOW.
- Repeat for the second burner if desired.
5.3. Grilling
The tepro Chicago grill offers a grilling surface of approximately 47.5 x 35 cm, suitable for various foods.
- Preheating: Close the lid and preheat the grill for 10-15 minutes on high heat to reach the desired cooking temperature. Use the integrated thermometer to monitor.
- Direct Grilling: For searing and quick cooking (steaks, burgers), place food directly over the lit burners.
- Indirect Grilling: For larger cuts or delicate foods (roasts, whole chicken), light one burner and place the food on the unlit side. Close the lid for even cooking.
- Temperature Control: Adjust the burner knobs to maintain the desired temperature. The lid thermometer provides an accurate reading.
Figure 5.1: View of the grilling surface. The stainless steel grate provides ample space for various foods, measuring approximately 47.5 cm by 35 cm.
Figure 5.2: The tepro Chicago grill in use, demonstrating its suitability for diverse grilling tasks in an outdoor environment.
6. Maintenance and Cleaning
Regular cleaning and maintenance will extend the life of your grill and ensure safe operation.
- After Each Use:
- Turn off the gas supply and allow the grill to cool completely.
- Brush the grilling grate with a grill brush to remove food residues.
- Remove and empty the grease drip tray. Clean it with warm, soapy water.
- Periodically:
- Clean the interior of the grill with a damp cloth and mild detergent.
- Wipe down exterior surfaces with a stainless steel cleaner or damp cloth.
- Check gas hose and connections for cracks or damage. Replace if necessary.
- Inspect burners for blockages (e.g., from insects). Clean with a wire brush if needed.
- Storage: Store the grill in a dry, protected area when not in use, especially during off-season. Disconnect the gas cylinder.

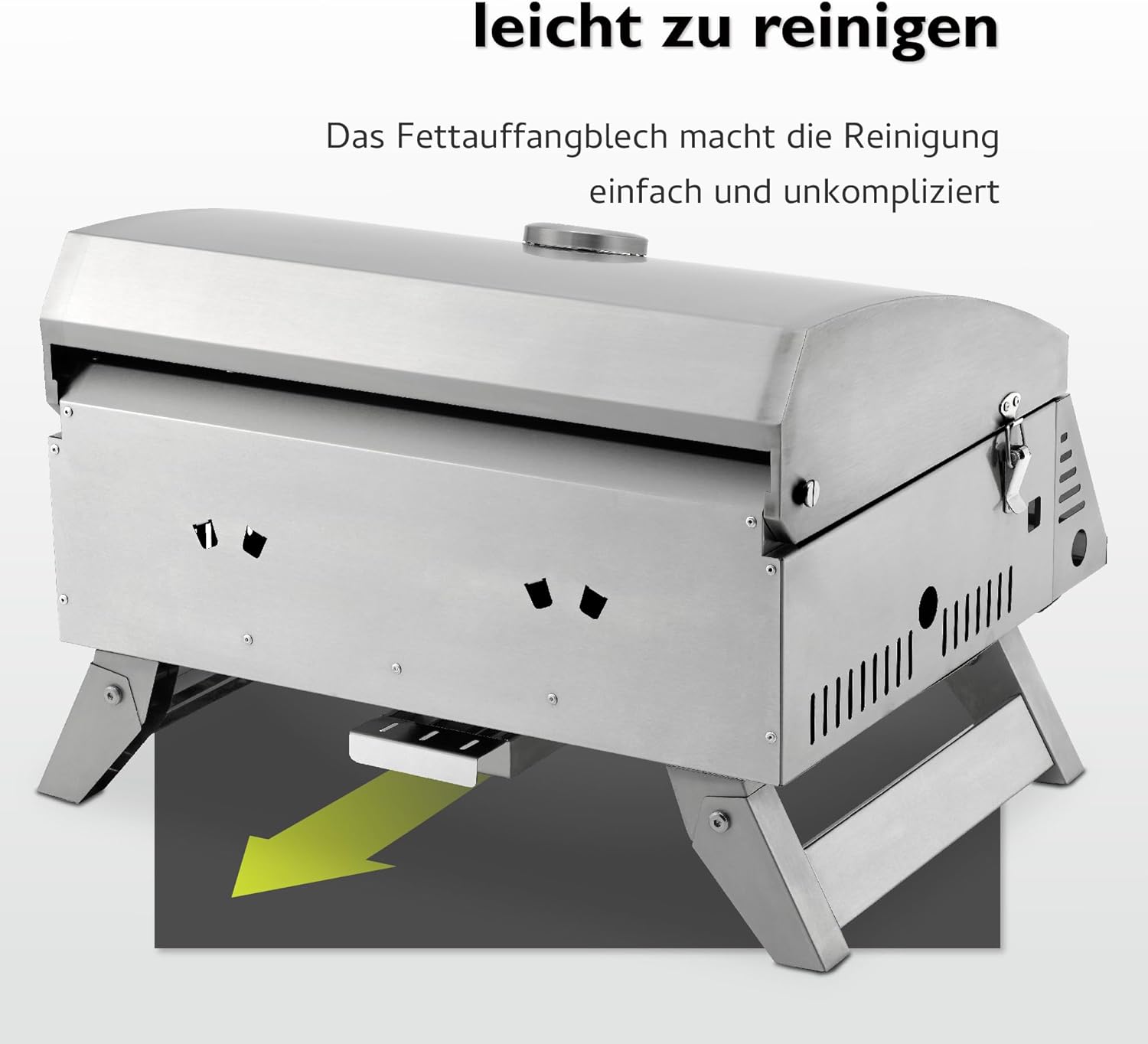

Figure 6.1: The easily removable grease drip tray, designed for simple and uncomplicated cleaning, ensuring hygiene and preventing flare-ups.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not ignite. | Gas cylinder empty or valve closed. Gas hose kinked or blocked. Igniter faulty or dirty. | Check gas level and open valve. Straighten hose or clear blockage. Clean igniter electrode or contact customer support. |
| Low flame or uneven heat. | Low gas pressure. Burner ports clogged. Regulator issue. | Check gas cylinder level. Clean burner ports with a wire brush. Consult a professional or replace regulator. |
| Gas smell. | Gas leak. | Immediately turn off gas supply. Perform a leak test with soapy water. Tighten connections or replace faulty parts. Do not use until leak is resolved. |
| Flare-ups. | Excessive grease buildup. High fat content in food. | Clean grease drip tray and grill interior regularly. Trim excess fat from meat. |
8. Specifications
- Model: tepro Chicago (Model No. 3313)
- Type: Table Gas Grill
- Burners: 2 x Stainless Steel Burners
- Burner Power: Approx. 3 kW per burner
- Total Power: Max. 6 kW
- Ignition: Integrated Piezo Ignition
- Grilling Surface: Approx. 47.5 cm x 35 cm
- Dimensions (WxDxH): Approx. 54 cm x 45.5 cm x 36 cm
- Weight: Approx. 8.5 kg
- Material: Stainless Steel (Grill, Grate, Legs)
- Fuel Type: Gas (LPG)
- Included Accessories: Grease drip tray, lid with thermometer, gas hose, pressure reducer
Figure 8.1: Overall dimensions of the tepro Chicago Table Gas Grill, illustrating its compact size for easy placement and portability.
9. Warranty and Support
tepro stands by the quality of its products. While specific warranty details may vary by region and retailer, please retain your proof of purchase for any warranty claims.
For any questions, technical assistance, or support regarding your tepro Chicago Table Gas Grill, our dedicated support team is available to assist you. Please refer to the contact information provided with your purchase or visit the official tepro website for further details.
We are committed to ensuring your satisfaction with our solutions.
10. Official Product Videos
Currently, there are no official product videos from the seller available for direct embedding in this manual. Please check the product page or the manufacturer's website for any available video content.
