CCLIFE 18-Piece HSS Bi-metal Hole Saw Set Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of your CCLIFE 18-Piece HSS Bi-metal Hole Saw Set. This set is designed for creating precise holes in various materials, including stainless steel, metal, wood, PVC panels, and plastic. Please read this manual thoroughly before operation and retain it for future reference.

2. Product Components

The CCLIFE 18-Piece HSS Bi-metal Hole Saw Set includes the following components:

• 13 x Bi-metal Hole Saws: Ø16-19-22-25-32-35-37-44-51-64-68-76mm
• 2 x Mandrels
• 3 x HSS Drill Bits
• 1 x Hex Key
• 1 x Adapter

3. Setup and Assembly

Proper assembly is crucial for safe and effective operation. Follow these steps to assemble your hole saw:

1. Select Components: Choose the appropriate hole saw blade and mandrel for your desired hole size and material.
2. Attach Drill Bit: Insert the pilot drill bit into the mandrel. Secure it firmly with the locking screw using the hex key.
3. Attach Saw Blade: Thread the selected hole saw blade onto the mandrel. Ensure it is tightened securely to prevent wobbling during operation.
4. Insert into Drill: Insert the assembled hole saw into the chuck of your power drill (bench drill or pistol drill). Tighten the drill chuck firmly to prevent slippage.

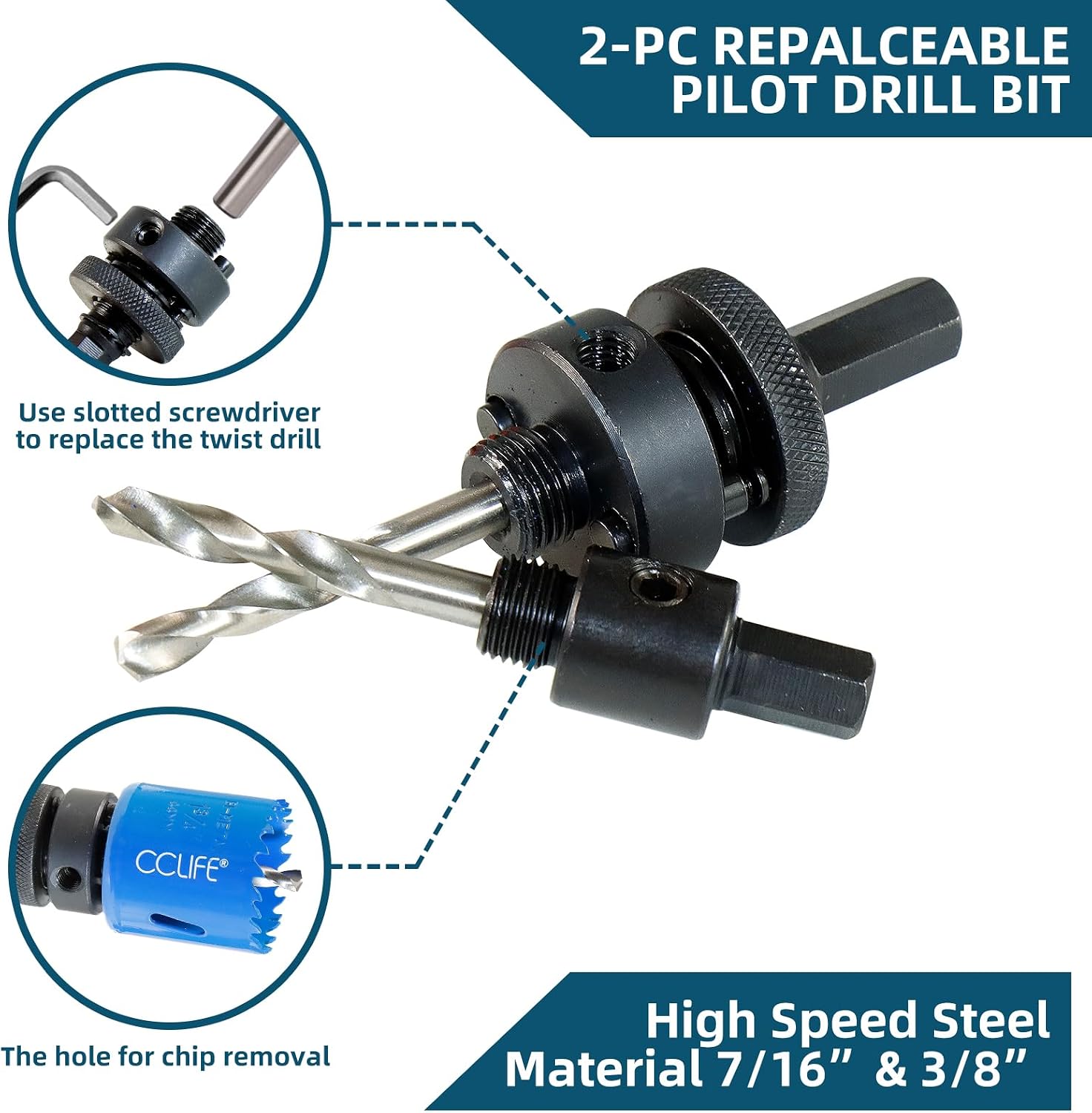

Replacing the Pilot Drill Bit

To replace a worn or damaged pilot drill bit:

1. Loosen the locking screw on the mandrel using a slotted screwdriver or the hex key.
2. Remove the old pilot drill bit.
3. Insert the new pilot drill bit and tighten the locking screw firmly.

4. Operating Instructions

General Operation

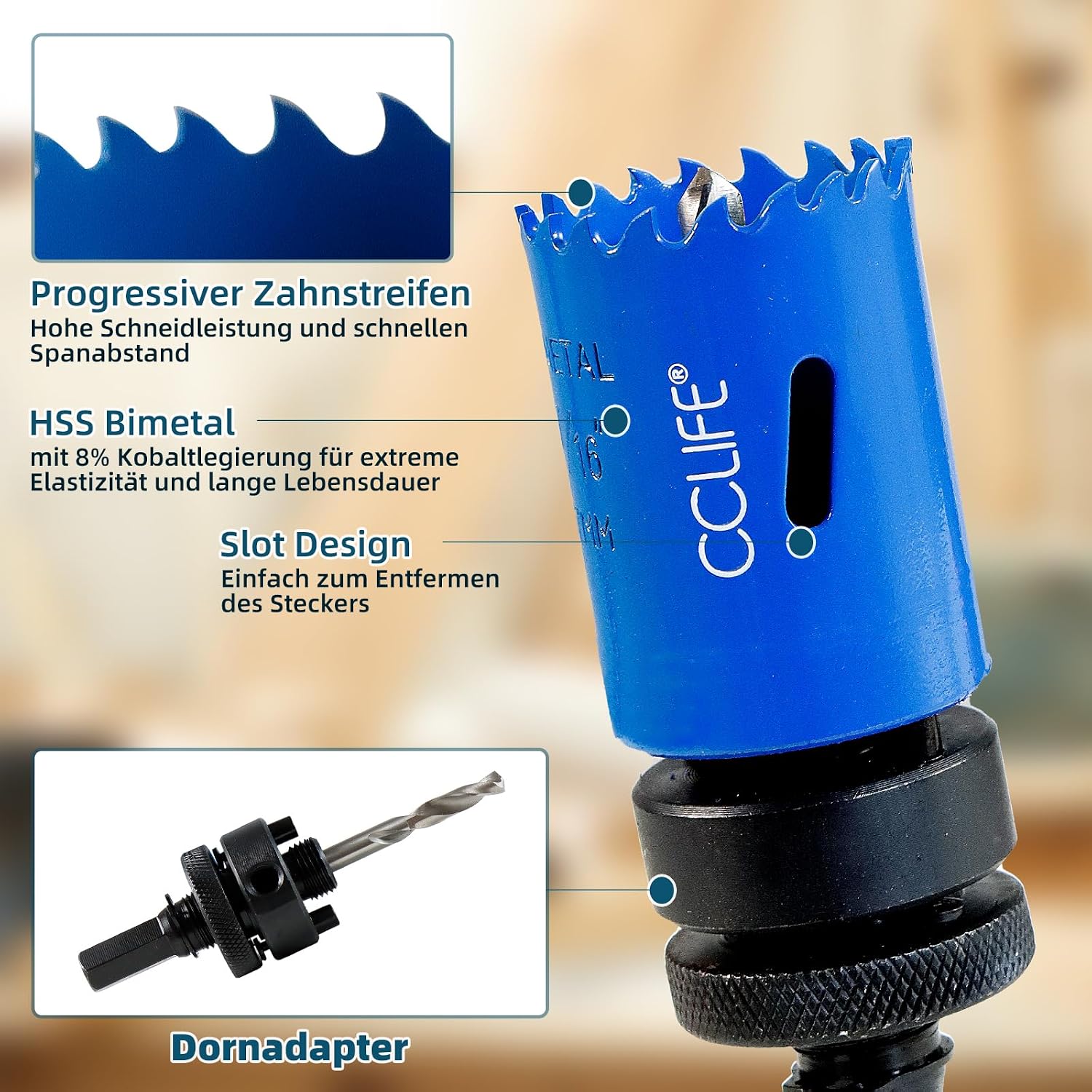

The CCLIFE HSS Bi-metal Hole Saws are designed for high cutting performance and efficient chip removal. The 4-slot design and sharp serration contribute to clean and professional cuts.

Applicable Materials

This hole saw set is suitable for cutting a variety of materials:

• Hardwood
• Density Board
• Metal (including Stainless Steel)
• Thin PVC Plate
• Plastic

Recommended RPM (Revolutions Per Minute)

To achieve optimal cutting performance and extend the life of your hole saws, adhere to the recommended RPMs for different materials and hole saw diameters. Always use coolant when drilling, especially in metal.

Important: Always use coolant when drilling, especially in metal.

5. Maintenance

Regular maintenance ensures the longevity and performance of your hole saw set:

• Cleaning: After each use, clean the hole saws, mandrels, and drill bits to remove any debris, chips, or residue. Use a brush or compressed air.
• Lubrication: Apply a light coat of oil to metal components, especially after cleaning, to prevent rust.
• Storage: Store the set in its original plastic case in a dry environment to protect it from moisture and damage.
• Inspection: Periodically inspect saw blades for dullness or damage. Replace worn drill bits and blades as needed to maintain cutting efficiency and safety.

6. Troubleshooting

If you encounter issues during operation, consider the following:

• Hole Saw Binding/Sticking: This can occur if the feed rate is too aggressive, the RPM is incorrect for the material, or if the saw is dull. Reduce pressure, adjust RPM according to the table, and ensure the blade is sharp. Ensure coolant is used for metal.
• Mandrel Locking Nut Issues: If the locking nut on the mandrel frequently jams or becomes difficult to loosen, ensure it is clean and free of debris. Apply a small amount of lubricant if necessary. Avoid over-tightening.
• Poor Cut Quality: A dull blade, incorrect RPM, or insufficient coolant can lead to rough cuts. Replace the blade if dull, adjust RPM, and ensure proper lubrication/cooling.
• Excessive Heat/Smoke: This indicates too much friction, often due to incorrect RPM, lack of coolant, or a dull blade. Stop immediately, check the blade, adjust RPM, and apply coolant.

7. Specifications

• Brand: CCLIFE
• Model Number: 2725
• Material: HSS Bi-metal (with 8% Cobalt alloy)
• Hardness: 63-65°HRC
• Cutting Depth: 38mm
• Hole Saw Diameters: 16, 19, 22, 25, 32, 35, 37, 44, 51, 64, 68, 76mm
• Number of Pieces: 18 (13 hole saws, 2 mandrels, 3 drill bits, 1 hex key, 1 adapter)
• Product Dimensions: 34 x 24.5 x 0.1 cm (approximate case dimensions)
• Item Weight: 2.3 Kilograms
• Country of Origin: China

8. Safety Information

Always prioritize safety when using power tools and accessories:

• Personal Protective Equipment (PPE): Always wear safety glasses or goggles to protect your eyes from flying debris. Consider gloves and hearing protection.
• Secure Workpiece: Ensure the material you are drilling is securely clamped or held to prevent movement during operation.
• Correct Speed: Use the recommended RPM for the material being cut to prevent overheating, binding, and premature wear.
• Coolant: Apply appropriate coolant, especially when drilling metal, to reduce heat and extend tool life.
• Stable Stance: Maintain a firm grip on the drill and a stable body position.
• Clear Work Area: Keep your work area clean and well-lit. Remove any loose objects that could interfere with the drilling process.
• Inspect Tools: Before each use, inspect the hole saw, mandrel, and drill bit for any damage or wear. Do not use damaged tools.
• Unplug When Changing: Always unplug the power drill or remove the battery pack before changing accessories or performing maintenance.

9. Warranty and Support

For warranty information or customer support regarding your CCLIFE 18-Piece HSS Bi-metal Hole Saw Set, please consult the retailer or contact CCLIFE customer service directly. Information regarding spare parts availability is not provided in this manual.

Manufacturer: CCLIFE Technic GmbH
