1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your EMKE 600W Electric Heating Element. Please read these instructions carefully before use and retain them for future reference.
2. Safety Instructions
- Ensure the power supply matches the specifications of the heating element (220-240V 50Hz).
- Installation must be performed by a qualified electrician in accordance with local regulations.
- The heating element must always be installed at the bottom of the bathroom radiator to ensure proper heat distribution and safe operation.
- Do not operate the heating element if it is damaged or if the cable is frayed.
- This product is certified with IPX4 protection, making it suitable for use in humid bathroom environments. However, avoid direct water spray.
- The heating element features overheat protection. If it overheats, it will automatically shut off.
- Keep children away from the operating heating element.
3. Product Overview
The EMKE 600W Electric Heating Element is designed to provide efficient and controlled heating for bathroom towel radiators. It features a durable stainless steel construction and an intelligent thermostat for precise temperature management.
Key Features:
- Material: High-quality 304 stainless steel, corrosion-resistant.
- Power: 600W, suitable for bathroom radiators with a power output of 600W to 900W.
- Thermostat: Intelligent digital thermostat with LCD display.
- Temperature Control: Adjustable from 30°C to 70°C.
- Timer Function: 2-hour or 4-hour timer settings.
- Safety: Overheat protection and IPX4 splash protection.
- Design: Coiled cable for neatness and a German standard plug.
Figure 1: Close-up of the EMKE heating element's black digital thermostat and power plug. This image shows a detailed view of the EMKE heating element's black digital thermostat, displaying '2H' for a 2-hour timer setting, along with the connected power plug and coiled cable.
Figure 2: EMKE heating element installed on a black towel radiator, highlighting features. A full view of a black towel radiator with the EMKE heating element installed at the bottom. Insets highlight the coiled cable design for neatness, the German standard plug, and the SUS304 stainless steel connection for good thermal conductivity.
Figure 3: EMKE 600W Electric Heating Element. A standalone image of the EMKE 600W electric heating element, showcasing its stainless steel rod and integrated thermostat control unit.
4. Setup and Installation
The installation of the heating element is straightforward but requires careful attention to safety and proper placement.
Installation Steps:
- Ensure the radiator is completely drained and disconnected from any power source.
- Insert the heating element into the designated opening at the bottom of your bathroom radiator.
- Securely tighten the connection (G1/2" thread) to prevent leaks.
- Refill the radiator with the appropriate heating fluid (if applicable) and check for any leaks.
- Plug the heating element into a suitable power outlet.
Important: For safety reasons, the heating element must always be mounted at the bottom of the radiator.

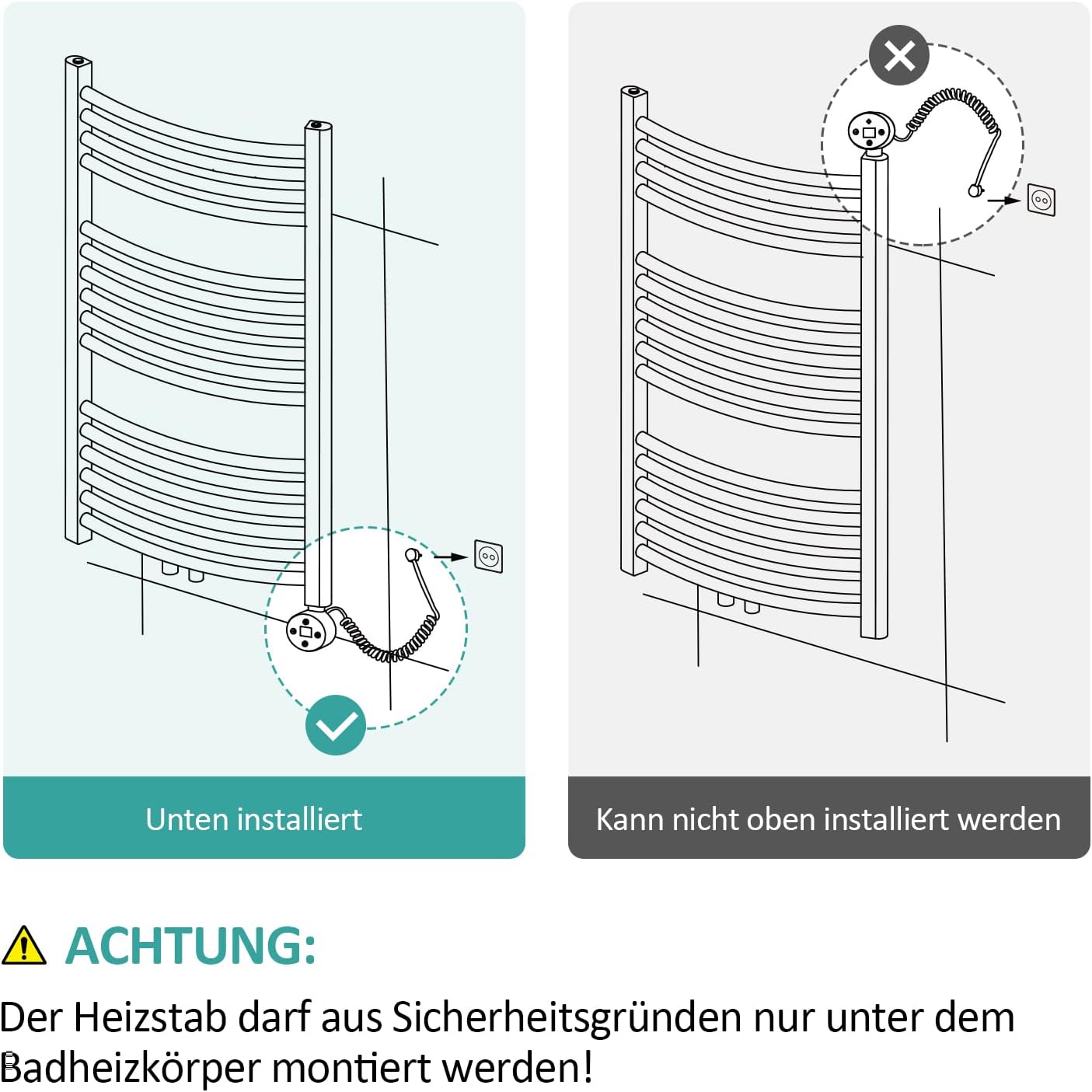

Figure 4: Correct and incorrect installation positions for the EMKE heating element. This diagram shows the correct installation of the heating element at the bottom of the radiator (checked) and an incorrect installation at the top (crossed out). It emphasizes that the heating element must always be mounted at the bottom for safety.
Figure 5: EMKE Heating element installation diagram. A diagram illustrating the installation process of the heating element into a towel radiator. It shows the element being inserted from the top and then connected at the bottom, reiterating that the heating element must always be mounted at the bottom of the towel warmer.
5. Operating Instructions
The intelligent thermostat allows for easy control of heating time and temperature.
Thermostat Controls:

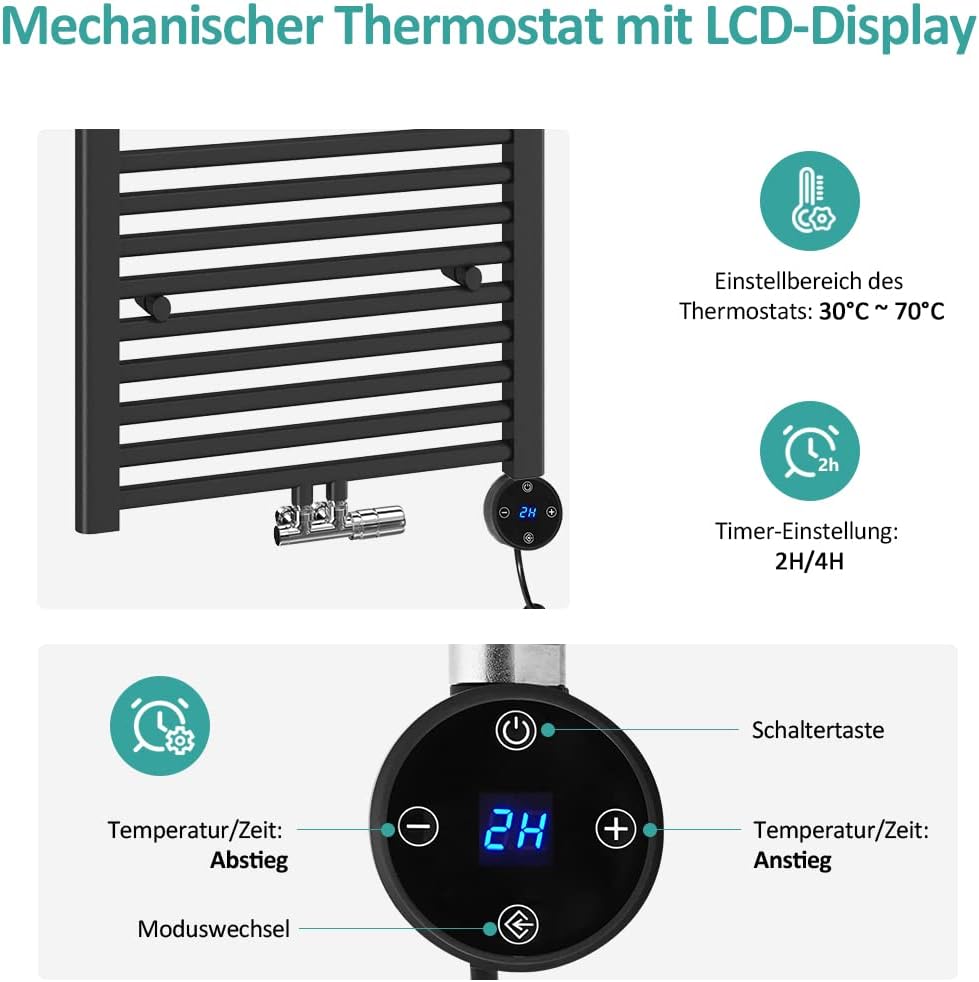

Figure 6: EMKE Thermostat LCD display and control buttons. This image illustrates the EMKE thermostat's LCD display and control buttons: Power button, Temperature/Time Decrease button, Temperature/Time Increase button, and Mode Change button. The display shows '2H', indicating a timer setting.
Figure 7: Close-up of the EMKE thermostat display showing temperature and timer settings. A close-up view of the EMKE thermostat's digital display, showing a temperature setting of '30' degrees Celsius and indicating the various control buttons for adjustment.
- Power Button: Press to turn the heating element ON or OFF.
- Temperature/Time Increase (+): Press to increase the desired temperature or timer duration.
- Temperature/Time Decrease (-): Press to decrease the desired temperature or timer duration.
- Mode Change Button: Press to switch between temperature setting mode and timer setting mode.
Setting Temperature:
- Turn on the heating element using the power button.
- Use the '+' and '-' buttons to adjust the temperature between 30°C and 70°C. The digital display will show the current setting.
Setting Timer:
- Turn on the heating element.
- Press the Mode Change button to enter timer setting mode. The display will show '2H' or '4H'.
- Use the '+' and '-' buttons to select either a 2-hour or 4-hour heating duration.
- The heating element will operate for the selected duration and then automatically turn off.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your EMKE heating element.
- Cleaning: Disconnect the power before cleaning. Wipe the surface of the heating element and thermostat with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Inspection: Periodically check the power cable for any signs of damage or wear. Ensure the connection to the radiator is secure.
- Waterproof Button: The thermostat features a waterproof film over the buttons for enhanced safety and durability in humid environments. Avoid puncturing or damaging this film.
Figure 8: Comparison of waterproof and non-waterproof thermostat buttons. This image compares two thermostat designs, highlighting the waterproof mechanical button on the left, which has a waterproof film covering the button surface, versus a design with protruding buttons on the right, which lacks this waterproof film.
7. Troubleshooting
If you encounter issues with your heating element, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Heating element does not turn on. | No power supply. Faulty outlet. Overheat protection activated. | Check if the plug is securely inserted and the power outlet is functional. Allow the unit to cool down if overheat protection was triggered. |
| Radiator is not heating sufficiently. | Incorrect temperature setting. Radiator size exceeds heating element capacity. Air in the radiator system. | Increase the temperature setting on the thermostat. Ensure the 600W element is suitable for your radiator (600-900W). Bleed the radiator to release trapped air. |
| Thermostat display is not working. | Power issue. Internal fault. | Check power supply. If the problem persists, contact customer support. |
| Heating element continuously runs without stopping. | Timer not set or set incorrectly. | Ensure the timer function is activated and set to 2H or 4H if desired. Refer to 'Setting Timer' section. |
If the problem persists after attempting these solutions, please contact EMKE customer support.
8. Specifications
| Specification | Detail |
|---|---|
| Brand | EMKE |
| Model Number | THE260B-ADR |
| Power | 600 W |
| Voltage | 220-240 V 50 Hz |
| Dimensions (L x Ø) | 610 mm x 12 mm (heating rod) |
| Cable Length | 700-1400 mm (coiled) |
| Max. Operating Pressure | 10 bar |
| Connection Thread | G1/2" |
| Temperature Range | 30°C to 70°C |
| Protection Class | IPX4 |
| Material | Stainless Steel 304 |
| Color | Black |
| Item Weight | 600 g |
Figure 9: EMKE Electric Heating Element with Thermostat specifications. This image displays the EMKE electric heating element with its thermostat, detailing specifications such as Power (300W/600W/900W/1200W), Cable Length (70-140cm), Voltage (220-240V 50Hz), and Protection Class (IP44).
Figure 10: EMKE Heating element dimensions and recommended power chart. This image provides a guide for selecting the appropriate heating element. It shows different lengths (392mm, 618mm, 830mm, 820mm) for 300W, 600W, 900W, and 1200W elements, respectively, all with a 12mm diameter. A table recommends heating element power based on radiator wattage.
Figure 11: Technical drawing of the EMKE heating element with dimensions. A technical drawing providing detailed dimensions of the EMKE heating element, including its length (550mm), diameter (12mm), and the dimensions of the control unit and cable length (1400mm).
9. Warranty and Support
EMKE offers comprehensive services to ensure a smooth purchasing experience and product satisfaction.
- Return Policy: A 14-day return policy is available.
- Repair Service: The product includes a 2-year repair service.
For any questions, technical assistance, or warranty claims, please contact EMKE customer support through your purchase platform or the official EMKE website.
