Introduction
Thank you for choosing the Fydun 12V-80V 112DB Vehicle Backup Alarm. This device is designed to provide an audible warning when a vehicle is reversing, significantly enhancing safety for both the driver and pedestrians. This manual provides essential information for proper installation, operation, and maintenance of your backup alarm.
Product Features
- Powerful Warning: Emits a loud 112dB (±3dB) sound to ensure clear audibility during reversing maneuvers.
- Durable Construction: Manufactured from high-quality materials for long-lasting performance and resistance to various environmental conditions.
- Easy Installation: Simple two-wire connection for quick setup.
- Versatile Application: Compatible with 12V-80V DC vehicles, including trucks, cars, and SUVs, with automatic voltage adjustment.
- Weather-Resistant: Designed to be dust and waterproof, allowing for reliable all-weather use and protecting the speaker.
Specifications
General Specifications
| Item Type | Car Backup Alarm |
| Working Voltage | DC 12V-80V |
| Working Current | 1.0A |
| Sound Level | 112dB ±3 |
| Power | 15W |
| Operating Air Pressure | 0.5Mpa-1.0Mpa |
| Application | 12-80 Volt DC Vehicles (Trucks, Cars, SUVs) |
Physical Specifications
| Size (L x W x H) | Approx. 104 x 42 x 70mm (4.1 x 1.7 x 2.8in) |
| Item Weight | 12.8 ounces |
| Package Dimensions | 4.49 x 3.31 x 1.77 inches |
| Remote Control | No |
A side view of the alarm showing its approximate dimensions: 104mm (L) x 42mm (W) x 70mm (H).
Safety Information
- Always disconnect the vehicle's battery before performing any electrical installation to prevent short circuits or electrical shock.
- Ensure all wiring connections are secure and properly insulated to prevent corrosion and electrical hazards.
- Mount the alarm in a location where it is protected from direct impact and excessive heat.
- Verify that the alarm's sound is not obstructed and can be clearly heard by individuals around the vehicle.
- This device is an aid for safety; always exercise caution and check surroundings visually when reversing.
Installation
- Choose Mounting Location: Select a suitable location at the rear of the vehicle, ensuring the alarm is securely mounted and its sound is not muffled. The location should also protect the alarm from physical damage.
- Connect Positive Wire: Connect the positive screw terminal of the alarm to the vehicle's reversing light power cord or to the reversing switch on the dashboard. This connection should only receive power when the vehicle is in reverse gear.
- Connect Negative Wire (Ground): Connect the other wire from the alarm to a reliable ground point on the vehicle chassis (negative terminal).
- Test Functionality: After installation, re-connect the vehicle's battery. Engage reverse gear (with the engine running or ignition on, as appropriate for your vehicle) to verify that the alarm sounds correctly.
This image provides a visual guide for the installation process, showing how to connect the alarm's positive and negative terminals.

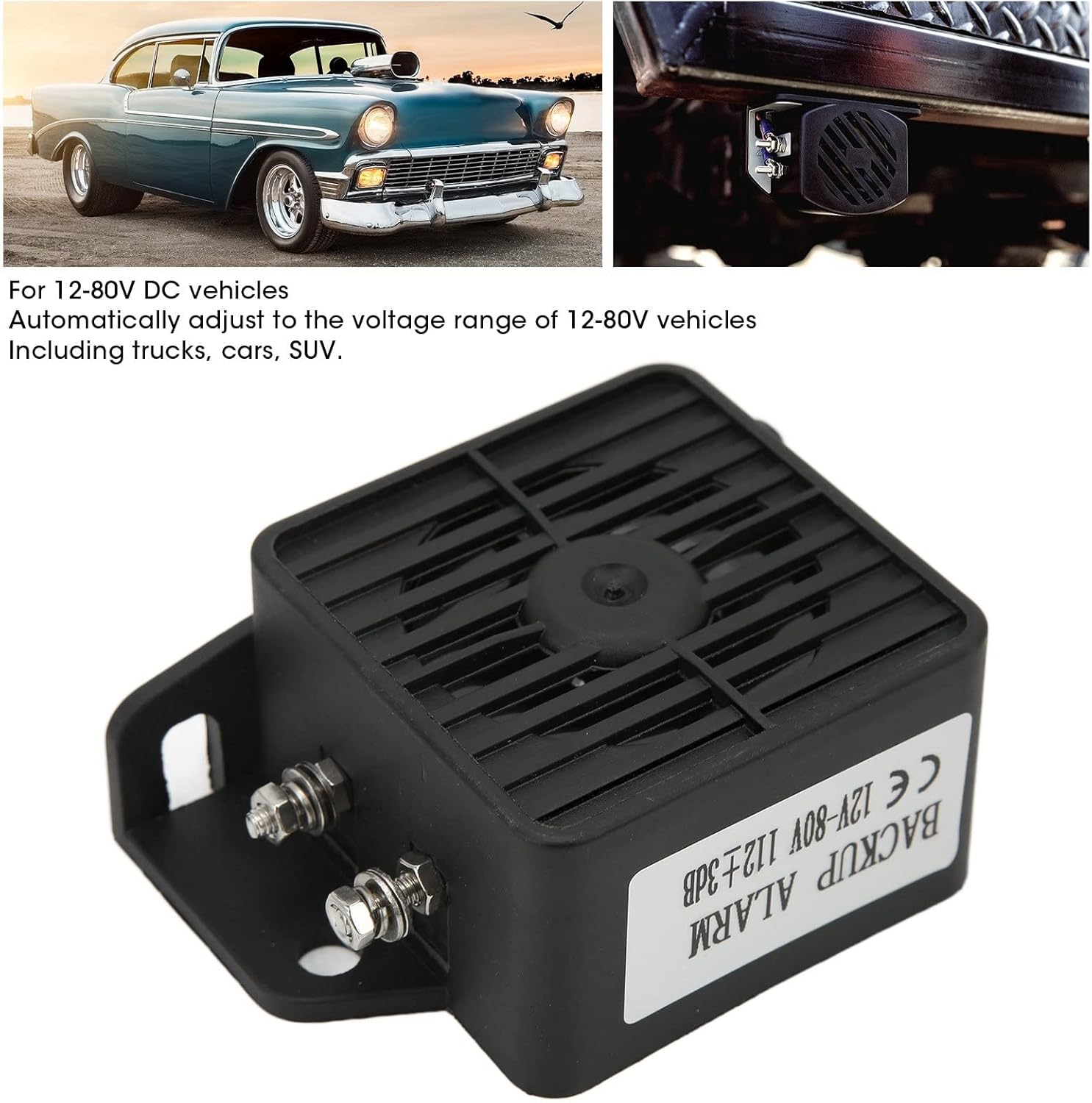

This image illustrates the backup alarm's application on various 12-80V DC vehicles, including trucks, cars, and SUVs.
Operation
The Fydun Vehicle Backup Alarm operates automatically. Once properly installed and wired to the vehicle's reverse light circuit or reverse switch, the alarm will emit its 112dB warning sound whenever the vehicle is shifted into reverse gear. No manual activation is required.
This image displays the front view of the Fydun backup alarm, highlighting its compact design and speaker grille.
The alarm is depicted in a residential context, underscoring its role in enhancing safety for pedestrians, including children, during vehicle reversing.
Maintenance
- Regular Inspection: Periodically check the alarm for any visible damage, loose connections, or corrosion.
- Cleaning: Keep the alarm's speaker grille free from dirt, mud, and debris to ensure optimal sound output. Use a soft, damp cloth for cleaning. Do not use harsh chemicals or abrasive cleaners.
- Wiring Integrity: Ensure that the wiring remains intact and securely connected. Repair or replace any frayed or damaged wires immediately.
- Environmental Protection: While the alarm is weather-resistant, prolonged exposure to extreme conditions may affect its lifespan.
Troubleshooting
- Alarm Does Not Sound:
- Check all wiring connections for looseness or corrosion.
- Verify that the vehicle's reverse lights are functioning, indicating power to the circuit.
- Ensure the vehicle's battery is adequately charged.
- Inspect the alarm unit for any physical damage.
- Alarm Sounds Weakly or Intermittently:
- Check for debris or obstructions in the speaker grille.
- Inspect wiring for partial breaks or poor connections.
- Ensure the alarm is receiving the correct voltage (12V-80V DC).
- Alarm Sounds Continuously (Not only in Reverse):
- This indicates incorrect wiring. Re-check the positive connection to ensure it is only receiving power when the vehicle is in reverse. It may be connected to a constant power source.
If troubleshooting steps do not resolve the issue, contact Fydun customer support or a qualified automotive technician.
Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Fydun is committed to providing quality products. For technical support or inquiries, please visit the official Fydun website or contact their customer service department.
