Podofo 7-inch Flip Out Car Stereo User Manual

1. Product Overview

The Podofo 7-inch Single Din Car Stereo is a versatile multimedia system designed to enhance your in-car entertainment and connectivity. It features a manually foldable 7-inch 1080P HD digital LCD touchscreen, offering a range of functions including Apple CarPlay, Android Auto, MirrorLink, Bluetooth 4.0, FM Radio, and support for a high-definition backup camera.

Image 1.1: The Podofo 7-inch Flip Out Car Stereo with its screen extended, displaying a user interface.

This unit supports various audio and video formats via 2.0 USB, TF Card, and AUX-in ports. It also includes steering wheel control (SWC) compatibility for convenient operation while driving.

2. Package Contents

Verify that all items are present in the package:

• Single Din Car Stereo Unit with 7-inch Flip Out Touchscreen
• HD Backup Camera
• Power Cable
• Steering Wheel Controller
• Remote Control
• Mounting Brackets
• User Manual (this document)

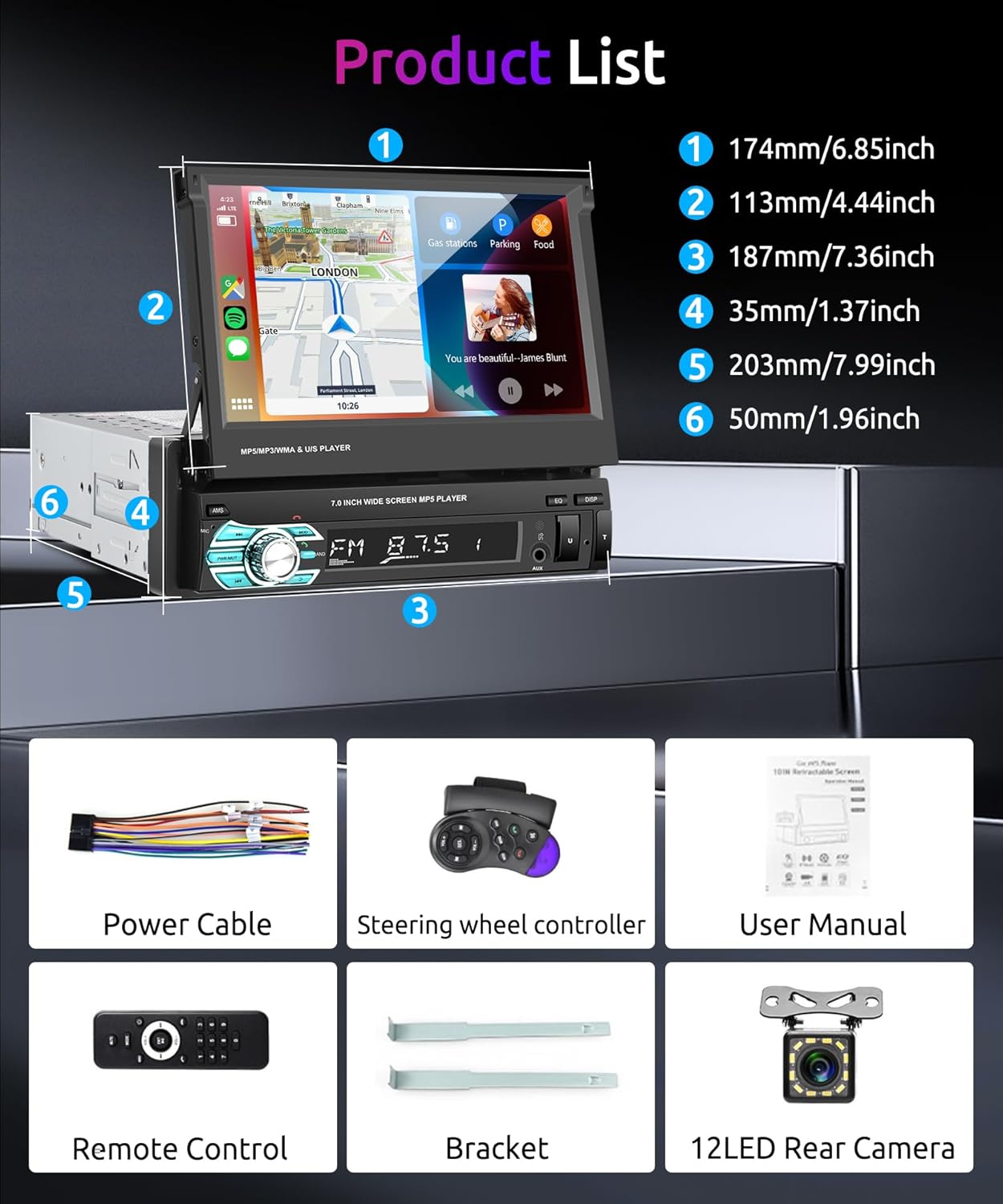

Image 2.1: An illustration of the car stereo unit and its included accessories, such as the power cable, steering wheel controller, remote control, brackets, and backup camera.

3. Setup & Installation

Professional installation is recommended for this car stereo. Ensure the vehicle's battery is disconnected before beginning installation to prevent electrical damage.

3.1 Wiring Diagram

Refer to the following wiring diagram for proper connection of the car stereo to your vehicle's electrical system and accessories.

Image 3.1: A comprehensive wiring diagram illustrating connections for power, speakers, backup camera, and other inputs/outputs of the car stereo unit.

3.2 Mounting the Unit

1. Insert the mounting sleeve into the vehicle's dashboard opening.
2. Secure the sleeve using the provided mounting brackets or by bending the tabs on the sleeve.
3. Connect all necessary wiring harnesses to the car stereo unit.
4. Slide the car stereo into the mounting sleeve until it locks into place.

4. Operating Instructions

4.1 Apple CarPlay & Android Auto

Connect your smartphone via a USB data cable to enable Apple CarPlay or Android Auto. This allows access to navigation, music, calls, and other compatible apps directly on the car stereo screen. Split-screen functionality is supported for simultaneous use of multiple applications.

Image 4.1: Visual representation of connecting a smartphone via USB to activate Apple CarPlay or Android Auto on the car stereo.

To connect Apple CarPlay:

1. Connect your iPhone to the stereo's USB port using a certified USB cable.
2. The stereo will automatically detect and launch CarPlay.
3. If not automatic, select the CarPlay icon on the stereo's main menu.

To connect Android Auto:

1. Ensure the Android Auto app is installed on your Android phone.
2. Connect your Android phone to the stereo's USB port using a certified USB cable.
3. The stereo will automatically detect and launch Android Auto.
4. If not automatic, select the Android Auto icon on the stereo's main menu.

4.2 MirrorLink (Airplay & Android Cast)

The MirrorLink function allows mirroring your smartphone's screen onto the car stereo display. This enables viewing apps, music, and videos from your phone. This feature supports Android 11.0/iOS 13.4 and below versions.

Image 4.2: A visual example of MirrorLink in action, displaying a smartphone's video content on the car stereo screen.

To use MirrorLink:

1. Connect your smartphone to the stereo via USB.
2. Select the "MirrorLink" or "PhoneLink" option on the stereo.
3. Follow any on-screen prompts on both your phone and the stereo to establish the connection.

4.3 Bluetooth Connectivity

The built-in Bluetooth 4.0 allows for hands-free calling and wireless audio streaming. This enhances driving safety by enabling calls without handling your phone.

Image 4.3: Depiction of various audio output methods, including Bluetooth for wireless audio and hands-free calls.

To pair a Bluetooth device:

1. Go to the Bluetooth menu on the car stereo.
2. Enable Bluetooth on your smartphone and search for available devices.
3. Select the car stereo (e.g., "Podofo Car Stereo") from your phone's list of devices.
4. Confirm the pairing code if prompted.

4.4 FM Radio

The FM radio features 18 preset stations and automatic channel searching. Enjoy a wide range of radio broadcasts with clear reception.

To operate the FM Radio:

1. Select the "Radio" icon from the main menu.
2. Use the scan function to automatically search and save stations.
3. Manually tune or select from preset stations.

4.5 HD Backup Camera

The unit includes an IP68 waterproof night vision 170° wide-view backup camera. When reversing, the image automatically displays on the 7-inch screen, providing enhanced safety and visibility.

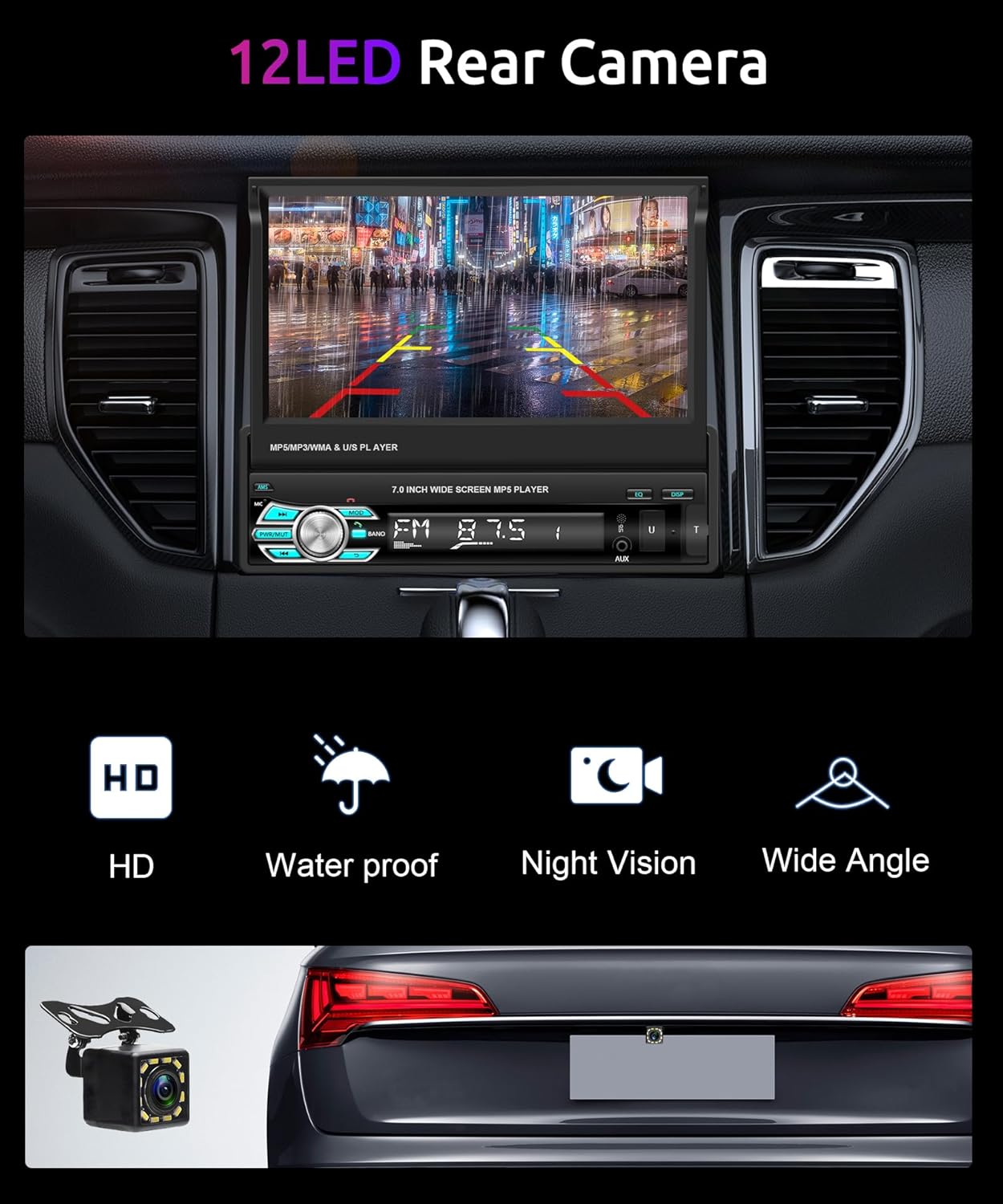

Image 4.4: The car stereo screen displaying the view from the 12LED rear camera, highlighting its waterproof, night vision, and wide-angle features.

To use the backup camera:

1. Ensure the backup camera is correctly installed and wired according to the installation instructions.
2. When the vehicle is shifted into reverse gear, the stereo screen will automatically switch to the camera view.

4.6 Steering Wheel Control (SWC)

The included steering wheel remote control allows for easy switching of songs and volume adjustment without removing your hands from the steering wheel, contributing to a safer driving experience.

To configure SWC:

1. Access the "Settings" menu on the car stereo.
2. Navigate to the "Steering Wheel Control" or "SWC" section.
3. Follow the on-screen instructions to program the buttons on your steering wheel to control the stereo functions.

5. Maintenance

To ensure the longevity and optimal performance of your car stereo, follow these maintenance guidelines:

• Screen Cleaning: Use a soft, lint-free cloth to gently wipe the touchscreen. Avoid abrasive cleaners or solvents that may damage the screen.
• Dust Removal: Periodically clean dust from the unit's vents and buttons using a soft brush or compressed air.
• Cable Connections: Regularly check all cable connections for security and signs of wear. Loose connections can lead to intermittent issues.
• Software Updates: Check the manufacturer's website for any available software or firmware updates to ensure the system operates with the latest features and bug fixes.

6. Troubleshooting

If you encounter issues with your car stereo, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, contact customer support for further assistance.

7. Specifications

8. Warranty & Support

This product comes with a 2-year warranty covering both labor and parts. For any technical support, warranty claims, or inquiries, please contact Podofo Tech customer service.

You can typically find contact information on the manufacturer's official website or through your purchase platform.
