1. Introduction
This manual provides essential instructions for setting up, operating, and maintaining your Xiaomi Redmi 9C smartphone. Please read this guide thoroughly to ensure proper usage and to maximize the device's capabilities. Keep this manual for future reference.
2. Package Contents
Verify that your package contains the following items:
- Xiaomi Redmi 9C Smartphone
- USB Cable
- Quick Start Guide (may vary by region)
- SIM Eject Tool (may vary by region)
3. Device Layout
Familiarize yourself with the physical components of your Redmi 9C smartphone.
Image 1: Front and Back View of the Xiaomi Redmi 9C. The front features a 6.53-inch display with a small notch for the front camera. The back shows the triple camera module in the upper left corner and the Redmi branding at the bottom.

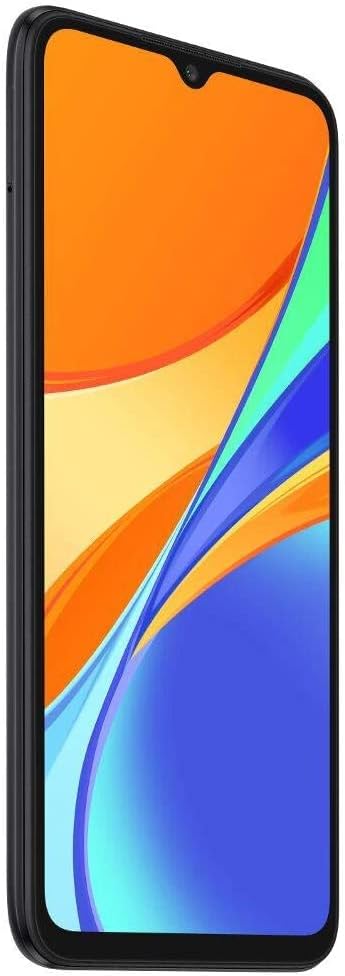

Image 2: Side View of the Xiaomi Redmi 9C. This view typically highlights the power button, volume rocker, SIM tray, and charging port location.
- Front Camera: Located in the display notch.
- Volume Buttons: On the side, for adjusting audio levels.
- Power Button: On the side, for turning the device on/off and locking/unlocking the screen.
- USB Port: At the bottom, for charging and data transfer.
- Speaker: Located at the bottom.
- SIM/SD Card Tray: On the side, for inserting SIM cards and a microSD card.
- Rear Camera Module: Located on the back, housing the triple camera setup.
4. Setup
4.1. Inserting SIM and SD Cards
- Locate the SIM card tray on the side of the phone.
- Insert the SIM eject tool into the small hole next to the tray and push gently until the tray pops out.
- Place your Nano-SIM card(s) and/or microSD card into the designated slots on the tray. Ensure the gold contacts face downwards.
- Carefully push the tray back into the phone until it is flush with the side.
4.2. Charging the Battery
Before first use, fully charge the device using the provided USB cable and a compatible power adapter. Connect the USB cable to the phone's USB port and the other end to the power adapter, then plug it into a power outlet. The battery indicator will show charging status.
4.3. Powering On/Off
- To Power On: Press and hold the Power button until the Xiaomi logo appears.
- To Power Off: Press and hold the Power button until the power options appear on the screen, then tap 'Power off'.
4.4. Initial Setup Wizard
Upon first power-on, follow the on-screen instructions to configure basic settings such as language, region, Wi-Fi connection, Google account, and security features.
5. Operating Instructions
5.1. Basic Navigation
The Redmi 9C operates using touch gestures on its 6.53-inch HD+ display. Swipe, tap, pinch, and spread to navigate the interface, open apps, and zoom.
5.2. Camera Usage
Your device features an AI Triple Rear Camera (13MP main, 2MP macro, 2MP depth sensor) and a 5MP Front Camera.
- Open the Camera app from the home screen or app drawer.
- Select your desired mode (Photo, Portrait, Video, etc.).
- Tap the shutter button to capture a photo or start/stop video recording.
- Use the toggle to switch between front and rear cameras.
5.3. Battery Management
The 5000mAh battery provides extended usage. To optimize battery life:
- Adjust screen brightness.
- Enable Battery Saver mode in Settings.
- Close unused applications running in the background.
- Disable Wi-Fi, Bluetooth, and GPS when not in use.
5.4. Connectivity
- Wi-Fi: Go to Settings > Wi-Fi to connect to available networks.
- Bluetooth: Go to Settings > Bluetooth to pair with other Bluetooth devices.
- Mobile Data: Ensure your SIM card is active and mobile data is enabled in Settings > SIM cards & mobile networks. The device supports 4G VoLTE on compatible networks (T-Mobile, Mint, Tello & Global).
5.5. Security Features
The Redmi 9C supports Face Recognition for unlocking your device. Set this up in Settings > Passwords & security.
6. Maintenance
6.1. Cleaning Your Device
Use a soft, lint-free cloth to clean the screen and body of the phone. Avoid using harsh chemicals or abrasive materials. Keep ports free of dust and debris.
6.2. Software Updates
Regularly check for and install software updates to ensure optimal performance and security. Go to Settings > About phone > MIUI version to check for updates.
6.3. Storage Management
Your device comes with 128GB of internal storage. To manage storage effectively, regularly delete unnecessary files, uninstall unused apps, and consider moving large media files to a microSD card (if installed).
7. Troubleshooting
If you encounter issues with your device, refer to the following common solutions:
- Device not turning on: Ensure the battery is charged. Press and hold the Power button for at least 10 seconds to force a restart.
- Apps crashing or freezing: Close the app and reopen it. Clear the app's cache in Settings > Apps. If the issue persists, restart the phone.
- Network connectivity issues: Check if Wi-Fi or mobile data is enabled. Restart your router for Wi-Fi issues. For mobile data, ensure your SIM card is properly inserted and your plan is active.
- Slow performance: Close background apps, clear cache, and ensure sufficient storage space. Consider a factory reset as a last resort (back up data first).
8. Specifications
| Feature | Specification |
|---|---|
| Model Name | Redmi 9C |
| Display | 6.53-inch HD+ Dot Drop display, 720 x 1600 resolution |
| Processor | MediaTek Helio G35 Octa-core |
| RAM | 4GB |
| Internal Storage | 128GB |
| Rear Camera | 13MP + 2MP + 2MP AI Triple Camera |
| Front Camera | 5MP |
| Battery | 5000mAh Lithium Polymer |
| Operating System | Android 11.0 (with MIUI 12) |
| Dimensions | 3.04 x 0.35 x 6.39 inches |
| Weight | 6.3 ounces (180 grams) |
| Connectivity | 4G LTE, Wi-Fi, Bluetooth, GPS |
| SIM Support | Dual Nano-SIM |
9. Safety Information
To prevent injury or damage to your device, please observe the following safety precautions:
- Do not expose the device to extreme temperatures, direct sunlight, or excessive moisture.
- Use only approved chargers and accessories.
- Avoid dropping or subjecting the device to severe impact.
- Do not attempt to disassemble or repair the device yourself. Refer to authorized service personnel.
- Dispose of the device and its battery responsibly according to local regulations.
10. Warranty and Support
Your Xiaomi Redmi 9C smartphone is covered by a limited warranty. For detailed warranty terms and conditions, please refer to the warranty card included in your package or visit the official Xiaomi website. For technical support, product registration, or service inquiries, please contact Xiaomi customer service or visit their official support channels.
