1. Introduction and Overview
Thank you for choosing the OPTIMA 38 E1600 Electric Lawn Mower. This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your new lawn mower. Please read these instructions carefully before use and keep them for future reference.
The OPTIMA 38 E1600 Electric Lawn Mower is designed for maintaining lawns up to 350 square meters. It features a powerful 1600W motor, a 38 cm cutting width, and central cutting height adjustment with 5 positions. The integrated 36-liter collection bag includes a level indicator, and the foldable handle allows for convenient, space-saving storage.

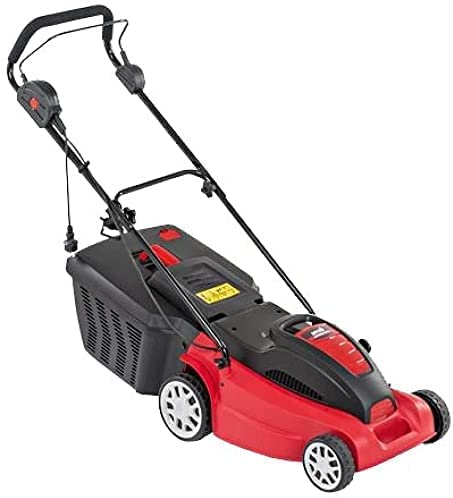

Figure 1: OPTIMA 38 E1600 Electric Lawn Mower, side view. This image shows the complete lawn mower with its red and black casing, handles, wheels, and grass collection bag.
2. Safety Instructions
WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Always wear appropriate personal protective equipment, including safety glasses, sturdy footwear, and hearing protection.
- Keep children and bystanders away from the operating area.
- Inspect the area to be mowed and remove any objects that could be thrown by the blades.
- Never operate the mower in wet grass or rain.
- Ensure the power cord is always behind you and away from the cutting blades.
- Disconnect the power supply before cleaning, adjusting, or performing maintenance.
- Do not use the mower if any parts are damaged or missing.
- Always maintain a firm grip on the handles while operating.
3. Package Contents
Carefully unpack all items and ensure you have received the following components:
- OPTIMA 38 E1600 Electric Lawn Mower unit
- Upper handle assembly
- Lower handle assembly
- Grass collection bag (36 liters)
- Mulching kit (if included)
- Cable clips
- User Manual
If any parts are missing or damaged, please contact customer support before assembly or use.
4. Setup and Assembly
Follow these steps to assemble your lawn mower:
- Attach the Lower Handle: Secure the lower handle assembly to the mower deck using the provided bolts and knobs. Ensure it is firmly attached.
- Attach the Upper Handle: Connect the upper handle to the lower handle. Fasten securely with the quick-release levers or bolts.
- Route the Power Cable: Use the cable clips to secure the power cable along the handle, preventing it from interfering with operation.
- Assemble the Grass Collection Bag: Follow the instructions provided with the collection bag to assemble its frame and fabric.
- Attach the Grass Collection Bag: Hook the assembled grass collection bag onto the rear of the mower, ensuring it is properly seated under the rear discharge flap.
- Adjust Cutting Height: Use the central cutting height adjustment lever to set your desired grass length. There are 5 positions available, ranging from 26mm to 65mm.

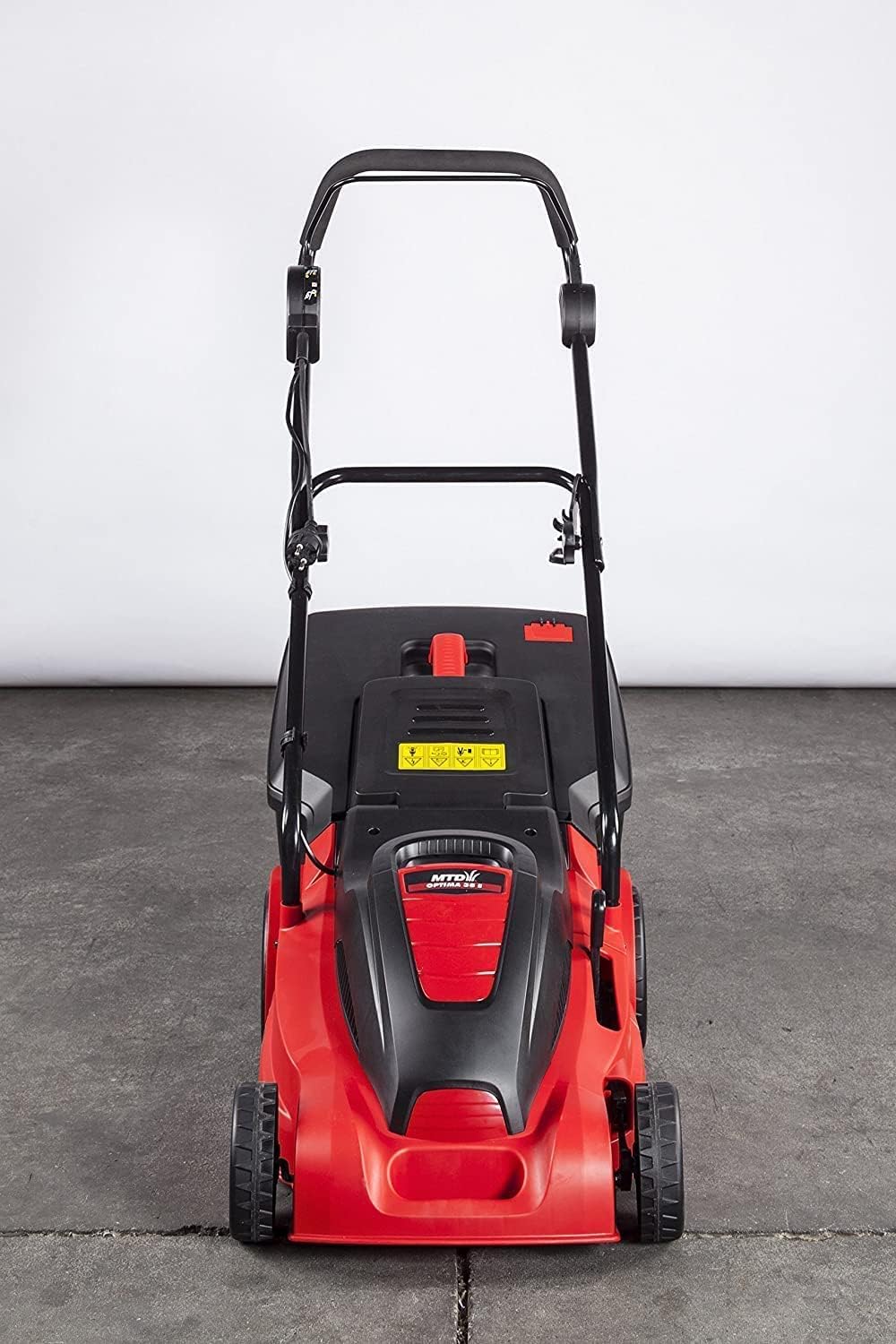

Figure 2: OPTIMA 38 E1600 Electric Lawn Mower, top-down view. This image provides an overhead perspective, highlighting the handle, motor housing, and the central cutting height adjustment lever.
5. Operating Instructions
Before starting, ensure all safety instructions have been read and understood.
- Connect Power: Plug the mower's power cord into a suitable outdoor extension cord, then plug the extension cord into a grounded power outlet (230V). Ensure the extension cord is rated for outdoor use and sufficient for 1600W.
- Start the Mower: Press and hold the safety button, then pull the bail lever towards the handle. The motor will start. Release the safety button but keep the bail lever held to continue operation.
- Mowing Technique: Mow in overlapping rows. For best results, mow in straight lines. Avoid overloading the motor by cutting excessively long or wet grass. If the grass is very long, consider raising the cutting height for the first pass.
- Grass Collection: Monitor the grass collection bag's level indicator. Empty the bag when it is full to maintain optimal collection performance.
- Stopping the Mower: Release the bail lever. The motor will stop.
- Disconnect Power: Always unplug the mower from the power outlet after use and before any adjustments or maintenance.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your lawn mower.
- Cleaning: After each use, disconnect power and clean the mower deck, blades, and grass collection bag. Use a brush or cloth; avoid using water jets directly on electrical components.
- Blade Inspection: Periodically inspect the cutting blade for sharpness and damage. A dull or damaged blade can affect cutting performance and balance. Replace if necessary.
- Storage: Store the lawn mower in a dry, protected area. The handle can be fully folded for compact storage. Ensure the power cord is neatly coiled and stored safely.
- General Check: Regularly check all nuts, bolts, and screws for tightness. Ensure all safety devices are in working order.
7. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Mower does not start | No power supply; Safety button/bail lever not engaged; Overload protection activated | Check power connection; Ensure safety button and bail lever are fully engaged; Allow motor to cool down, then restart. |
| Poor cutting performance | Dull or damaged blade; Cutting height too low for grass length; Grass collection bag full | Inspect and replace/sharpen blade; Adjust cutting height; Empty grass collection bag. |
| Excessive vibration | Damaged or unbalanced blade; Loose components | Inspect and replace blade; Check all fasteners for tightness. |
| Motor stops during operation | Overload; Obstruction in blade area | Reduce load (raise cutting height); Disconnect power and clear obstruction. |
8. Specifications
| Feature | Detail |
|---|---|
| Model | 38 E1600 |
| Brand | OPTIMA |
| Power Source | Corded Electric |
| Motor Power | 1600 W |
| Voltage | 230 V |
| Cutting Width | 38 cm |
| Cutting Height Adjustment | Central, 5 positions (26-65 mm) |
| Grass Collection Bag Capacity | 36 Liters (with level indicator) |
| Recommended Lawn Area | Up to 350 m² |
| Wheels | 140 mm / 160 mm, plain bearings |
| Material Type | Polypropylene |
| Weight | 12.8 kg |
| Style | Rotary |
| Operation Mode | Manual |
| Ejection System | Rear discharge, including mulching kit |
| First Available Date | October 29, 2021 |
9. Warranty and Support
This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including warranty period and coverage details.
For technical support, spare parts, or warranty claims, please contact your retailer or the authorized service center. Keep your purchase receipt as proof of purchase.
For further assistance, you may visit the MTD website or contact their customer service department. Contact information can typically be found on the product packaging or the manufacturer's official website.
