Karlsson KA5784LB Retro Alarm Clock User Manual

Introduction

This manual provides comprehensive instructions for the Karlsson KA5784LB Retro Alarm Clock. Please read this manual carefully before using the product to ensure proper operation and to maximize its lifespan. This alarm clock features a classic retro design with a silent movement mechanism, ensuring no disruptive ticking sounds.

Safety Information

• Do not expose the clock to extreme temperatures, direct sunlight, or high humidity.
• Avoid dropping the clock or subjecting it to strong impacts.
• Keep out of reach of children.
• Do not mix old and new batteries, or different types of batteries.
• Remove batteries if the clock will not be used for an extended period.
• Dispose of used batteries responsibly according to local regulations.

Package Contents

Ensure all items are present upon unpacking:

• 1 x Karlsson KA5784LB Retro Alarm Clock
• (Batteries are not included and must be purchased separately)

Product Overview

The Karlsson KA5784LB Retro Alarm Clock features a classic design with modern functionality. Below is an image illustrating the clock's appearance.

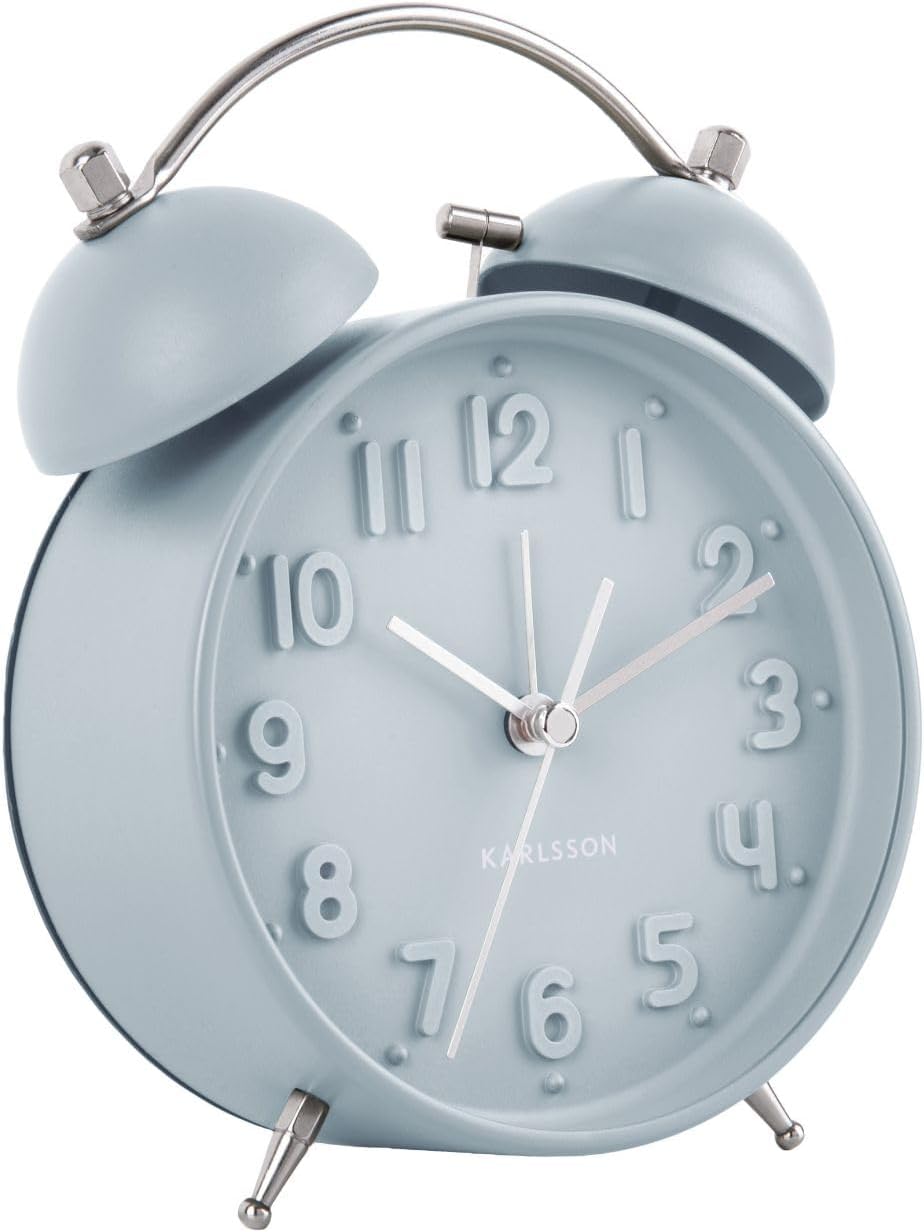

Figure 1: Front view of the Karlsson KA5784LB Retro Alarm Clock. This image shows the light blue metal casing, the analog clock face with raised numbers, and the twin bell alarm mechanism at the top.

The clock is constructed from metal and features an analog display. It includes an alarm function and a silent movement mechanism, meaning the second hand sweeps smoothly without a ticking sound.

Setup

1. Battery Installation

1. Locate the battery compartment cover on the back of the clock.
2. Remove the cover.
3. Insert two (2) AA LR06 batteries, ensuring correct polarity (+/-).
4. Replace the battery compartment cover securely.

2. Setting the Time

1. Locate the time setting knob on the back of the clock.
2. Rotate the knob clockwise or counter-clockwise until the hour and minute hands indicate the correct time.

3. Setting the Alarm

1. Locate the alarm setting knob on the back of the clock.
2. Rotate the alarm setting knob to move the alarm hand to your desired alarm time.
3. Ensure the alarm ON/OFF switch (usually a small lever or button) is in the "ON" position for the alarm to sound.

Operating the Alarm Clock

Turning the Alarm On/Off

• To activate the alarm, slide the alarm ON/OFF switch to the "ON" position.
• To deactivate the alarm, slide the alarm ON/OFF switch to the "OFF" position.
• When the alarm sounds, it will continue until the ON/OFF switch is moved to the "OFF" position.

Silent Movement Feature

The Karlsson KA5784LB is equipped with a silent movement mechanism. This means the second hand moves in a continuous, sweeping motion rather than a traditional ticking step-by-step movement. This feature ensures a quiet environment, ideal for bedrooms or quiet workspaces.

Maintenance

• Cleaning: Wipe the clock with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the finish.
• Battery Replacement: Replace batteries when the clock starts to lose time or the alarm function weakens. Always replace both batteries simultaneously.
• Storage: If storing the clock for an extended period, remove the batteries to prevent leakage.

Troubleshooting

Specifications

Figure 2: Dimensions of the Karlsson KA5784LB Retro Alarm Clock. This image illustrates the height of 16cm and width of 12.2cm.

• Model Number: KA5784LB
• Brand: Karlsson
• Material: Metal
• Color: Light Blue
• Display Type: Analog
• Special Features: Alarm function, Silent movement
• Power Source: 2 x AA LR06 batteries (not included)
• Product Dimensions (H x W x D): Approximately 16.5 cm x 11 cm x 5.5 cm (6.5 x 4.3 x 2.2 inches)
• Weight: Approximately 266 g
• Indoor/Outdoor Usage: Indoor only

Warranty and Support

For warranty information or technical support, please refer to the retailer where the product was purchased or visit the official Karlsson website. Keep your proof of purchase for any warranty claims.
