1. Product Overview
The AUXITO H8, H11, H16 LED Fog Lights are designed to replace standard halogen bulbs, offering enhanced brightness and a distinct 8000K Ice Blue light. These bulbs feature a compact design for easy installation and are engineered for durability and efficient performance in various driving conditions.
Figure 1: AUXITO H8 H11 H16 LED Fog Lights, Ice Blue.
2. Key Features
- Enhanced Penetration: Equipped with CSP chips and 8000K ice blue lighting, these fog lights provide strong light penetration and a wide illumination range, improving visibility in foggy or rainy conditions.
- Optimized Beam Pattern: The 1:1 halogen beam design and 0.079-inch ultra-thin chip copper board ensure a perfect 360° beam pattern without dark spots, enhancing driving safety by allowing vehicles and pedestrians to be seen from a distance.
- Simple Installation: Featuring a built-in intelligent IC driver and non-polarity plug-and-play design, installation typically takes approximately 15 minutes. These bulbs are compatible with 98% of vehicle systems. For some sensitive vehicles, an additional decoder may be required.
- Extended Lifespan: With a power consumption of 15W (compared to 35W for original bulbs), power consumption is reduced by 60%. The aviation aluminum fuselage provides superior cooling, contributing to an extended lifespan of over 50,000 hours.
- Versatile Application: Designed for upgrading dim halogen H8/H11/H16(JP)/H11LL/H8LL bulbs in most vehicles. The waterproof design ensures reliable performance in foggy, rainy, snowy, and dusty environments.
3. Installation Guide
Follow these steps for proper installation of your AUXITO LED Fog Lights. Ensure your vehicle is turned off and cooled down before beginning the installation process.
3.1. Preparation
- Ensure the vehicle's engine is off and the lights are cool to the touch.
- Locate the fog light housing in your vehicle. This is typically accessible from behind the bumper or through the wheel well.
- Disconnect the power connector from the existing halogen fog light bulb.
3.2. Replacing the Bulb
- Carefully remove the old halogen bulb from its housing. This may involve twisting or unlatching a clip.
- Insert the new AUXITO LED fog light bulb into the housing. Ensure it is seated correctly and securely.
- Rotate the bulb to lock it into place, if applicable to your vehicle's housing.
- Connect the vehicle's power plug to the new LED bulb's connector. The non-polarity design allows for connection in either orientation.

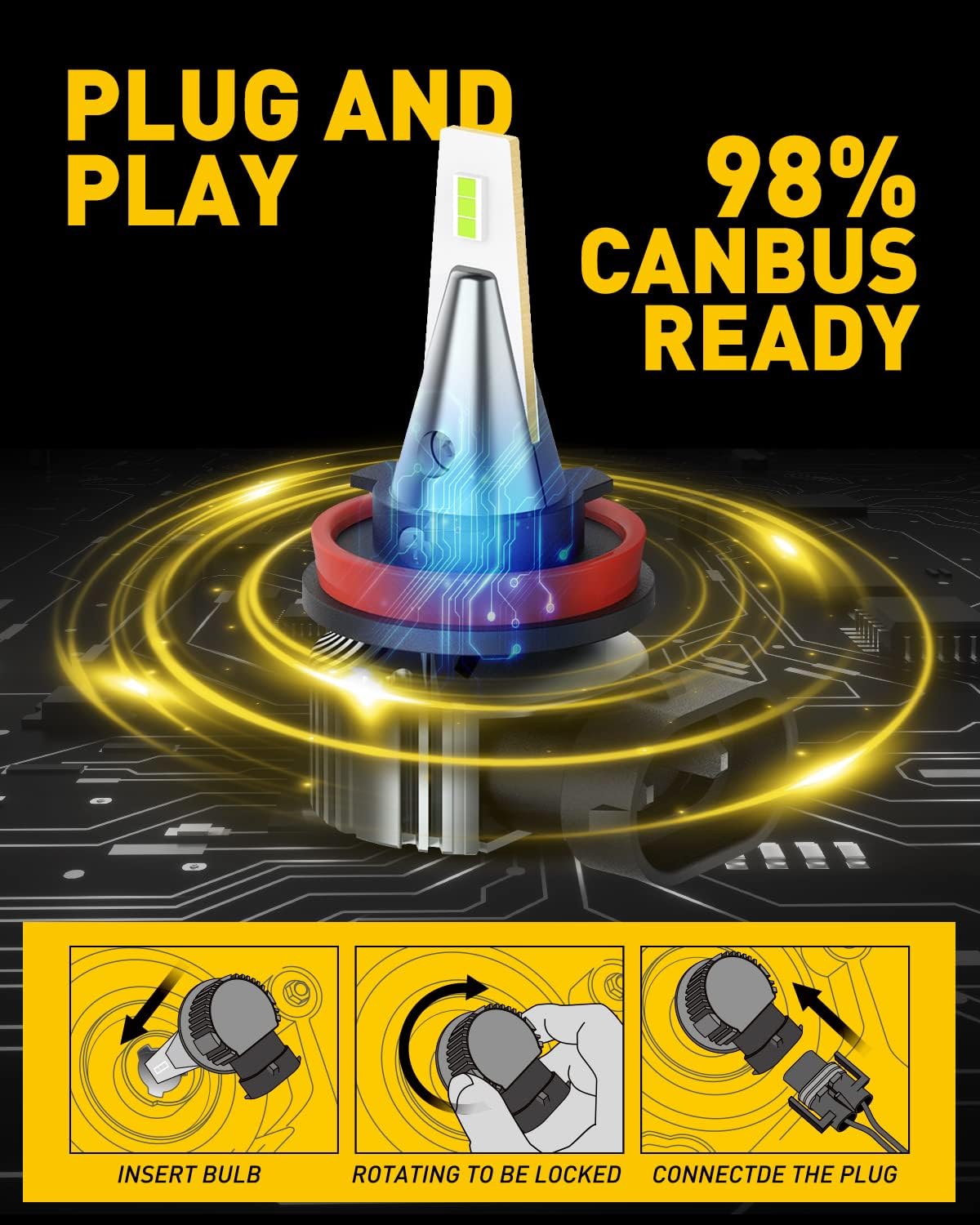

Figure 2: Step-by-step visual guide for LED fog light installation.
3.3. Testing
- Turn on your vehicle's fog lights to verify proper operation.
- If the lights do not illuminate, check the connection and ensure the bulb is correctly seated. For some vehicles, a CANBUS decoder might be necessary to prevent flickering or error messages.
4. Beam Pattern and Brightness
The AUXITO LED fog lights are engineered to provide a superior light output compared to traditional halogen bulbs, ensuring a clear and wide field of vision.
Figure 3: Comparison of AUXITO LED vs. Halogen brightness and beam pattern.

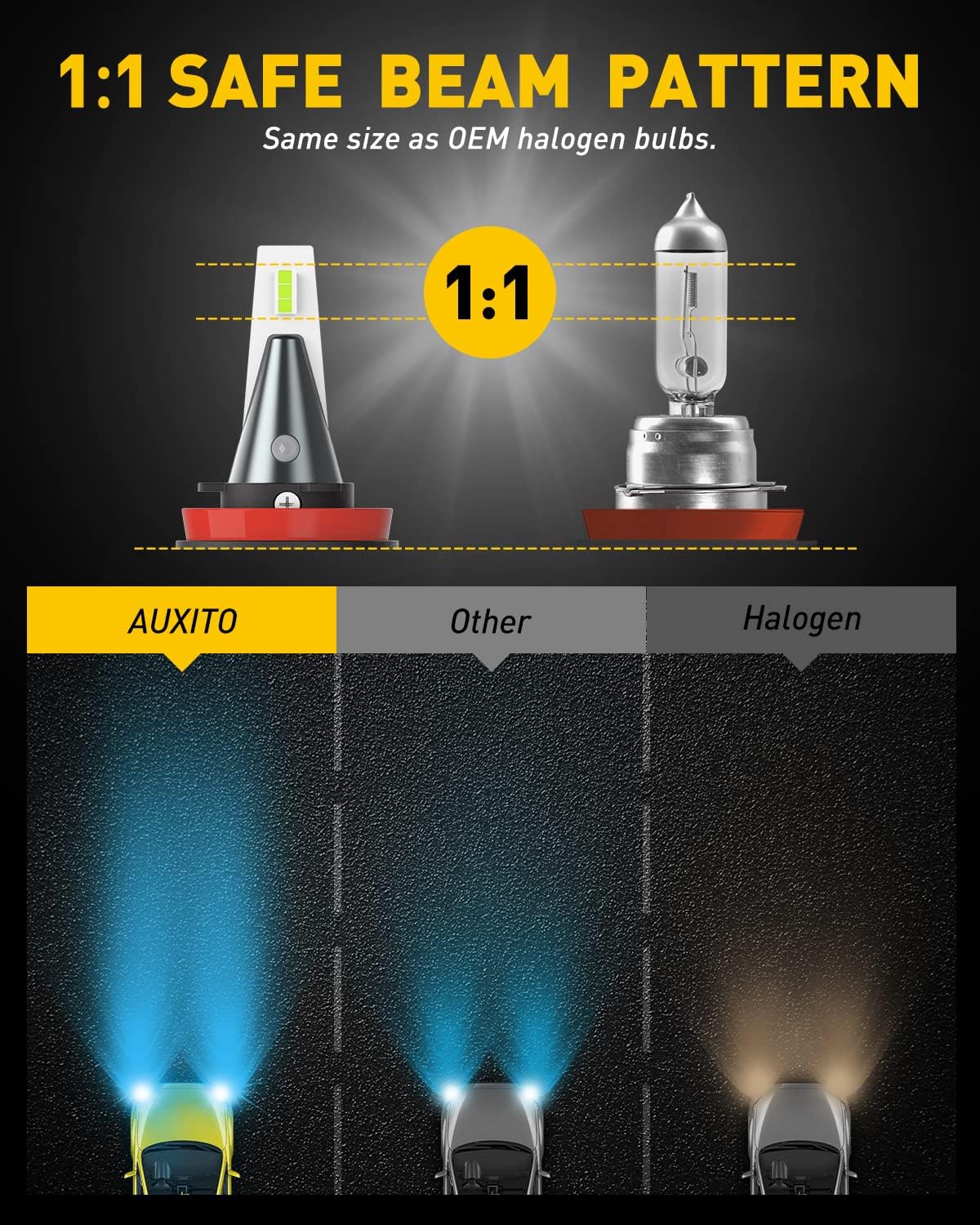

Figure 4: 1:1 Safe Beam Pattern for optimal road illumination.
5. Durability and Design
These LED fog lights are built with high-quality materials and advanced design to ensure long-lasting performance and reliability.
Figure 5: Efficient heat dissipation for extended lifespan.
Figure 6: Waterproof and dustproof design for all-weather reliability.
6. Compatibility
To ensure these AUXITO LED fog lights are compatible with your vehicle, please verify your bulb size using one of the following methods:
- Check Bulb Fitment Guide: Refer to the fitment guide on the product page (if available) by entering your vehicle's year, make, and model.
- Search Online: Use an online automotive bulb lookup tool.
- Inspect Stock Halogen Bulb: Physically check the model number printed on your existing halogen bulb.
Figure 7: Methods to confirm bulb compatibility.
7. Specifications
| Specification | Detail |
|---|---|
| Brand | AUXITO |
| Model Number | usau-1700-359 |
| Bulb Type | H8/H9/H11/H16(JP)/H11LL/H8LL |
| Color Temperature | 8000 Kelvin (Ice Blue) |
| Wattage | 15 Watts per bulb |
| Voltage | 12 Volts |
| Operating Life | 50,000+ Hours |
| Material | Aviation Aluminum Fuselage |
| CANBUS Ready | Compatible with 98% of vehicle systems |
| Waterproof Rating | Waterproof design (suitable for fog, rain, snow, dust) |
| Item Weight | 3.2 ounces |
| Package Dimensions | 4.17 x 3.82 x 1.73 inches |
8. Troubleshooting
- Flickering or Error Message: Some sensitive vehicles may require an additional CANBUS decoder to resolve flickering or dashboard error messages. Contact AUXITO customer support for assistance.
- Bulb Not Lighting Up: Ensure the power connector is securely attached and the bulb is correctly seated in the housing. Check vehicle fuses.
- Dim Light Output: Verify that the bulb is fully inserted and locked into the housing. Ensure the vehicle's electrical system is providing adequate power.
9. Warranty and Support
AUXITO products are designed for quality and durability. For warranty information, technical support, or any inquiries regarding your LED fog lights, please refer to the contact information provided with your product packaging or visit the official AUXITO website. Please retain your proof of purchase for warranty claims.
