HOMCOM Industrial Storage Cabinet (Model 838-148GY) - User Manual

1. Important Safety Information

Please read and understand all instructions before assembly and use of this product. Keep this manual for future reference.

• Anti-Tipping Strap: Always secure the cabinet to the wall using the provided anti-tipping strap to prevent accidental tipping and potential injury. This is a critical safety measure.
• Weight Capacity: Do not exceed the maximum weight capacity of 22 lbs (10 kg) per shelf and 110 lbs (50 kg) total for the cabinet. Overloading can cause instability and damage.
• Assembly: Assembly should be performed by at least two adults. Ensure all parts are correctly aligned and fasteners are tightened securely.
• Placement: Place the cabinet on a flat, level, and stable surface. Adjust the feet as necessary to ensure stability.
• Children: Keep children away from the assembly area. Do not allow children to climb on or play with the cabinet.

2. Product Overview and Components

The HOMCOM Industrial Storage Cabinet is designed for versatile storage in various indoor environments such as home offices, garages, or living rooms. It features a durable steel construction with two louvered doors and adjustable shelving.

Figure 2.1: The HOMCOM Industrial Storage Cabinet (Model 838-148GY) in a typical indoor setting.

2.1. Dimensions and Capacity

Figure 2.2: Detailed dimensions of the cabinet. Overall: 29.5" W x 13" D x 43.25" H.

• Overall Dimensions: 29.5" W x 13" D x 43.25" H
• Shelf Weight Capacity: 22 lbs (10 kg)
• Total Weight Capacity: 110 lbs (50 kg)

2.2. Key Features

• Adjustable Shelves: Two of the three shelves are adjustable with 17 different height options, allowing for customized storage.
• Louvered Doors: The double doors feature louvered vents for air circulation and a locker-style aesthetic.
• Magnetic Door Catch: Ensures doors remain securely closed.
• Adjustable Feet: Provides stability on uneven surfaces.

3. Assembly Instructions

Assembly is required for this product. It is recommended to have at least two people for assembly. Please ensure all parts are present before beginning.

3.1. Unpacking and Part Identification

• Carefully unpack all components from the packaging.
• Verify all parts against the included parts list (not provided in this manual, refer to your product packaging).
• Lay out all components on a soft, clean surface to prevent scratches.

3.2. Step-by-Step Assembly

1. Assemble the Frame: Connect the side panels to the top and bottom panels using the provided fasteners. Ensure all connections are snug but do not fully tighten yet.
2. Install Shelves: Insert the fixed shelf into its designated position. For the adjustable shelves, determine your desired height and secure the shelf supports before placing the shelves. The cabinet offers 17 levels for adjustment.


   Figure 3.1: Adjustable shelves provide flexible storage options.

3. Attach Doors: Carefully attach the double doors to the cabinet frame. Ensure the hinges are correctly aligned. Note: Some users have found it helpful to bend a small metal tab upward to secure the door hinge pins, preventing them from backing out.
4. Install Handles: Secure the door handles to the front of the doors.
5. Final Tightening: Once all components are in place and aligned, gradually tighten all fasteners. Avoid over-tightening.
6. Attach Adjustable Feet: Screw the adjustable feet into the base of the cabinet. Adjust them to ensure the cabinet is level and stable.


   Figure 3.2: Adjustable feet for stability on uneven floors.

7. Secure Anti-Tipping Strap: Attach the anti-tipping strap to the back of the cabinet and securely fasten it to a wall stud or appropriate wall anchor.


   Figure 3.3: Anti-tipping hardware for safety and magnetic door catch for secure closure.

4. Operating Instructions

4.1. Using the Adjustable Shelves

The two adjustable shelves can be repositioned to accommodate items of various heights. To adjust a shelf:

1. Empty the shelf of all contents.
2. Carefully lift the shelf and remove it from its current supports.
3. Relocate the shelf supports to the desired height level (there are 17 options). Ensure both supports are at the same level.
4. Place the shelf back onto the supports, ensuring it is stable before loading items.

4.2. Door Operation

The cabinet features double doors with magnetic catches for secure closure. The louvered design allows for ventilation.

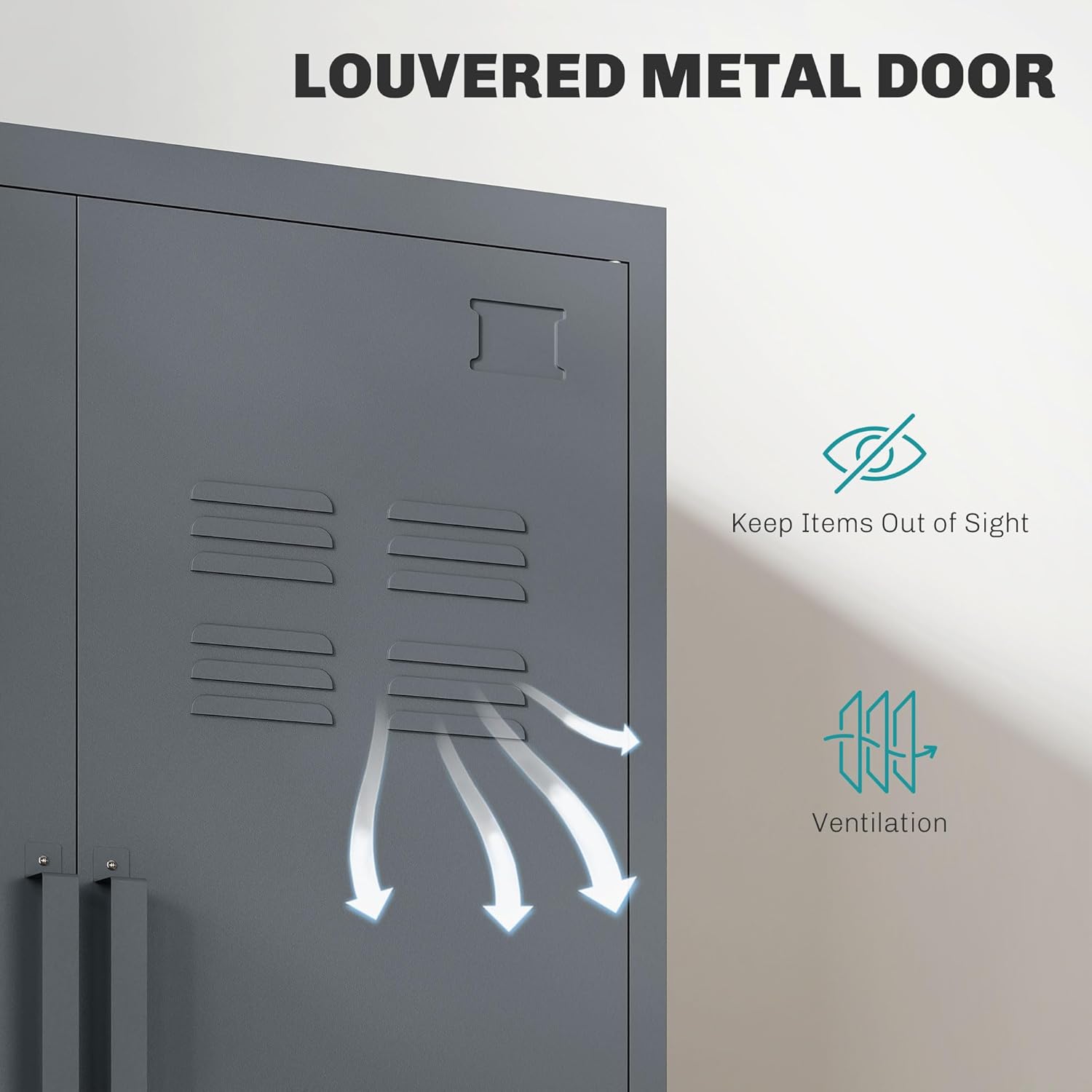

Figure 4.1: Louvered metal doors provide ventilation and conceal contents.

• To open, gently pull the handles.
• To close, push the doors firmly until the magnetic catches engage.

5. Maintenance

• Cleaning: Wipe the cabinet surfaces with a damp cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
• Inspection: Periodically check all fasteners to ensure they remain tight. Re-tighten if necessary.
• Stability: Regularly check the adjustable feet and anti-tipping strap to ensure the cabinet remains stable and securely anchored.

6. Troubleshooting

7. Product Specifications

8. Product Videos

9. Customer Support

For further assistance, missing parts, or warranty inquiries, please contact HOMCOM customer support. Refer to your purchase documentation for specific contact details or visit the official HOMCOM website.

Online Resources: Visit the HOMCOM Store on Amazon
