Mobiclinic Escorial 4-Wheel Rollator User Manual

1. Introduction

Thank you for choosing the Mobiclinic Escorial 4-Wheel Rollator. This manual provides essential information for the safe assembly, operation, and maintenance of your rollator. Please read these instructions carefully before use and retain them for future reference.

The Mobiclinic Escorial rollator is designed to provide mobility assistance for individuals who require support while walking. It features a lightweight aluminum frame, four wheels for easy maneuverability, manual and lockable brakes, and a comfortable seat with a backrest for resting.

2. Safety Information

• Maximum Weight Capacity: Do not exceed the maximum user weight of 110 kg (242 lbs).
• Brakes: Always engage the parking brakes before sitting on the rollator or when stationary to prevent accidental movement. Regularly check brake functionality.
• Stability: Ensure all four wheels are on a stable, level surface before use. Avoid uneven terrain, loose gravel, or steep inclines.
• Adjustments: Ensure all adjustment mechanisms (e.g., handle height) are securely locked before use.
• Folding: Exercise caution when folding or unfolding the rollator to avoid pinching fingers.
• Maintenance: Do not use the rollator if any parts are damaged or missing. Contact Mobiclinic support for replacement parts.
• Supervision: Individuals with cognitive impairments should use the rollator under supervision.

3. Package Contents

Upon opening the package, please verify that all components are present and undamaged:

• Mobiclinic Escorial Rollator Frame (partially assembled)
• Adjustable Handles with Brakes
• Backrest
• Storage Basket
• User Manual (this document)

4. Assembly Instructions

The Mobiclinic Escorial rollator comes partially assembled. Follow these steps for final setup:

1. Unfold the Rollator: Carefully pull the sides of the frame apart until it locks into the open position. Ensure the seat is flat and secure.
2. Install Handles: Insert the adjustable handles into the designated slots on the frame. Ensure the brake cables are not twisted.
3. Adjust Handle Height: Press the locking pins on the handle tubes and slide the handles up or down to your desired height. Ensure both handles are at the same height and the locking pins snap securely into place. The handles should be at wrist level when standing upright with arms relaxed.
4. Attach Backrest: Slide the backrest onto the designated supports at the rear of the seat. Ensure it is firmly attached.
5. Place Storage Basket: Position the storage basket under the seat. It can be placed in two positions for convenience.

Image: Diagram illustrating the adjustable handle height feature, showing how to set the handles to an ergonomic position for users of varying heights.

5. Operating Instructions

5.1 Walking with the Rollator

• Stand upright between the handles, maintaining a comfortable posture.
• Push the rollator forward slightly, then step forward. Maintain a steady pace.
• The 360-degree swivel front wheels allow for easy maneuvering in various directions.

Image: A person demonstrating the use of the Mobiclinic Escorial rollator, highlighting its ease of movement and the swivel front wheels.

5.2 Using the Brakes

The rollator is equipped with manual hand brakes and a parking brake function.

• To Slow Down or Stop: Squeeze both brake levers towards the handles. Release to resume movement.
• To Engage Parking Brakes: Push both brake levers down until they lock into place. This prevents the rollator from moving. Always engage the parking brakes before sitting or when leaving the rollator unattended.
• To Release Parking Brakes: Pull both brake levers up until they disengage.

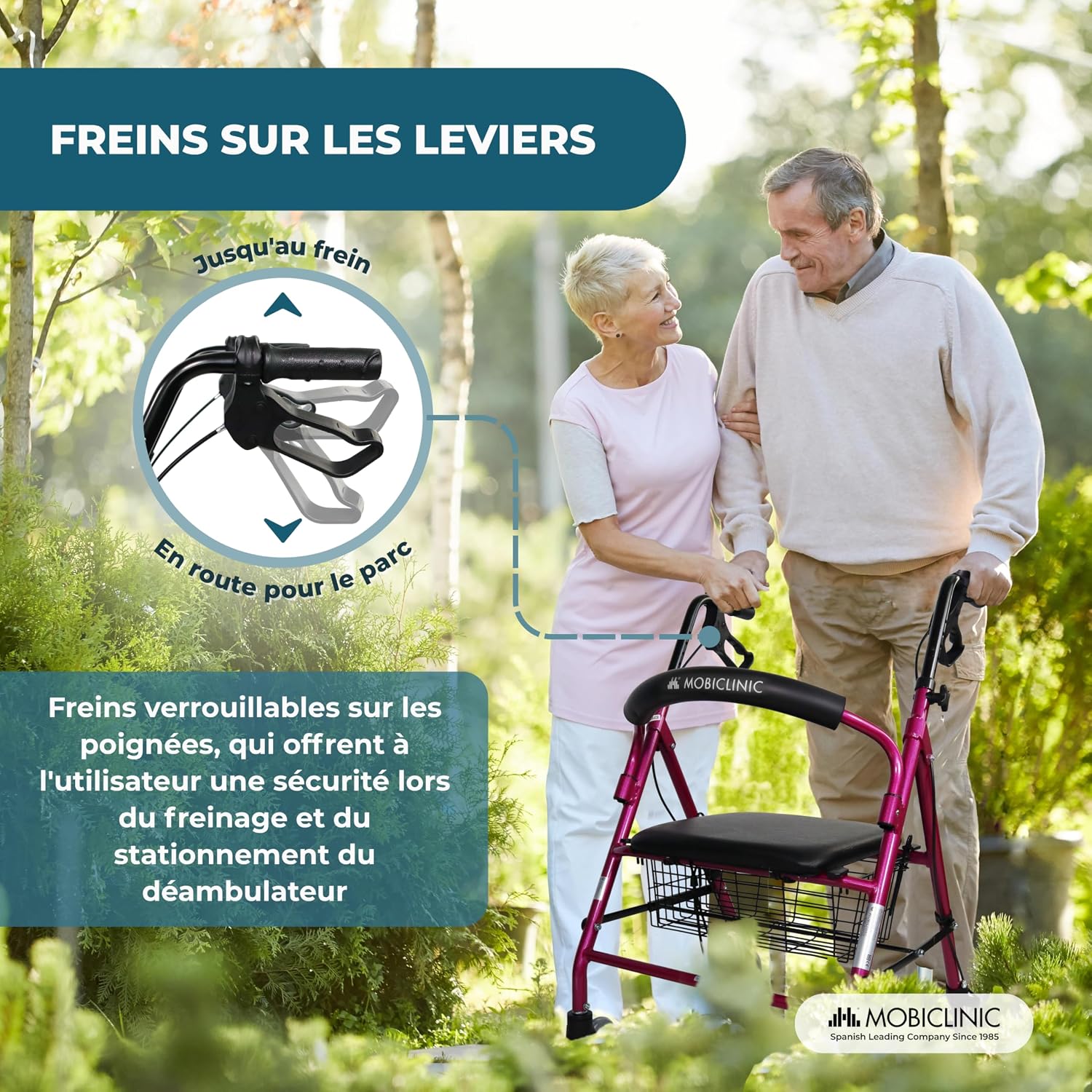

Image: A close-up diagram showing how to operate the hand brakes, including squeezing to slow down and pushing down to engage the parking brake.

5.3 Using the Seat

• Ensure the rollator is on a level surface.
• Engage both parking brakes before attempting to sit.
• Carefully turn around and sit on the padded seat, using the backrest for support.
• Do not use the rollator as a wheelchair or allow someone to push you while seated.

Image: A person seated on the Mobiclinic Escorial rollator, demonstrating the comfortable padded seat and backrest for resting.

5.4 Using the Storage Basket

The rollator includes a large capacity storage basket for personal items.

• The basket can be easily removed and re-positioned.
• Do not overload the basket. Refer to specifications for maximum load.

Image: A detailed view of the rollator's multi-position storage basket, showing its capacity for carrying personal items.

5.5 Folding and Transport

The rollator is foldable for easy storage and transport.

• To fold, lift the seat upwards. The frame will collapse inwards.
• Ensure the rollator is fully folded before attempting to lift or transport it.
• When folded, the rollator measures only 24.5 cm wide, making it suitable for storage in small spaces or car trunks.

Image: The Mobiclinic Escorial rollator shown folded and stored in the trunk of a car, demonstrating its compact size for transport.

6. Care and Maintenance

• Cleaning: Clean the frame with a damp cloth and mild detergent. Do not use abrasive cleaners.
• Wheels: Regularly check the wheels for debris and ensure they rotate freely.
• Brakes: Periodically inspect the brake cables and levers for wear and proper function. Adjust if necessary (consult a professional if unsure).
• Fasteners: Ensure all screws and bolts are tight. Do not overtighten.
• Storage: Store the rollator in a dry place, away from direct sunlight and extreme temperatures.

7. Troubleshooting

• Rollator is difficult to push: Check for debris in the wheels. Ensure parking brakes are fully disengaged.
• Brakes are not effective: Inspect brake cables for damage or looseness. Ensure levers are fully squeezed. If issues persist, professional adjustment may be required.
• Rollator feels unstable: Ensure all locking pins for handle height are fully engaged. Verify the frame is fully unfolded and locked. Avoid using on uneven surfaces.
• Squeaking noises: Apply a small amount of silicone lubricant to moving parts, such as wheel axles or folding mechanisms.

8. Specifications

Image: A comprehensive diagram displaying all key dimensions of the Mobiclinic Escorial rollator, including height, width, depth, and seat measurements.

9. Warranty and Support

Mobiclinic products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Mobiclinic website. If you have any questions, require assistance with assembly, or need replacement parts, please contact Mobiclinic customer support directly.

Mobiclinic Contact Information:

• Visit the Mobiclinic store on Amazon: Mobiclinic Store
• Refer to your purchase documentation for direct contact details.
