Important Safety Information
Read this entire instruction manual carefully before installing or operating your Duluth Forge Ventless Natural Gas Log Set. Failure to follow these instructions could result in property damage, personal injury, or death. This appliance must be installed in accordance with all local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Installation and repair must be performed by a qualified service person.
- This appliance is for use with Natural Gas only. Do not connect to a propane supply.
- Ensure adequate ventilation is available when operating this appliance.
- Never operate the log set in a fireplace that is not approved for ventless gas logs.
Package Contents
Verify that all components are present before beginning installation.
- Ventless Natural Gas Log Set Burner Assembly
- Ceramic Fiber Logs (7 hand-painted pieces)
- Lava Rock / Embers
- Instruction Manual
- Accessories (as included with renewed product)
Setup and Installation
Proper installation is critical for safe and efficient operation. If you are unsure about any step, consult a qualified professional.
1. Unpacking and Inspection
Carefully remove all components from the packaging. Inspect for any damage that may have occurred during shipping. Do not install any damaged components. Contact customer support immediately if damage is found.
2. Burner Placement
Place the burner assembly in the center of your approved fireplace. Ensure it is level and stable. The gas inlet should be accessible for connection.

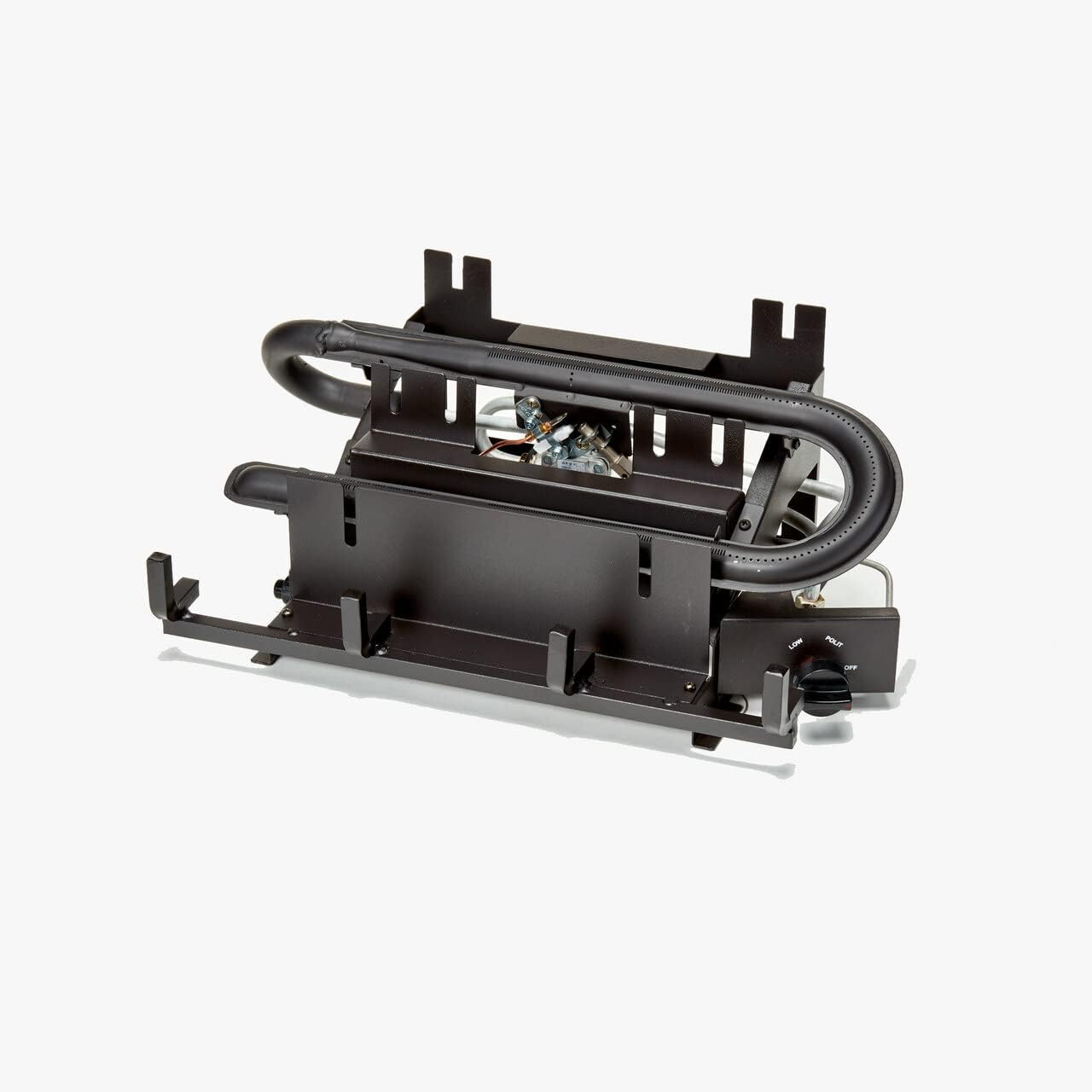

Image: The black metal burner assembly for the gas log set, viewed from an angle, showing the gas inlet and control knob.

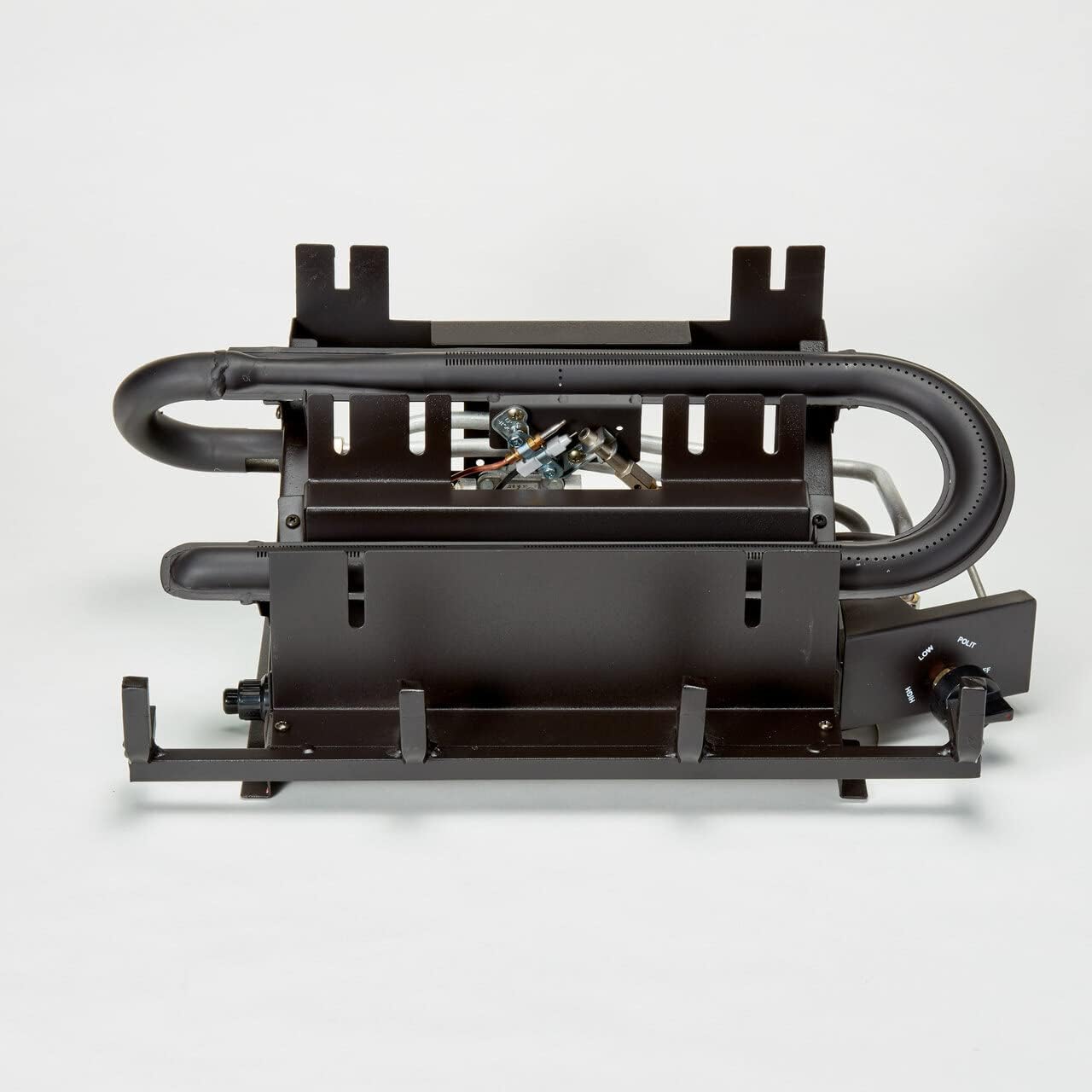

Image: A top-down view of the black metal burner assembly, highlighting the gas lines and ignition components.
3. Gas Connection
Connect the natural gas supply line to the burner assembly. This connection must be made by a qualified gas technician and tested for leaks using a non-corrosive leak detection solution.
4. Log Placement
Carefully arrange the ceramic fiber logs on the burner grate according to the diagram provided in the separate log placement guide (if applicable) or as shown in the product images. Proper log placement is essential for safe and clean combustion. Do not block any burner ports or air inlets.

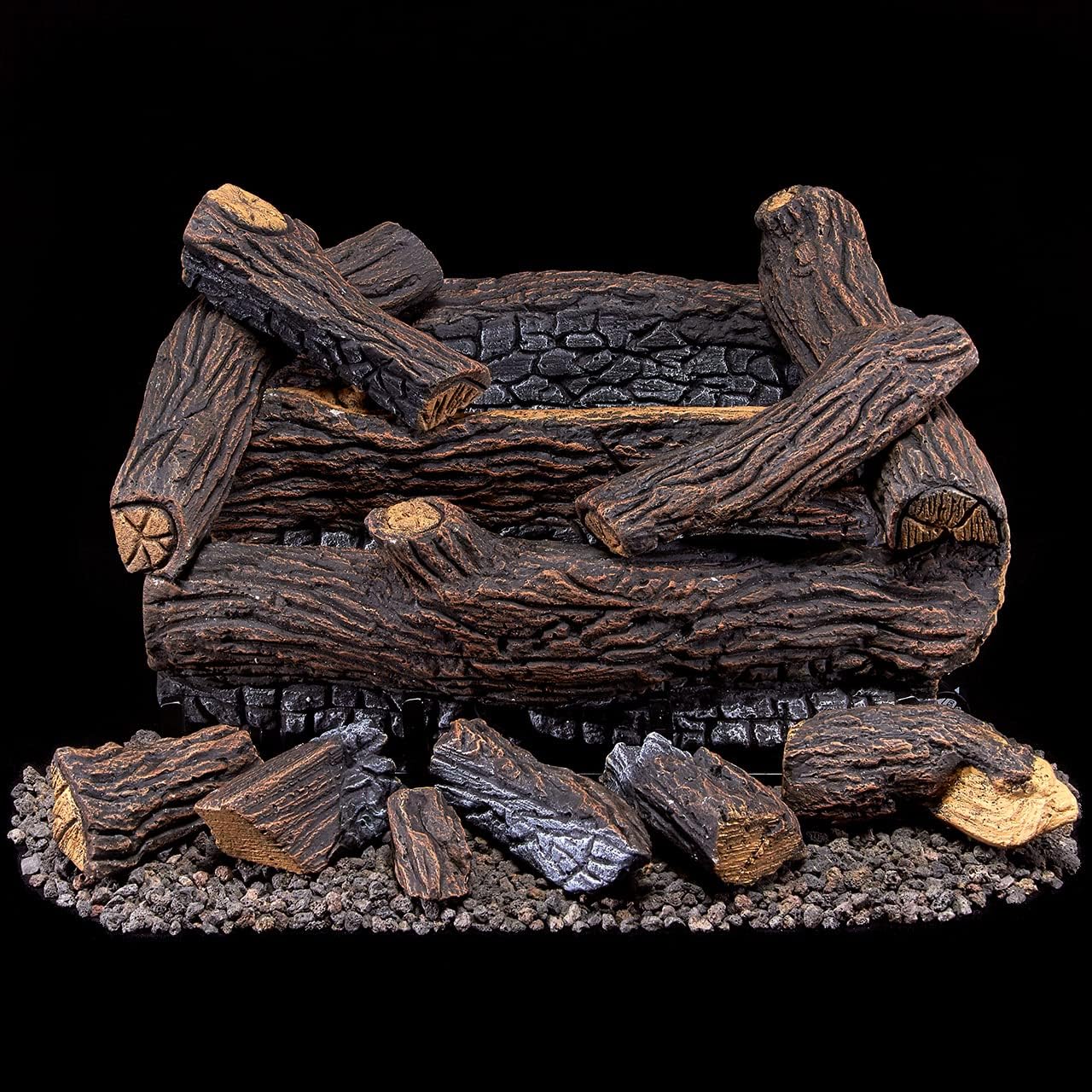

Image: The Duluth Forge Ventless Natural Gas Log Set with all ceramic logs arranged on the burner, without flames. Lava rocks are scattered around the base.
Image: A close-up view of the Duluth Forge Ventless Natural Gas Log Set, showing the detailed texture of the stacked red oak ceramic logs, without flames.
5. Lava Rock / Embers Placement
Distribute the lava rock or glowing embers around the base of the logs, ensuring they do not cover any burner ports or pilot light assembly. This enhances the realistic appearance of the fire.
Image: The Duluth Forge Ventless Natural Gas Log Set operating with realistic flames, showcasing the stacked red oak ceramic logs and glowing embers.

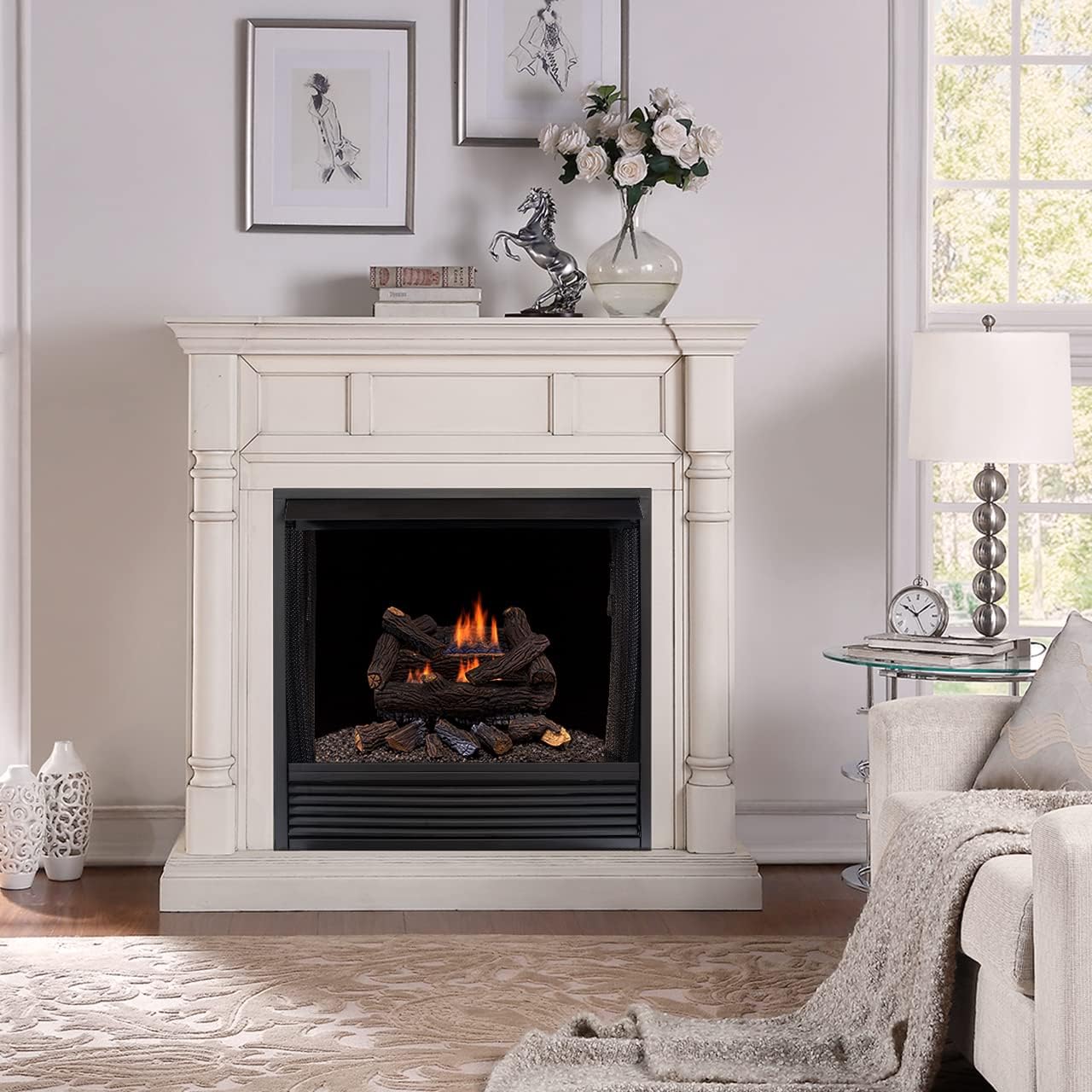

Image: The Duluth Forge Ventless Natural Gas Log Set installed within a white fireplace mantel in a living room setting, with flames visible.
Installation Video Guide
Video: An official video guide demonstrating the setup and installation of the Duluth Forge Natural Gas Log Set, Model DLS-N18M-2-R.
Operating Instructions
1. Lighting the Pilot
- Ensure the gas supply valve is open.
- Locate the control knob on the burner assembly.
- Push in and turn the control knob to the "PILOT" position.
- While holding the knob in, press the igniter button repeatedly until the pilot flame lights.
- Continue to hold the control knob in for approximately 30-60 seconds after the pilot lights to allow the thermocouple to heat up. Release the knob; the pilot should remain lit. If it extinguishes, repeat the process.
2. Lighting the Main Burner
- Once the pilot is lit, slowly turn the control knob from the "PILOT" position to the "ON" position.
- The main burner should ignite.
- Adjust the flame height by rotating the control knob between "LOW" and "HIGH" settings.
3. Turning Off the Log Set
- To turn off the main burner, turn the control knob to the "PILOT" position. The main burner will extinguish, but the pilot will remain lit.
- To turn off the entire appliance (pilot included), turn the control knob to the "OFF" position.
- For extended periods of non-use, it is recommended to close the main gas supply valve.
Maintenance
Regular maintenance ensures safe and efficient operation of your log set.
- Annual Inspection: Have the appliance inspected annually by a qualified service technician.
- Cleaning:
- Ensure the log set is completely cool before cleaning.
- Use a soft brush or vacuum cleaner to remove dust and debris from the logs and burner area.
- Do not use abrasive cleaners or liquids on the logs or burner.
- Clean the pilot and burner ports as needed to ensure proper flame patterns.
- Log Care: Handle ceramic logs carefully as they are fragile. If a log breaks, it may need to be replaced to maintain proper flame distribution.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pilot will not light. | Gas supply off; air in gas line; igniter not sparking; thermocouple not heating. | Check gas supply valve; purge air by holding pilot knob longer; check igniter electrode for spark; hold pilot knob longer after lighting. |
| Pilot lights but main burner does not. | Control knob not turned to "ON"; clogged burner ports. | Turn control knob fully to "ON"; clean burner ports. |
| Main burner flames are yellow or sooty. | Improper log placement; clogged burner ports; insufficient air supply. | Adjust log placement; clean burner ports; ensure adequate room ventilation. |
| Odor of gas. | Gas leak. | Immediately turn off gas supply. Do not operate. Ventilate area. Call a qualified service technician. |
If troubleshooting steps do not resolve the issue, contact a qualified service technician.
Specifications
- Model: DLS-N18M-2-R
- Fuel Type: Natural Gas
- Heat Output: 30,000 BTU
- Heating Coverage: Up to 1,100 sq ft
- Log Size: 18 inches
- Log Material: Ceramic Fiber (Stacked Red Oak design)
- Control Type: Manual
- Efficiency: 99.9% Vent Free
- Installation Type: Floor Mount
- Item Weight: 8.68 pounds
- Package Dimensions: 22.05 x 14 x 8 inches
Warranty Information
This Duluth Forge product comes with a Limited Warranty. For specific details regarding coverage, duration, and how to make a claim, please refer to the warranty card included with your purchase or visit the official Duluth Forge website. Keep your proof of purchase for warranty purposes.
Customer Support
For technical assistance, replacement parts, or any questions regarding your Duluth Forge Ventless Natural Gas Log Set, please contact Factory Buys Direct, the manufacturer.
- Manufacturer: Factory Buys Direct
- Refer to your product packaging or the manufacturer's website for the most current contact information (phone number, email, or support portal).
