Shinco WiFi Karaoke Machine (Model B09K73CG2P) User Manual

1. Introduction

Thank you for choosing the Shinco WiFi Karaoke Machine. This portable system features a 15-inch touch screen, two wireless microphones, and multiple connectivity options including Wi-Fi and Bluetooth. This manual provides detailed instructions to help you get the most out of your device.

2. What's in the Box

Carefully unpack all items and ensure you have received the following components:

• Wifi Karaoke Machine with Touch Screen
• 2 UHF Wireless Microphones
• Remote Control
• Power Adapter
• RCA Cable
• User Manual (this document)

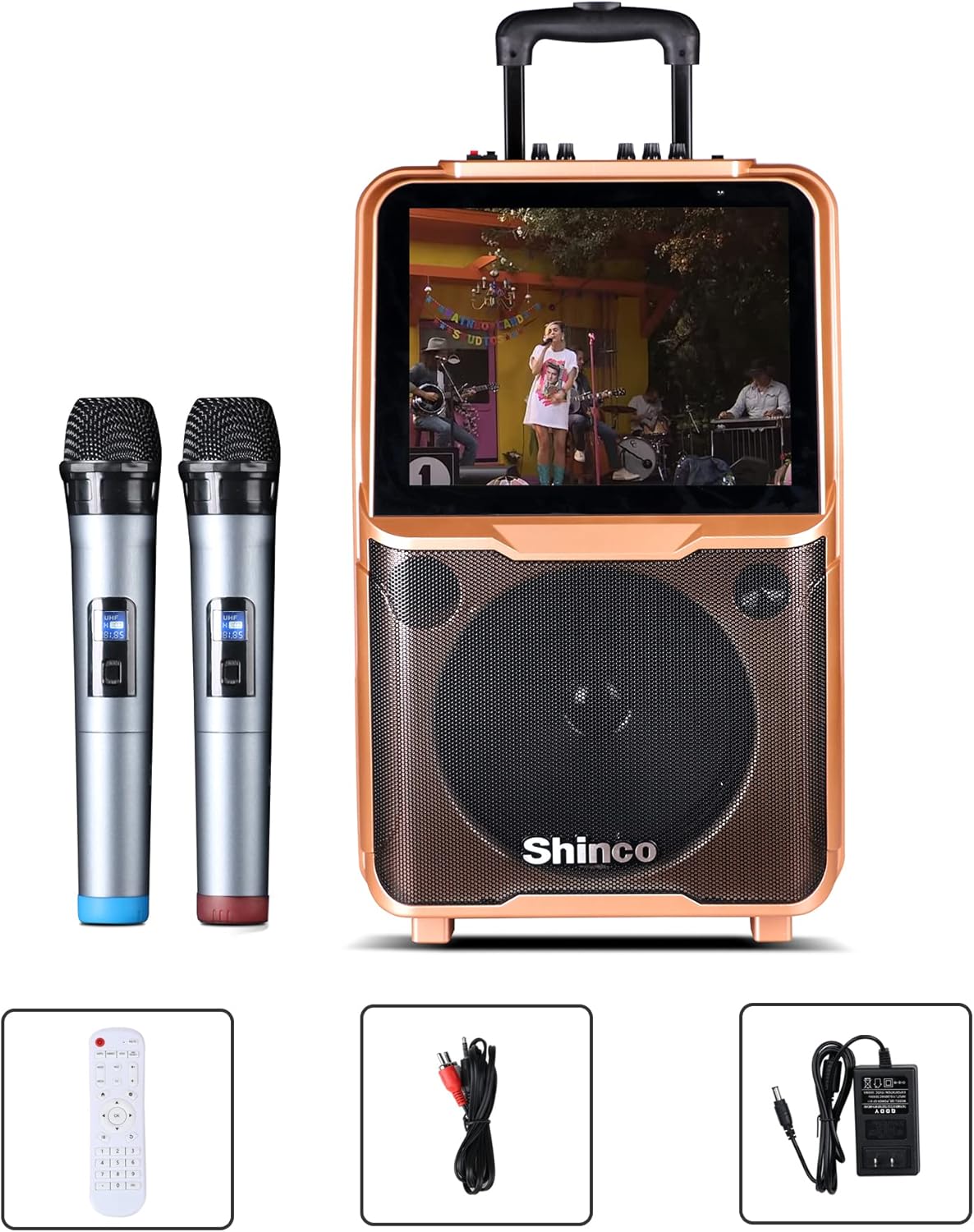

Image: Shinco Karaoke Machine with its accessories, including two wireless microphones, a remote control, an RCA cable, and a power adapter.

3. Product Features

• 15-inch Touch Screen: Navigate menus and applications with ease.
• Wi-Fi Connectivity: Access online content and download apps from the Google Play Store.
• 2 Wireless Microphones: Enjoy untethered vocal performance.
• 50W RMS Power Amplifier: Delivers clear audio through a 10-inch woofer.
• HDMI Output: Connect to an external TV for a larger display.
• Bluetooth Connectivity: Stream audio wirelessly from compatible devices.
• Recording Function: Record your vocal performances.
• FM Radio: Tune into your favorite radio stations.
• USB/TF Card Compatible: Play media directly from storage devices.
• Portable Design: Equipped with a trolley and retractable handle for easy transport.
• Built-in Battery: Provides power for outdoor use.

Image: The Shinco Karaoke Machine highlighting its Android operating system, YouTube app compatibility, and Wi-Fi connectivity.

4. Setup

1. Unpack the Device: Remove the karaoke machine and all accessories from the packaging.
2. Power Connection: Connect the power adapter to the DC 15V input port on the back of the machine and plug it into a standard electrical outlet. The machine can operate on battery power, but it is recommended to charge it fully before first use.
3. Power On: Press the Power button located on the control panel to turn on the machine. The 15-inch touch screen will illuminate.
4. Microphone Preparation: Insert 2 AA batteries (not included) into each wireless microphone. Turn on the microphones using their respective power switches. The microphones are pre-paired with the machine.

Image: Rear view of the Shinco Karaoke Machine, illustrating the storage compartments for the two wireless microphones.

5. Operating Instructions

5.1. Touch Screen Navigation

The 15-inch touch screen operates like a tablet. Swipe left or right to navigate between screens, tap icons to open applications, and use the on-screen keyboard for input.

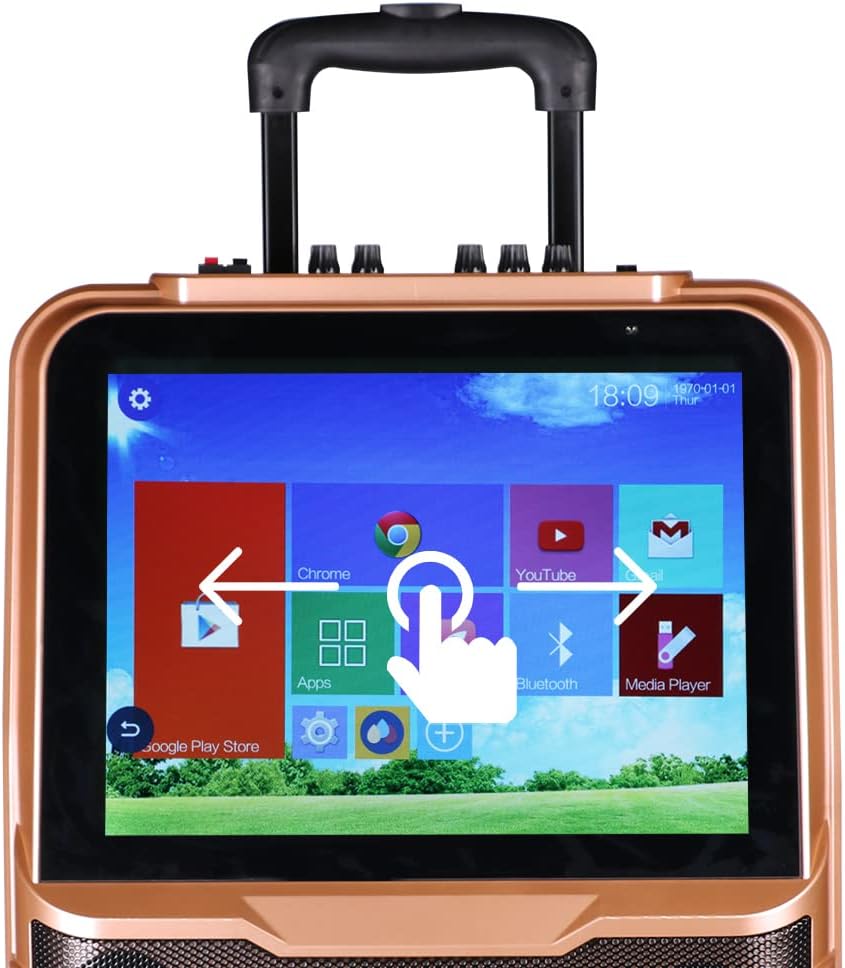

Image: A close-up of the Shinco Karaoke Machine's touch screen, displaying app icons and illustrating touch navigation with a hand gesture.

5.2. Wi-Fi Connection

1. From the home screen, tap the 'Settings' icon.
2. Select 'Wi-Fi' and turn it on.
3. Choose your desired network from the list and enter the password if prompted.
4. Once connected, you can access online karaoke apps, YouTube, and other internet services.

5.3. Bluetooth Pairing

1. Tap the 'Bluetooth' icon on the home screen or navigate through 'Settings'.
2. Ensure Bluetooth is enabled on both the karaoke machine and your external device (e.g., smartphone, tablet).
3. Select the karaoke machine's name from your device's Bluetooth list, or select your device from the machine's list to pair.
4. Confirm the pairing code if prompted.

5.4. Using Wireless Microphones

The two UHF wireless microphones are designed for ease of use. Simply turn them on, and they will automatically connect to the karaoke machine. Adjust microphone volume using the dedicated knobs on the machine's control panel.

5.5. HDMI Output to TV

To display the karaoke machine's screen on a larger television:

1. Connect one end of an HDMI cable (not included) to the HDMI OUT port on the karaoke machine.
2. Connect the other end of the HDMI cable to an HDMI input port on your television.
3. Select the corresponding HDMI input on your TV using your TV's remote control.

Image: The Shinco Karaoke Machine connected to a television via an HDMI cable, demonstrating how lyrics are displayed on both the machine's screen and the TV.

5.6. USB/TF Card Playback

Insert a USB drive or TF card into the designated port. Use the 'Media Player' app on the touch screen to browse and play audio or video files stored on the device.

5.7. Recording Voice

Utilize the recording function within compatible karaoke applications to capture your vocal performances. Refer to the specific app's instructions for detailed recording steps.

5.8. FM Radio

Access the FM Radio application from the touch screen. Use the on-screen controls to scan for stations and adjust the frequency.

5.9. Portability

The machine is equipped with a retractable handle and wheels for easy transportation. Extend the handle and tilt the machine to roll it to your desired location.

Image: A person demonstrating the portability of the Shinco Karaoke Machine by pulling it with its retractable handle and wheels.

6. Maintenance

• Cleaning: Use a soft, dry cloth to clean the exterior of the machine. For the touch screen, use a microfiber cloth specifically designed for electronics. Avoid abrasive cleaners or solvents.
• Battery Care: For optimal battery life, avoid completely draining the battery frequently. Charge the machine regularly, especially if it will be stored for an extended period.
• Storage: Store the karaoke machine in a cool, dry place away from direct sunlight and extreme temperatures.
• Microphone Care: Remove batteries from the wireless microphones if they will not be used for a long time to prevent leakage.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For warranty information and technical support, please refer to the warranty card included with your product or visit the official Shinco website. Keep your purchase receipt as proof of purchase for any warranty claims.
