1. Introduction
This manual provides essential instructions for the proper installation, operation, and maintenance of your WMF Pressure-Switch 0.5 Bar, model 3342169000. This component is a genuine Original Equipment Manufacturer (OEM) part designed for specific applications requiring precise pressure monitoring at 0.5 Bar.
What's in the Box
- WMF Pressure-Switch 0.5 Bar (Model 3342169000)

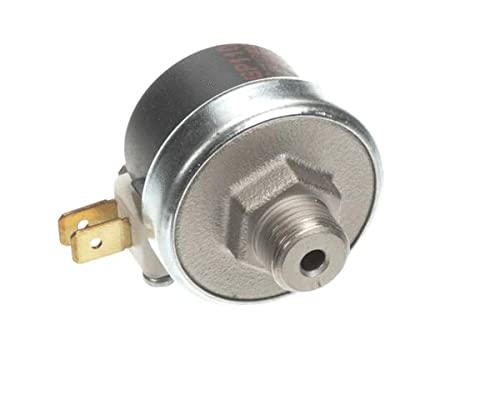

An image showing the WMF Pressure-Switch 0.5 Bar. It features a cylindrical black body with a silver-colored metal base, a hexagonal threaded connection point, and two flat electrical terminals extending from the side.
2. Setup and Installation
Safety First: Before beginning installation, ensure that the system is depressurized and all power sources are disconnected to prevent injury or damage.
- Identify Installation Point: Locate the appropriate connection point in your system for the pressure switch. This is typically a threaded port designed for pressure sensing devices.
- Prepare Connection: Ensure the threaded port is clean and free of debris.
- Apply Sealant (if necessary): Depending on your system's requirements, apply an appropriate thread sealant (e.g., PTFE tape or liquid sealant) to the threads of the pressure switch to ensure a leak-free connection.
- Install Pressure Switch: Carefully thread the WMF Pressure-Switch into the prepared port. Tighten securely using a wrench, but do not overtighten, as this can damage the switch or the port. Refer to system-specific torque specifications if available.
- Connect Electrical Wiring: Identify the electrical terminals on the pressure switch. Connect the appropriate wiring from your control system to these terminals. Ensure correct polarity and secure connections. Consult your system's electrical schematic for specific wiring diagrams.
- Verify Installation: After installation, visually inspect all connections for security and proper sealing.
3. Operation
The WMF Pressure-Switch 0.5 Bar is designed to activate or deactivate a circuit based on a specific pressure threshold. This particular model is set to operate at 0.5 Bar.
- System Power-Up: Once the pressure switch is installed and wired, restore power to your system.
- Pressure Monitoring: The switch will continuously monitor the system pressure.
- Switch Activation: When the system pressure reaches or falls below 0.5 Bar, the switch will change its state (e.g., open or close a circuit), triggering the connected control system or device.
- Function Verification: Observe your system's behavior to confirm that the pressure switch is functioning as expected, initiating the correct response when the pressure threshold is met.
Note: This pressure switch is a fixed-setting device and does not typically allow for user-adjustable pressure thresholds. Its primary function is to provide a reliable signal at the specified 0.5 Bar point.
4. Maintenance
The WMF Pressure-Switch 0.5 Bar is a robust component designed for long-term reliability with minimal maintenance.
- Regular Inspection: Periodically inspect the pressure switch and its connections for any signs of physical damage, corrosion, or leaks.
- Connection Integrity: Ensure electrical connections remain secure and free from oxidation.
- Cleanliness: Keep the exterior of the switch clean and free from excessive dust, dirt, or fluid buildup, which could impede its function or lead to corrosion.
- System Checks: Regularly perform system checks to ensure the pressure switch is activating correctly at the specified pressure. If the switch fails to operate as expected, refer to the troubleshooting section.
Caution: Do not attempt to disassemble the pressure switch. Internal components are not user-serviceable.
5. Troubleshooting
If you encounter issues with your WMF Pressure-Switch, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Switch does not activate | No pressure or incorrect pressure | Verify system pressure with a gauge. |
| Switch does not activate | Faulty electrical connection | Check wiring for loose connections or damage. |
| Switch does not activate | Internal switch failure | Test switch continuity with a multimeter. If faulty, replace the switch. |
| System leaks at switch connection | Improper sealing or overtightening | Depressurize system, reapply thread sealant, and re-tighten appropriately. |
| Inconsistent operation | Debris in pressure port | Depressurize system, remove switch, and clean the port. |
If problems persist after troubleshooting, contact a qualified technician or the manufacturer for assistance.
6. Specifications
- Model Number: 3342169000
- Brand: WMF
- Pressure Rating: 0.5 Bar
- Product Dimensions: 9 x 6 x 5 inches (22.86 x 15.24 x 12.7 cm)
- Item Weight: 3.2 ounces (90.7 grams)
- Manufacturer: Seb Professional
- Part Type: Genuine OEM Replacement Part
A detailed view of the WMF Pressure-Switch 0.5 Bar, highlighting its robust construction and connection interface.
7. Warranty and Support
For warranty information and technical support regarding your WMF Pressure-Switch 0.5 Bar (Model 3342169000), please refer to the documentation provided with your original equipment or contact Seb Professional directly. As an OEM part, its warranty may be covered under the larger system it is integrated into.
Manufacturer Contact: For specific support, please visit the official website of Seb Professional or consult your product's original purchase documentation.
