JIENUO Cordless 2.5 Gallon Wet/Dry Shop Vacuum Cleaner

1. Introduction

Thank you for choosing the JIENUO Cordless 2.5 Gallon Wet/Dry Shop Vacuum Cleaner. This versatile and portable vacuum is designed for efficient cleaning in various environments, including your car, home, garage, and workshop. It features powerful suction, a blower function, and a reusable HEPA filter for both wet and dry applications. Please read this manual thoroughly before operation to ensure safe and optimal performance.

2. Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.

• Read all instructions before using the appliance.
• Do not leave the appliance unattended when the battery is installed. Remove the battery when not in use and before servicing.
• Do not allow children to operate the vacuum. Close supervision is necessary when used near children.
• Do not pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filters in place.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not handle the charger or appliance with wet hands.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Exercise extra care when cleaning on stairs.
• Use only the charger specified by the manufacturer to recharge.
• Do not store the appliance outdoors.

3. Package Contents

Verify that all items are present in the package before use:

• JIENUO Cordless Wet/Dry Shop Vacuum Cleaner
• 20V Max 4.0AH Lithium-Ion Battery
• Battery Charger
• 1-1/4" Diameter Hose
• Upholstery Tool
• Round Brush
• Wide Nozzle
• Crevice Nozzle
• Shoulder Strap
• HEPA Filter (pre-installed or separate)
• Instruction Manual

Figure 3.1: Complete Package Contents

4. Product Overview

Familiarize yourself with the components of your JIENUO Wet/Dry Shop Vacuum Cleaner.

Figure 4.1: Product Components Overview

Figure 4.2: Internal Components Diagram

5. Setup

5.1 Charging the Battery

The 20V 4.0Ah Lithium-Ion battery requires approximately 3 hours for a full charge. Ensure the battery is fully charged before first use.

• Connect the battery charger to a standard electrical outlet.
• Insert the 20V 4.0Ah battery into the charger. The indicator light on the charger will show the charging status.
• Once fully charged, remove the battery from the charger.

Figure 5.1: 20V 4.0Ah Li-ion Battery

5.2 Installing the Battery

• Open the battery compartment cover on top of the vacuum.
• Align the charged battery with the battery slot and slide it in until it clicks securely into place.
• Close the battery compartment cover.

Figure 5.2: Battery Installation

5.3 Attaching the Hose and Accessories

• For vacuuming, insert the hose into the suction port on the front of the vacuum until it is firmly seated.
• For the blower function, insert the hose into the exhaust port on the side of the vacuum.
• Select the appropriate accessory (e.g., crevice nozzle, wide nozzle, round brush, upholstery tool) and attach it to the end of the hose.

6. Operating Instructions

The JIENUO shop vac offers three primary functions: wet vacuuming, dry vacuuming, and blowing.

6.1 Powering On/Off

Press the power switch located on the top of the unit to turn the vacuum on or off.

6.2 Dry Vacuuming

Ensure the HEPA filter is clean and properly installed for dry vacuuming. Attach the hose to the suction port and select a suitable nozzle for the task.

Figure 6.1: Dry Vacuuming Example

6.3 Wet Vacuuming

When vacuuming liquids, ensure the HEPA filter is clean. The vacuum is designed to handle wet debris without needing to change the filter element. Do not overfill the tank; monitor the liquid level. Empty the tank immediately after wet vacuuming.

6.4 Blower Function

To use the blower function, attach the hose to the exhaust port. This function is ideal for clearing leaves, dust, or drying surfaces.

Figure 6.2: Using the Blower Function

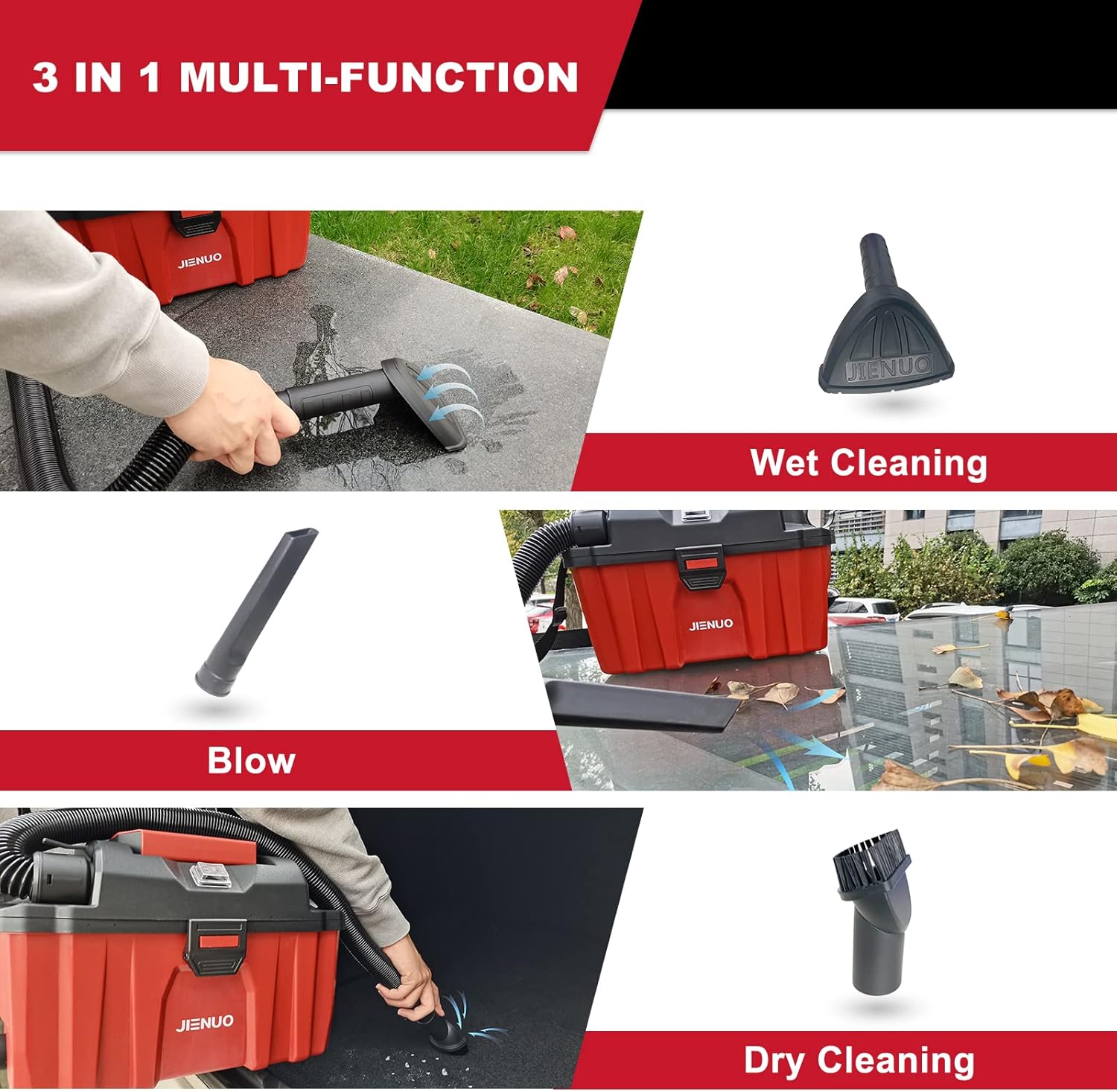

Figure 6.3: Multi-Function Use Cases

6.5 Portability and Storage

The vacuum is designed for easy transport with its integrated handle and included shoulder strap. Accessories can be stored on the unit itself.

Figure 6.4: Portable Use with Shoulder Strap

Figure 6.5: Accessory Storage

7. Maintenance

7.1 Emptying the Tank

After each use, especially after wet vacuuming, empty the tank. Unlatch the side buckles and lift the motor head assembly. Dispose of collected debris or liquids properly.

7.2 Cleaning the HEPA Filter

The HEPA filter is washable and reusable. Regularly clean the filter to maintain optimal suction performance.

• Remove the motor head assembly and carefully detach the HEPA filter.
• Rinse the filter under running water until clean. Do not use harsh detergents.
• Allow the filter to air dry completely before re-installing it into the vacuum. Ensure it is fully dry to prevent mold or damage.

Figure 7.1: Cleaning the HEPA Filter

8. Troubleshooting

If you encounter issues with your vacuum, refer to the following common problems and solutions:

9. Specifications

Figure 9.1: Product Dimensions

10. Warranty and Support

For warranty information or technical support, please contact JIENUO customer service. Refer to the contact details provided with your purchase or visit the official JIENUO website.

Please retain your proof of purchase for any warranty claims.
