1. Product Overview
The GYMAX 2-in-1 Foldable Rollator Walker is a versatile mobility aid designed to provide assistance for walking and to function as a transport wheelchair. This device offers stability and support, enhancing user independence and comfort.
Image 1.1: The GYMAX 2-in-1 Foldable Rollator Walker, ready for use as a transport chair.
Its dual functionality allows users to easily switch between a supportive walker and a comfortable transport chair by simply reversing the backrest and deploying the footrests.
Image 1.2: Demonstrating the dual design: serving as an auxiliary walker (left) and a wheelchair (right).
2. Features
- 2-in-1 Functionality: Easily converts between a rollator walker and a transport wheelchair.
- Adjustable Height: The handles can be adjusted to 6 different levels, ranging from 33.5 inches to 38.5 inches, to accommodate users of various heights.
- Dual Hand Brakes: Equipped with handbrakes that allow for speed control (lifting up) and immediate stopping (pulling down).
- Detachable Storage Bag: A convenient bag is included for carrying personal items.
- Cane Holder: Integrated holder for securely carrying a cane or umbrella.
- Widened Seat: Provides a comfortable and stable seating area when used as a wheelchair.
- Sturdy Aluminum Frame: Constructed from durable aluminum, supporting up to 300 lbs.
- Durable 8-inch Wheels: Designed for smooth and stable movement across various terrains.
- One-Hand Folding: Features a simple one-hand folding mechanism for compact storage and transport.
Image 2.1: Adjustable height settings and dual handbrake functionality.
Image 2.2: Details of the widened seat, storage bag, cane holder, and foldable footrests.
Image 2.3: Durable 8-inch wheels designed for various surfaces.
3. Setup and Assembly
The GYMAX Rollator Walker comes mostly pre-assembled. Follow these steps for initial setup:
- Unfold the Walker: Carefully remove the walker from its packaging. Gently pull the sides apart until the frame locks into place. Ensure all locking mechanisms are secure.
- Attach Backrest: If the backrest is not already attached, slide it into the designated slots on the frame.
- Adjust Handle Height: Press the adjustment buttons on the side of the handles and slide them up or down to your desired height. Ensure both handles are at the same height and the buttons click securely into place. The ideal height allows your arms to be slightly bent at the elbow when holding the handles.
- Attach Storage Bag: Secure the detachable storage bag to the frame as intended.
- Deploy Footrests (for wheelchair mode): If using as a transport chair, swing the footrests forward and lock them into position.
Image 3.1: Detail of the handle height adjustment.
4. Operating Instructions
4.1 Using as a Rollator Walker
- Adjust Height: Ensure the handles are adjusted to a comfortable and safe height (refer to Section 3).
- Walking: Stand behind the walker, holding both handles. Push the walker forward a short distance, then step forward with one foot, followed by the other. Maintain a steady pace.
- Braking:
- To slow down, gently pull the handbrake levers upwards.
- To engage the parking brake (to stop completely or sit down), push the handbrake levers downwards until they lock into place. Pull them upwards again to release.
- Sitting: Engage the parking brakes before sitting on the seat. Ensure the walker is stable.
Image 4.1: Using the rollator walker for walking assistance.
Image 4.2: Detail of the handbrake operation.
4.2 Converting to a Transport Wheelchair
- Engage Parking Brakes: Ensure the parking brakes are engaged for stability.
- Reverse Backrest: The backrest is reversible. Rotate it to face the front of the walker, positioning it behind the user when seated.
- Deploy Footrests: Swing the footrests forward from their stored position and lock them securely into place.
- Seating: The user can now sit on the widened seat, with their feet placed on the footrests.
- Transport: A caregiver can push the chair from behind using the handles. Ensure the user is seated safely and comfortably.
Image 4.3: Reversible backrest for wheelchair mode.
Image 4.4: The rollator in transport wheelchair configuration.
4.3 Folding for Storage or Transport
- Clear the Seat: Ensure nothing is on the seat or in the storage bag that would obstruct folding.
- Retract Footrests: If deployed, fold the footrests back into their stored position.
- One-Hand Folding: Locate the strap on the seat. Pull this strap upwards with one hand. The walker will begin to fold inward. Continue pulling until it is fully folded and compact.

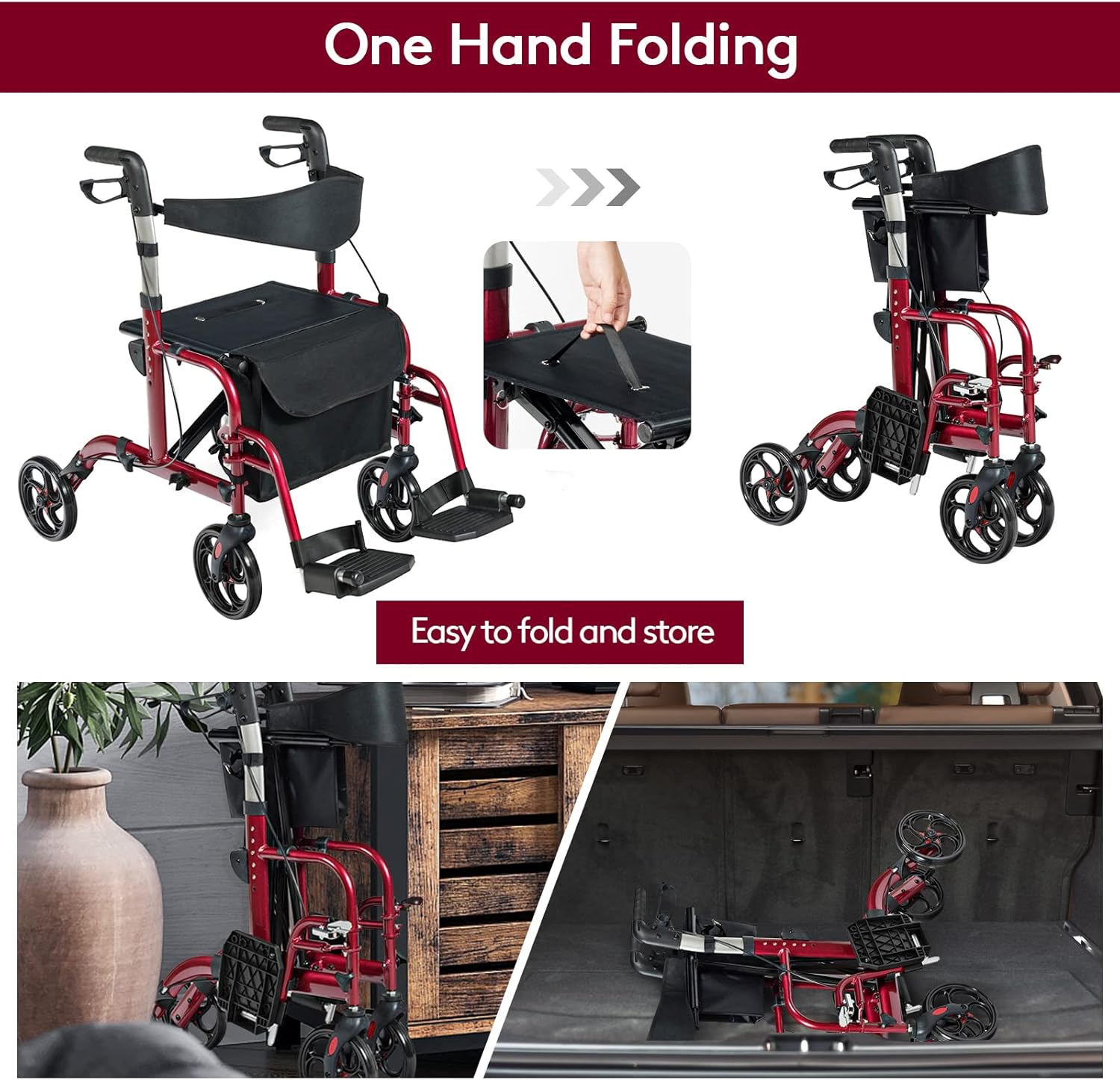

Image 4.5: The one-hand folding mechanism for compact storage.
5. Maintenance
- Cleaning: Wipe down the frame and seat regularly with a damp cloth and mild soap. Avoid abrasive cleaners.
- Wheel Inspection: Periodically check the wheels for wear and tear. Ensure they rotate freely and are free of debris.
- Brake Check: Regularly test the handbrakes to ensure they engage and disengage properly. Adjust if necessary (consult a professional if unsure).
- Fastener Check: Ensure all screws, bolts, and locking mechanisms are tight and secure. Do not overtighten.
- Storage: Store the rollator in a dry, clean place away from extreme temperatures.
6. Troubleshooting
- Walker feels unstable:
- Ensure all frame components are fully extended and locked.
- Check that the handle heights are evenly adjusted.
- Verify that the wheels are securely attached and not damaged.
- Brakes are not working effectively:
- Inspect the brake cables for any kinks or damage.
- Ensure the brake pads are making proper contact with the wheels.
- If issues persist, professional adjustment may be required.
- Difficulty folding/unfolding:
- Ensure no items are obstructing the folding mechanism.
- Apply gentle, even pressure when pulling the folding strap.
7. Specifications
| Attribute | Detail |
|---|---|
| Model Number | CA-GM1190 |
| Product Dimensions (L x W x H) | 33" x 24" x 33.5" (minimum height) |
| Adjustable Handle Height Range | 33.5" - 38.5" |
| Item Weight | 21 Pounds |
| Material | Aluminum |
| Weight Capacity | 300 lbs |
| Wheel Size | 8 inches |
Image 7.1: Product dimensions and weight capacity.
8. Safety Information
Please read and understand all safety warnings and instructions before using this product. Failure to do so may result in injury.
- Always ensure all locking mechanisms are fully engaged before use.
- Engage parking brakes when sitting on the seat or when the walker is stationary.
- Do not exceed the maximum weight capacity of 300 lbs.
- Use caution on uneven surfaces, inclines, or declines.
- Regularly inspect the walker for any signs of damage or wear. Do not use if damaged.
- This product is intended as a mobility aid. It is not a toy.
- Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition.
9. Warranty and Support
Specific warranty information for the GYMAX CA-GM1190 Rollator Walker is not provided within this manual. For warranty details, product support, or to inquire about replacement parts, please contact GYMAX customer service directly or refer to the product packaging and purchase documentation.
