Introduction
Thank you for choosing the Lexon Mina Small LED Lamp. This portable and rechargeable lamp is designed to provide versatile lighting for various settings, including bedrooms, nurseries, and offices. Its compact design, intuitive controls, and long-lasting battery make it a convenient and stylish lighting solution.
The Lexon Mina Small LED Lamp, shown in its bronze finish, is a compact and portable lighting solution.
A Lexon Mina lamp provides soft illumination for a child reading in bed, emphasizing its suitability as a bedside light.
Setup
Charging the Lamp
Before initial use, fully charge your Lexon Mina lamp. Use the provided USB-C cable to connect the lamp to a compatible USB power source (e.g., computer, wall adapter). A full charge typically takes approximately 2 hours and provides up to 12 hours of battery life, depending on the brightness and light mode used.
This visual highlights key features: up to 12 hours of battery life, a quick 2-hour charging time via USB-C, and its water-resistant design.
Operating the Lamp
Power On/Off and Light Modes
The Lexon Mina lamp features a single button located at its base for all controls. To turn the lamp on or off, simply press the button once. Repeated presses will cycle through the available light modes: warm light and cold light.
Adjusting Brightness (Memory Dimmer)
To adjust the brightness, press and hold the button. The light will gradually dim or brighten. Release the button when you reach your desired brightness level. The lamp's memory dimmer function will recall your last brightness setting when turned on again.
The image demonstrates the Lexon Mina lamp's ability to emit both warm and cold light, allowing users to select their preferred ambiance.

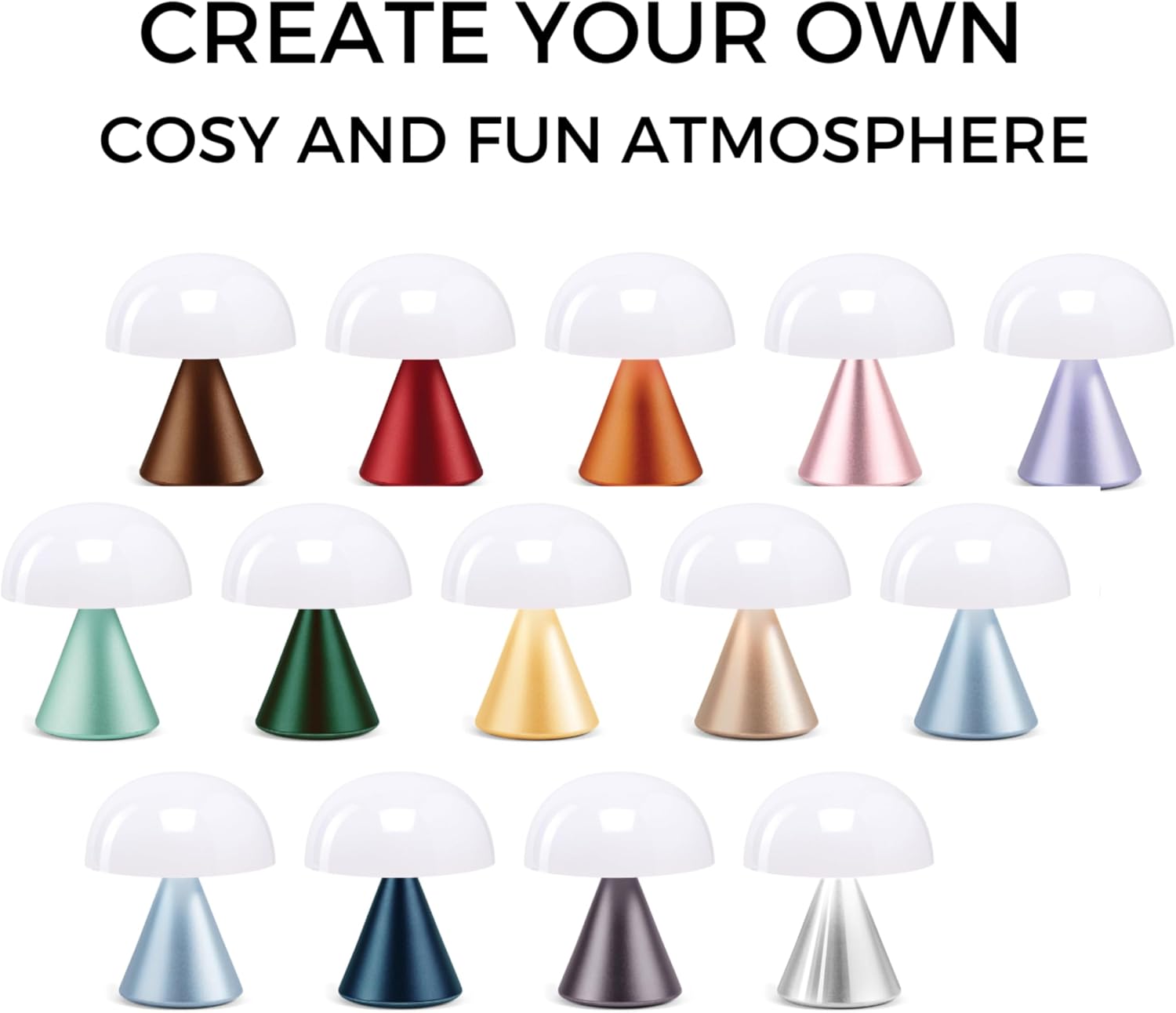

An arrangement of Lexon Mina lamps in a spectrum of colors, illustrating how they can be combined to create a personalized and inviting atmosphere.
Maintenance
Cleaning
To clean your Lexon Mina lamp, gently wipe the surface with a soft, dry, or slightly damp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the lamp's finish.
Battery Care
To prolong the life of the integrated Lithium Polymer battery, avoid fully discharging it frequently. Recharge the lamp regularly, even if it has not been completely depleted. Store the lamp in a cool, dry place when not in use for extended periods.
Troubleshooting
- Lamp not turning on or charging: Ensure the USB-C cable is securely connected to both the lamp and a working power source. Verify the power source is active. If the lamp has been stored for a long time, it may require a few minutes of charging before it responds.
- Light flickering or dimming unexpectedly: This usually indicates a low battery. Recharge the lamp fully.
- Physical damage: The Lexon Mina lamp, while durable, can be fragile if dropped. Handle with care to prevent damage to the light dome or base.
Technical Specifications
| Model Name | MINA |
| Item Model Number | LH60BZ |
| Dimensions (D x W x H) | 2.7" x 2.7" x 3.2" (6.86 cm x 6.86 cm x 8.12 cm) |
| Item Weight | 5.8 ounces (165 Grams) |
| Material | Aluminum |
| Light Source Type | LED |
| Light Colors | Warm, Cold |
| Brightness | 20 Lumens (Maximum) |
| Power Source | Battery Powered (1 Lithium Polymer battery included) |
| Battery Life | Up to 12 hours (depending on usage) |
| Charging Time | Approx. 2 hours via USB-C |
| Special Feature | Cordless, Memory Dimmer |
This image illustrates the three available sizes of the Lexon Mina lamp series, highlighting the compact dimensions of the Small Mina lamp (2.7 inches diameter, 3.2 inches height).
Warranty Information
The Lexon Mina LED Lamp typically comes with a manufacturer's warranty valid for one year from the date of purchase. Please retain your proof of purchase for any warranty claims. For specific terms and conditions, refer to the warranty card included with your product or visit the official Lexon website.
Customer Support
If you encounter any issues or have questions regarding your Lexon Mina LED Lamp that are not covered in this manual, please contact Lexon customer support. You can usually find contact details on the official Lexon website or through your retailer.
