TAOPON Smart Watch User Manual

Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your TAOPON Smart Watch. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your user experience. This smart watch is designed to assist with fitness tracking, health monitoring, and smart notifications.

Image: The TAOPON Smart Watch featuring a circular display, silver mesh band, and an additional black silicone band.

Setup

1. Package Contents

• TAOPON Smart Watch (with pre-installed silver mesh band)
• Black Silicone Band
• Charging Cable
• User Manual

2. Charging the Device

Before first use, fully charge your smart watch. Connect the charging cable to the charging port on the back of the watch and to a standard USB power adapter (not included). A full charge typically takes approximately 2 hours. The watch has a 210mAh battery, providing up to 7 days of typical use and 30 days of standby time.

Image: The smart watch screen showing a charging icon, indicating battery status and typical usage duration.

3. App Installation and Pairing

1. Download the 'Da Fit' application from your smartphone's app store (compatible with iOS 9.0+ and Android 6.0+).
2. Ensure Bluetooth is enabled on your smartphone.
3. Open the 'Da Fit' app, register or log in, and follow the on-screen instructions to add your device.
4. Select your TAOPON Smart Watch from the list of available devices. The watch uses Bluetooth 5.0 for a stable connection up to 10 meters.

4. Strap Adjustment

The included steel mesh strap can be easily adjusted without tools. The black silicone strap can be interchanged for different scenarios. Ensure the watch is worn snugly but comfortably on your wrist for accurate sensor readings.

Image: The smart watch showcasing multiple customizable dial options and the two included strap styles: silver mesh and black silicone.

Operating Instructions

1. Basic Navigation

• Touch Screen: Swipe left/right, up/down to navigate menus and functions. Tap to select.
• Side Button: Press to return to the previous screen or wake the display.

2. Customizing Dials

The watch offers a variety of pre-installed dial options. Through the 'Da Fit' app, you can access a dial market with approximately 80 additional options and even customize dials using your own photos.

3. Notifications

Once paired with your smartphone via the 'Da Fit' app, the watch can receive notifications for calls, SMS messages, and various social media applications (e.g., Facebook, Twitter, WhatsApp, Line, Instagram). You can also reject calls directly from the watch.

Image: The smart watch displaying an incoming message notification, alongside a smartphone showing its notification center with various app alerts.

4. Additional Tools

The smart watch includes several convenient features:

• Weather Forecast: View current weather conditions and forecasts.
• Music Control: Control music playback on your connected smartphone.
• Remote Camera: Use the watch as a remote shutter for your phone's camera.
• Stopwatch & Timer: For timing activities.
• Alarm Clock: Set alarms directly from the watch or app.
• Brightness Adjustment: Adjust screen brightness for optimal viewing.
• Theater Mode: Reduces screen brightness and disables vibrations for discreet use.
• Games: Simple built-in games.

Image: The smart watch displaying weather information, alongside an illustration of various sports modes and a person engaged in exercise.

Health Monitoring

The TAOPON Smart Watch provides several health monitoring features to help you track your well-being.

• Heart Rate Monitor: Tracks your heart rate throughout the day, providing data analysis to help you understand trends and adjust your lifestyle.
• Blood Pressure Monitor: Provides estimates of blood pressure. Note: This feature is for reference only and should not be used for medical diagnosis.
• Sleep Monitor: Automatically tracks your sleep patterns, including deep sleep, light sleep, and awake times. You can review your sleep data in the 'Da Fit' app.
• Breathing Exercises: Guided breathing exercises to help with relaxation.

Image: The smart watch illustrating its health monitoring capabilities, including heart rate, blood pressure, pedometer, and detailed sleep tracking (deep, light, wake up).

Fitness Tracking

The smart watch is equipped with an accurate fitness tracker to monitor your physical activity.

• 8 Sports Modes: Supports tracking for walking, running, cycling, skipping rope, badminton, basketball, football, and swimming.
• Activity Metrics: Tracks calorie consumption, steps taken, distance covered, and active minutes during exercise.
• GPS Connectivity: Connects to your mobile phone's GPS to record your movement track during outdoor activities.

Maintenance

1. Water Resistance

The TAOPON Smart Watch has an IP68 waterproof rating, meaning it is effective against splashes and can be worn during hand washing or in the rain. Do not use it in hot water, saunas, or steam rooms, as this can compromise the water resistance.

2. Cleaning

Wipe the watch and straps regularly with a soft, dry cloth. If necessary, use a slightly damp cloth and then dry thoroughly. Avoid harsh chemicals or abrasive materials.

3. Battery Care

To prolong battery life, avoid fully discharging the watch frequently. Charge it when the battery level is low. Store the watch in a cool, dry place when not in use for extended periods.

Troubleshooting

• Watch not turning on: Ensure the watch is fully charged. Connect it to the charger for at least 30 minutes.
• Unable to pair with phone:
  1. Ensure Bluetooth is enabled on your phone.
  2. Make sure the watch is within Bluetooth range (8-10 meters).
  3. Restart both your phone and the watch.
  4. Try unpairing and re-pairing the device through the 'Da Fit' app.
• Notifications not appearing:
  1. Check notification permissions for the 'Da Fit' app in your phone's settings.
  2. Ensure the watch is connected to the app.
  3. Verify that 'Theater Mode' is not active on the watch.
• Inaccurate health/fitness data: Ensure the watch is worn snugly on your wrist. Clean the sensors on the back of the watch.

Specifications

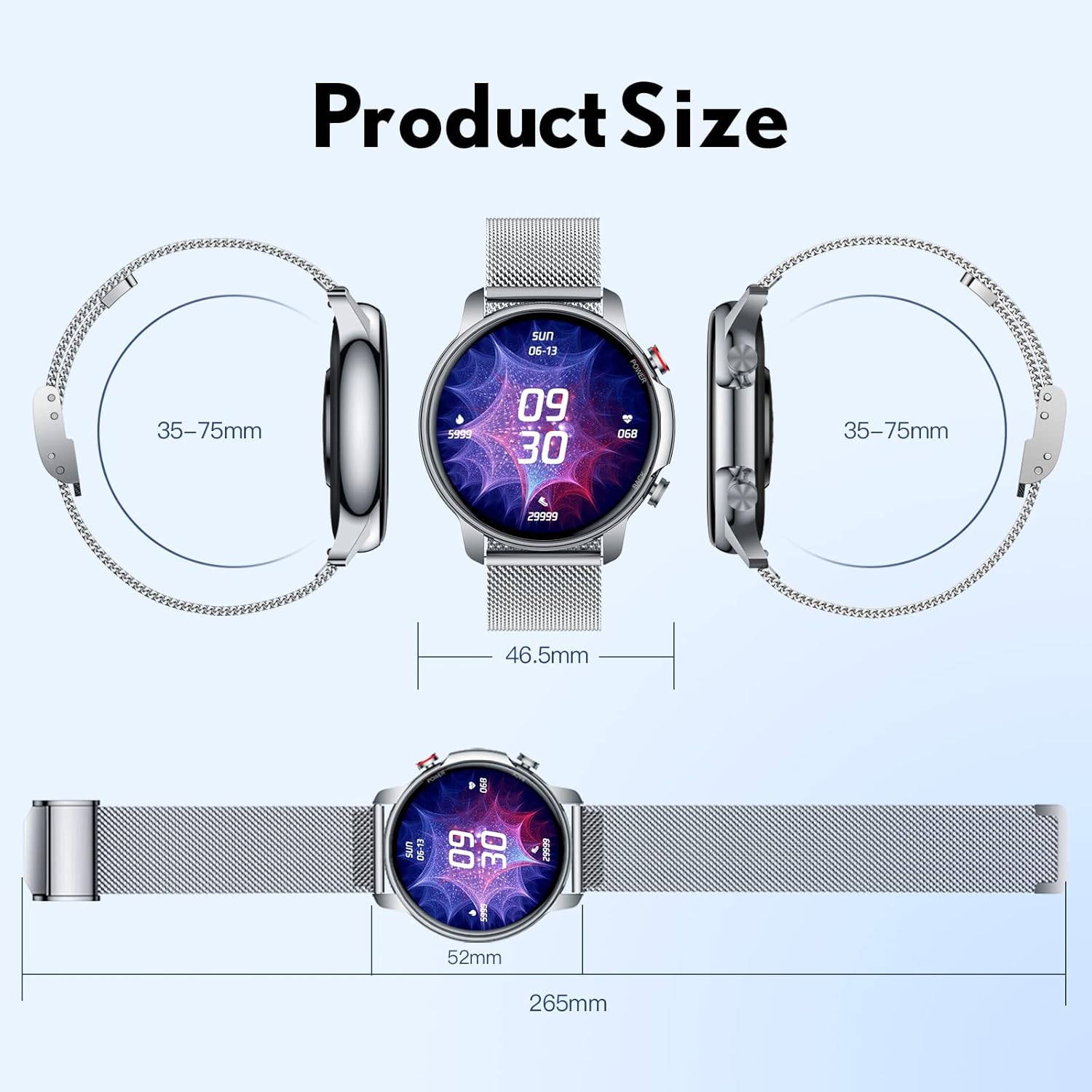

Image: A diagram illustrating the physical dimensions of the TAOPON Smart Watch, including screen diameter and strap length.

Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact TAOPON customer service directly through their official website. Ensure you have your product model number (JMUS02-C18sls) and proof of purchase available when seeking support.
