SteamOne S-Nomad NS1750T Portable Garment Steamer User Manual

1. Introduction

Thank you for purchasing the SteamOne S-Nomad NS1750T Portable Garment Steamer. This manual provides essential information for the safe and efficient use of your new appliance. Please read it thoroughly before first use and keep it for future reference.

The S-Nomad NS1750T is a compact and powerful garment steamer designed for quick wrinkle removal and fabric refreshment. Its innovative design and features make it ideal for daily use and travel.

2. Safety Information

• Always use distilled or demineralized water to prevent mineral buildup and extend the life of the appliance.
• Do not direct steam at people, pets, or electrical appliances. Steam is hot and can cause burns.
• Ensure the appliance is unplugged before filling or emptying the water tank, and before cleaning.
• Do not immerse the appliance in water or other liquids.
• Keep the appliance out of reach of children.
• Do not use the steamer on leather or synthetic leather products. Always check garment care labels.
• Place the suction hanger hook only on smooth, non-porous surfaces that can securely hold its weight.

3. Package Contents

Verify that all items are present in the package:

• SteamOne S-Nomad NS1750T Garment Steamer Unit
• Suction Hanger Hook
• Removable Fabric Brush
• Universal Bottle Connector
• Dedicated Pouch

4. Product Features

• Powerful Steam Output: Delivers approximately 18g/minute of continuous steam for effective wrinkle removal and fabric refreshment.
• Quick Heat-up: Ready to use in approximately 30 seconds.
• Ergonomic Design: Front-weighted design reduces strain during use, making it comfortable to hold.
• Dual Steam Modes: Features Normal and Eco modes for different fabric types and steaming needs.
• Versatile Water Supply: Includes a 150ml dedicated water tank and a universal bottle connector for use with standard PET bottles, allowing for extended steaming sessions.
• Sterilization & Deodorization: High-temperature steam helps to sterilize fabrics (99% effective against certain bacteria) and remove odors without chemicals.

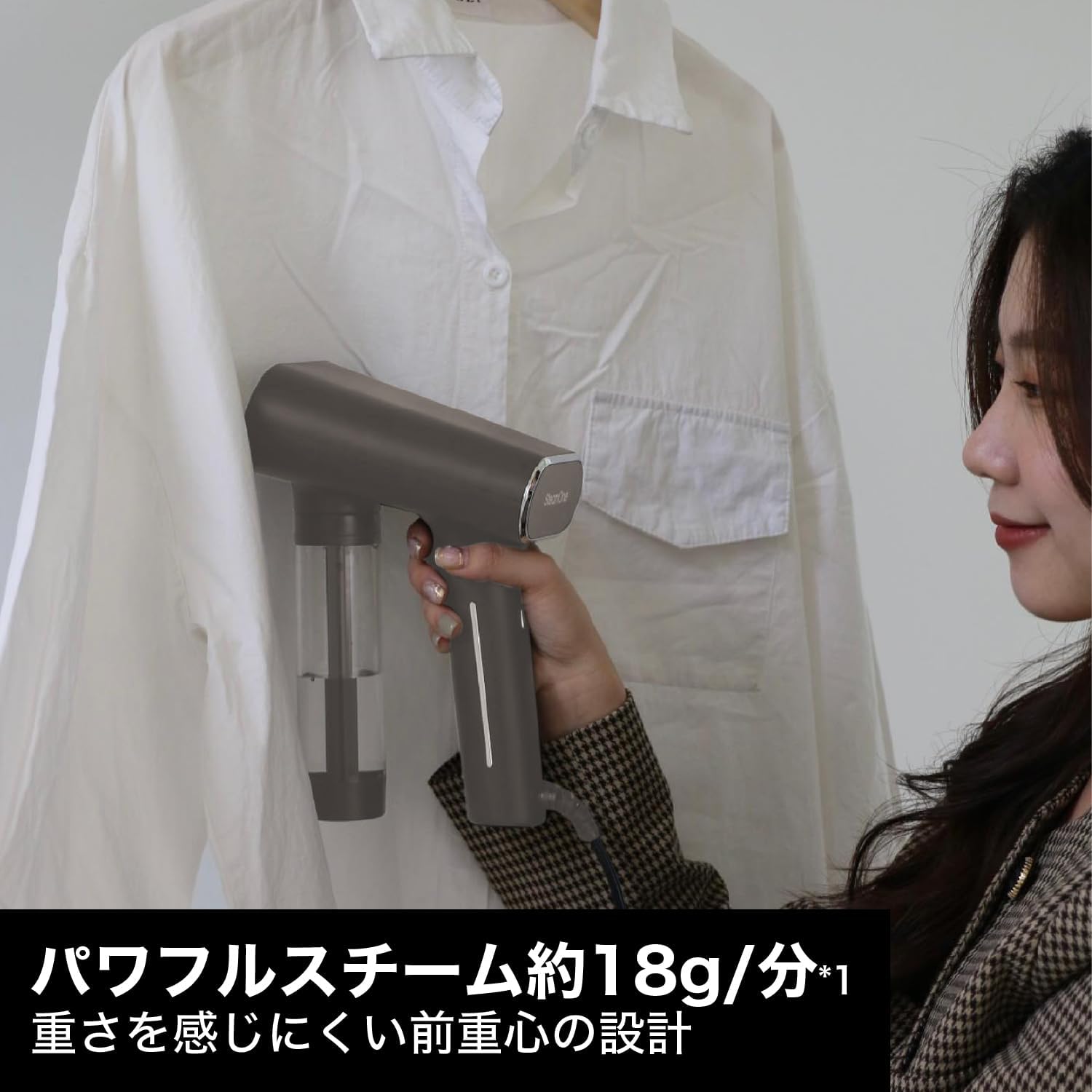

Image: The SteamOne S-Nomad NS1750T in use, effectively steaming a white shirt on a hanger.

Image: A detailed view of the SteamOne S-Nomad NS1750T, highlighting its sleek design.

5. Setup

5.1 Filling the Water Tank

1. Ensure the steamer is unplugged from the power outlet.
2. Remove the water tank from the main unit.
3. Open the cap of the water tank.
4. Fill the tank with distilled or demineralized water up to the MAX line (150ml capacity).
5. Close the cap securely and reattach the water tank to the main unit until it clicks into place.

Image: A close-up view of the detachable water tank, ready for filling.

5.2 Attaching the Universal Bottle Connector (Optional)

1. If you require longer steaming sessions, remove the standard water tank.
2. Attach the universal bottle connector to the steamer unit.
3. Screw a standard PET bottle filled with distilled water onto the connector.

Image: The S-Nomad steamer connected to a PET bottle using the universal connector for extended use.

6. Operating Instructions

6.1 Powering On and Heat-up

1. Plug the power cord into a suitable electrical outlet.
2. Press the power button. The indicator light will flash, indicating the steamer is heating up.
3. Wait approximately 30 seconds for the steamer to reach operating temperature. The indicator light will become solid when ready.

6.2 Steaming Garments

1. Hang the garment on a hanger or use the provided suction hanger hook on a smooth surface.
2. Hold the steamer upright, keeping the steam head a few inches away from the fabric.
3. Press the steam trigger to release steam. For continuous steam, engage the lock function on the trigger.
4. Move the steam head slowly over the fabric, from top to bottom, allowing the steam to penetrate and relax the fibers.
5. For stubborn wrinkles, gently press the steam head against the fabric while steaming.
6. Use the removable fabric brush for thicker fabrics or to remove lint and dust.
7. To switch between Normal and Eco modes, double-click the steam trigger.
8. When finished, release the steam trigger (if locked) and press the power button to turn off the steamer. Unplug the appliance.

Image: Demonstrating the S-Nomad steaming a shirt while it hangs on a hanger.

6.3 Official Product Video: Garment Steamer Usage

6.4 Official Product Video: Suction Steamer Feature

7. Maintenance

7.1 Cleaning the Water Tank

After each use, empty any remaining water from the tank. Rinse the tank with clean water and allow it to air dry before storing.

7.2 Descaling

Mineral deposits can build up over time, especially if tap water is used. Regular descaling is crucial for optimal performance and longevity. It is recommended to descale the steamer every 2-3 months, or more frequently if you notice reduced steam output or white residue.

1. Unplug the steamer and ensure it is cool.
2. Remove the water tank.
3. Prepare a descaling solution using white vinegar and water (1:1 ratio) or a commercial descaling product suitable for steamers.
4. Pour the solution into the water tank and let it sit for 30 minutes to an hour.
5. Empty the tank and rinse it thoroughly with clean water several times.
6. Fill the tank with clean water, reattach it, and run the steamer for a few minutes to flush out any remaining solution.

8. Troubleshooting

9. Specifications

10. Warranty and Support

10.1 Warranty Period

This product comes with a 1-year manufacturer's warranty from the date of purchase. Please retain your proof of purchase for warranty claims.

10.2 Customer Support

For any questions, technical assistance, or warranty claims, please refer to the contact information provided in the product packaging or visit the official SteamOne website. Our authorized distributors in Japan provide support for products sold in the region.
