1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Yaheetech Queen Metal Platform Bed Frame. Please read this manual thoroughly before beginning assembly and retain it for future reference. This bed frame is designed to provide a sturdy and elegant foundation for your mattress without the need for a box spring.
Figure 1: Fully assembled Yaheetech Queen Metal Platform Bed Frame with headboard and footboard, showcasing its elegant design and under-bed storage space.
2. Safety Information
- Weight Capacity: Do not exceed the maximum weight capacity of 800 lbs (362 kg) for this Queen size bed frame.
- Assembly: Ensure all bolts and screws are securely tightened during assembly. Periodically check and re-tighten fasteners to maintain stability.
- Pinch Points: Exercise caution around potential pinch points or sharp edges during assembly and use.
- Level Surface: Assemble and use the bed frame on a flat, level surface to prevent wobbling and ensure stability.
- Children: Keep small parts away from children during assembly to prevent choking hazards.
- Cleaning: Wipe clean with a soft, dry cloth. Avoid harsh chemicals that may damage the finish.
3. Package Contents
Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact Yaheetech customer support.
- Headboard components
- Footboard components
- Side rails
- Metal slats
- Center support legs
- Hardware pack (bolts, washers, nuts, Allen wrench)
- Installation Manual
4. Setup & Assembly
Assembly of the Yaheetech Queen Metal Platform Bed Frame is designed to be straightforward. Follow the included step-by-step instructions carefully. It is recommended to assemble the bed frame with two people.
4.1 Assembly Overview
Video 1: An overview of the Yaheetech Metal Bed Frame assembly process, demonstrating the ease of setup for Full/Queen sizes.
The bed frame features a simple design for quick and easy assembly. All necessary hardware and tools are provided. Ensure all parts are laid out and identified before starting.
4.2 Key Assembly Features
- U-shaped Plastic Clips: These clips are used to easily and securely fix the metal slats into their designated slots, ensuring a stable mattress foundation.
- Solid Metal Frame: The frame is constructed from sturdy metal tubes, providing excellent weight-bearing capacity and durability.
- Protective Foot Pads: Anti-slip foot pads are included to reduce scratches on your floor and prevent the bed from sliding.
Figure 2: Close-up view of the metal slats and U-shaped plastic clips, illustrating how they secure the mattress support system.
Figure 3: Close-up of the protective foot pads, designed to prevent floor scratches and enhance stability.
5. Operating Instructions
5.1 Mattress Placement
This platform bed frame is designed to be used without a box spring. Simply place your Queen size mattress (80'' L × 60'' W) directly onto the metal slats. The integrated anti-slip baffles will help prevent the mattress from shifting.
Figure 4: Diagram illustrating the function of the anti-slip baffles, which secure the mattress in place and prevent unwanted movement.
5.2 Under-bed Storage
The bed frame provides 12.6 inches of clearance underneath, offering ample space for storage. Utilize this area for bins, boxes, or other items to maximize room efficiency.

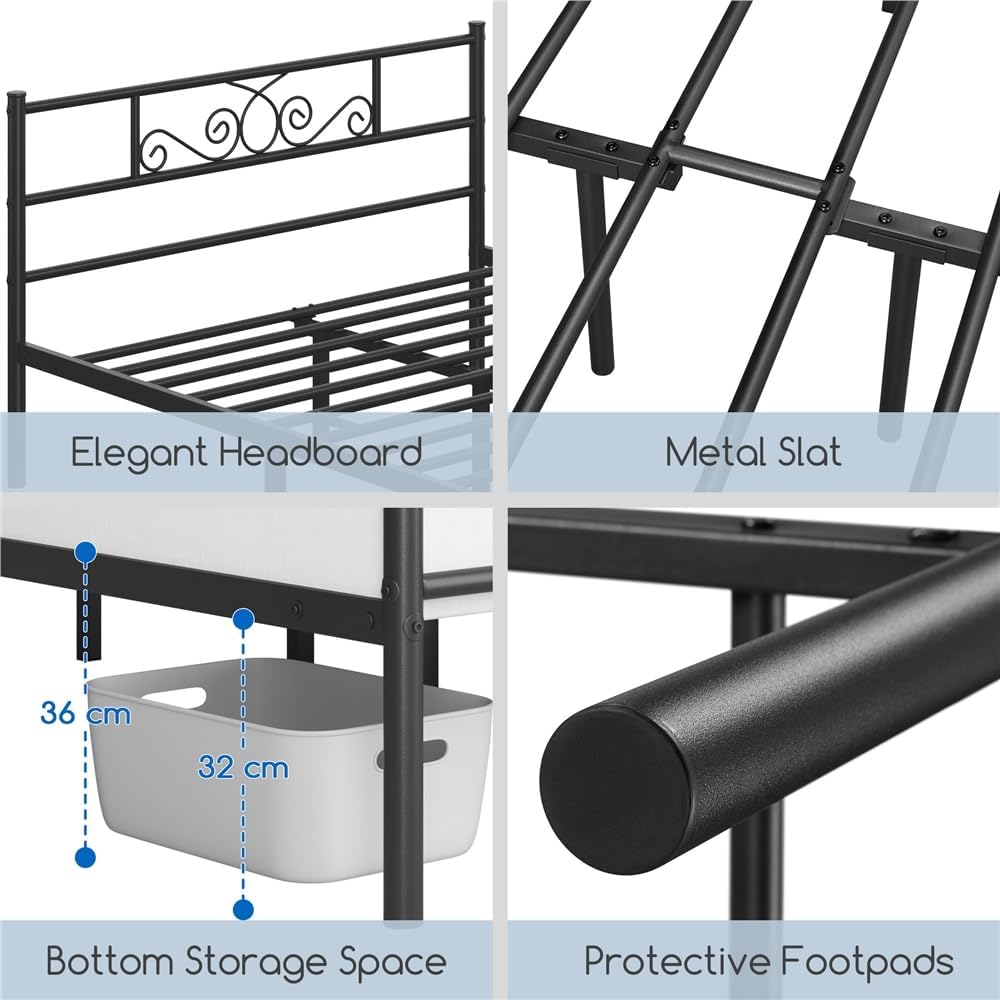

Figure 5: The bed frame offers 12.6 inches of under-bed clearance, ideal for storing items in baskets or containers.
6. Maintenance
- Cleaning: To clean the bed frame, wipe it with a soft, dry cloth. Do not use abrasive cleaners or harsh chemicals, as these may damage the powder-coated finish.
- Fastener Check: Periodically inspect all bolts and screws to ensure they remain tight. Re-tighten as necessary to maintain the bed frame's stability and prevent squeaking.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame wobbles or is unstable. | Loose fasteners; uneven assembly. | Ensure all bolts and screws are fully tightened. Verify the bed frame is on a level surface. If necessary, disassemble and reassemble, ensuring all parts are correctly aligned before fully tightening. |
| Squeaking noises. | Loose connections; metal-on-metal friction. | Tighten all bolts and screws. Apply a small amount of lubricant (e.g., silicone spray) to connection points if squeaking persists. Ensure the mattress is properly seated and not rubbing against the frame. |
| Mattress slides on the frame. | Anti-slip baffles not engaged or insufficient. | Ensure the mattress is positioned correctly against the anti-slip baffles. Consider using a non-slip mattress pad for additional grip. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | YT-00110344-V01 |
| Size | Queen |
| Product Dimensions (L x W x H) | 82.5" x 61" x 35" |
| Compatible Mattress Size | 80" L × 60" W |
| Material | Metal (Iron) |
| Color | Black |
| Finish Type | Powder Coated |
| Weight Capacity | 800 lbs |
| Ground Clearance | 12.6 inches |
| Assembly Required | Yes |
| Item Weight | 43.9 lbs |
Figure 6: Detailed dimensions and weight capacity for the Queen size bed frame.
9. Warranty & Support
For warranty information, product support, or to report missing/damaged parts, please contact Yaheetech customer service directly. Refer to the contact information provided on the product packaging or the official Yaheetech website.
Manufacturer: Yaheetech
