1. Introduction
This manual provides detailed instructions for the safe and efficient operation, setup, and maintenance of your ICECO VL60 ProS portable refrigerator. Please read this manual thoroughly before using the appliance and retain it for future reference.

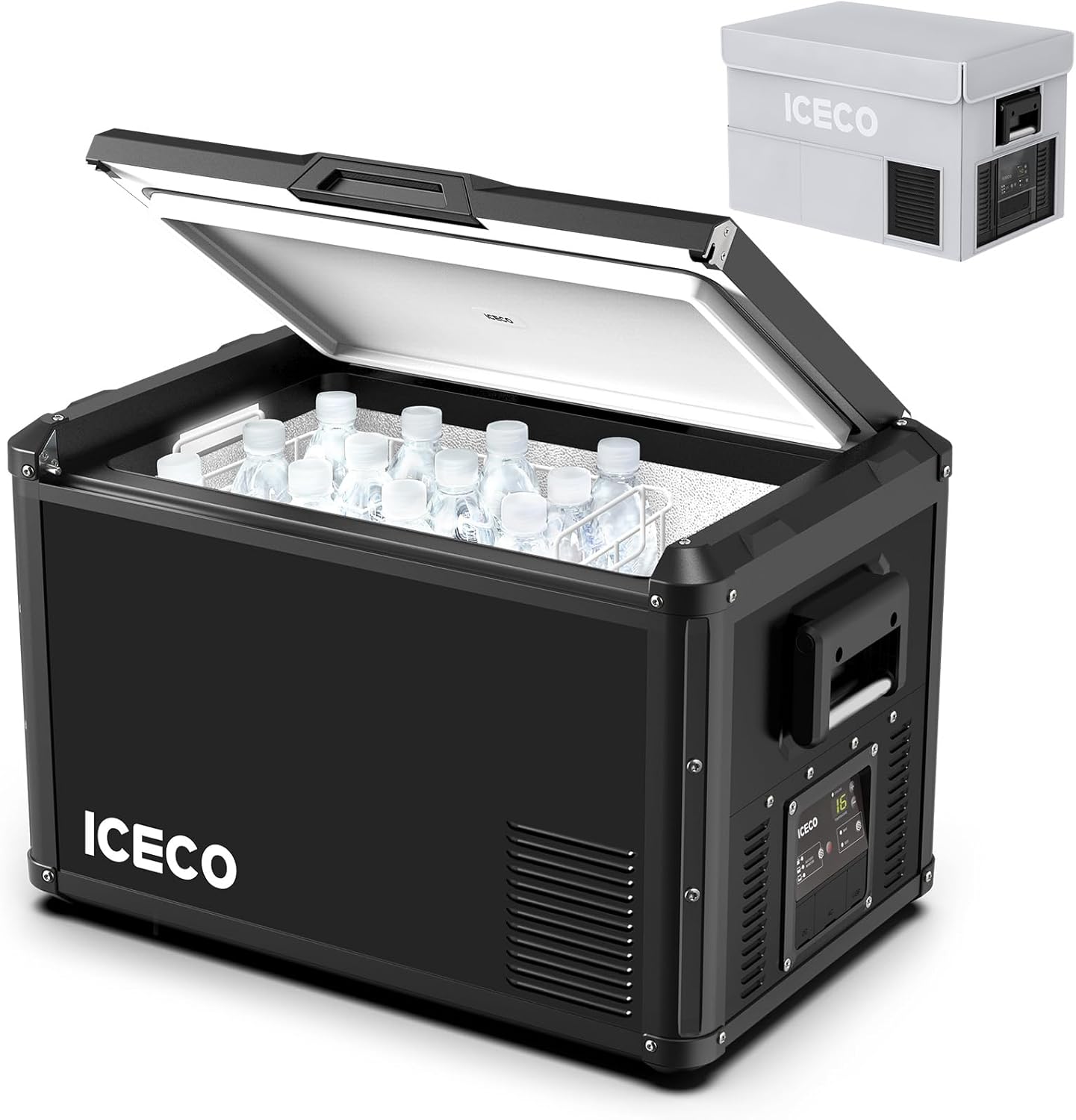

Image 1.1: ICECO VL60 ProS Portable Refrigerator
2. Safety Information
To ensure safe operation, always observe the following precautions:
- Do not operate the refrigerator if the power cord is damaged.
- Ensure proper ventilation around the unit to prevent overheating.
- Avoid placing the unit in direct sunlight or near heat sources.
- Keep the appliance away from water or other liquids.
- Do not use electrical devices inside the refrigerator unless recommended by the manufacturer.
3. Product Overview
Key Features
- Reversible Lid: The lid can be opened from either side or completely removed for convenient access, especially in confined spaces.
- Versatile Power Options: Equipped with 12/24V DC ports on both sides and a built-in AC transformer for 110-240V input.
- Dual USB Outlets: Two USB ports are available for charging mobile devices when the unit is powered by DC.
- Efficient Cooling: Features a SECOP compressor, providing a cooling range from 0°F to 50°F (-18°C to 10°C).
- Operating Modes: Includes MAX mode for rapid cooling and ECO mode for energy conservation.
- Stable Operation: Designed to function reliably even at a 40° tilt.
- User-Friendly Design: Incorporates a drain hole, waterproof baffle, internal LED lights, and removable handles.
Image 3.1: Dimensions and Capacity of VL60 ProS
Image 3.2: SECOP Compressor for Energy Saving
Image 3.3: Multi-Opening Lid Design
Image 3.4: Reversible Lid Hook & Loop Design
Components Included
The package includes the following items:
- Portable Refrigerator Unit
- Removable Basket
- Replacement Handles
- Corner Protectors (4)
- Drain Plugs
- Screws (2)
- Screwdriver
- Protective Cover (if purchased with cover variant)
Image 3.5: Included Accessories
4. Setup
Unpacking
- Carefully remove the refrigerator from its packaging.
- Inspect the unit for any signs of damage. If damaged, do not operate and contact customer support.
- Remove all internal packing materials and accessories.
- Place the refrigerator on a stable, level surface, ensuring adequate ventilation around the unit.
Power Connection
The VL60 ProS supports both AC and DC power inputs.
- AC Power (110-240V): Connect the AC power cord to the refrigerator's AC input port and then to a standard wall outlet. This allows for pre-cooling before travel.
- DC Power (12/24V): Connect the DC power cord to one of the refrigerator's DC input ports and then to your vehicle's cigarette lighter socket or a compatible 12/24V power source.
Image 4.1: Power Input Ports and Control Panel
5. Operating Instructions
Control Panel
The control panel allows you to manage the refrigerator's settings.
Image 5.1: Control Panel Detail
- Power Button: Press to turn the unit ON or OFF.
- Temperature Adjustment: Use the '+' and '-' buttons to set the desired temperature. The display will show the current internal temperature.
- Mode Selection: Press the 'SET' button to cycle between MAX (fast cooling) and ECO (energy-saving) modes.
- Battery Protection: The control panel includes a battery monitor setting to protect your vehicle's battery from excessive discharge. Refer to the full manual for specific battery protection level adjustments.
- USB Charging: The two USB outlets are active only when the refrigerator is powered by DC (12/24V).
6. Maintenance
Cleaning
- Always disconnect power before cleaning.
- Clean the interior and exterior surfaces with a damp cloth and mild detergent.
- Do not use abrasive cleaners or harsh chemicals.
- Ensure the unit is dry before reconnecting power.
Drainage
The refrigerator is equipped with a drain hole for easy cleaning and defrosting.
- To drain water, remove the drain plug located at the bottom of the interior.
- Ensure the drain plug is securely reinserted after draining to maintain cooling efficiency.
Image 6.1: Drain Plug
7. Troubleshooting
If you encounter issues with your ICECO VL60 ProS, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not turning on | No power supply; damaged power cord; faulty fuse. | Check power connection; inspect power cord; replace fuse if necessary. |
| Insufficient cooling | Lid not closed properly; poor ventilation; ambient temperature too high; incorrect temperature setting. | Ensure lid is sealed; clear vents; move to cooler area; adjust temperature setting. |
| Unusual noise | Unit not level; fan obstruction. | Place on a level surface; check for obstructions around the fan. |
| Error code on display | Internal fault. | Refer to the full manual for specific error code meanings or contact customer support. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | ICECO |
| Model | VL60 ProS |
| Capacity | 63.4 Quarts (approx. 60 Liters) |
| Item Weight | 59 Pounds |
| Product Dimensions (D x W x H) | 30.2 x 18.3 x 18.2 inches |
| Cooling Range | 0°F to 50°F (-18°C to 10°C) |
| Compressor Type | SECOP |
| Power Input | DC 12/24V, AC 110-240V |
| Installation Type | Freestanding |
| Form Factor | Chest |
| Defrost System | Automatic |
| Door Material | Plastic |
9. Warranty and Support
ICECO provides the following warranty for the VL60 ProS portable refrigerator:
- Compressor: 5-year warranty.
- All Other Parts: 1-year warranty.
For after-sales service or technical support, please contact ICECO customer service. Local support and telephone service are available.
