1. Introduction
The GM Genuine Parts 23506691 Front Park Assist Camera is an original equipment component designed for integration into your vehicle's Advanced Driver Assistance System (ADAS). This camera assists the driver by providing visual information about the vehicle's surroundings, supporting functions such as park assist.
Key features include:
- Assists in driver awareness during parking maneuvers.
- Designed and validated by GM Engineers for specific vehicle applications.
Figure 1: GM Genuine Parts 23506691 Front Park Assist Camera. This image shows the camera module attached to its wiring harness, which includes a multi-pin connector.
2. Package Contents
Verify that the following item is included in your package:
- 1 x Advance Driver Assistance System (ADAS) Camera (Model 23506691)
3. Installation
This camera is designed for surface mount installation. Due to the complexity of vehicle electrical systems and ADAS integration, professional installation is recommended. Always refer to your vehicle's specific service manual for detailed installation procedures and safety precautions.
Key installation considerations:
- Mounting: The camera is designed for surface mounting. Ensure the mounting location provides a clear field of view and is secure.
- Connection: The camera utilizes an RCA connector type for video signal transmission. Ensure proper connection to the compatible monitor or vehicle system.
- Wiring: Follow vehicle-specific wiring diagrams for power and signal connections.

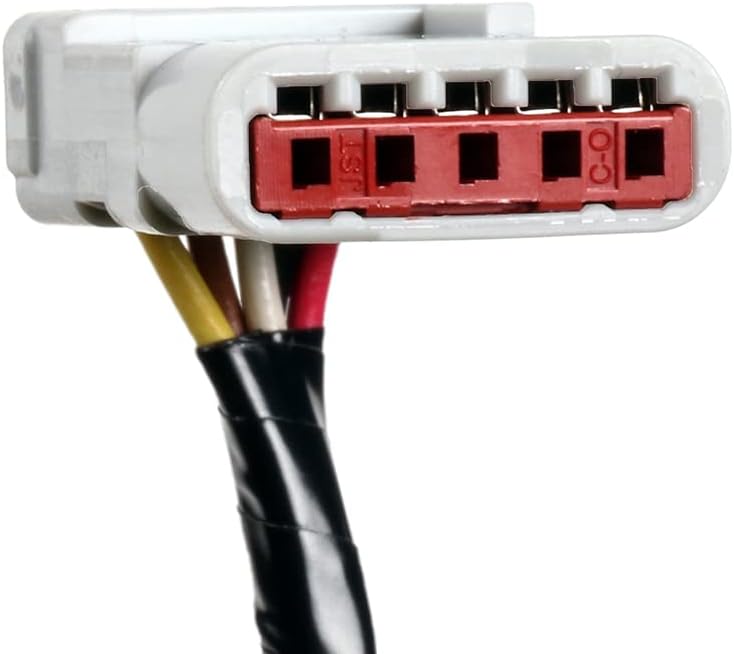

Figure 2: Close-up view of the camera's multi-pin electrical connector. This connector facilitates power and data transfer between the camera and the vehicle's ADAS module.
Important: Incorrect installation can lead to system malfunction or damage. Consult a qualified technician if you are unsure about any installation steps.
4. Operating Instructions
The GM Genuine Parts 23506691 Front Park Assist Camera operates as part of your vehicle's integrated ADAS. Its primary function is to provide visual data to the vehicle's control modules, which then process this information to assist with parking and other driver awareness features.
- Activation: Camera activation is typically automatic, triggered by vehicle speed, gear selection (e.g., reverse or low speed forward), or specific driver input via the vehicle's infotainment system.
- Display: The camera's view is displayed on the vehicle's compatible monitor. The camera provides a wide-angle view of approximately 120 degrees.
- System Integration: The camera's output is integrated with other vehicle sensors to provide comprehensive driver assistance.
For detailed information on how to operate your vehicle's park assist system and interpret camera displays, always refer to your vehicle's owner's manual.
5. Maintenance
To ensure optimal performance and longevity of your front park assist camera, follow these maintenance guidelines:
- Cleaning: Regularly clean the camera lens with a soft, damp cloth to remove dirt, dust, or debris that may obstruct the view. Avoid abrasive cleaners or materials that could scratch the lens.
- Inspection: Periodically inspect the camera housing and wiring for any signs of damage, corrosion, or loose connections.
- Environmental Factors: Protect the camera from extreme temperatures and harsh chemicals.
6. Troubleshooting
If you experience issues with your front park assist camera, consider the following general troubleshooting steps:
- No Image/Black Screen:
- Check all cable connections to ensure they are secure.
- Verify the camera lens is clean and free from obstructions.
- Consult your vehicle's owner's manual for specific diagnostic procedures related to the ADAS or camera system.
- Distorted/Poor Image Quality:
- Clean the camera lens thoroughly.
- Check for any physical damage to the camera or wiring.
- Ensure the monitor receiving the signal is functioning correctly.
- Intermittent Operation:
- Inspect wiring for loose connections or damage that could cause intermittent signal loss.
- Ensure the vehicle's electrical system is stable.
If issues persist after performing these steps, it is recommended to contact a certified GM service center or a qualified automotive technician for further diagnosis and repair.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | GM Genuine Parts |
| Model Number | 23506691 |
| Item Weight | 0.48 ounces |
| Product Dimensions | 4.8 x 4.3 x 2.3 inches |
| Compatible Devices | Monitor |
| Installation Type | Surface Mount |
| Optical Sensor Technology | CMOS |
| Lens Type | Wide Angle |
| Real Angle of View | 120 Degrees |
| Connector Type | RCA |
| Optical Sensor Size | 1/3 inch |
| UPC | 195491296060 |
8. Important Safety Information
WARNING: This product contains chemicals known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Always read your vehicle's owner's manual for important feature limitations and information regarding the Advanced Driver Assistance Systems (ADAS) and camera operation. The camera is an aid and does not replace the driver's responsibility to operate the vehicle safely.
9. Warranty and Support
For information regarding the warranty coverage for your GM Genuine Parts 23506691 Front Park Assist Camera, please refer to the documentation provided with your purchase or consult your authorized GM dealer.
For technical support, service, or replacement parts, please contact your authorized GM Genuine Parts retailer or a certified GM service center. Ensure you have your vehicle's VIN and the camera's model number (23506691) available when seeking support.
