1. Important Safety Instructions
Please read these instructions carefully before using the appliance and keep them for future reference. Failure to follow these safety instructions may result in fire, electric shock, or injury.
- Electrical Safety: Ensure the voltage indicated on the rating label matches your mains voltage. Do not operate the heater with a damaged cord or plug. Do not immerse the heater in water or any other liquid.
- Placement: Maintain a safe distance from flammable materials (curtains, furniture, etc.). Do not cover the heater. Ensure adequate ventilation.
- Outdoor/Indoor Use: This heater is rated IP55 for dust and splash water resistance, making it suitable for outdoor and indoor use in covered areas. However, avoid direct exposure to heavy rain or extreme weather conditions.
- Children and Vulnerable Persons: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Maintenance: Always unplug the heater before cleaning or performing any maintenance.
- Overheating Protection: The heater is equipped with overheating protection. If it overheats, it will automatically shut off. Unplug the unit and allow it to cool down before restarting.
2. Product Overview
The alpina 2000W Infrared Patio Heater provides efficient and immediate warmth for outdoor and indoor spaces. Its robust design and IP55 rating ensure durability and safety in various environments.
Key Features:
- 2000W Halogen Heating Element: Provides powerful and instant infrared heat.
- IP55 Rated: Dust and splash-water resistant, suitable for outdoor and indoor use.
- Wall or Ceiling Mountable: Includes mounting hardware for flexible installation.
- Tiltable Design: Allows for directed heat distribution.
- Energy Efficient: Infrared technology offers 30-40% electricity savings compared to traditional heaters.
- Effective Heating Area: Suitable for areas of 12-18 m².
Components Included:
- 1 x alpina Infrared Patio Heater
- Instruction Manual
- Mounting Material (brackets, screws, anchors)

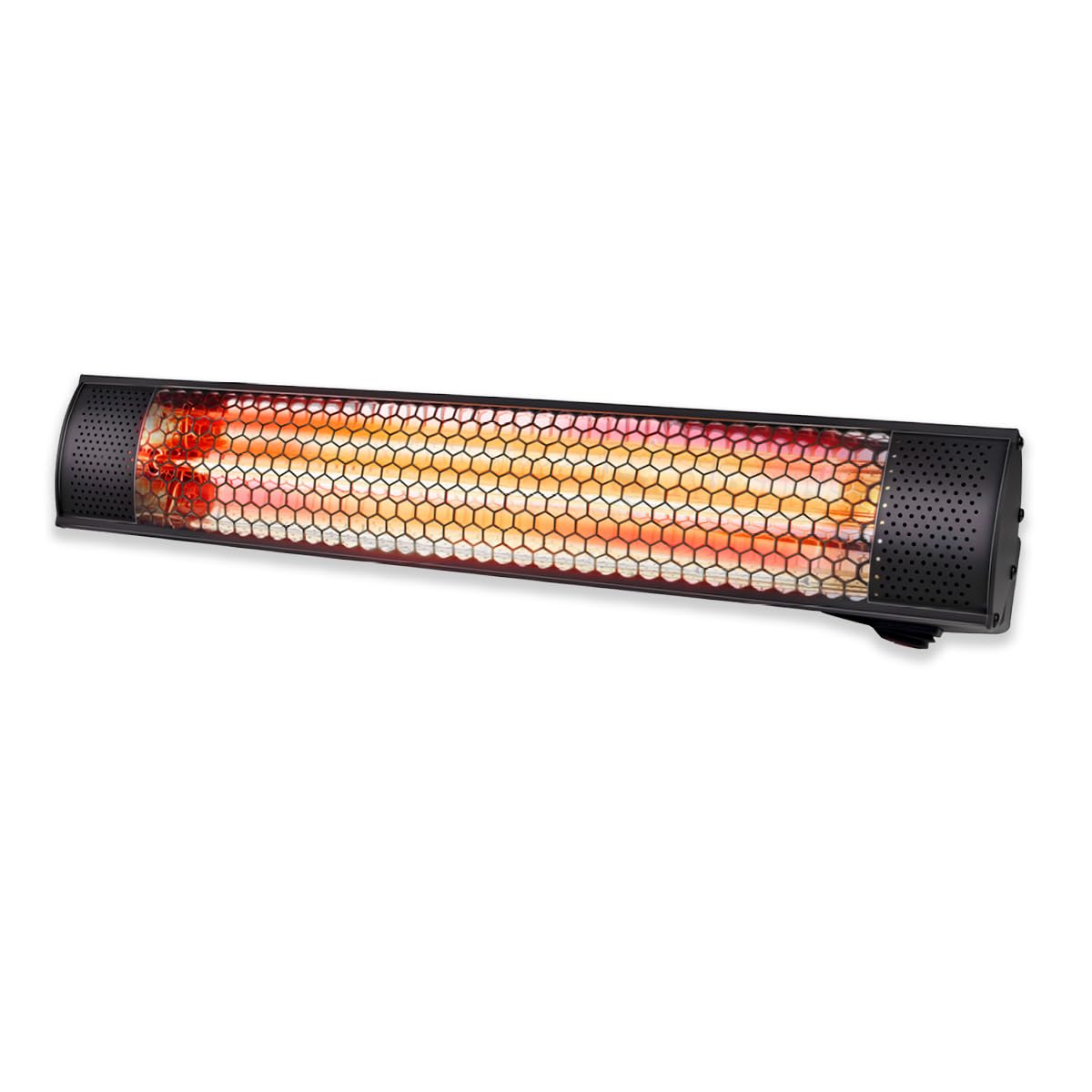

Image: The alpina 2000W Infrared Patio Heater, a black rectangular unit with a visible heating element.
Image: Icons illustrating key features: Halogen heating, wall or ceiling mounting, 12-18 m² heated area, overheating protection, IP55 rating, and suitability for outdoor use.
3. Setup and Installation
The alpina patio heater is designed for easy wall or ceiling mounting. Ensure the mounting surface is sturdy enough to support the heater's weight and that there is a power outlet within reach of the power cord.
Installation Steps:
- Choose Location: Select a suitable location on a wall or ceiling, ensuring sufficient clearance from flammable materials (minimum 1 meter from ceiling, 0.5 meters from walls). The heater should be positioned to effectively warm the desired area (12-18 m²).
- Mark Drilling Points: Use the provided mounting brackets to mark the drilling points on the chosen surface.
- Drill Holes: Drill holes of appropriate size for the included anchors and screws.
- Attach Brackets: Securely fasten the mounting brackets to the wall or ceiling using the screws and anchors.
- Mount Heater: Attach the heater to the installed brackets. Ensure it is firmly secured.
- Adjust Angle: The heater features a tiltable design. Adjust the angle of the heater to direct the heat towards the desired area.
- Connect Power: Plug the power cord into a suitable, grounded electrical outlet. Ensure the outlet is protected from moisture if used outdoors.

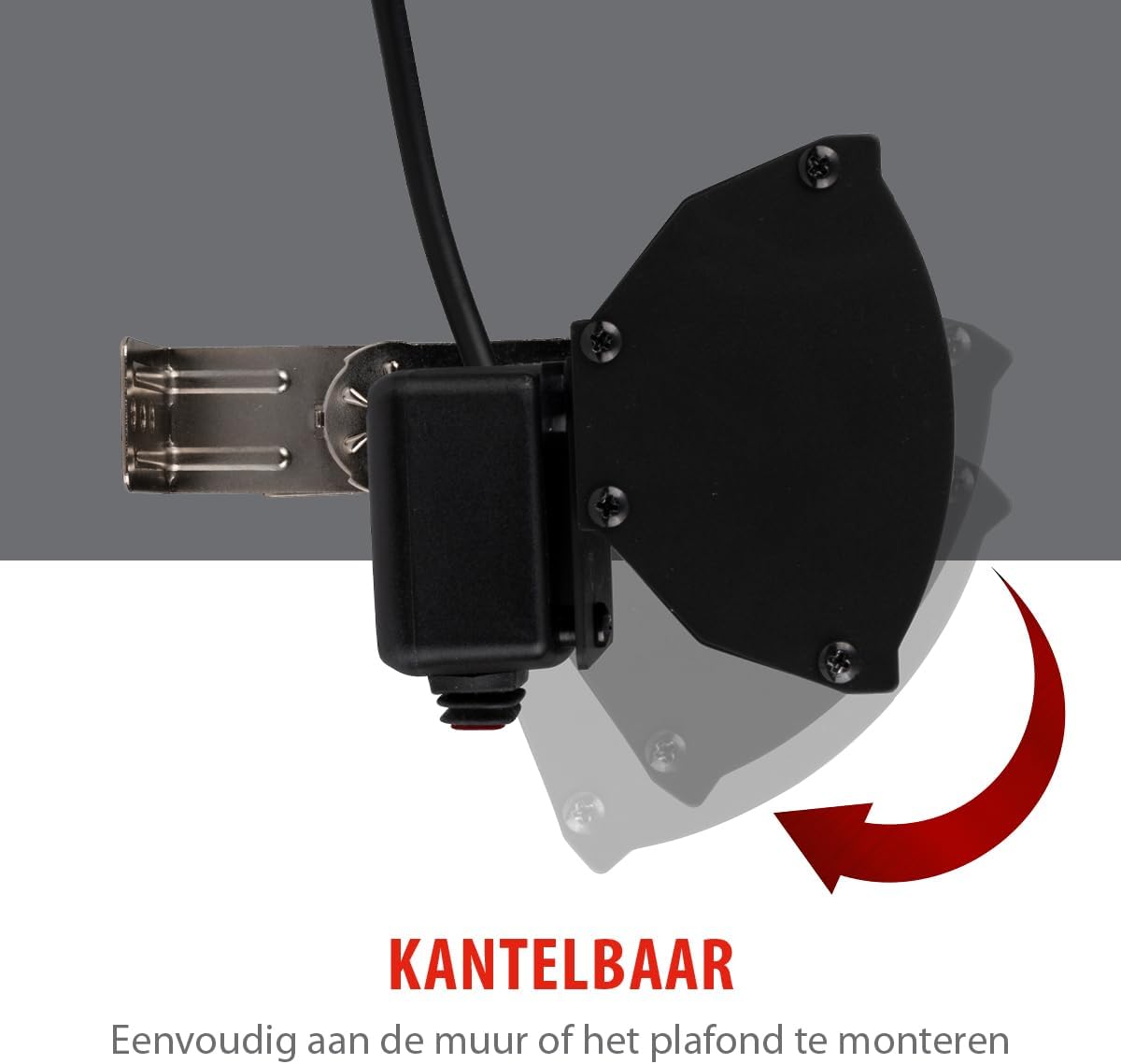

Image: A close-up of the tiltable mounting bracket, showing how the heater's angle can be adjusted for optimal heat direction.
Image: The alpina patio heater mounted on a patio ceiling, providing warmth to an outdoor seating area.
4. Operating Instructions
Operating your alpina Infrared Patio Heater is straightforward. Follow these steps to enjoy immediate warmth.
- Power On: Once the heater is securely mounted and plugged into a suitable power outlet, locate the ON/OFF switch on the unit.
- Activate Heating: Flip the switch to the "ON" position. The halogen heating element will immediately begin to emit heat and light.
- Adjust Heat: The heater has 2 speed settings. If your model features multiple power settings, use the designated control (e.g., a pull cord or switch) to select your desired heat intensity.
- Power Off: To turn off the heater, flip the ON/OFF switch to the "OFF" position.
- Unplug: For extended periods of non-use or before cleaning, always unplug the heater from the power outlet.
Image: A close-up view of the red ON/OFF switch located on the side of the heater, indicating immediate heating upon activation.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your alpina patio heater.
- Cleaning: Before cleaning, ensure the heater is switched off and unplugged, and has completely cooled down. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents. Do not spray water directly onto the heater.
- Dust Removal: Periodically remove dust from the heating element and grille using a soft brush or vacuum cleaner with a brush attachment.
- Storage: If storing the heater for an extended period, ensure it is clean and dry. Store it in a cool, dry place, preferably in its original packaging, away from direct sunlight and moisture.
- Inspection: Regularly inspect the power cord and plug for any signs of damage. If damage is found, do not use the heater and contact qualified personnel for repair.
6. Troubleshooting
If you encounter issues with your alpina patio heater, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not turn on. |
|
|
| Heater turns off unexpectedly. |
|
|
| Reduced heat output. |
|
|
If the problem persists after trying these solutions, please contact customer support or a qualified electrician.
7. Specifications
Detailed technical specifications for the alpina 2000W Infrared Patio Heater, Model 8711252187808.
| Brand | alpina |
| Model Number | 8711252187808 |
| Power Output | 2000 Watt |
| Voltage | 220-240V (Inferred from product label) |
| Frequency | 50/60Hz (Inferred from product label) |
| Current | 12.5 Ampere |
| Heating Element Type | Radiant (Halogen/Infrared) |
| Number of Speeds | 2 |
| IP Rating | IP55 (Dust and Splash-water resistant) |
| Dimensions (D x W x H) | 11D x 57B x 11.5H centimeters |
| Weight | 1.35 Kilograms |
| Mounting Type | Wall or Ceiling Mount |
| Recommended Use Area | 12-18 m² |
| Color | Black |
Image: Diagram showing the dimensions of the heater: 57 cm length, 11.5 cm height, and 11 cm depth.
Image: The heater shown with water splashes and dust, visually representing its IP55 dust and splash-water resistant protection.
8. Warranty and Support
For warranty information, product support, or service inquiries, please refer to the warranty card included with your product or contact your retailer. Keep your proof of purchase for any warranty claims.
For further assistance, you may also visit the official alpina website or contact their customer service department.
