Introduction
This manual provides essential instructions for the installation, operation, and maintenance of your ClimaTek Dryer Timer Control, model WE4M533 (TMD1EC01). This component is designed as a direct replacement part for specific General Electric dryer models. Please read these instructions thoroughly before proceeding with installation or use to ensure proper function and safety.
Safety Information
WARNING: Disconnect power to the dryer before attempting any installation or repair. Failure to do so may result in electrical shock, personal injury, or death. Installation should only be performed by qualified personnel or individuals with experience in appliance repair.
Always wear appropriate personal protective equipment, such as gloves and eye protection, during installation.
Product Overview
The ClimaTek Dryer Timer Control WE4M533 (TMD1EC01) regulates the drying cycle duration and settings of your dryer. It is a critical component for controlling the various stages of the drying process.

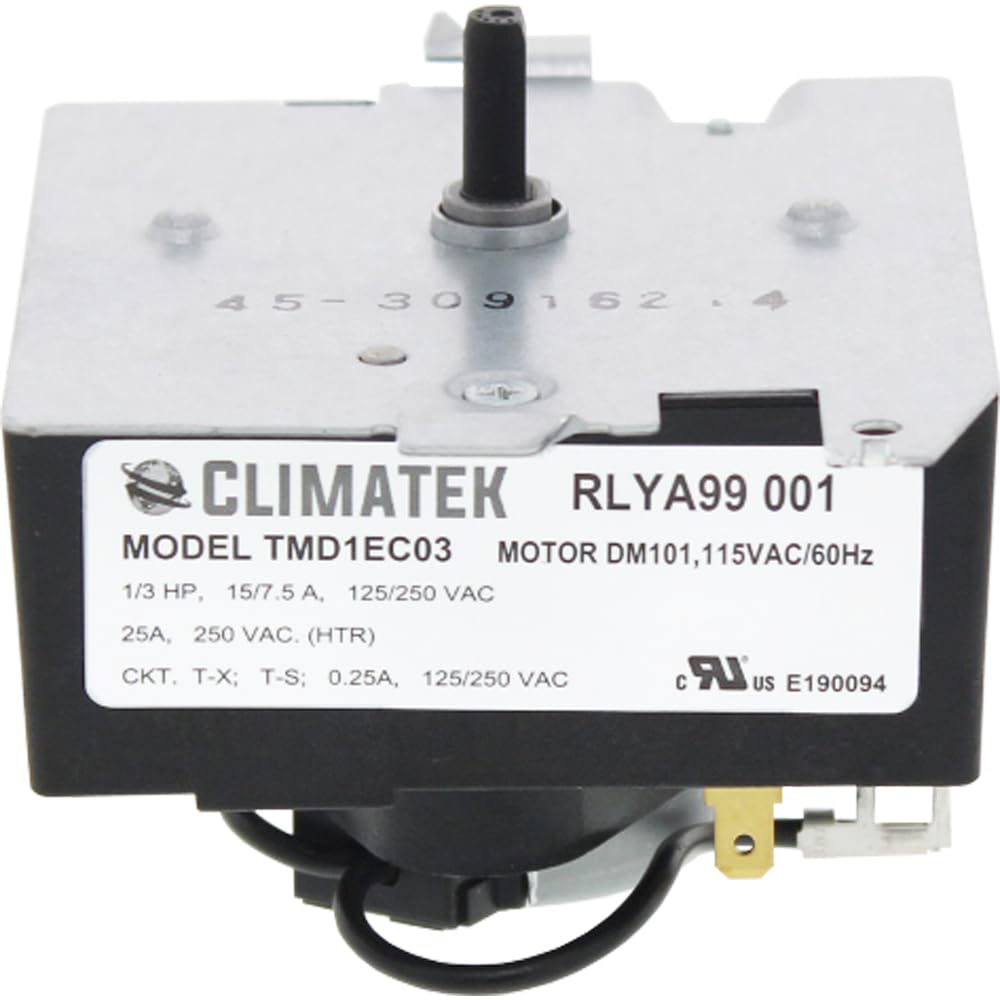

Image: ClimaTek Dryer Timer Control WE4M533. This image displays the timer control unit, typically a black plastic component with electrical terminals and a central shaft for the control knob.
Setup and Installation
- Power Disconnection: Before beginning, ensure the dryer is unplugged from the electrical outlet or that the circuit breaker supplying power to the dryer is turned off.
- Accessing the Timer: Depending on your specific dryer model, you may need to remove the control panel, top panel, or front panel to access the existing timer control. Refer to your dryer's service manual for exact disassembly instructions.
- Disconnecting Wires: Carefully label and disconnect all wires connected to the old timer. Take a photograph of the wiring configuration before disconnecting to aid in reassembly.
- Removing Old Timer: Unscrew or unclip the old timer from its mounting bracket.
- Installing New Timer: Mount the new ClimaTek WE4M533 (TMD1EC01) timer control in the same position as the old one. Ensure it is securely fastened.
- Connecting Wires: Reconnect the wires to the new timer according to the labels or the photograph taken earlier. Ensure all connections are secure and correctly placed.
- Reassembly: Reassemble the dryer panels in reverse order of disassembly.
- Power Restoration: Plug the dryer back into the electrical outlet or turn on the circuit breaker.
Note: Some dryer models may have an "anti-wrinkle" function. This replacement part may not support this specific function. If your original timer had this feature, you may need to bypass or adapt the wiring. Consult a qualified technician if unsure.
Operating Instructions
Once installed, the ClimaTek Dryer Timer Control operates identically to the original timer. To operate your dryer:
- Load the dryer with laundry.
- Close the dryer door securely.
- Turn the timer knob to the desired drying cycle and time setting.
- Press the start button to begin the drying cycle.
The timer will advance through the cycle and automatically shut off the dryer when the selected time has elapsed.
Maintenance
The ClimaTek Dryer Timer Control WE4M533 (TMD1EC01) is a sealed unit and requires no routine maintenance. If the timer fails to function correctly, it typically requires replacement rather than repair.
Regular dryer maintenance, such as cleaning the lint filter after every load and inspecting the exhaust vent annually, is crucial for the overall performance and longevity of your dryer and its components.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Dryer does not start | No power, door not closed, faulty start switch, or timer not set. | Check power supply, ensure door is latched, verify start switch function, ensure timer is set to a cycle. |
| Timer does not advance | Faulty timer motor or internal timer mechanism. | The timer unit may need replacement. Ensure proper wiring. |
| Dryer runs continuously | Faulty timer mechanism (stuck contacts). | The timer unit may need replacement. |
| Incorrect drying time | Timer setting error or internal timer issue. | Verify timer setting. If issue persists, timer may need replacement. |
If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified appliance repair technician.
Specifications
- Model: WE4M533 (TMD1EC01)
- Brand: ClimaTek
- Material: Plastic
- Compatibility: Direct replacement for General Electric dryers (verify part number for specific model compatibility).
- Function: Controls dryer cycle duration and settings.
Warranty and Support
For warranty information or technical support regarding your ClimaTek Dryer Timer Control WE4M533 (TMD1EC01), please refer to the documentation provided with your purchase or contact ClimaTek customer service directly. Contact details can typically be found on the manufacturer's official website or on the product packaging.
Note: This replacement part is intended for use by individuals familiar with appliance repair. Improper installation may void any applicable warranty.
