Cantonape 3000W Step Up/Down Voltage Transformer User Manual

1. Important Safety Instructions

Please read and understand all safety instructions before operating this voltage transformer. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Do not overload: Ensure the total wattage of all connected appliances does not exceed the transformer's maximum rated power of 3000W. For safety, it is recommended to use a transformer with a maximum wattage at least 50% higher than your appliance's rated power.
• Ventilation: The transformer is equipped with integrated ventilation slots to prevent overheating. Do not block these slots. Ensure adequate airflow around the unit.
• Protection: This unit features full-range fuses and overcurrent protection. If the unit stops working, check the fuse.
• Dry environment: Use the transformer in a dry indoor environment. Avoid exposure to water, moisture, or extreme temperatures.
• Proper grounding: Always connect the transformer to a properly grounded electrical outlet.
• Children and pets: Keep the transformer out of reach of children and pets.
• Unplug when not in use: Disconnect the transformer from the power source when not in use or before cleaning.

Image: The transformer features built-in overload and short circuit protection for safe operation.

2. Product Overview

The Cantonape 3000W Step Up/Down Voltage Transformer is designed to convert electrical voltage between 110V-120V and 220V-240V, allowing you to use appliances from different regions. It features a robust design and multiple output sockets for versatility.

Key Features:

• 3000W Capacity: High power rating suitable for a wide range of household and professional appliances.
• Bidirectional Conversion: Converts 220V-240V to 110V-120V and 110V-120V to 220V-240V simultaneously via dedicated output ports.
• Multiple Output Sockets: Includes 2 EU sockets, 1 universal socket, and 3 US sockets, allowing up to 3 appliances to be used concurrently within the power limit.
• Safety Features: Equipped with full-range fuses and overcurrent protection.
• Efficient Cooling: Integrated ventilation slots ensure optimal temperature regulation.
• Durable Construction: Compact and portable iron casing for reliability and ease of transport.

Image: The Cantonape transformer can power a variety of household appliances.

Component Identification:

Image: Key components of the Cantonape VTEU-3000 transformer, including output sockets, power lamp, on/off switch, and ventilation.

• 230V Sockets: For connecting appliances requiring 220V-240V.
• 110V Sockets: For connecting appliances requiring 110V-120V.
• Power Lamp: Indicates when the unit is powered on.
• On/Off Switch: Controls the power to the transformer.
• Efficient Heat Output: Ventilation slots for cooling.

3. Setup and Connection

Follow these steps to set up your Cantonape voltage transformer:

1. Placement: Place the transformer on a stable, flat surface in a well-ventilated area. Ensure there is sufficient space around the unit for airflow.
2. Power Source: Connect the transformer's power cable to a suitable wall outlet. The transformer comes with a European standard plug. If using in a region with different plug types (e.g., US), a conversion plug may be required (not included).
3. Appliance Connection: Identify the correct output socket for your appliance based on its voltage requirement.
   • For 110V-120V appliances, use the sockets labeled "OUTPUT 110V".
   • For 220V-240V appliances, use the sockets labeled "OUTPUT 230V".
4. Power On: Once all connections are secure, switch the transformer's power button to the "ON" position. The power lamp will illuminate.

Image: The front panel clearly indicates the 230V and 110V output sockets for connecting appliances.

4. Operation

Operating the Cantonape voltage transformer is straightforward:

1. Connect Appliances: Plug your 110V-120V appliance into an "OUTPUT 110V" socket or your 220V-240V appliance into an "OUTPUT 230V" socket.
2. Power On: Turn the transformer's main switch to "ON". The power indicator light will confirm the unit is active.
3. Appliance Use: Operate your appliance as usual.
4. Power Off: When finished, turn off your appliance, then switch the transformer to "OFF", and unplug it from the wall outlet.

Power Considerations and Recommendations:

It is crucial to select a transformer with a power capacity significantly higher than your appliance's rated wattage, especially for motor-driven or heating appliances. This accounts for startup surges and ensures safe, efficient operation.

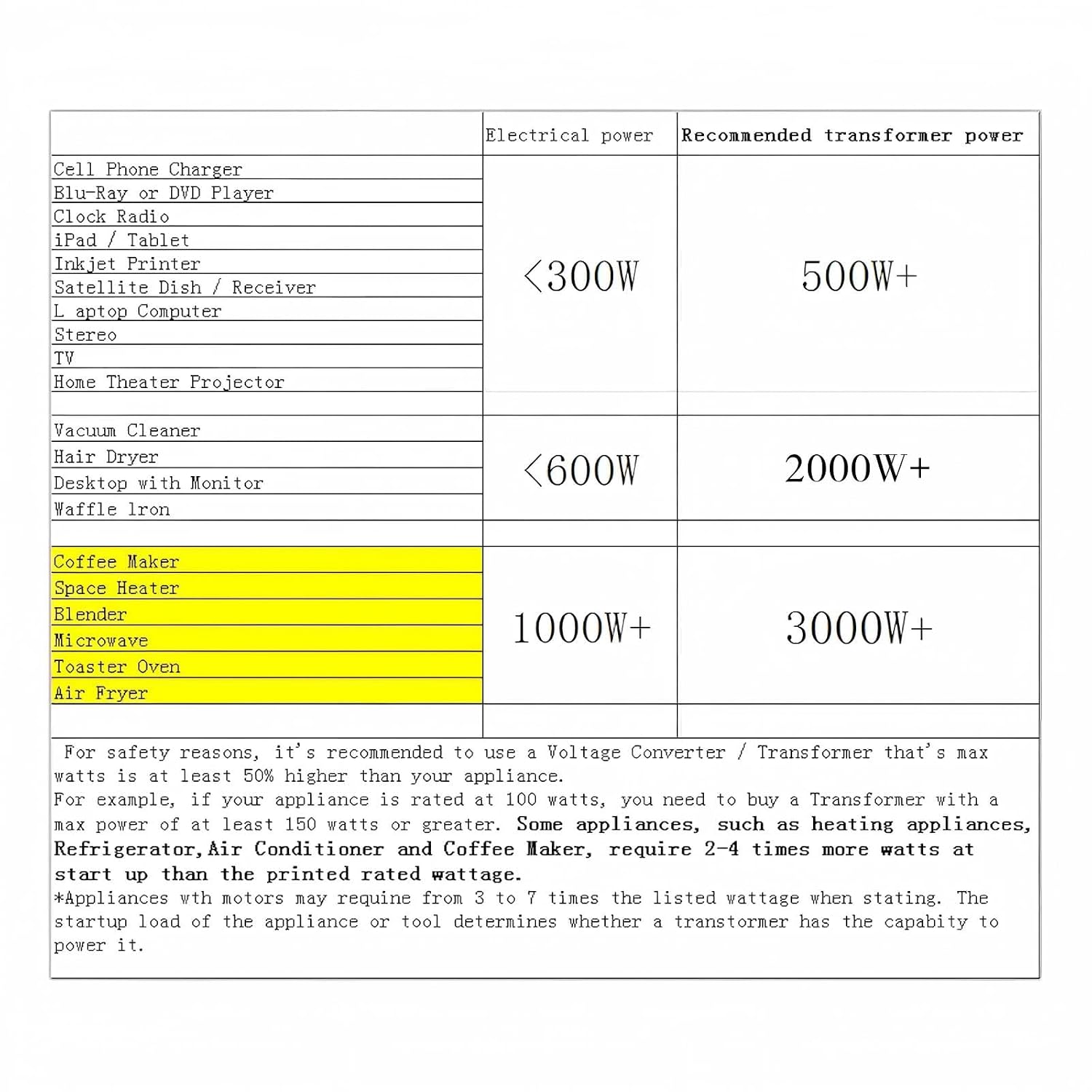

Image: Recommended transformer power based on appliance electrical power.

For safety reasons, it is recommended to use a Voltage Converter / Transformer whose maximum wattage is at least 50% higher than your appliance's rated power. For example, if your appliance is rated at 100 watts, you need a Transformer with a maximum power of at least 150 watts or greater.

Some appliances, such as heating appliances, refrigerators, air conditioners, and coffee makers, require 2-4 times more watts at startup than their printed rated wattage.

Appliances with motors may require from 3 to 7 times the listed wattage when starting. The startup load of the appliance or tool determines whether a transformer has the capability to power it.

5. Maintenance

Proper maintenance ensures the longevity and safe operation of your transformer:

• Cleaning: Disconnect the transformer from the power source before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or solvents.
• Ventilation: Periodically check that the ventilation slots are free from dust and debris. Use a soft brush or compressed air to clear any blockages.
• Storage: Store the transformer in a cool, dry place when not in use.
• Inspection: Regularly inspect the power cord and the unit for any signs of damage. If any damage is found, discontinue use and contact customer support.

6. Troubleshooting

If you encounter issues with your Cantonape voltage transformer, refer to the following troubleshooting guide:

• No Power Indicator Light:
  • Ensure the transformer is securely plugged into a working wall outlet.
  • Check the On/Off switch is in the "ON" position.
  • Verify the wall outlet is supplying power by testing it with another appliance.
  • Check the fuse. If blown, replace it with a fuse of the same rating.
• Appliance Not Working:
  • Confirm the appliance is correctly plugged into the appropriate voltage output socket (110V or 230V).
  • Ensure the appliance's power switch is on.
  • Check if the appliance's wattage exceeds the transformer's capacity, especially considering startup power requirements for motor-driven or heating appliances.
  • If multiple appliances are connected, ensure their combined wattage does not exceed 3000W.
• Unit Overheating:
  • Ensure ventilation slots are not blocked and there is adequate airflow around the unit.
  • Reduce the load by unplugging some appliances if the total wattage is too high.
  • Allow the unit to cool down before resuming operation.

If the problem persists after following these steps, please contact Cantonape customer support.

7. Specifications

Image: Physical dimensions of the Cantonape VTEU-3000 transformer.

8. Warranty and Support

This Cantonape 3000W Step Up/Down Voltage Transformer comes with a one-year warranty from the date of purchase.

The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or failure to follow the instructions in this manual.

For warranty claims, technical support, or any questions regarding your product, please contact Cantonape customer service through your retailer or the official Cantonape website. Please have your model number (VTEU-3000) and proof of purchase ready.
