Introduction
This manual provides essential information for the safe and efficient operation of your VAYINATO XQP-1500 Submersible Pump. Please read these instructions carefully before installation and use, and retain them for future reference.
The VAYINATO XQP-1500 is a versatile submersible pump designed for various aquatic applications, including fish tanks, ponds, aquariums, hydroponic systems, and water fountains. It features a powerful yet ultra-quiet motor, energy-efficient operation, and a high maximum lift height.
Safety Information
WARNING: To avoid electric shock, always disconnect the pump from the power supply before handling, installing, or performing any maintenance.
- Ensure the power supply voltage matches the pump's rating (220-240V, 50Hz).
- Do not operate the pump dry. Ensure it is fully submerged in water before connecting to power.
- Do not lift the pump by its power cord.
- Inspect the power cord and plug for any damage before each use. Do not use if damaged.
- This pump is designed for water circulation only. Do not use with flammable or corrosive liquids.
- Keep out of reach of children.
- Ensure proper grounding for all electrical connections.
Product Features
The VAYINATO XQP-1500 Submersible Pump offers the following key features:
- Powerful Water Flow: Delivers up to 1500 Liters per Hour (L/H) for strong and consistent circulation.
- Ultra-Quiet Operation: Advanced low-noise motor technology ensures minimal disturbance.
- Energy-Efficient: Operates at 23W, providing powerful movement with low power consumption.
- High Maximum Lift: Capable of lifting water up to 1.8 meters.
- Multi-Purpose Design: Suitable for various applications including aquariums, ponds, hydroponics, and water features.
- Adjustable Water Flow: Allows for customization of water output.
- Durable Construction: Features a stainless steel shaft and acid/alkali/salt resistant materials for longevity.
- Built-in Filter Cotton: Effectively filters impurities for cleaner water.
Image: The VAYINATO XQP-1500 pump operating in an aquarium, illustrating its strong suction power and water circulation capabilities. Key features like ultra-quiet, IPX8 waterproof, energy-saving, and adjustable water flow are highlighted.
Image: Examples of the VAYINATO XQP-1500 pump's versatile applications, including hydroponic systems, decorative fountains, garden ponds, and small waterfalls.
Setup Instructions
- Unpacking: Carefully remove the pump and all accessories from the packaging. Inspect for any damage.
- Attachment of Outlet Nozzle: Attach the appropriate outlet nozzle (16mm) to the pump's water outlet. Ensure a secure fit.
- Hose Connection: Connect a suitable hose (not included) to the outlet nozzle. The hose should be securely fastened to prevent leaks.
- Placement: Place the pump fully submerged in the water at the desired location. The pump is equipped with suction cups for stable placement on smooth surfaces. Ensure the water level is above the pump's intake.
- Power Connection: Once the pump is fully submerged and positioned, connect the power cord to a grounded electrical outlet.
Image: Visual guide demonstrating the pump's setup for both draining water from an aquarium into a bucket and refilling the aquarium from a water source.

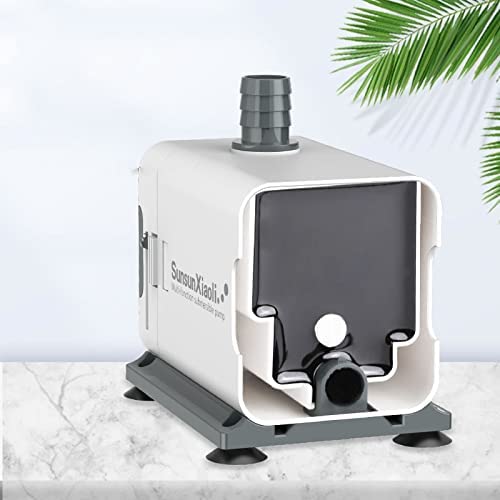

Image: A detailed view of the pump's water intake, showing the design for efficient water suction.
Operating Instructions
- Power On: After ensuring the pump is correctly installed and submerged, plug it into a suitable power outlet. The pump will start operating immediately.
- Adjusting Water Flow: The VAYINATO XQP-1500 features an adjustable flow control. Locate the flow adjustment slider on the side of the pump. Slide it to increase (+) or decrease (-) the water flow rate as needed for your application.
- Monitoring: Regularly check the pump's operation to ensure consistent water flow and proper function.
- Power Off: To stop the pump, simply unplug it from the power outlet.

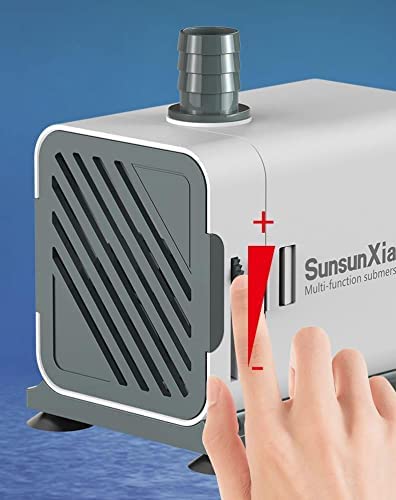

Image: A close-up of a hand adjusting the flow control slider on the pump, indicating how to increase or decrease water output.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your VAYINATO XQP-1500 pump.
Cleaning the Pump
- Disconnect Power: Always unplug the pump from the power source before cleaning.
- Disassemble: Carefully remove the front cover and impeller assembly. Refer to the diagram for component identification.
- Clean Components: Rinse all parts, including the impeller, shaft, and pump housing, under clean water. Use a soft brush to remove any accumulated debris, algae, or mineral deposits.
- Check Impeller: Ensure the impeller spins freely and is not damaged. The stainless steel shaft should be clean and free of corrosion.
- Reassemble: Reassemble the pump components in reverse order, ensuring all parts are securely fitted.
General Tips
- Clean the pump regularly, especially if used in environments with high debris or algae growth.
- Avoid using harsh chemicals or abrasive materials for cleaning, as these can damage the pump.
- Ensure the pump is always fully submerged during operation to prevent overheating and damage.

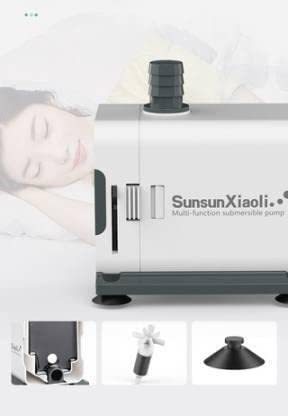

Image: An exploded view of the pump, highlighting its internal components such as the impeller and the suction cups for stable placement, useful for maintenance and cleaning.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start or operate. | No power supply; Impeller blocked; Damaged motor. | Check power connection. Disconnect power and clean impeller/intake. If motor is damaged, contact support. |
| Reduced water flow. | Clogged intake/impeller; Flow adjustment slider set too low; Kinked or blocked hose. | Disconnect power and clean intake/impeller. Adjust flow slider to higher setting. Check and clear hose. |
| Pump is noisy or vibrating excessively. | Debris in impeller; Impeller worn or damaged; Pump not stable. | Disconnect power and clean impeller. Inspect impeller for damage. Ensure pump is securely placed on suction cups. |
| Pump is heating up. | Operating dry (not fully submerged); Impeller blockage causing strain. | Ensure pump is fully submerged. Disconnect power and check for impeller blockages. |
Specifications
The following table details the technical specifications for the VAYINATO XQP-1500 Submersible Pump:
| Specification | Value |
|---|---|
| Model | XQP-1500 |
| Power Consumption | 23W |
| Maximum Flow Rate | 1500 L/H (Liters Per Hour) |
| Maximum Lift Height | 1.8 m (Metres) |
| Axle Material | Stainless Steel |
| Power Cable Length | 1.5 m |
| Water Outlet Diameter | 16 mm |
| Dimensions (L x W x H) | 98 x 73 x 78 mm |
| Filter Material | Cotton (Built-in filter) |
| Power Source | Corded Electric |
Image: The VAYINATO XQP-1500 pump displayed alongside its key specifications, including power, flow rate, lift, axle material, cable length, size, and water outlet diameter.

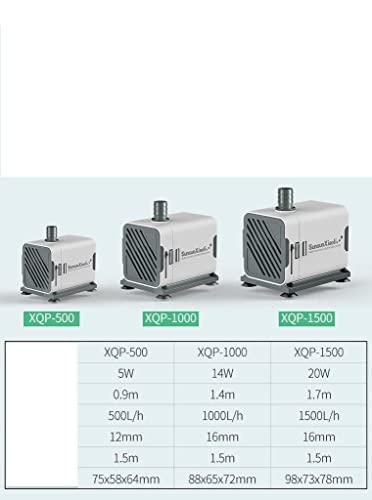

Image: A comparative chart showing the specifications for different models in the VAYINATO XQP series (XQP-500, XQP-1000, XQP-1500), detailing power, max lift, flow rate, outlet size, cable length, and dimensions for each.
Warranty and Support
Your VAYINATO XQP-1500 Submersible Pump comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration.
An optional 1-year extended warranty by Onsitego is available for purchase, providing additional coverage for your product.
For technical assistance, troubleshooting, or warranty claims, please contact VAYINATO customer support through the retailer where the product was purchased or visit the official VAYINATO store online.
Online Store: VAYINATO Official Store
