1. Introduction
This manual provides essential information for setting up, operating, and maintaining your XIAOMI Redmi 9A smartphone. Please read this guide thoroughly to ensure optimal performance and longevity of your device.
2. Setup
2.1. Package Contents
Verify that your package contains the following items:
- XIAOMI Redmi 9A Smartphone
- Power Adapter (10W, 5V/2A)
- Micro-USB Cable
- SIM Eject Tool
- User Guide (this document)
- Warranty Card
2.2. SIM and Micro-SD Card Installation
The Redmi 9A supports dual nano-SIM cards and micro-SD card expansion. Use the provided SIM eject tool to open the card tray.
- Locate the SIM card tray on the side of the device.
- Insert the SIM eject tool into the small hole on the tray and press gently until the tray pops out.
- Place your nano-SIM card(s) and/or micro-SD card into the designated slots on the tray. Ensure proper orientation.
- Carefully push the tray back into the device until it is flush.
Note: Either SIM card can be set as the primary card for calls and data in the device settings.
2.3. Initial Power-On and Network Configuration
To power on your device, press and hold the power button until the XIAOMI logo appears. Follow the on-screen instructions for initial setup, including language selection, Wi-Fi connection, and Google account setup.
The Redmi 9A supports various network bands for global compatibility:
- GSM: B2/3/5/8
- WCDMA: B1/2/4/5/8
- LTE-FDD: B1/2/3/4/5/7/8/20/28
- LTE-TDD: B38/40/41
Compatibility with specific carriers (e.g., Verizon, AT&T, Boost, Cricket, Metro PCS) may vary. This device is designed for GSM carriers.
3. Operating Instructions
3.1. Display Features
The device features a 6.53-inch HD+ Dot Drop display with a resolution of 720x1600 pixels and a 20:9 aspect ratio. It supports various display modes for enhanced viewing comfort:
- Color temperature adjustment: Customize the display's color warmth.
- Standard mode: Default display settings.
- Reading mode: Reduces blue light for comfortable reading.
- Sunlight mode: Enhances visibility in bright outdoor conditions.
Figure 1: Front view of the Redmi 9A, showcasing its 6.53-inch Dot Drop display.
3.2. Camera Functions
The Redmi 9A is equipped with a 13 MP rear camera and a 5 MP front (selfie) camera.
Rear Camera (13 MP)
- Features: Phase detection autofocus, HDR, AI portrait mode, Face recognition, AI beautify 5.0, AI scene detection, Single tone flash, Kaleidoscope effects.
- Video Recording: 1080p at 30fps, 60fps; 720p at 30fps.
Front Camera (5 MP)
- Features: 1.12µm large pixels, f/2.2 aperture, AI beautify 5.0, AI portrait mode, HDR, Screen flash, Selfie timer, Face recognition, Portrait selfies, Palm shutter.
Figure 2: Rear view of the Redmi 9A, highlighting the 13MP camera module.
3.3. Battery and Charging
The device is powered by a built-in 5000mAh (typical) rechargeable battery. It supports 10W charging via the Micro USB port. Use the in-box 10W (5V/2A) charger for optimal charging performance.
3.4. Operating System and Security
The Redmi 9A runs on the Android operating system. For security, it includes AI Face Unlock functionality.
3.5. Connectivity
The device offers comprehensive connectivity options:
- Wireless Network: Supports 802.11 b/g/n protocols, 2.4G WiFi, and WiFi Direct.
- Bluetooth: Version 5.0.
- FM Radio: Available with headphones connected.
- GPS: Supports AGPS, GLONASS, and Beidou for navigation.

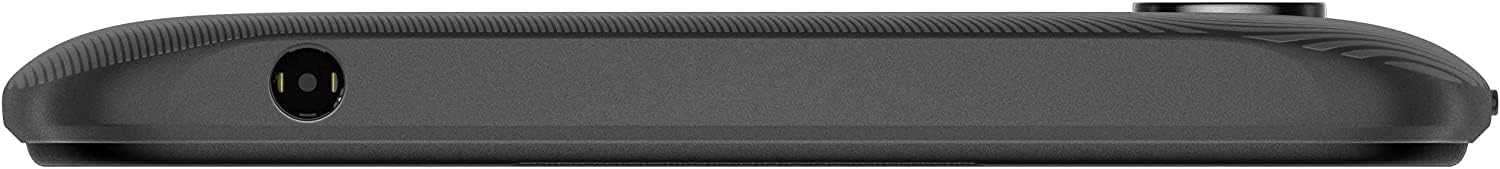

Figure 3: Top view of the Redmi 9A, featuring the 3.5mm audio jack.
4. Maintenance
4.1. General Care
- Keep the device dry and away from extreme temperatures.
- Clean the screen and body with a soft, lint-free cloth. Avoid harsh chemicals.
- Protect the screen with a screen protector and use a protective case to prevent physical damage.
4.2. Battery Care
- Avoid fully discharging the battery frequently.
- Do not expose the device to temperatures above 45°C (113°F) or below 0°C (32°F).
- Use only the original charger or certified compatible chargers.
5. Troubleshooting
If you encounter issues with your Redmi 9A, consider the following common solutions:
- Device unresponsive: Press and hold the power button for about 10-15 seconds to force a restart.
- Network connectivity issues: Check if your SIM card is properly inserted. Toggle Airplane Mode on and off. Restart the device. Verify network settings in the 'Settings' menu.
- Slow performance: Close unused applications. Clear cache from apps. Ensure sufficient storage space. Consider a factory reset as a last resort (back up data first).
- Charging problems: Ensure the Micro-USB cable and adapter are securely connected. Try a different compatible charger and cable.
For persistent issues, contact XIAOMI customer support or visit an authorized service center.
6. Specifications
| Feature | Specification |
|---|---|
| Model Name | Redmi 9a |
| Dimensions | 6.49 x 3.04 x 0.35 inches |
| Item Weight | 6.9 ounces (196 Grams) |
| Display Size | 6.53 Inches |
| Display Resolution | 720 x 1600 (HD+) |
| Operating System | Android |
| RAM | 4 GB |
| Memory Storage Capacity | 64 GB |
| Rear Camera | 13 MP |
| Front Camera | 5 MP |
| Battery Capacity | 5000 mAh |
| Phone Talk Time | 23 Hours |
| Wireless Technologies | Bluetooth 5.0, Wi-Fi (802.11 b/g/n), Cellular (4G LTE) |
| GPS | AGPS, GLONASS, Beidou |
| Audio Jack | 3.5 mm |
| Color | Graphite Gray |
7. Warranty and Support
Your XIAOMI Redmi 9A comes with a standard manufacturer's warranty. Please refer to the included Warranty Card for detailed terms and conditions, including coverage period and service procedures.
For technical support, product inquiries, or warranty claims, please visit the official XIAOMI support website or contact their customer service. Keep your proof of purchase handy when seeking support.
