Ibanez JS2410 Joe Satriani Signature Electric Guitar User Manual

1. Introduction

Congratulations on your purchase of the Ibanez JS2410 Joe Satriani Signature Electric Guitar. This instrument is designed for high-performance playing, featuring an ultra-fast neck, powerful DiMarzio humbuckers, and an Edge tremolo system. This manual provides essential information for setting up, operating, and maintaining your guitar to ensure optimal performance and longevity.

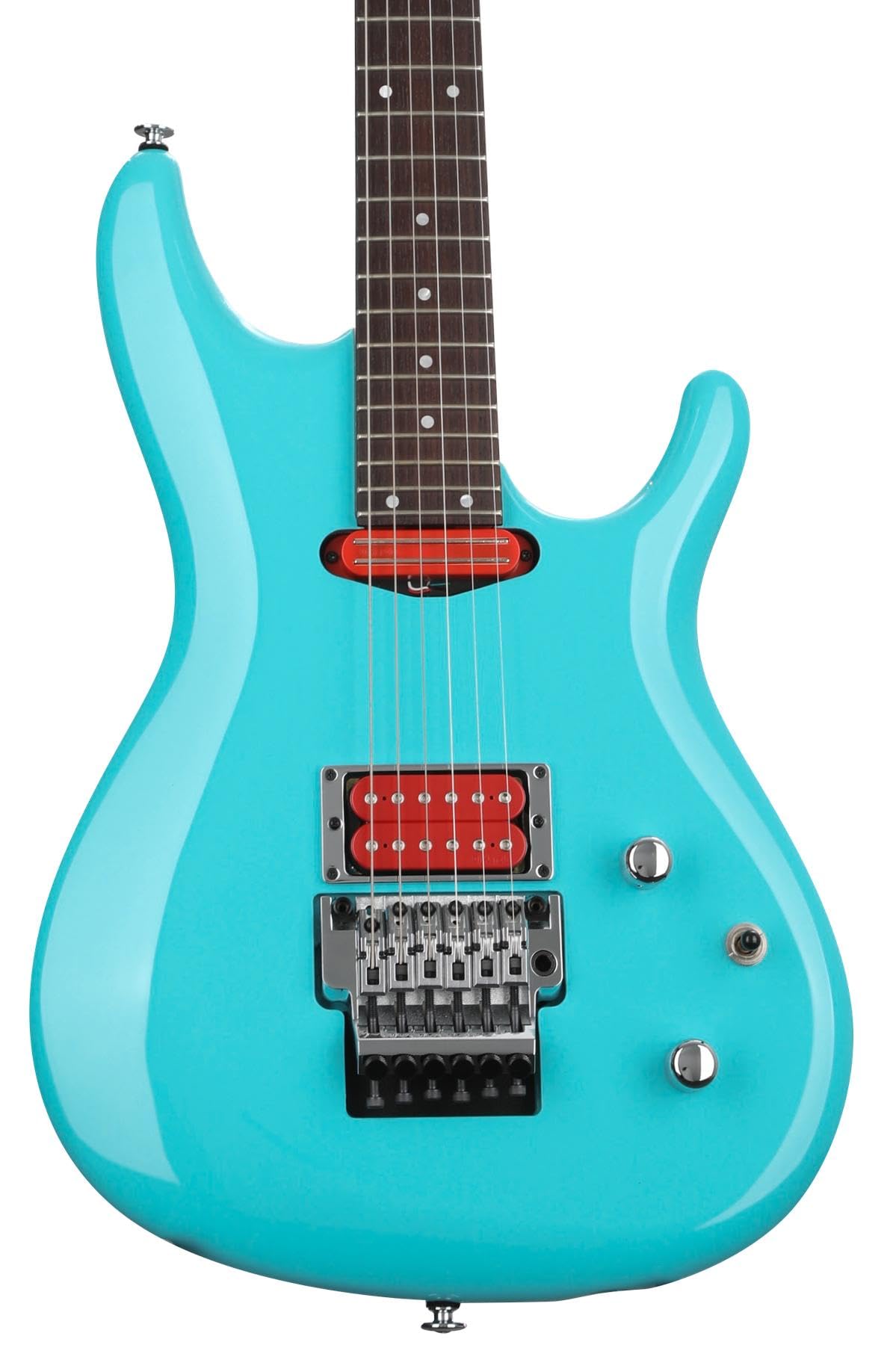

Image: The Ibanez JS2410 Joe Satriani Signature Electric Guitar in Sky Blue, showcasing its sleek body, headstock, pickups, and tremolo system.

2. Initial Setup

2.1 Unpacking and Inspection

• Carefully remove the guitar from its packaging.
• Inspect the guitar for any signs of damage that may have occurred during shipping.
• Ensure all accessories (tremolo arm, adjustment wrenches, etc.) are present.

2.2 Tuning the Guitar

The JS2410 features an Edge tremolo system with a locking nut. Proper tuning involves a two-step process:

1. Rough Tuning: Unlock the nut clamps. Tune each string to the desired pitch using the tuning machines on the headstock.
2. Fine Tuning: Lock the nut clamps. Use the fine tuners on the Edge tremolo bridge to make precise adjustments to each string's pitch.

Image: A detailed view of the Ibanez JS2410 headstock, showing the Ibanez logo, tuning pegs, and the locking nut system crucial for tuning stability with the Edge tremolo.

2.3 Adjusting the Tremolo Arm

Insert the tremolo arm into its receptacle on the Edge bridge. The tension can often be adjusted with a small hex screw located on the side of the tremolo block, allowing you to customize the arm's feel and swing.

3. Operation

3.1 Controls Overview

The JS2410 features a straightforward control layout for versatile tone shaping:

• Volume Knob: Controls the overall output volume. This knob also features a push-pull coil-split function for the humbucking pickups, allowing for single-coil tones.
• Tone Knob: Adjusts the treble response. This knob also features a push-pull high-pass filter, which can be engaged to retain high frequencies at lower volume settings.
• 3-Way Pickup Selector Switch: Selects between the neck humbucker, both humbuckers, or the bridge humbucker.

3.2 Pickup Selection and Tone Shaping

Experiment with the 3-way switch and the push-pull functions on the volume and tone knobs to explore the wide range of sonic possibilities. The DiMarzio humbuckers provide powerful, articulate tones, while the coil-split and high-pass filter offer additional versatility for clean and lead sounds.

3.3 Using the Edge Tremolo System

The Ibanez Edge tremolo is a high-performance double-locking system designed for extreme pitch bending while maintaining tuning stability. Ensure the locking nut is securely fastened after initial tuning. Use the tremolo arm for vibrato, dive bombs, and other expressive techniques. Regular maintenance of the tremolo system is recommended for optimal performance.

4. Maintenance

4.1 Cleaning

• Wipe down the body, neck, and strings with a clean, soft cloth after each use to remove sweat and grime.
• For the body finish, use a guitar-specific polish sparingly.
• Clean the fretboard periodically with a fretboard conditioner to prevent drying and cracking.

4.2 String Replacement

Due to the locking tremolo system, string replacement requires specific steps:

1. Loosen the locking nut clamps and the fine tuners.
2. Unscrew the string lock screws on the bridge and remove the old strings.
3. Insert the new strings, ensuring the ball end is removed and the string is clamped securely at the bridge.
4. Thread the string through the tuning machine and tune roughly.
5. Lock the nut clamps and fine-tune using the bridge tuners.

4.3 Storage

Store your guitar in its case when not in use to protect it from dust, humidity changes, and physical damage. Avoid extreme temperatures and direct sunlight.

5. Troubleshooting

• Poor Tuning Stability: Ensure the locking nut clamps are tight, the fine tuners are not at their limits, and strings are properly stretched. Check for worn tremolo knife edges or springs.
• No Sound: Check your amplifier, cables, and guitar volume/tone settings. Ensure the guitar cable is fully inserted into the output jack.
• Buzzing Frets: This can be caused by low action, uneven frets, or a neck that needs adjustment. Consult a qualified guitar technician for neck relief adjustments.
• Scratchy Pots/Switch: Dust or oxidation in the potentiometers (volume/tone knobs) or selector switch can cause crackling sounds. Professional cleaning or replacement may be necessary.
