OGHom Handheld Garment Steamer

Introduction

This manual provides essential information for the safe and efficient operation of your OGHom Handheld Garment Steamer. Please read all instructions carefully before use and retain this manual for future reference.

Figure 1: OGHom Handheld Garment Steamer (Model OGH-HL6)

The OGHom Handheld Garment Steamer (Model OGH-HL6) is designed for quick and effective wrinkle removal from various fabrics. Its compact and lightweight design makes it ideal for both home use and travel.

Figure 2: Portable and compact design for easy travel and storage.

Included Components

Your OGHom Garment Steamer package includes the following items:

• Main Steamer Unit with Water Tank and Power Cord
• Detachable Steamer Head/Nozzle
• Fabric Brush Attachment
• Water Measuring Cup (not explicitly listed in images, but implied by videos)

Figure 3: The steamer features a long 9.2 ft power cord for extended reach.

Setup Instructions

1. Unpack the Steamer: Carefully remove all components from the packaging.
2. Attach Steamer Head: Align the steamer head with the main unit and twist to secure it. Ensure it clicks into the locked position.

   Figure 4: Steps 1-3 show opening the filter cap, filling with cold water, and tightly screwing the cap back.

3. Fill Water Tank: Unscrew the steamer head to access the water tank. Fill the tank with clean, distilled or purified water up to the "MAX" line. Do not overfill.

   CAUTION: Use only distilled or purified water to prevent mineral buildup and ensure optimal performance. Do not add any chemical substances into the water tank.

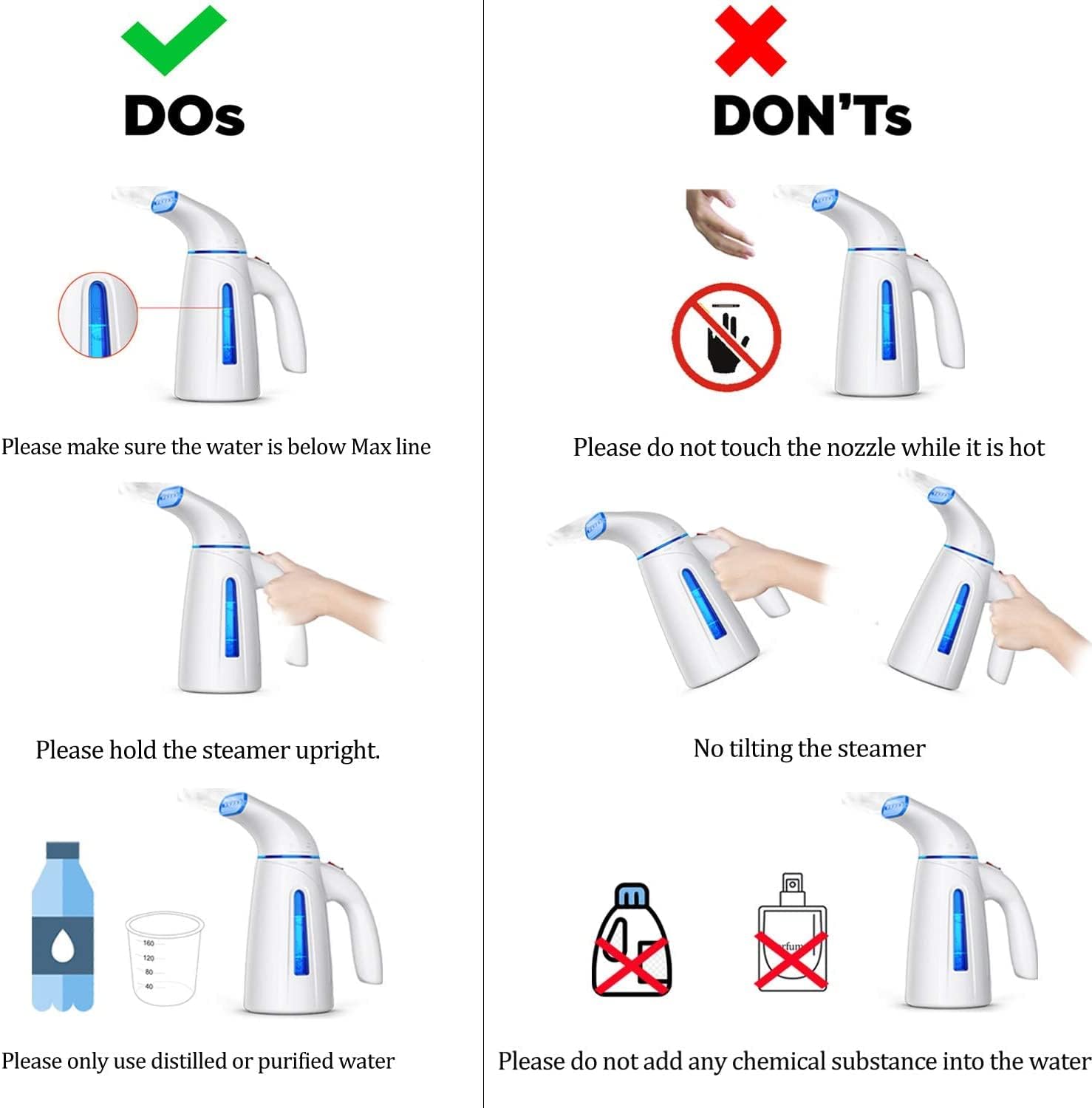

   Figure 5: Important usage guidelines, including filling water below the Max line and using only distilled/purified water.

4. Secure Steamer Head: Reattach the steamer head and twist it firmly into the locked position.
5. Attach Fabric Brush (Optional): For heavier fabrics or to remove lint, attach the fabric brush to the steamer head.

Operating Instructions

1. Power On: Plug the steamer into a standard electrical outlet. Press the power button (usually a red switch) to turn the unit on.

   Figure 4 (continued): Step 4 shows pressing "I" to turn on the steamer.
2. Heating Time: Allow the steamer to heat up for 1-2 minutes. The indicator light will typically change or steam will begin to emit when ready.

   Figure 6: The steamer is ready for use in 1-2 minutes and provides up to 15 minutes of continuous steam.

3. Steaming Garments: Hold the steamer upright and close to the fabric. Move the steamer in a downward motion, allowing the steam to penetrate the fibers and release wrinkles.

   WARNING: Do not touch the nozzle while it is hot. Keep the garment steamer upright in use to avoid scalding.



   Figure 7: The steamer is suitable for a wide range of materials.

   Figure 4 (continued): Step 5 illustrates holding the unit upright and steaming a shirt.

4. Continuous Steam: The steamer provides continuous steam for approximately 15 minutes on a full tank.
5. Finishing: Once steaming is complete, turn off the power button and unplug the unit. Allow it to cool down completely before emptying any remaining water.

   Figure 4 (continued): Step 6 shows pouring out water to make the steamer dry after use.

Note on Videos:

No official product videos from the seller were available for embedding in this manual. Please refer to the detailed text instructions and images provided.

Maintenance

• Empty Water Tank: After each use, ensure the steamer has cooled down, then empty any remaining water from the tank to prevent mineral buildup.
• Cleaning: Wipe the exterior of the steamer with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Descaling (Monthly): If you notice reduced steam output or mineral residue, descale the unit. Fill the tank with a 50/50 mixture of white vinegar and distilled water. Run the steamer until half the solution is used, then turn off and let it sit for 30 minutes. Repeat until the tank is empty. Rinse thoroughly with distilled water.
• Storage: Store the steamer in a cool, dry place, away from direct sunlight and moisture. Ensure the power cord is neatly wrapped.

Figure 8: Key maintenance points include not tilting the steamer during operation and avoiding chemical additives.

Troubleshooting

Specifications

• Brand: OGHom
• Model: OGH-HL6
• Color: White
• Item Weight: 1.52 pounds (0.69 Kilograms)
• Style: Handheld
• Product Benefits: Remove Wrinkle
• Water Tank Capacity: 240 Milliliters
• UPC: 718893596936
• Package Dimensions: 6.89 x 6.73 x 5.04 inches
• Heat-up Time: Approximately 1-2 minutes
• Continuous Steam Time: Approximately 15 minutes

Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact OGHom customer service directly. Contact details are typically provided with your purchase documentation.
