eero Max 7 Mesh WiFi System User Manual

1. Introduction

The eero Max 7 mesh WiFi system is designed to provide high-speed, reliable internet connectivity throughout your home or office. Utilizing advanced Wi-Fi 7 technology, it supports internet plans up to 10 Gbps, offers extensive coverage, and can connect hundreds of devices simultaneously. This manual will guide you through the setup, operation, maintenance, and troubleshooting of your eero Max 7 system.

Image 1.1: Front and back view of the eero Max 7 mesh WiFi system, showcasing its sleek design and port configuration.

2. Setup Guide

Setting up your eero Max 7 system is a straightforward process primarily managed through the eero mobile application. Ensure you have a compatible iOS or Android device and an active internet service.

2.1 What's in the Box

• eero Max 7 router(s)
• 45W USB-C power adapter(s)
• CAT6a Ethernet cable(s)

2.2 Initial Installation Steps

1. Download the eero App: Search for 'eero' in your device's app store and download the official eero application.
2. Connect Your First eero:
   • Unplug your modem (if applicable).
   • Connect one of your eero Max 7 units to your modem using the provided Ethernet cable. Use one of the 10 GbE ports for the primary internet connection.
   • Plug in the eero Max 7 power adapter and connect it to a power outlet.
   • Plug your modem back in.
3. Follow In-App Instructions: Open the eero app and follow the on-screen prompts to create your eero account, set up your first eero, and add additional eero units to expand your mesh network. The app will guide you through optimal placement for maximum coverage.

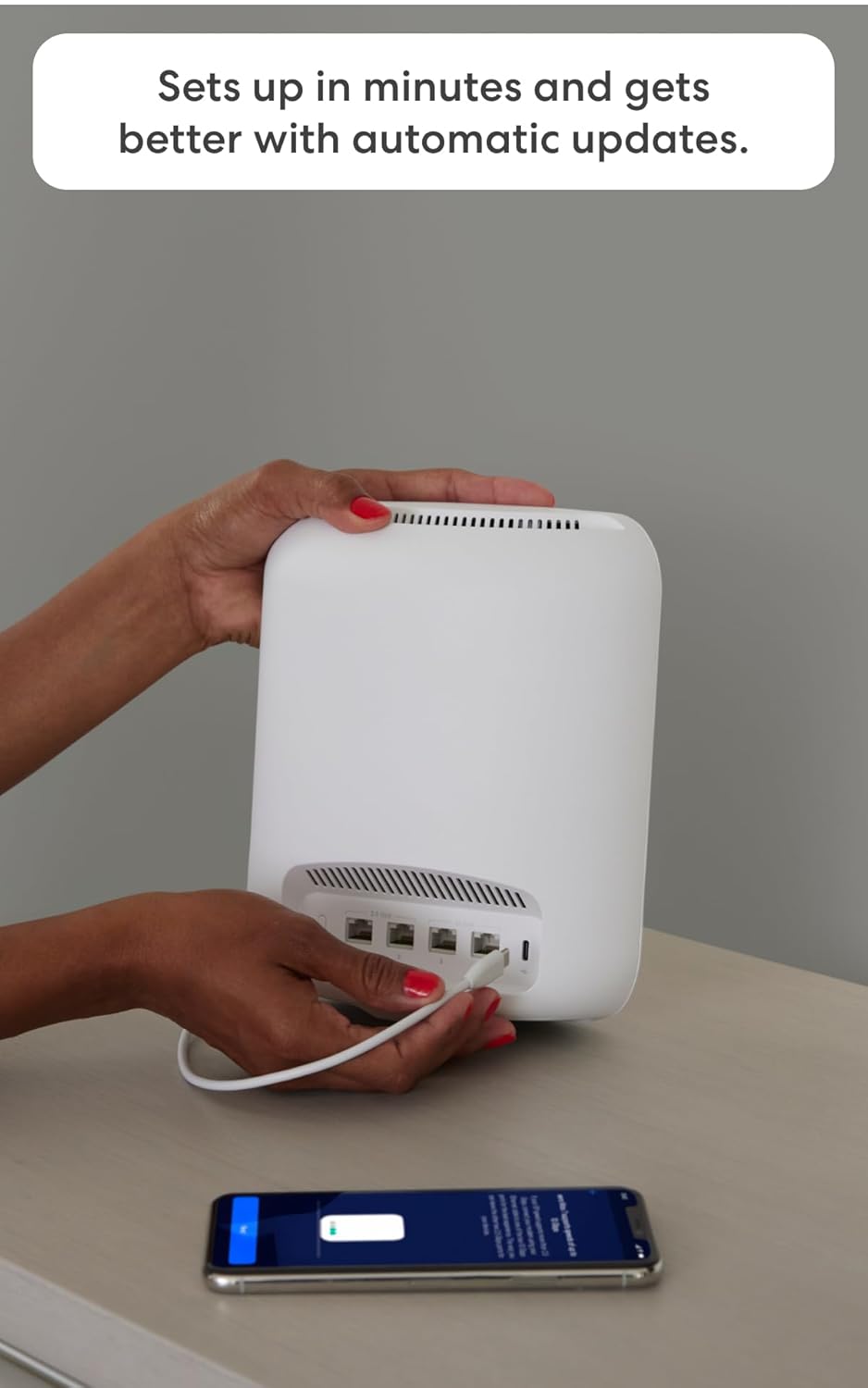

Image 2.1: A user connecting an Ethernet cable to the eero Max 7, with the eero app visible on a smartphone, illustrating the setup process.

Image 2.2: Detailed view of the eero Max 7's connectivity options, featuring two 2.5 GbE ports and two 10 GbE ports for versatile wired connections.

3. Operating Your eero Max 7 System

The eero app serves as your central control panel for managing your mesh WiFi network.

3.1 Network Management

• Dashboard: View your network status, connected devices, and internet speed.
• Guest Access: Easily create a separate guest network with a unique password for visitors.
• Device Control: Pause internet access for specific devices or profiles, manage bandwidth, and prioritize devices for critical tasks like gaming or streaming.
• Advanced Settings: Access advanced network configurations such as port forwarding, DNS settings, and IP reservations.

3.2 Smart Home Hub Functionality

The eero Max 7 acts as a smart home hub, allowing you to connect and control various smart devices directly from your network.

• Thread: Supports Thread devices for a more robust and responsive smart home network.
• Matter: Functions as a Matter controller, enabling seamless integration with Matter-certified devices.
• Zigbee: Operates as a Zigbee controller, allowing you to connect compatible Zigbee devices.
• Works with Alexa: Integrate with Alexa devices to manage network access and other functions using voice commands.

Image 3.1: The eero Max 7 supporting high-performance applications like gaming, demonstrating its capability for demanding network activities.

Image 3.2: The eero Max 7 seamlessly integrated into a modern living space, providing Wi-Fi 7 connectivity for entertainment and smart home devices.

4. Maintenance

The eero Max 7 system is designed for minimal maintenance, with several features ensuring optimal performance without constant user intervention.

4.1 Automatic Software Updates

eero devices automatically receive software updates to improve performance, add new features, and enhance security. Ensure your eero devices remain connected to the internet to receive these updates.

4.2 General Care

• Keep your eero devices in well-ventilated areas to prevent overheating.
• Avoid placing eero devices near large metal objects, thick walls, or other electronics that may cause interference.
• Clean the exterior of your eero devices with a soft, dry cloth as needed. Do not use liquid cleaners.

5. Troubleshooting

If you encounter issues with your eero Max 7 system, try the following troubleshooting steps before contacting support.

5.1 Common Issues and Solutions

• No Internet Connection:
  • Check if your modem is working correctly.
  • Ensure all Ethernet cables are securely connected to your eero and modem.
  • Restart your modem and then your eero devices by unplugging them for 30 seconds and plugging them back in.
• Slow Speeds:
  • Run a speed test through the eero app to verify your internet speed.
  • Ensure your eero devices are optimally placed and not too far apart.
  • Check for any devices consuming excessive bandwidth and consider pausing them temporarily.
• Device Not Connecting:
  • Ensure the device's Wi-Fi is enabled and it is within range of an eero unit.
  • Restart the problematic device.
  • Verify that the Wi-Fi password entered is correct.

5.2 eero App Diagnostics

The eero app provides diagnostic tools and network insights that can help identify and resolve issues. Check the app for alerts or recommendations.

6. Specifications

Detailed technical specifications for the eero Max 7 mesh WiFi system:

7. Warranty and Support

eero provides comprehensive support and warranty coverage for your Max 7 mesh WiFi system.

7.1 Warranty Information

The eero Max 7 comes with a 3-year limited warranty. For detailed warranty information, privacy policy, terms of service, and trial/subscription terms, please visit eero.com/legal.

7.2 Customer Support

If you require assistance with setup, troubleshooting, or any other issues, the eero support team is available to help.

• Email Support: support@eero.com
• Phone Support: +1-877-659-2347
