Introduction
This manual provides essential information for the safe and efficient operation of your Mitsubishi Electric MS-JP13VF-MU-JP13VF 1 Ton 2 Star Split AC. Please read these instructions thoroughly before installation and use, and retain this manual for future reference. Proper use and maintenance will ensure optimal performance and longevity of your air conditioning unit.
Safety Information
Always observe the following safety precautions to reduce the risk of electric shock, fire, injury, or damage to the unit.
- Ensure the unit is installed by a qualified technician in accordance with local electrical codes.
- Do not operate the unit with wet hands.
- Do not insert fingers or objects into the air inlet/outlet.
- Turn off the power supply before cleaning or performing any maintenance.
- Keep children away from the unit and remote control.
- Do not attempt to repair the unit yourself. Contact authorized service personnel.
Product Overview
The Mitsubishi Electric MS-JP13VF-MU-JP13VF is a 1 Ton, 2 Star Split AC designed for efficient cooling. It features a rotary compressor and utilizes R32 refrigerant. The unit includes advanced filtration for improved air quality.

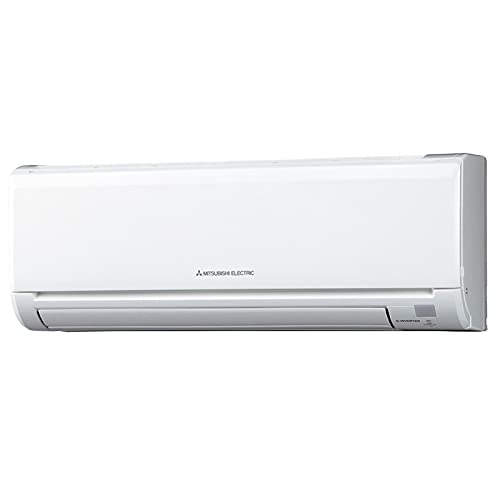

Image: Front view of the Mitsubishi Electric MS-JP13VF-MU-JP13VF indoor unit. The unit is white with a sleek design, featuring the 'MITSUBISHI ELECTRIC' logo centrally placed on the front panel. The air outlet is visible at the bottom.
Key Features:
- Compressor: Rotary type for efficient operation.
- Airflow: Upto 12 Meters for wide coverage.
- Filter type: Nano Platinum & Electrostatic Enzyme for enhanced air purification.
- Operating Temperature: Designed to operate effectively up to 50℃.
- Power Input: 1.060 kW.
Setup (Installation)
Installation of this split air conditioning unit requires specialized knowledge and tools. It is strongly recommended that installation be performed by a certified and experienced technician to ensure proper functioning, safety, and warranty validity.
General Installation Considerations:
- Location: Choose a location for the indoor unit that allows for even air distribution and is away from direct sunlight or heat sources. The outdoor unit should be placed in a well-ventilated area, away from obstructions.
- Mounting: Ensure both indoor and outdoor units are securely mounted on stable surfaces.
- Drainage: Proper drainage for condensate water must be established to prevent leaks.
- Electrical Connection: Connect the unit to a dedicated power circuit with appropriate voltage (230 Volts) and circuit protection.
- Refrigerant Piping: Ensure refrigerant lines are properly insulated and sealed to prevent leaks.
Operating Instructions
Your Mitsubishi Electric AC unit is controlled via a remote control (not pictured, but typically included). Familiarize yourself with the remote's buttons and display.
Basic Operation:
- Power On/Off: Press the ON/OFF button to start or stop the unit.
- Mode Selection: Use the MODE button to cycle through operating modes: Cool, Dry, Fan, Auto.
- Temperature Adjustment: Use the ▲ / ▼ buttons to set your desired temperature.
- Fan Speed: Press the FAN SPEED button to adjust the fan speed (Auto, Low, Medium, High).
- Swing Function: Activate the SWING button to enable automatic louver movement for even air distribution.
Refer to your remote control's specific manual for advanced features like Timer, Sleep Mode, and Eco Mode.
Maintenance
Regular maintenance ensures efficient operation and extends the lifespan of your air conditioner.
Air Filter Cleaning:
- Frequency: Clean the air filters every two weeks or more frequently if the unit is used heavily or in dusty environments.
- Procedure:
- Turn off the main power supply to the unit.
- Open the front panel of the indoor unit.
- Carefully remove the air filters.
- Clean the filters using a vacuum cleaner or wash them with lukewarm water and a mild detergent.
- Rinse thoroughly and allow them to dry completely in a shaded area before reinserting.
- Close the front panel.
Seasonal Checks:
- Inspect the outdoor unit for any obstructions (leaves, debris) and clear them.
- Check the drainage pipe for blockages.
- Ensure the outdoor unit's coils are clean. If heavily soiled, professional cleaning may be required.
Troubleshooting
Before contacting service, check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start | No power supply; Remote control batteries low; Timer function active. | Check circuit breaker; Replace remote batteries; Cancel timer. |
| Insufficient cooling | Dirty air filters; Blocked outdoor unit; Doors/windows open; Temperature setting too high. | Clean air filters; Clear obstructions; Close openings; Lower temperature setting. |
| Water leakage from indoor unit | Clogged drain pipe; Improper installation. | Clear drain pipe; Contact a technician for inspection. |
| Unusual noise | Loose parts; Obstruction in fan; Unit not level. | Check for loose parts; Remove obstructions; Ensure unit is level. If noise persists, contact service. |
If the problem persists after attempting these solutions, turn off the power supply and contact an authorized service center.
Specifications
| Feature | Detail |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Model Number | MS-JP13VF-MU-JP13VF |
| Capacity | 1 Tons |
| Energy Rating | 2 Star |
| Seasonal Energy Efficiency Ratio (SEER) | 12 |
| Refrigerant | R32 |
| Compressor Type | Rotary |
| Airflow | Upto 12 Meters |
| Filter Type | Nano Platinum & Electrostatic Enzyme |
| Operating Temperature | 50℃ |
| Power Input | 1.060 kW |
| Voltage | 230 Volts |
| Colour | White |
Warranty and Support
For warranty information, please refer to the warranty card provided with your product or visit the official Mitsubishi Electric website. Keep your purchase receipt as proof of purchase for warranty claims.
For technical support, service requests, or genuine spare parts, please contact your authorized Mitsubishi Electric dealer or service center. Do not attempt to service the unit yourself, as this may void the warranty and pose safety risks.
