Introduction
Thank you for choosing the BLANCO Fontas-S II Filter Kitchen Faucet. This 3-in-1 faucet is designed to provide both unfiltered hot and cold water, and filtered water, all from a single, elegant fixture. Its matte black finish and pull-out hose offer both aesthetic appeal and practical functionality for your kitchen. This manual provides essential information for installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your faucet.
Image: The BLANCO Fontas-S II Filter Kitchen Faucet in matte black, showcasing its sleek design and dual lever system.
Product Features
- 3-in-1 Functionality: Comfortable mixer lever on the right for cold and hot water, and a rotary handle on the left for filtered water.
- Matte Black Finish: Precisely adapted to modern kitchen environments.
- Hygienic Design: Separate water lines and separate outlet for filtered water, preventing mixing with unfiltered tap water.
- Space-Saving: No additional drilling required for filtered water dispensing due to the integrated 3-in-1 design.
- Integrated Spout: Features special jet regulators for both water qualities, designed to reduce limescale buildup.
- Pull-Out Hose: Provides extended reach and flexibility for various kitchen tasks.
Safety Information
Please read all instructions carefully before installation and use. Keep this manual for future reference.
- Ensure all water supply lines are turned off before beginning installation.
- Use appropriate tools and follow local plumbing codes.
- Do not overtighten connections, as this may damage the faucet or pipes.
- Protect the faucet's finish from abrasive cleaners or harsh chemicals.
- If you are unsure about any part of the installation or operation, consult a qualified plumber.
Package Contents
Verify that all components are present before starting the installation.
- BLANCO Fontas-S II Faucet unit
- Mounting kit (includes necessary hardware for installation)
- Flexible connection hoses (350 mm length)
- Stabilization plate
- User Manual
Setup and Installation
The BLANCO Fontas-S II faucet is designed for single-hole installation. A faucet bore hole of Ø 35 mm is required.
Required Tools (Not Included):
- Adjustable wrench
- Screwdriver
- Basin wrench (optional, for tight spaces)
- Sealant tape (Teflon tape)
Installation Steps:
- Prepare the Sink/Countertop: Ensure the mounting surface is clean and dry. If installing on a new sink, ensure the Ø 35 mm faucet hole is correctly drilled.
- Install the Faucet: Insert the faucet body into the mounting hole. Ensure the base gasket is properly seated to prevent leaks.
- Secure the Faucet: From underneath the sink, slide the stabilization plate and then the mounting washer onto the threaded shank. Secure with the mounting nut (20 cm nut for easy and secure mounting). Tighten firmly but do not overtighten.
- Connect Water Supply Lines: Attach the flexible hot and cold water supply hoses to your existing hot and cold water shut-off valves. Use sealant tape on the threads for a watertight seal. Connect the filtered water line to your water filter system (additional filter required, not included).
- Connect Pull-Out Hose: Connect the pull-out hose to the designated connection point on the faucet body. Ensure the counterweight is properly installed on the hose for smooth retraction.
- Test for Leaks: Slowly turn on the main water supply and check all connections for leaks. Operate both the hot/cold and filtered water functions to ensure proper flow.

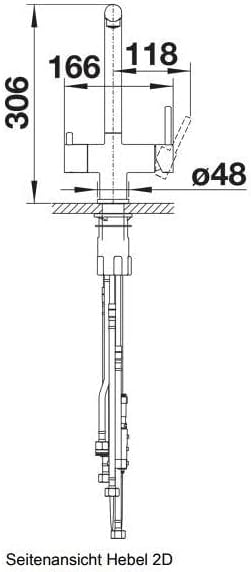

Image: Side view diagram of the faucet with key dimensions (height 306mm, spout reach 166mm) and lever position.

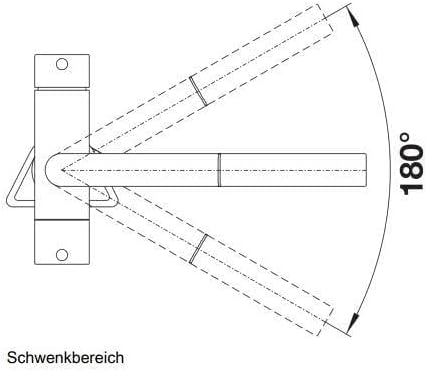

Image: Top-down diagram illustrating the 180-degree swivel range of the faucet spout.
Operating Instructions
The BLANCO Fontas-S II faucet offers intuitive control for both unfiltered and filtered water.
- Unfiltered Hot/Cold Water: Use the mixer lever located on the right side of the faucet. Push the lever up for water flow. Move it left for hot water and right for cold water.
- Filtered Water: Use the rotary handle located on the left side of the faucet. Rotate the handle to activate the filtered water flow. This water is delivered through a separate internal conduit and outlet to ensure purity.
- Pull-Out Hose: Gently pull the spout head to extend the hose for increased reach. After use, the hose will retract smoothly back into the faucet body.
Image: A user demonstrating the dispensing of filtered water into a glass, highlighting the separate filtered water function.
Image: A close-up view of a hand operating the left-side lever for filtered water, showing the ergonomic design.
Maintenance
Regular maintenance will help preserve the appearance and functionality of your BLANCO Fontas-S II faucet.
- Cleaning the Finish: Clean the matte black finish with a soft cloth and mild soap and water. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish. Rinse thoroughly and dry with a soft cloth to prevent water spots.
- Aerator Cleaning: Periodically unscrew the aerator at the end of the spout and clean any mineral deposits or debris. The patented jet regulator is designed to reduce limescale, but occasional cleaning is still recommended.
- Cartridge Maintenance: The faucet is equipped with a ceramic cartridge for smooth operation. If you experience drips or leaks, the cartridge may need to be cleaned or replaced. Consult a professional if unsure.
- Hose Maintenance: Ensure the pull-out hose moves freely and is not obstructed under the sink. Keep the counterweight clear of any pipes or items that could impede its movement.
Troubleshooting
Before calling for service, please refer to the following common issues and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water flow (unfiltered) | Clogged aerator; partially closed shut-off valve; low water pressure. | Clean aerator; ensure shut-off valves are fully open; check household water pressure. |
| Low water flow (filtered) | Clogged filter (external, not part of faucet); clogged filtered water aerator. | Replace or clean external water filter; clean filtered water aerator. |
| Faucet drips or leaks | Loose connections; worn cartridge seals. | Check and tighten all connections; replace ceramic cartridge if necessary (professional assistance recommended). |
| Pull-out hose does not retract fully | Obstruction under sink; counterweight dislodged. | Clear obstructions; re-position or re-attach counterweight. |
Specifications
| Brand | BLANCO |
| Model Number | 526672 |
| Dimensions (L x W x H) | 16.6 x 26.4 x 30.6 cm (6.5 x 10.4 x 12.0 inches) |
| Weight | 2.2 kilograms (4.85 lbs) |
| Color | Matte Black |
| Material | Brass |
| Finish Type | Matte |
| Number of Handles | 2 |
| Installation Method | Single Hole (Monotrou) |
| Hose Length | 3.5 Decimeters (35 cm) |
| Special Feature | Portable (referring to pull-out spout) |
| Recommended Uses | Kitchen |
Warranty and Support
BLANCO offers a 2-year availability for spare parts for this product. For warranty claims, technical support, or to inquire about spare parts, please contact BLANCO customer service directly.
Please have your model number (526672) and proof of purchase ready when contacting support.
