Introduction
Thank you for choosing the BLANCO JANDORA-S Kitchen Faucet. This manual provides essential information for the proper installation, operation, and maintenance of your new faucet. Please read this manual thoroughly before installation and keep it for future reference.
Figure 1: Front view of the BLANCO JANDORA-S Kitchen Faucet with brushed stainless steel finish and flexible spray.
Product Features
- High-quality solid stainless steel construction with a brushed surface finish.
- Clean and modern design suitable for contemporary kitchens.
- High spout for convenient filling of large pots and vases.
- Operating lever with vertical zero position for increased design flexibility, especially when installed near a back wall.
- Energy-saving cold start function as the basic setting for the operating lever.
- Concealed, pull-out spray for extended reach and versatility.
- Spout swivels 190 degrees for wide coverage.
- Equipped with a cartridge featuring ceramic seals for durability and leak-free performance.
- Nylon-coated spray hose for smooth operation and longevity.
- Flexible connection hoses (700 mm length) with nuts for easy and secure installation.
- Patented aerator designed to significantly reduce limescale buildup.
- Includes a stabilizing plate to enhance the stability of the faucet when installed in stainless steel sinks.
- Equipped with a backflow preventer as standard, ensuring intrinsic safety against backflow according to EN 1717.
- LGA certified.
Setup and Installation
Before You Begin
Ensure you have all necessary tools and components as listed in the packaging. Turn off the main water supply before starting installation. A faucet hole drilling with a diameter of 35 mm is required for installation.
Installation Steps
- Prepare the sink: Ensure the faucet hole is clean and has the required diameter (Ø 35 mm).
- Install the faucet: Insert the faucet body into the prepared hole.
- Secure the faucet: From underneath the sink, attach the stabilizing plate and secure the faucet using the provided mounting kit. This plate helps increase stability, especially in stainless steel sinks.
- Connect water supply: Attach the flexible connection hoses (700 mm length) to your hot and cold water supply lines. Ensure connections are tight to prevent leaks.
- Connect the pull-out spray hose: Connect the nylon-coated spray hose to the faucet body.
- Test for leaks: Once all connections are made, slowly turn on the main water supply and check for any leaks.
Figure 2: Technical drawing showing dimensions and installation details for the BLANCO JANDORA-S faucet. Note the required Ø 35 mm hole and the 190° swivel range.
Operating Instructions
Water Flow and Temperature Control
The BLANCO JANDORA-S features a single lever handle for controlling both water flow and temperature. The basic setting of the operating lever is for cold start, which helps save energy.
- To turn on the water: Lift the lever.
- To increase water flow: Lift the lever further.
- To adjust temperature: Move the lever to the left for hot water and to the right for cold water. The default position (vertical zero position) provides cold water.
- To turn off the water: Push the lever down to its original position.
Using the Pull-Out Spray
The faucet is equipped with a concealed, pull-out spray for added convenience.
- To extend the spray: Gently pull the spray head downwards from the spout.
- To retract the spray: Guide the spray head back into the spout until it clicks securely into place.

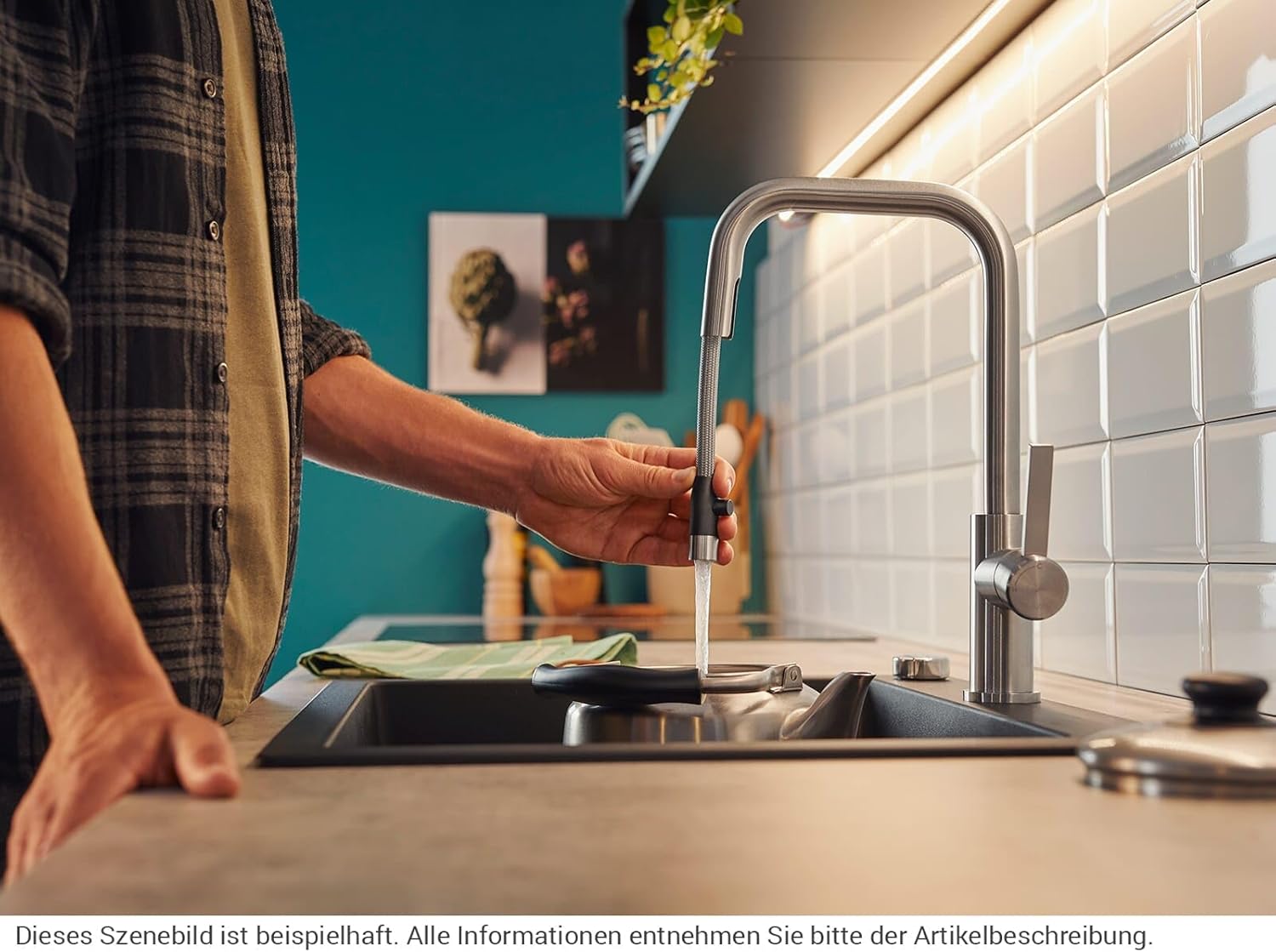

Figure 3: Demonstrating the pull-out spray feature of the BLANCO JANDORA-S faucet, showing a hand extending the spray head from the main spout.

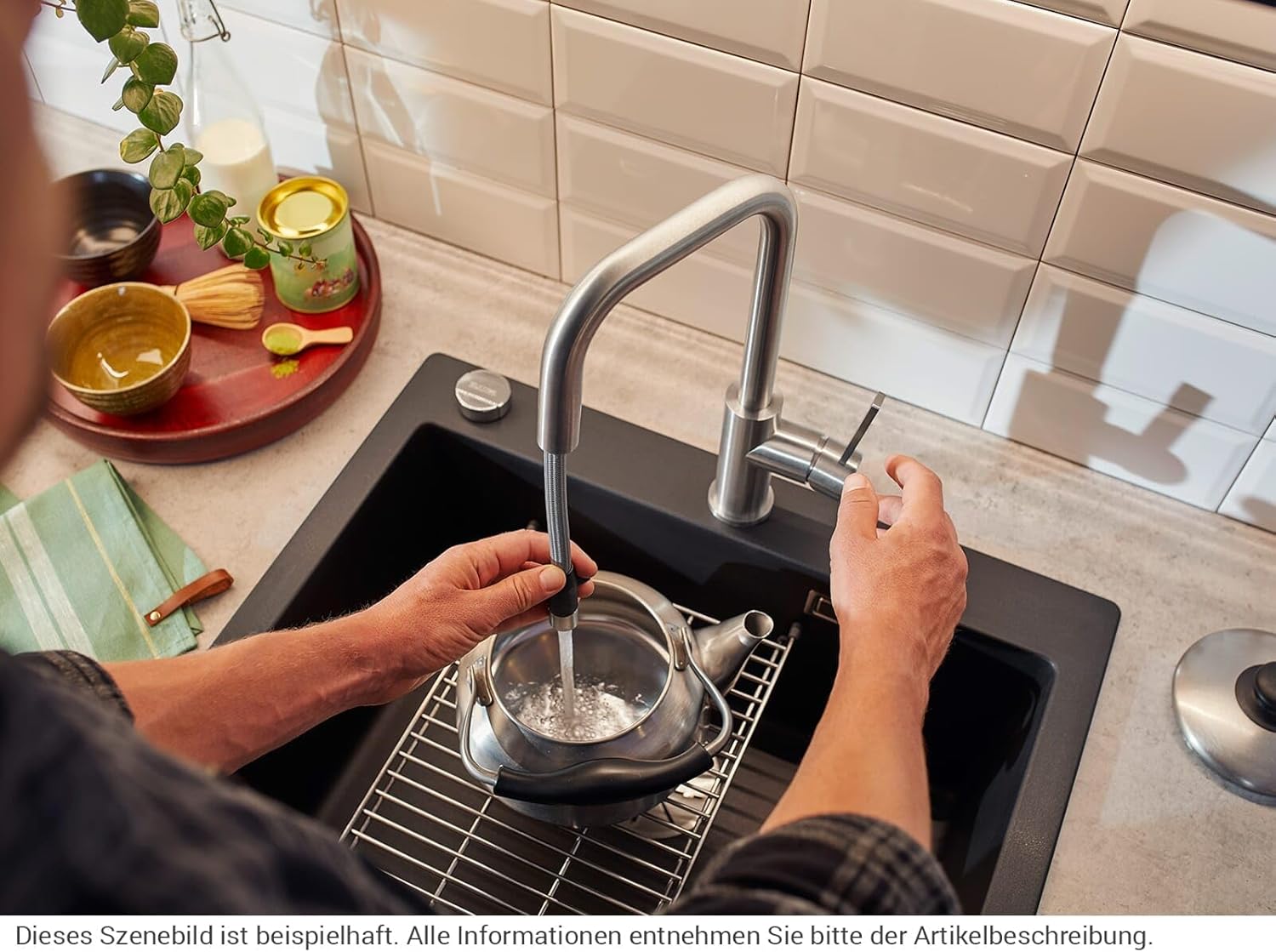

Figure 4: The pull-out spray provides flexibility for tasks such as filling large containers or rinsing the sink.
Figure 5: Close-up view of the pull-out spray head, highlighting its design and functionality.
Maintenance
Cleaning the Faucet
To maintain the brushed stainless steel finish, clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the surface.
Aerator Maintenance
The patented aerator is designed to reduce calcification. However, if water flow becomes restricted, the aerator may need cleaning. Unscrew the aerator from the tip of the spout, rinse any debris, and gently clean with a soft brush if necessary. Reattach the aerator securely.
General Care
Periodically check all connections for tightness to prevent leaks. Do not overtighten. The ceramic seals in the cartridge are designed for long-lasting, drip-free performance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water flow | Clogged aerator; partially closed shut-off valve; kinked supply line. | Clean the aerator (see Maintenance section); ensure shut-off valves are fully open; check supply lines for kinks. |
| Leaking at connections | Loose connection; damaged washer/seal. | Tighten connections (do not overtighten); replace damaged washers or seals. |
| Dripping from spout | Worn cartridge. | Contact customer support for a replacement cartridge. |
| Pull-out spray not retracting fully | Obstruction in hose path; insufficient weight on hose. | Check for obstructions under the sink; ensure the counterweight on the hose is properly positioned and not obstructed. |
Specifications
| Attribute | Detail |
|---|---|
| Model Number | 526614 |
| Brand | BLANCO |
| Material | Solid Stainless Steel |
| Finish | Brushed |
| Dimensions (L x W x H) | 10.5 x 23.5 x 36.4 cm |
| Weight | 1.9 kg |
| Installation Method | Single-hole, Deck Mounted |
| Required Faucet Hole Diameter | Ø 35 mm |
| Flow Rate | 10.5 Liters per minute |
| Spout Height | 253 mm |
| Spout Depth | 234 mm |
| Number of Handles | 1 |
| Special Feature | Pull-out spray |
| Certifications | LGA certified, EN 1717 compliant (backflow preventer) |
Warranty and Support
BLANCO products are manufactured to the highest quality standards. This product comes with a 2-year availability of spare parts as per the product specifications. For warranty claims, technical support, or to order spare parts, please contact BLANCO customer service or your authorized dealer.
Please have your model number (526614) and proof of purchase ready when contacting support.
For more information, visit the official BLANCO website or refer to the contact details provided with your purchase documentation.
