Introduction
This manual provides comprehensive instructions for the assembly, use, and maintenance of your KOTEK Portable Cube Storage Organizer. Designed for versatility and durability, this modular system offers ample storage for various items, helping to maintain an organized living space.
The organizer features 16 enclosed cubes with doors and 8 open compartments, providing flexible storage solutions for clothes, shoes, books, toys, and more. Its DIY modular design allows for customization to fit different spaces and needs.
Important Safety Information
- Always ensure that the weight on each cube does not exceed 22 lbs (10 kg) to maintain the stability and durability of the cabinet.
- Keep small parts away from children during assembly to prevent choking hazards.
- Ensure all connectors are fully engaged and panels are securely fitted to prevent collapse.
- Do not climb on or hang from the unit.
- Place the unit on a flat, stable surface.
Package Contents
Before assembly, please verify that all components listed below are present and undamaged:
- PP Panels (for sides, top, bottom, and back of cubes)
- ABS Connectors (for joining panels)
- Doors with Metal Rings (for enclosed cubes)
- Hanging Rods (quantity: 2, for clothes hanging)
- Mallet (for securing connectors)
- Instruction Manual
Assembly Instructions
Follow these steps for easy assembly. A mallet is included to ensure all connectors are fully secured.
Step 1: Unpack and Identify Components
Carefully unpack all parts and lay them out. Identify the PP panels, ABS connectors, doors, and hanging rods. Refer to the included instruction manual for a visual guide to each component.
Image: All components laid out for assembly, including panels, connectors, and the mallet.
Step 2: Assemble the Base Layer
Begin by connecting the bottom panels using the ABS connectors. Ensure the connectors are oriented correctly to form the base of your desired configuration. Use the mallet to gently tap the panels into the connectors until they are firmly seated.

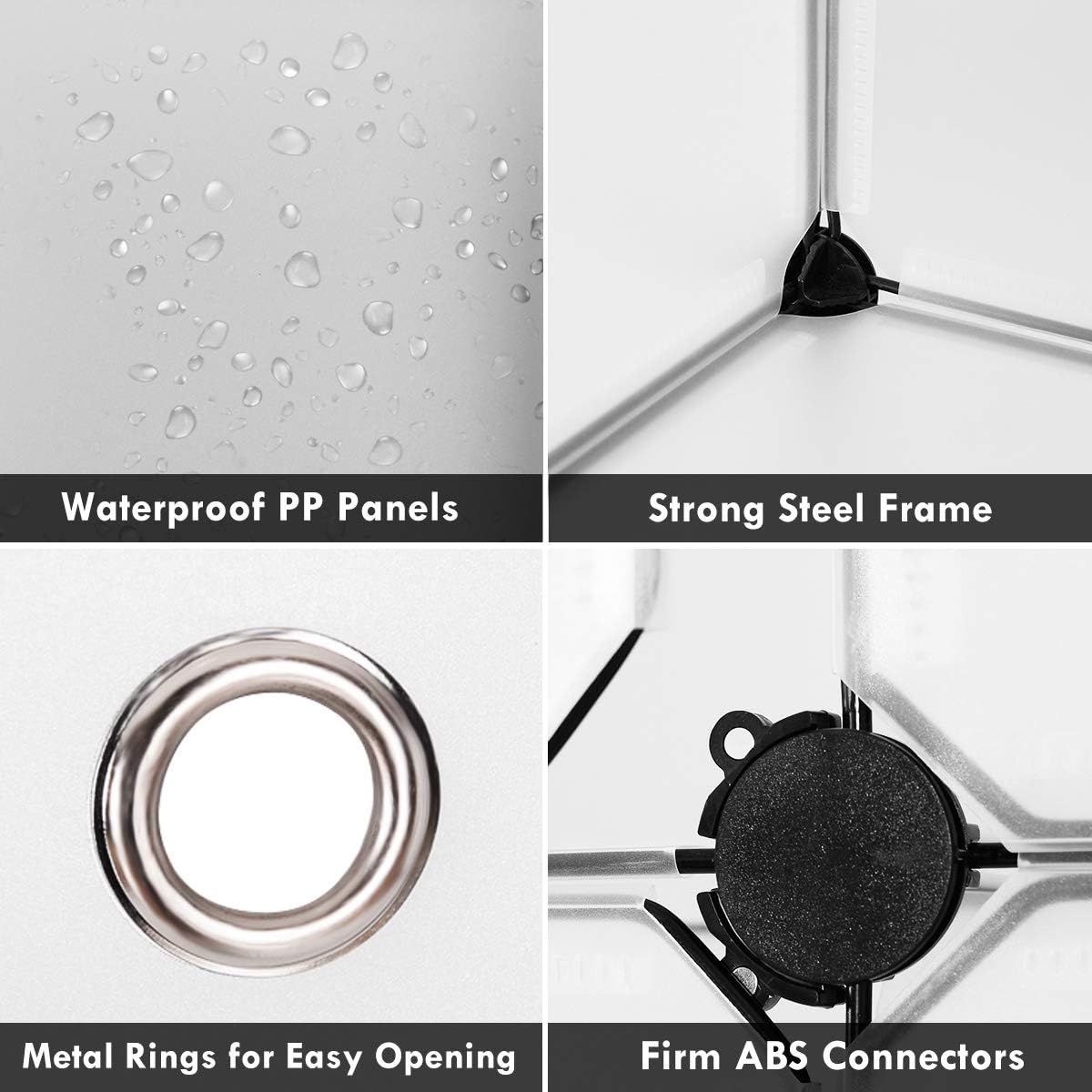

Image: Close-up view of the durable ABS connectors and waterproof PP panels during assembly.
Step 3: Build Up the Structure
Continue adding side and back panels, connecting them with the ABS connectors. Work layer by layer, ensuring each connection is secure before proceeding. The modular design allows for various arrangements, such as a 4x4 cube structure or a combination of open shelves and enclosed cubes.

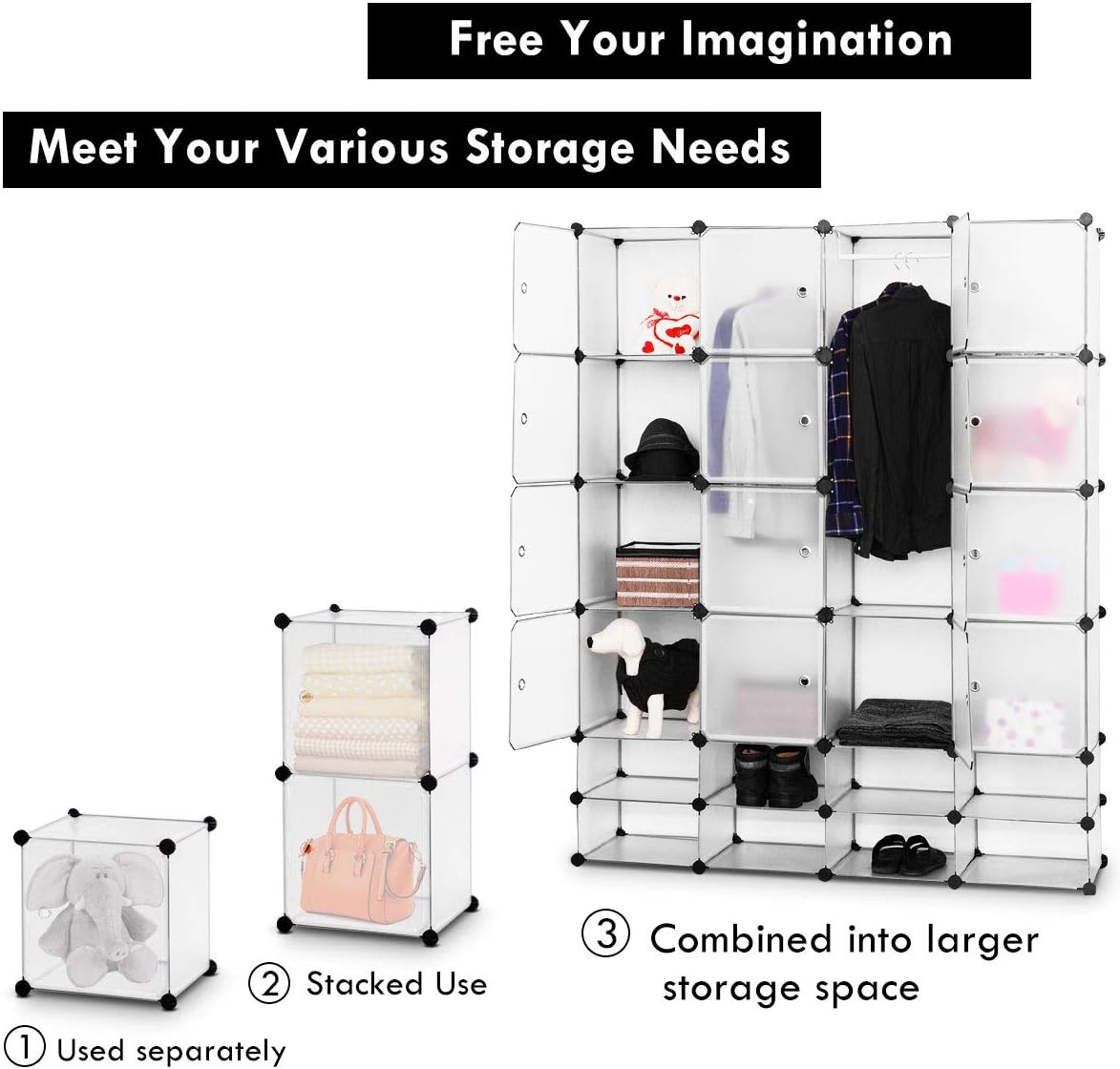

Image: Demonstrates the customizable modular design, allowing for separate cubes, stacked units, or combined larger storage spaces.
Step 4: Install Doors and Hanging Rods
Once the main structure is complete, attach the doors to the designated cubes. The doors feature metal rings for easy opening and magnetic suction for secure closure. If desired, install the two included metal hanging rods in appropriate cubes for hanging clothes.
Image: A fully assembled KOTEK Portable Closet Wardrobe, showcasing both enclosed cubes with doors and open compartments, along with hanging space for clothes.
Operating Instructions
The KOTEK Portable Cube Storage Organizer is designed for straightforward use:
- Loading Items: Place items evenly within each cube to distribute weight. Do not exceed the maximum weight capacity of 22 lbs (10 kg) per cube.
- Using Doors: Gently pull the metal ring to open the door. The magnetic suction will keep the door closed when not in use.
- Hanging Clothes: Utilize the provided hanging rods for garments that require hanging, such as shirts or dresses.
- Open Shelves: The lower 8 open shelves are ideal for items requiring ventilation or easy access, such as shoes or frequently used accessories.
Image: Illustrates the versatile storage capabilities for different types of items.
Maintenance
Maintaining your KOTEK Portable Cube Storage Organizer is simple:
- Cleaning: The waterproof PP surface can be easily cleaned with a damp cloth. Avoid using abrasive cleaners or harsh chemicals that may damage the material.
- Dusting: Regularly dust the unit to prevent accumulation.
- Inspection: Periodically check all connectors to ensure they remain tightly fitted. Re-tap with the mallet if any connections feel loose.
Image: Highlights the easy-to-clean and durable nature of the storage panels.
Troubleshooting
If you encounter any issues with your storage organizer, refer to the following common solutions:
- Unit feels wobbly: Ensure all panels are fully inserted into the connectors. Use the mallet to firmly tap each connection point.
- Panels do not fit: Double-check that you are using the correct size panels for each section and that connectors are oriented properly. Sometimes a firm tap with the mallet is needed.
- Doors do not close properly: Verify that the cube structure is square and that the door hinges are correctly aligned. Adjust panels if necessary.
Specifications
| Feature | Detail |
|---|---|
| Brand | KOTEK |
| Model | Portable Cube Storage Organizer (16 Cubes, 8 Open Compartments) |
| Material | PP (Polypropylene), Metal, ABS (Acrylonitrile Butadiene Styrene) |
| Color | White |
| Product Dimensions (L x W x H) | 57.5'' x 14.5'' x 71.5'' |
| Single Panel Size (L x W) | 14'' x 14'' |
| Weight Capacity per Cube | 22 lbs (10 kg) |
| Product Weight | 35 lbs |
| Assembly Required | Yes |
Warranty and Support
For warranty information or product support, please contact KOTEK customer service through the retailer where the product was purchased. Please have your purchase receipt and product model information ready.
