1. Introduction
Thank you for choosing the KIMO QM-9511B 6-inch 20V Cordless Electric Chainsaw. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before initial use and keep it for future reference. Proper use and care will ensure optimal performance and extend the lifespan of your chainsaw.
2. Safety Instructions
Your safety is paramount. Always adhere to the following safety guidelines when operating the chainsaw:
- Personal Protective Equipment (PPE): Always wear safety glasses, gloves, and other appropriate protective gear to prevent injury from flying debris.
- Double Lock Mechanism: To start the chainsaw, you must simultaneously press the safety lock button and the operating switch. This design prevents accidental activation.
- Protective Baffle: The chainsaw is equipped with an anti-splash cover (maximum rotation angle 130°) to shield you from wood chips and debris during operation.
- Overheat Protection: The tool features an overheat protection device that automatically adjusts temperature during prolonged use, preventing damage.
- Work Area: Ensure your work area is clear of obstacles and flammable materials. Keep bystanders and pets at a safe distance.
- Secure Grip: The non-slip, ergonomic handle is designed for a comfortable and secure grip, reducing fatigue during extended use.
- Battery Safety: Use only KIMO 20V batteries with KIMO chargers. Do not attempt to use batteries or chargers from other brands.
- Chain Tension: Regularly check and adjust chain tension to prevent accidents and ensure efficient cutting.
3. Package Contents
Verify that all items are present in your package:
- Chainsaw Body x 1
- 2.0Ah Lithium-ion Battery x 2
- Charger x 1
- Chain x 1
- Guide Bar Cover x 1
- Screwdriver x 1
- Mini Oil Bottle x 1 (Oil not included)
- Instruction Manual x 1
Image 3.1: All components included with the KIMO QM-9511B chainsaw.
4. Setup
4.1. Battery Installation and Charging
The chainsaw operates on 20V 2.0Ah lithium-ion batteries. Two batteries are included for extended use.
- Charging: Connect the charger to a power outlet and insert the battery. Ensure the battery is fully charged before use.
- Installation: To install the battery, align it with the battery slot on the chainsaw handle. Press the green button on the battery and slide it firmly into place until it clicks.
- Removal: To remove, press the green button on the battery and slide it out.
Image 4.1: The KIMO 20V 2.0Ah batteries feature multiple protection functions for safety and longevity.
4.2. Chain and Guide Bar Assembly
The KIMO QM-9511B features a tool-free chain replacement system.
- Remove Sprocket Cover: Turn the fixing knob counter-clockwise to loosen and remove the sprocket cover.
- Install Chain and Guide Bar: Carefully place the chain around the sprocket and guide bar, ensuring the cutting teeth are facing the correct direction (refer to Image 4.2).
- Reattach Sprocket Cover: Place the sprocket cover back and tighten the fixing knob clockwise.
Image 4.2: The tool-free design allows for easy removal of the sprocket cover for chain maintenance.
4.3. Chain Tension Adjustment
Proper chain tension is crucial for safety and performance. The chain should be snug but still able to be pulled around the guide bar by hand.
- Check Tension: After assembly and initial use, the chain may loosen. Check the tension regularly.
- Adjust Tension: Use the provided screwdriver to adjust the chain tension screw (refer to Image 4.3). Turn clockwise to tighten, counter-clockwise to loosen.
- Verify: Ensure the chain is correctly seated in the guide bar groove and has minimal slack.
Image 4.3: Adjusting the chain tension using the provided screwdriver.
Image 4.4: Visual guide for correct and incorrect chain tension.
5. Operating Instructions
5.1. Starting the Chainsaw
With the battery installed and chain tension checked:
- Ensure a firm grip on the handle.
- Press the safety lock button (located on the side of the handle).
- While holding the safety lock button, press the operating switch (trigger) to start the chainsaw.

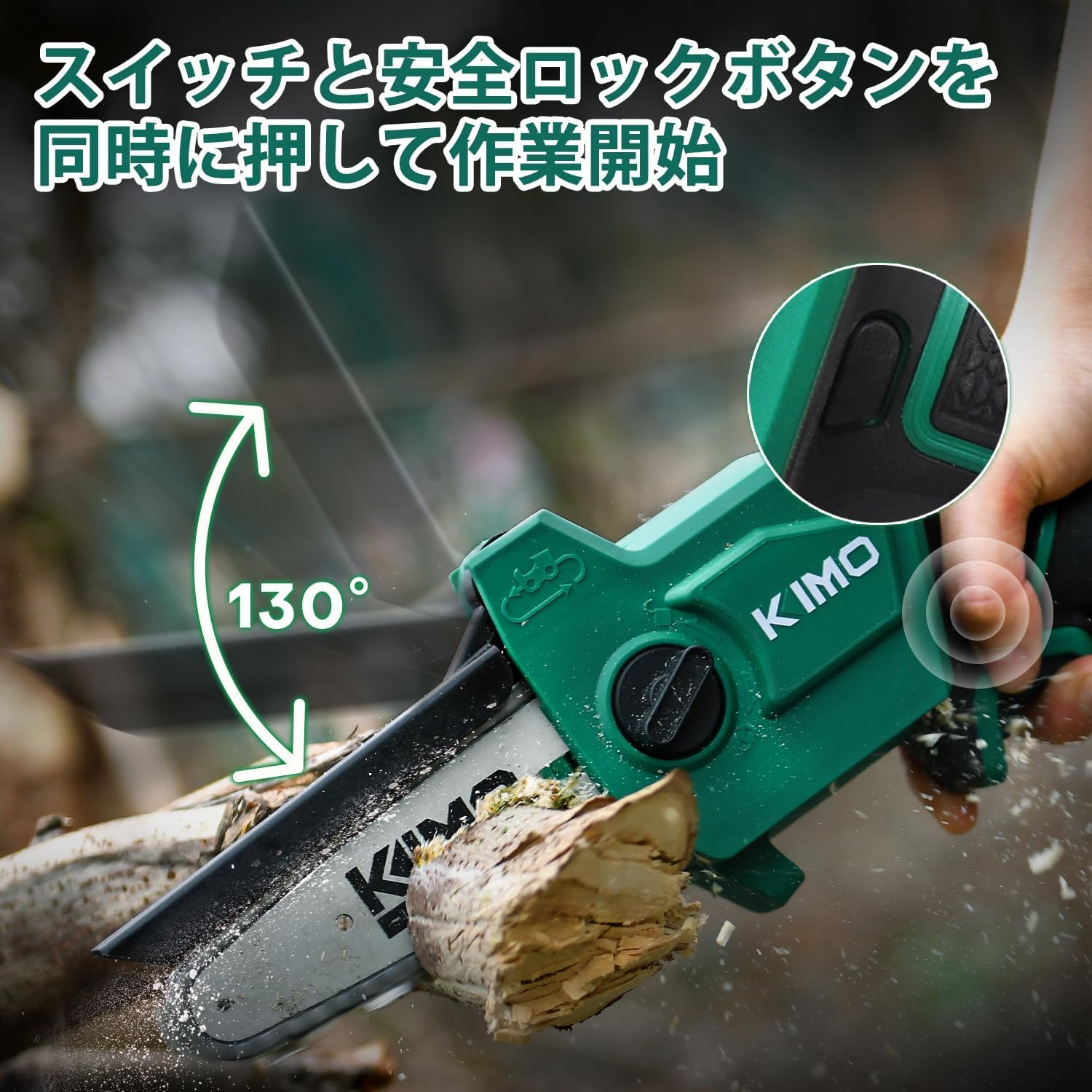

Image 5.1: Press the safety lock button and operating switch simultaneously to start the chainsaw.
5.2. Cutting Technique
The KIMO QM-9511B is designed for efficient cutting of branches and small logs up to 16cm in diameter.
- Approach: Position the chainsaw firmly against the material to be cut.
- Cutting Motion: Allow the chain to do the work. Do not force the saw through the wood.
- One-Hand Operation: The lightweight design (1.35kg with battery) allows for comfortable one-handed operation for lighter tasks.
Image 5.2: The chainsaw can cut logs up to 16cm in diameter with a maximum chain speed of 4 m/s.
Image 5.3: The lightweight design facilitates comfortable one-handed operation.
5.3. Lubrication
The chainsaw features a manual oiling function to ensure smooth operation and extend chain life.
- Frequency: Inject chain oil into the chain every 3 minutes of continuous operation.
- Method: Use the provided mini oil bottle to apply chain oil directly to the chain. (Note: Oil is not included in the package).
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your chainsaw.
6.1. Chain Care
- Tension: Always check chain tension before and after each use. Adjust as necessary using the tool-free knob.
- Cleaning: After use, clean wood chips and debris from the chain and guide bar.
- Replacement: The chain is a wear-and-tear part. Replace it when it becomes dull or damaged. Only use QM-9511B dedicated chains.
Image 6.1: The knob allows for quick, tool-free chain tension adjustment.
6.2. General Cleaning and Storage
- Cleaning: Wipe down the chainsaw body with a clean, dry cloth after each use. Do not use harsh chemicals.
- Storage: Store the chainsaw in a dry, secure place, out of reach of children. Remove the battery before storing for extended periods.
- Battery Storage: Store batteries in a cool, dry place. They are designed to resist discharge when not in use, and continuous charging is acceptable.
7. Troubleshooting
If you encounter issues with your KIMO QM-9511B chainsaw, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chainsaw does not start | Battery not installed correctly or discharged; Safety lock not engaged with trigger. | Ensure battery is fully charged and properly seated (press green button). Press safety lock and operating switch simultaneously. |
| Chain loosens frequently | Normal wear during initial use; Improper tension adjustment. | Re-adjust chain tension. Ensure the fixing knob is tightened securely. |
| Reduced cutting efficiency | Dull chain; Insufficient lubrication; Incorrect chain tension. | Replace or sharpen chain. Apply chain oil every 3 minutes. Adjust chain tension. |
| Motor stops or smells burnt | Overheating due to prolonged heavy use; Overload. | Allow the tool to cool down. Avoid forcing the saw. The overheat protection should activate. If the problem persists, contact support. |
| Battery not charging | Charger or battery defect; Improper connection. | Ensure secure connection. If battery is old, consider replacement (separate battery accessories are sold). Contact support if issue persists. |
If you have any questions during assembly or encounter issues not listed here, please contact KIMO customer support.
8. Specifications
- Brand: KIMO
- Model: QM-9511B
- Package Dimensions: 39.4 x 15.7 x 14 cm
- Product Weight: 1.35 kg (with battery)
- Color: Green
- Power Source: Battery-powered
- Voltage: 20V
- Wattage: 55W
- Motor Power: 40W
- Battery Type: Lithium-ion (2.0Ah)
- Guide Bar Length: 18.5 cm
- Effective Cutting Length: 6 inches (approx. 16 cm)
- Max Cutting Diameter: 16 cm
- Max Chain Speed: 4 m/s
- Motor Type: Brushless Motor
- Safety Features: Double lock button, 130° anti-splash cover, Overheat protection, Overcurrent protection, Charging protection.
- Material: High-quality ABS plastic shell, high-quality copper wire motor.
Image 8.1: The brushless motor ensures high efficiency and extended tool lifespan.
Image 8.2: The high-hardness chain and guide bar offer excellent wear and corrosion resistance.
9. Warranty and Support
KIMO is committed to providing high-quality products and excellent customer service.
- Quality Assurance: Each KIMO chainsaw undergoes a thorough quality inspection before shipment to ensure it meets our standards.
- Contact Support: In the unlikely event of a product issue, missing parts, or if you have any questions, please do not hesitate to contact our store via Amazon.
- Email Inquiries: Email inquiries will be responded to in the order they are received.
- Replacement Parts: If your battery is old or needs replacement, new battery accessories are available for separate purchase.
