BLUETTI Trolley Cart (Model: Trolly 2023) Instruction Manual

1. Introduction

This instruction manual provides essential information for the safe and efficient use of your BLUETTI Trolley Cart. Designed for portability and convenience, this anti-slip platform hand truck features universal wheels and a foldable design, making it ideal for transporting BLUETTI power stations and other heavy items up to 330 lbs.

Please read this manual thoroughly before operating the trolley cart and retain it for future reference.

2. Safety Instructions

• Weight Capacity: Do not exceed the maximum load capacity of 330 lbs (150 kg). Overloading can cause damage to the cart and potential injury.
• Stable Loading: Always ensure items are securely placed on the platform and balanced to prevent tipping during transport.
• Uneven Surfaces: Exercise caution when moving the cart on uneven terrain, inclines, or stairs. The cart is designed for general use and may not perform optimally on very rough surfaces.
• Folding Mechanism: Keep hands and fingers clear of moving parts when folding or unfolding the cart to avoid pinching.
• Children: Keep the cart out of reach of children. This is not a toy.
• Storage: Store the cart in a dry, safe place when not in use.

3. Package Contents

Verify that all items are present upon unpacking:

• 1 x BLUETTI Trolley Cart (Model: Trolly 2023)
• 1 x Instruction Manual (this document)

4. Setup

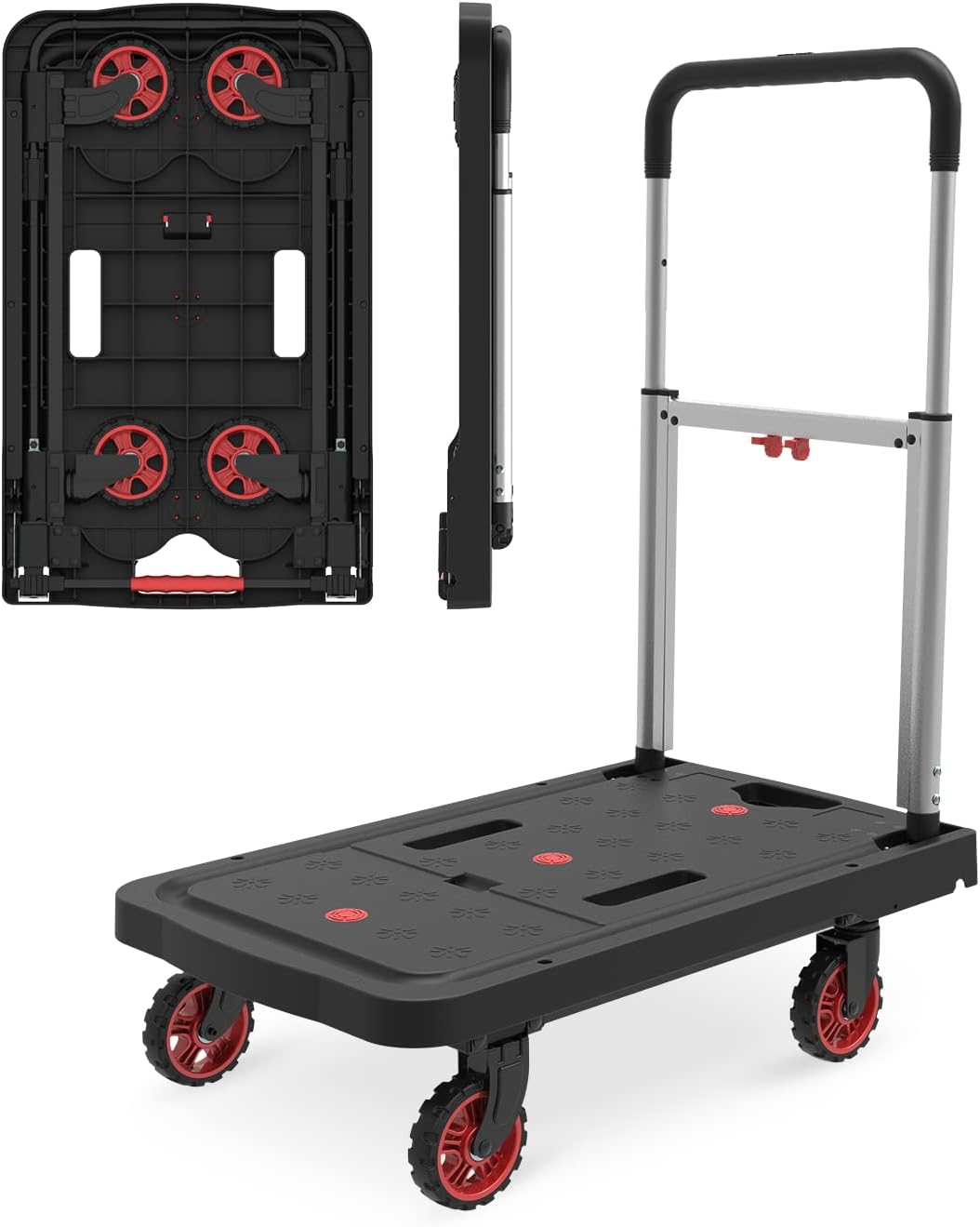

4.1 Unfolding the Trolley Cart

1. Place the folded cart on a flat, stable surface.
2. Locate the handle release mechanism (often a button or lever) and press it to extend the handle upwards.
3. As the handle extends, the platform and wheels will automatically unfold into their operational position. Ensure all wheels are fully extended and locked into place.
4. Verify that the handle is securely locked at your desired height.

4.2 Folding the Trolley Cart for Storage

1. Ensure the cart is empty and on a flat surface.
2. Press the handle release mechanism to retract the handle.
3. Gently push the handle downwards. The platform will fold inwards, and the wheels will retract automatically.
4. Once fully folded, the cart will be compact for easy storage.

5. Operating Instructions

5.1 Loading Items

• Place items centrally on the anti-slip platform.
• For multiple items, distribute weight evenly to maintain balance.
• Utilize the safety guardian feature to prevent items from slipping backward, especially with BLUETTI power stations.

5.2 Moving the Cart

• Grasp the padded handle firmly.
• Utilize the 360° universal wheels for easy maneuverability, especially around corners.
• Push or pull the cart smoothly. Avoid sudden jerks or movements.
• For heavy loads, ensure a clear path and proceed slowly.

6. Maintenance

• Cleaning: Wipe the cart with a damp cloth to remove dust and dirt. Avoid harsh chemicals that may damage the material.
• Wheel Inspection: Periodically check the wheels for debris or damage. Ensure they rotate freely.
• Lubrication: If wheels or folding mechanisms become stiff, apply a small amount of silicone-based lubricant.
• Storage: Store the cart in its folded position in a cool, dry place to prolong its lifespan.

7. Troubleshooting

• Cart is difficult to fold/unfold: Ensure no obstructions are present in the folding mechanism. Apply light lubricant if necessary.
• Wheels do not roll smoothly: Check for debris (hair, string, etc.) wrapped around the wheel axles. Clean as needed.
• Cart feels unstable: Verify that the load is centered and within the weight capacity. Ensure the handle is fully extended and locked.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the official BLUETTI website or contact their customer service directly. Keep your purchase receipt as proof of purchase.

BLUETTI Official Website: www.bluettipower.com
