HOMCOM 12V Electric Kids Dirt Bike - User Manual

0. Product Overview

The HOMCOM 12V Electric Kids Dirt Bike is designed to provide a fun and safe riding experience for young children. It features a durable construction, two adjustable speed settings, and removable training wheels for added stability.

Image 0.1: Key features of the HOMCOM Electric Kids Dirt Bike.

1. Safety Information

Read and understand all instructions before use. Keep this manual for future reference. Adult supervision is required at all times.

• Age Recommendation: Suitable for children aged 3 to 5 years.
• Weight Capacity: Do not exceed the maximum weight capacity of 30 kg (66 lbs).
• Protective Gear: Always ensure the child wears a helmet and other protective gear (e.g., knee pads, elbow pads) while operating the dirt bike.
• Operating Environment: Use on flat, dry surfaces. Avoid slopes, uneven terrain, sand, gravel, or wet conditions. Do not operate near roads, swimming pools, or other hazardous areas.
• Battery Safety:
  • Only use the charger provided with the product.
  • Do not overcharge the battery.
  • Keep the battery away from heat sources and direct sunlight.
  • Do not allow children to handle the battery or charger.
• Riding Habits:
  • Ensure the child's feet are on the footrests during operation.
  • Do not allow more than one rider at a time.
  • Instruct the child to stop before making turns.

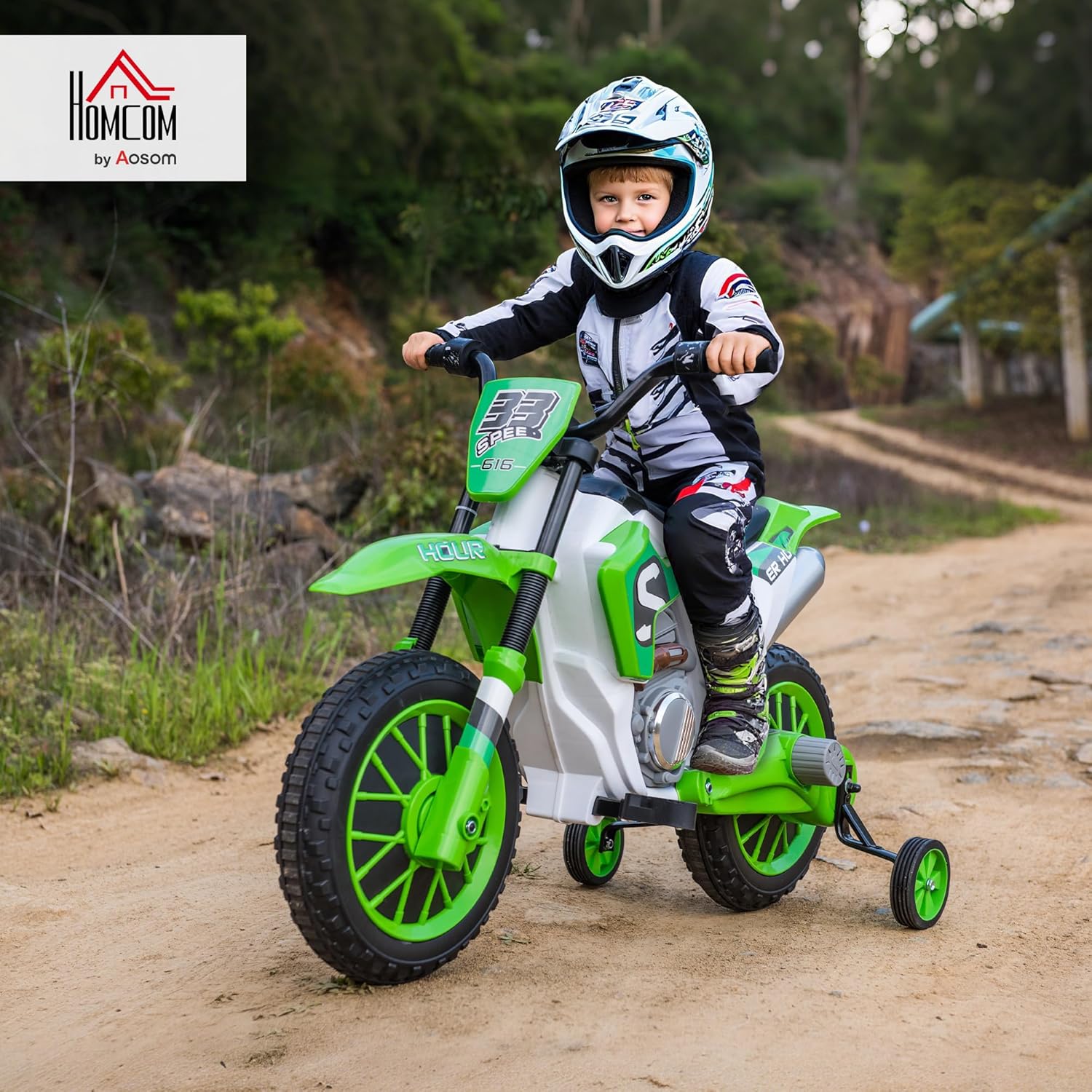

Image 1.1: A child safely operating the HOMCOM Electric Dirt Bike with appropriate protective gear.

2. Package Contents

Carefully unpack all components and ensure all items are present before assembly. If any parts are missing or damaged, contact customer support.

• HOMCOM Electric Kids Dirt Bike (Main Unit)
• Charger
• Removable Training Wheels (2)
• Handlebar
• Front Wheel
• Front Fender
• Assembly Hardware
• User Manual

3. Assembly Instructions

Assembly typically takes 10-30 minutes. An adult should perform all assembly steps.

1. Attach the Handlebar: Secure the handlebar to the main body using the provided screws and tools. Ensure it is firmly attached and centered.
2. Install the Front Wheel: Mount the front wheel onto the fork. Ensure all washers and nuts are correctly positioned and tightened.
3. Attach the Front Fender: Position the front fender over the front wheel and secure it with the appropriate fasteners.
4. Install Training Wheels (Optional): For initial stability, attach the two removable training wheels to the rear axle. These can be removed once the child gains confidence and balance.

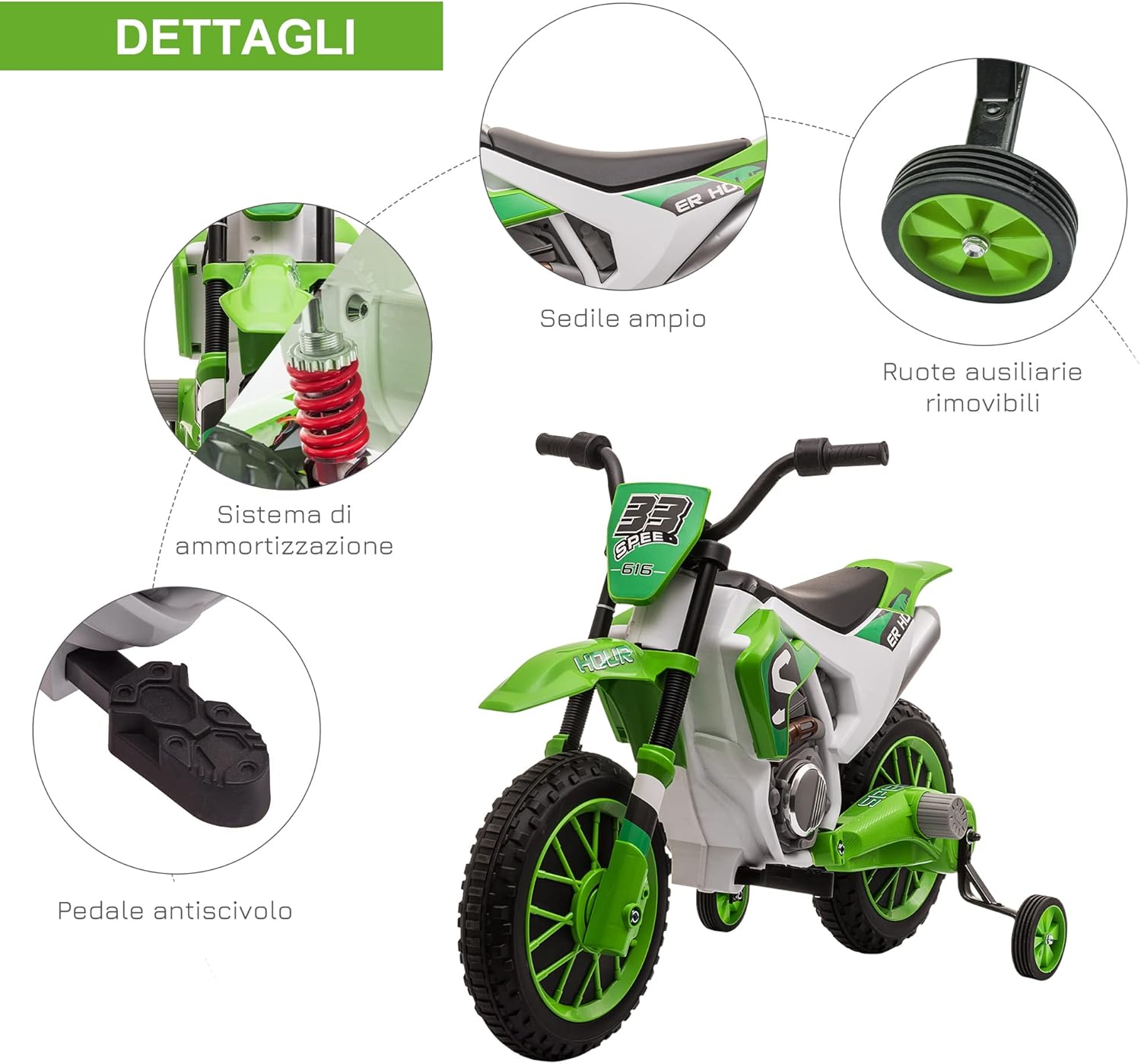

Image 3.1: Key components of the dirt bike, including the removable training wheels for assembly.

4. Operating Instructions

4.1. Charging the Battery

• Before first use, charge the battery for 8-12 hours. Subsequent charges should be 8-12 hours, not exceeding 18 hours.
• Locate the charging port, usually near the battery compartment.
• Plug the charger into a standard wall outlet, then connect it to the charging port on the bike.
• The battery indicator lights (if present) will show the charging status.
• A full charge provides approximately 45 minutes of continuous use, depending on terrain and rider weight.

4.2. Controls and Riding

Image 4.1: Handlebar controls for the electric dirt bike.

1. Power On/Off: Use the On/Off switch to power the bike.
2. Select Speed: The bike offers 2 speed levels (3-8 km/h). Use the high/low speed switch to select the desired speed. Start with the low speed for beginners.
3. Start Riding: Press the drive switch (typically a button on the handlebar or a foot pedal) to engage the motor. The bike features a slow start function for smooth acceleration.
4. Stopping: Release the drive switch to stop the bike.
5. Steering: Use the handlebars to steer the bike.

Image 4.2: The bike's wheels are designed for various terrains like cement, paved, asphalt, and wood.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your electric dirt bike.

• Cleaning: Wipe the bike with a soft, damp cloth. Do not use abrasive cleaners or spray water directly onto electrical components.
• Battery Care:
  • Charge the battery after each use.
  • If storing for an extended period, charge the battery at least once a month to prolong its lifespan.
  • Do not store the bike with a completely discharged battery.
• Inspections:
  • Periodically check all screws, nuts, and fasteners to ensure they are tight.
  • Inspect the wheels and tires for wear or damage.
  • Check the electrical connections for any signs of corrosion or loose wiring.
• Storage: Store the bike in a dry, cool place away from direct sunlight and moisture.

6. Troubleshooting

If you encounter issues, refer to the table below for common problems and solutions. If the problem persists, contact customer support.

7. Specifications

Image 7.1: Product dimensions for the electric dirt bike.

8. Warranty and Support

For warranty information, product support, or to order replacement parts, please contact HOMCOM customer service. Keep your purchase receipt as proof of purchase.

Contact Information: Refer to the HOMCOM official website or your purchase documentation for the most up-to-date contact details.
